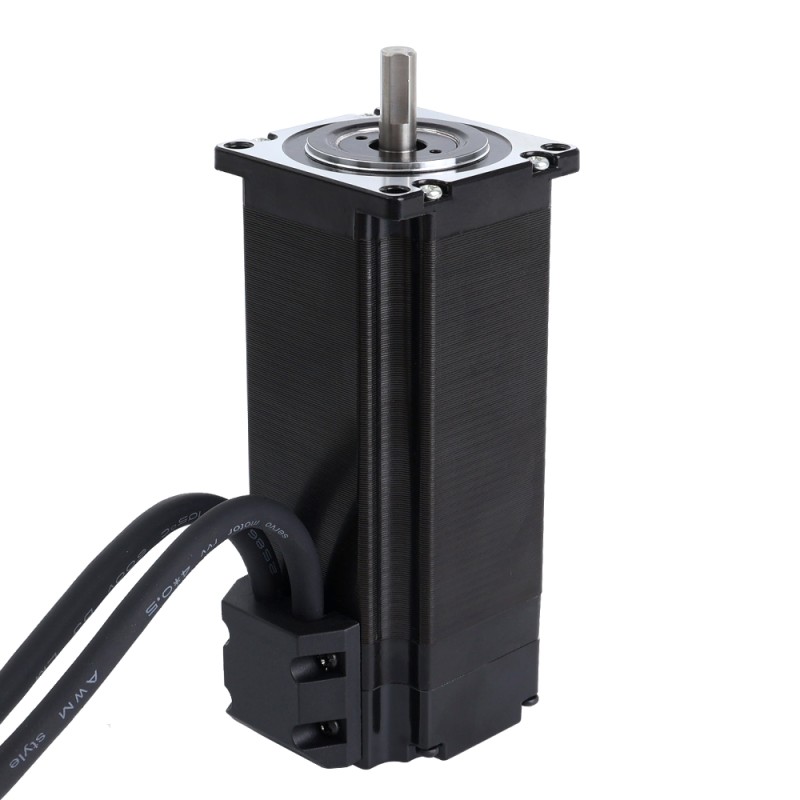

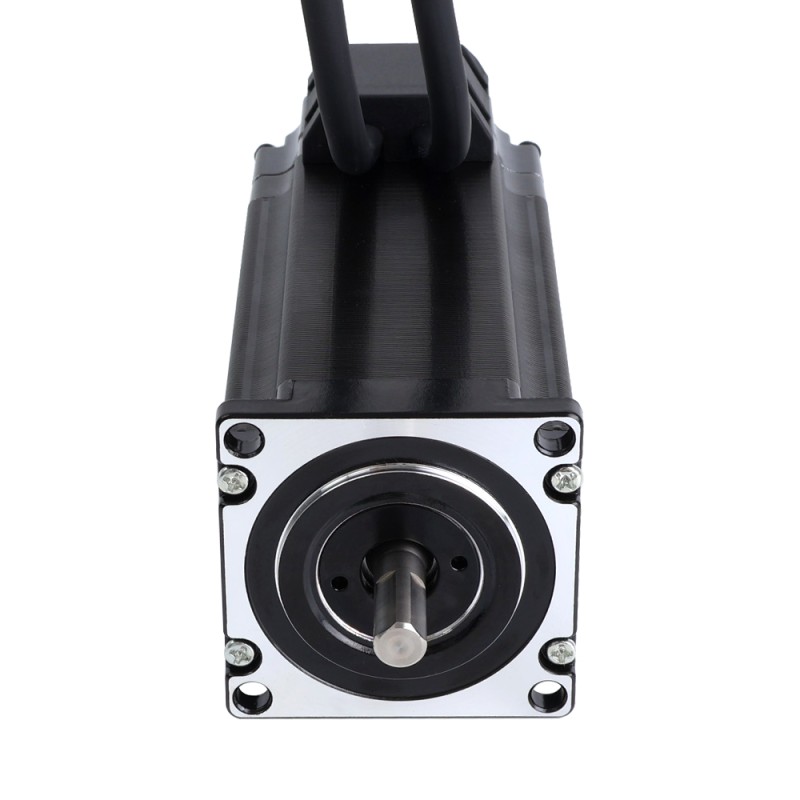

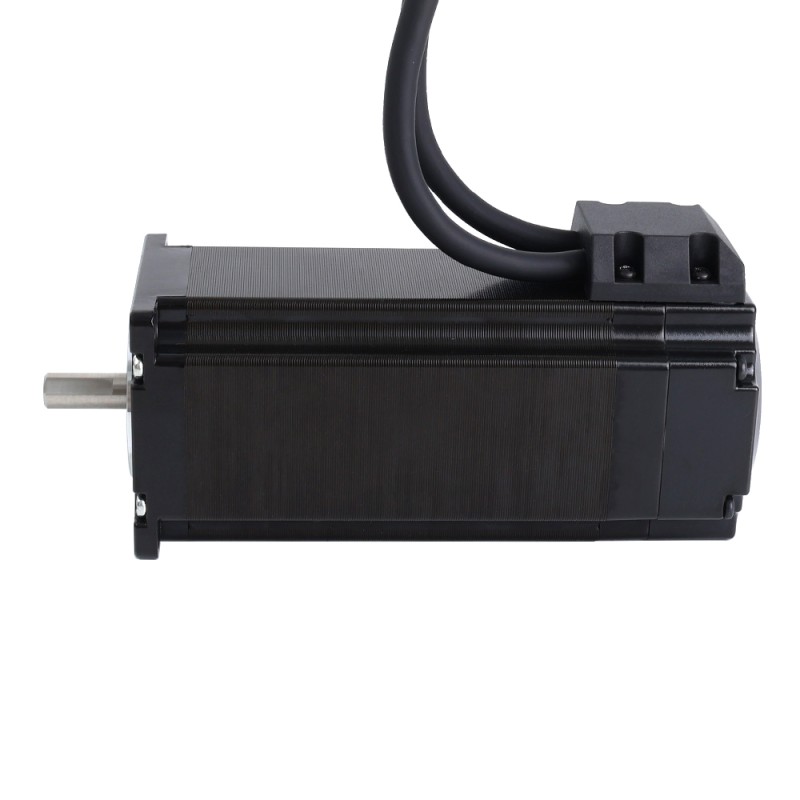

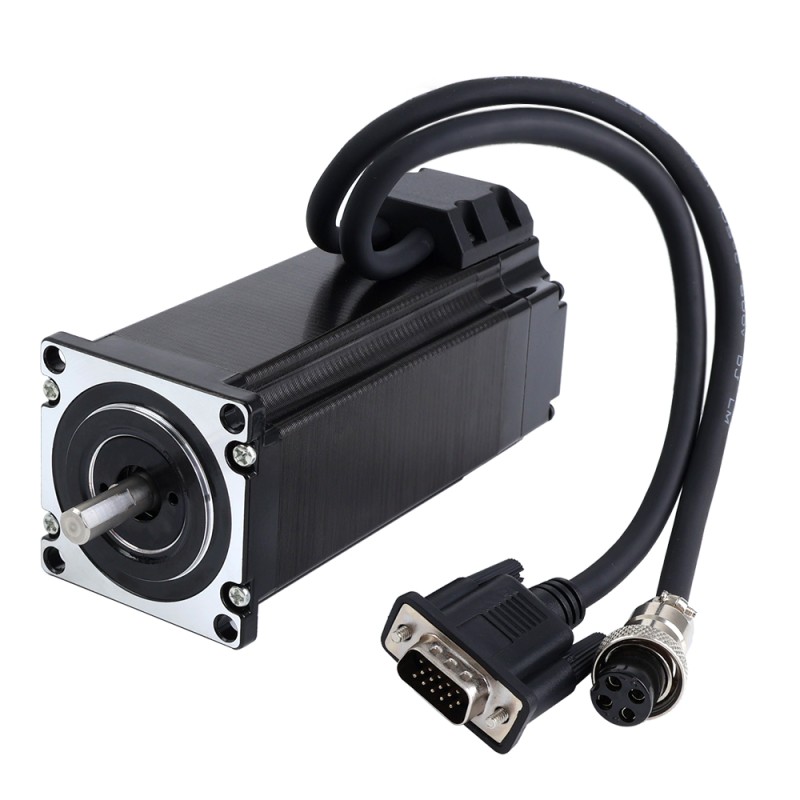

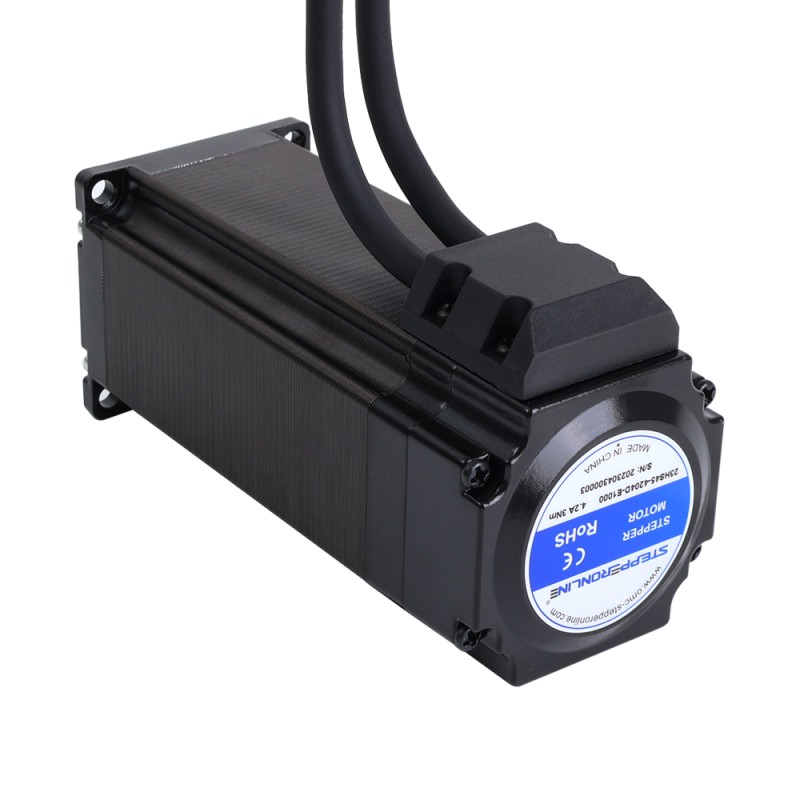

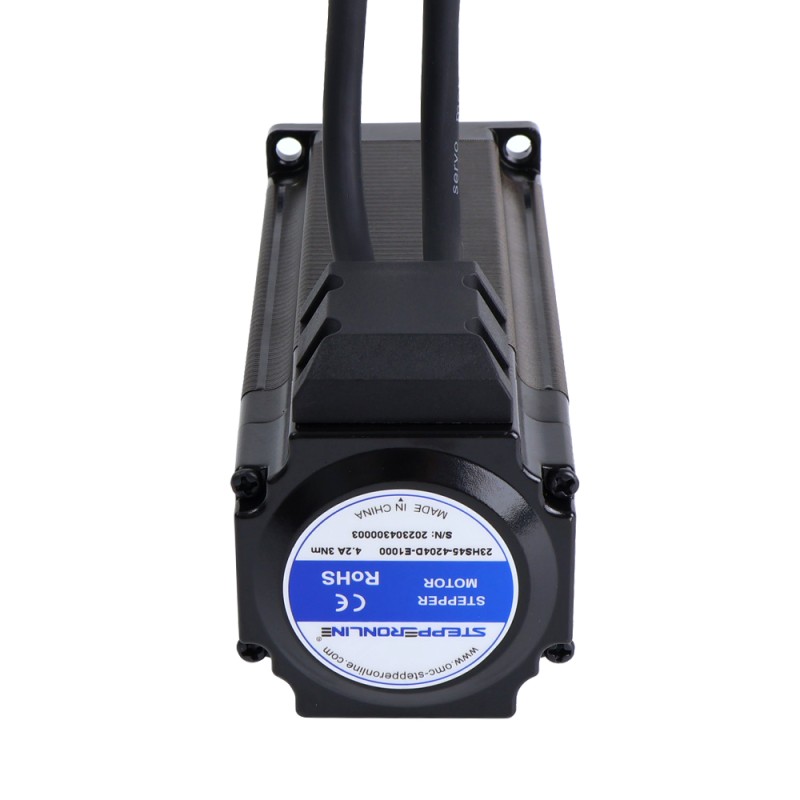

Nema 23 Closed Loop Stepper Motor 3.0Nm(424.83oz.in) Encoder 1000PPR(4000CPR)

Nema 23 Closed Loop Stepper Motor 3.0Nm(424.83oz.in) Encoder 1000PPR(4000CPR)
Nema 23 Closed Loop Stepper Motor 3.0Nm(424.83oz.in) Encoder 1000PPR(4000CPR)
Nema 23 Closed Loop Stepper Motor 3.0Nm(424.83oz.in) Encoder 1000PPR(4000CPR)
Nema 23 Closed Loop Stepper Motor 3.0Nm(424.83oz.in) Encoder 1000PPR(4000CPR)
Nema 23 Closed Loop Stepper Motor 3.0Nm(424.83oz.in) Encoder 1000PPR(4000CPR)
Nema 23 Closed Loop Stepper Motor 3.0Nm(424.83oz.in) Encoder 1000PPR(4000CPR)
Nema 23 Closed Loop Stepper Motor 3.0Nm(424.83oz.in) Encoder 1000PPR(4000CPR)
Nema 23 Closed Loop Stepper Motor 3.0Nm(424.83oz.in) Encoder 1000PPR(4000CPR)
Nema 23 Closed Loop Stepper Motor 3.0Nm(424.83oz.in) Encoder 1000PPR(4000CPR)
Nema 23 Closed Loop Stepper Motor 3.0Nm(424.83oz.in) Encoder 1000PPR(4000CPR)
Nema 23 Closed Loop Stepper Motor 3.0Nm(424.83oz.in) Encoder 1000PPR(4000CPR)
Nema 23 Closed Loop Stepper Motor 3.0Nm(424.83oz.in) Encoder 1000PPR(4000CPR)
Nema 23 Closed Loop Stepper Motor 3.0Nm(424.83oz.in) Encoder 1000PPR(4000CPR)
0 reviews • Write a review
from
$46.83
10 or more $43.11
100 or more $39.95
  • Model: 23HS45-4204D-E1000
  • Weight: 1.90kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Motor Shaft
Length, Keyway, Flattened, Diameter...
Cable
Length, Connector, Terminal...
Body
Body Dimensions, Mounting Holes...
Performance
Current/Torque, Step Angle...
Optional Accessories
Encoder, Brake
Labeling
No Label / Custom Label, Laser Marking...

Motor Specification

  • Manufacturer Part Number: 23HS45-4204D-E1000
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 3.0Nm(424.83oz.in)
  • Rated Current/phase: 4.2A
  • Phase Resistance: 0.82ohms
  • Inductance: 3.6mH ± 20%(1KHz)
  • Insulation Class: B 130°C[266°F]
  • Frame Size: 57 x 57mm
  • Body Length: 135mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 21mm
  • D-Cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 300mm

Encoder Specification

  • Output Circuit Type: Differential type
  • Encoder Type: Optical Incremental
  • Encoder Resolution: 1000PPR(4000CPR)
  • Output Signal Channels: 2 channels
  • Minimum Supply Voltage: 4.5V
  • Maximum Supply Voltage: 5V
  • Output Current: 25mA
  • Output High Voltage: 4.5V
  • Output Low Voltage: 4.2-4.3V
  • Output Frequency Max: 60kHZ

Connection

A+
A-
B+
B-
1
2
3
4

PIN
1
2
3
11
12
13
Encoder
EA+
VCC
GND
EB+
EB-
EA-
The motor comes with a highly flexible cable that can be bent 8 million times without failure.
Physical Specification
Shaft Diameter(mm) 8
Shaft Length(mm) 21
Frame Size(mm) Nema 23 (57 x 57)
Body Length(mm) 138
Product Series S
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Encoder Resolution 1000PPR
Output Signal Channels 2
Holding Torque(Ncm) 300
Rated Current(A) 4.2
Holding Torque(oz.in) 424.83
Phase Resistance(ohms) 0.82
Inductance(mH) 3.6
Output Circuit Type Differential
Encoder Type Optical Incremental
Has Torque/Thrust Curve? Yes
Product Type
Product Type Closed Loop Stepper Motor
