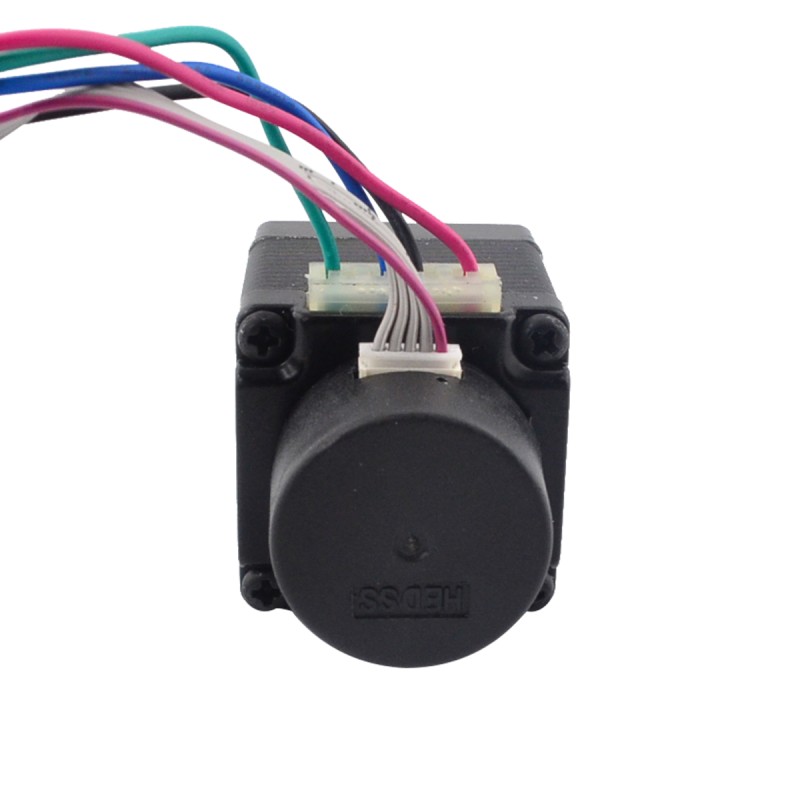

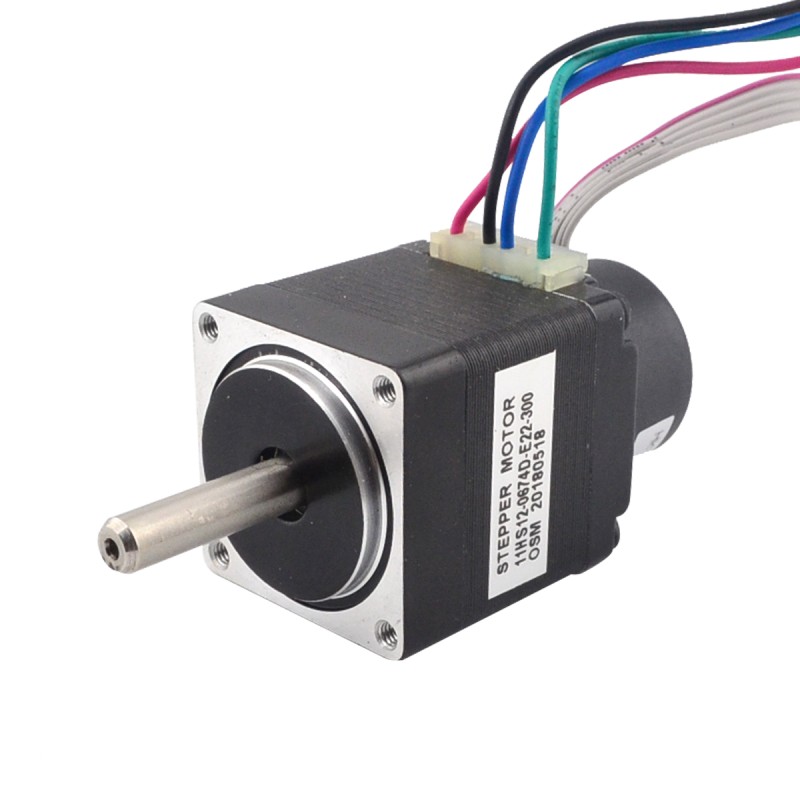

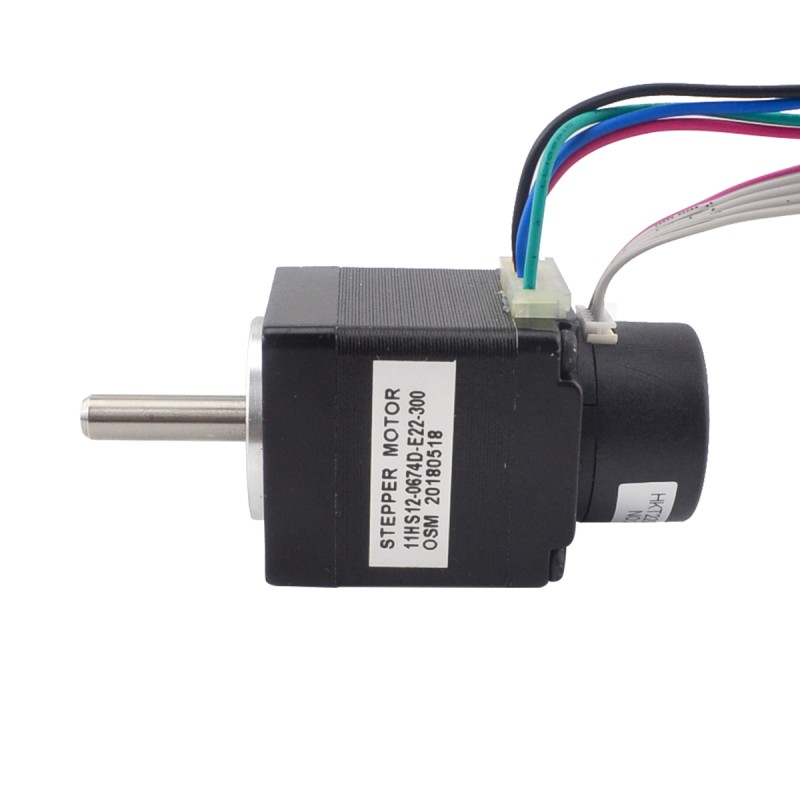

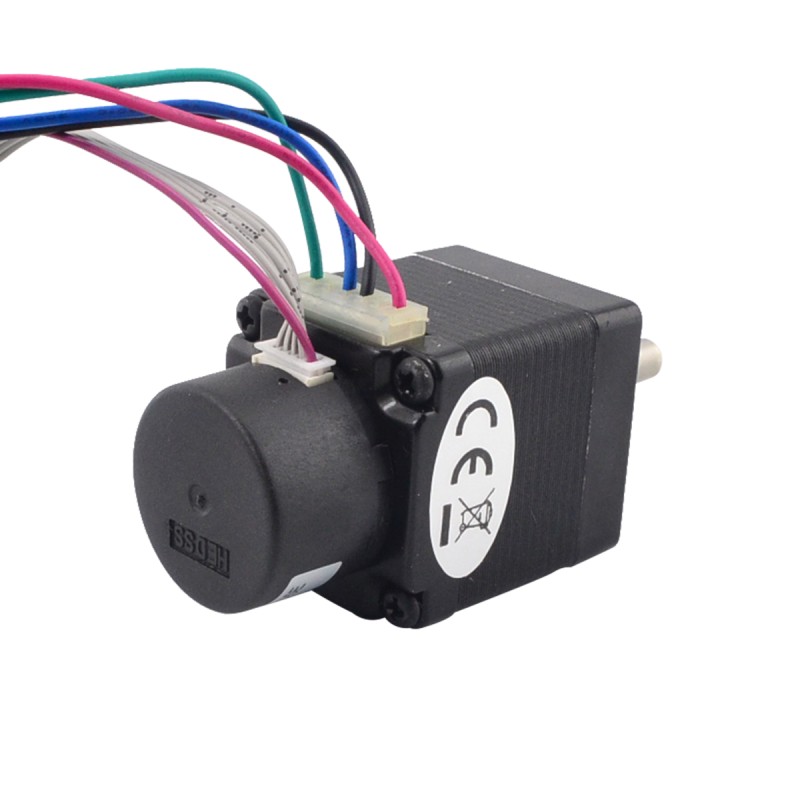

Nema 11 Closed Loop Stepper Motor 0.07Nm(9.91oz.in) Encoder 300PPR

Nema 11 Closed Loop Stepper Motor 0.07Nm(9.91oz.in) Encoder 300PPR
Nema 11 Closed Loop Stepper Motor 0.07Nm(9.91oz.in) Encoder 300PPR
Nema 11 Closed Loop Stepper Motor 0.07Nm(9.91oz.in) Encoder 300PPR
Nema 11 Closed Loop Stepper Motor 0.07Nm(9.91oz.in) Encoder 300PPR
Nema 11 Closed Loop Stepper Motor 0.07Nm(9.91oz.in) Encoder 300PPR
Nema 11 Closed Loop Stepper Motor 0.07Nm(9.91oz.in) Encoder 300PPR
Nema 11 Closed Loop Stepper Motor 0.07Nm(9.91oz.in) Encoder 300PPR
Nema 11 Closed Loop Stepper Motor 0.07Nm(9.91oz.in) Encoder 300PPR
Nema 11 Closed Loop Stepper Motor 0.07Nm(9.91oz.in) Encoder 300PPR
Nema 11 Closed Loop Stepper Motor 0.07Nm(9.91oz.in) Encoder 300PPR
Nema 11 Closed Loop Stepper Motor 0.07Nm(9.91oz.in) Encoder 300PPR
Nema 11 Closed Loop Stepper Motor 0.07Nm(9.91oz.in) Encoder 300PPR
Nema 11 Closed Loop Stepper Motor 0.07Nm(9.91oz.in) Encoder 300PPR
0 reviews • Write a review
from
$54.70
10 or more $49.78
100 or more $45.67
  • Model: 11HS12-0674D-E22-300
  • Weight: 0.29kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Motor Shaft
Length, Keyway, Flattened, Diameter...
Cable
Length, Connector, Terminal...
Body
Body Dimensions, Mounting Holes...
Performance
Current/Torque, Step Angle...
Optional Accessories
Encoder, Brake
Labeling
No Label / Custom Label, Laser Marking...

Motor Specification

  • Manufacturer Part Number: 11HS12-0674D-E22-300
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 0.07Nm(9.91oz.in)
  • Rated Current/phase: 0.67A
  • Voltage: 3.75V
  • Phase Resistance: 5.60ohms
  • Inductance: 4.00mH ± 20%(1KHz)
  • Insulation Class: B 130°C[266°F]
  • Frame Size: 28 x 28mm
  • Motor Length: 46mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 20mm
  • Number of Leads: 4
  • Lead Length: 500mm

Encoder Specification

  • Encoder Type: Optical Incremental
  • Driving Voltage : 5VDC
  • Output current : ≤20mA
  • Resolution: 300ppr
  • Output Signal: 2 Channels
  • Shaft Diameter: Φ5mm
  • Output Frequency: ≤30KHz
  • Output Low Voltage: ≤0.3VDC
  • Output High Voltage: ≥3.4VDC

Connection

PIN
1
2
3
4
Motor
A+
A-
B+
B-

PIN
1
2
3
4
5
Encoder
0V
N.C
Ch B
+5V
Ch A
Physical Specification
Shaft Diameter(mm) 5
Shaft Length(mm) 20
Frame Size(mm) Nema 11 (28 x 28)
Body Length(mm) 46
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Encoder Resolution 300PPR
Output Signal Channels 2
Holding Torque(Ncm) 7
Rated Current(A) 0.67
Holding Torque(oz.in) 9.91
Phase Resistance(ohms) 5.6
Inductance(mH) 4
Output Circuit Type Push-Pull (Single-Ended)
Encoder Type Optical Incremental
Has Torque/Thrust Curve? No
Product Type
Product Type Closed Loop Stepper Motor
