NEMA 34 Non-Captive Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1") Lead Length 300mm

NEMA 34 Non-Captive Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1") Lead Length 300mm
NEMA 34 Non-Captive Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1") Lead Length 300mm
NEMA 34 Non-Captive Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1") Lead Length 300mm
NEMA 34 Non-Captive Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1") Lead Length 300mm
NEMA 34 Non-Captive Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1") Lead Length 300mm
NEMA 34 Non-Captive Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1") Lead Length 300mm
NEMA 34 Non-Captive Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1") Lead Length 300mm
NEMA 34 Non-Captive Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1") Lead Length 300mm
NEMA 34 Non-Captive Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1") Lead Length 300mm
NEMA 34 Non-Captive Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1") Lead Length 300mm
NEMA 34 Non-Captive Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1") Lead Length 300mm
NEMA 34 Non-Captive Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1") Lead Length 300mm
NEMA 34 Non-Captive Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1") Lead Length 300mm
0 reviews • Write a review
from
$159.74
10 or more $150.41
100 or more $142.11
  • Model: 34N30S5504GK5-300RS
  • Weight: 2.85kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Lead Screw
Lead, Length, Screw End Machining, Thread Type...
Nut
Material, Profile/Shape, Dimensions...
Body
Body Dimensions, Mounting Holes...
Cable
Length, Connector, Terminal...
Optional Accessories
Encoder, Brake

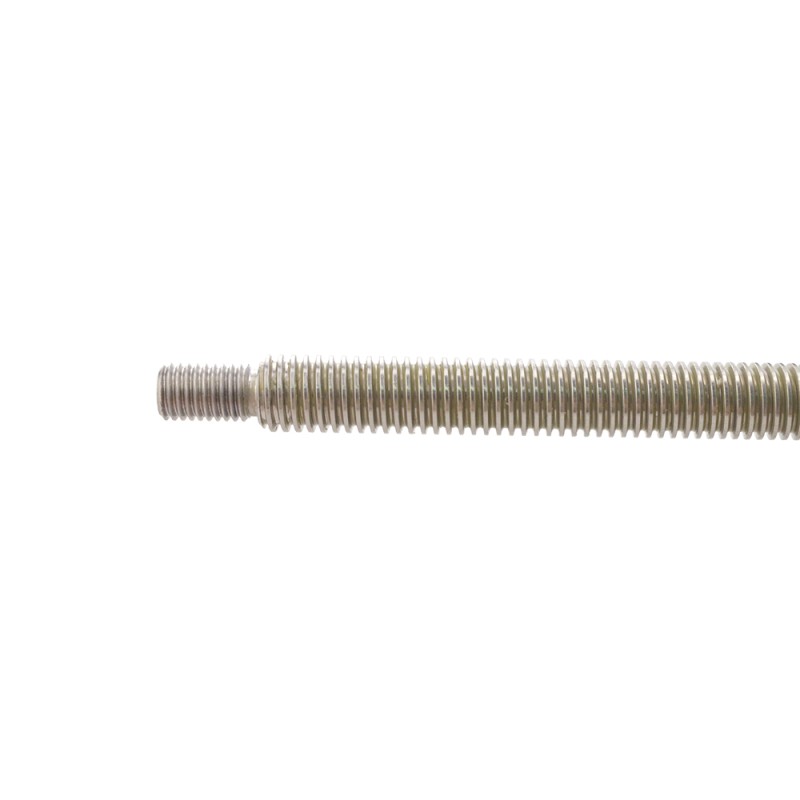

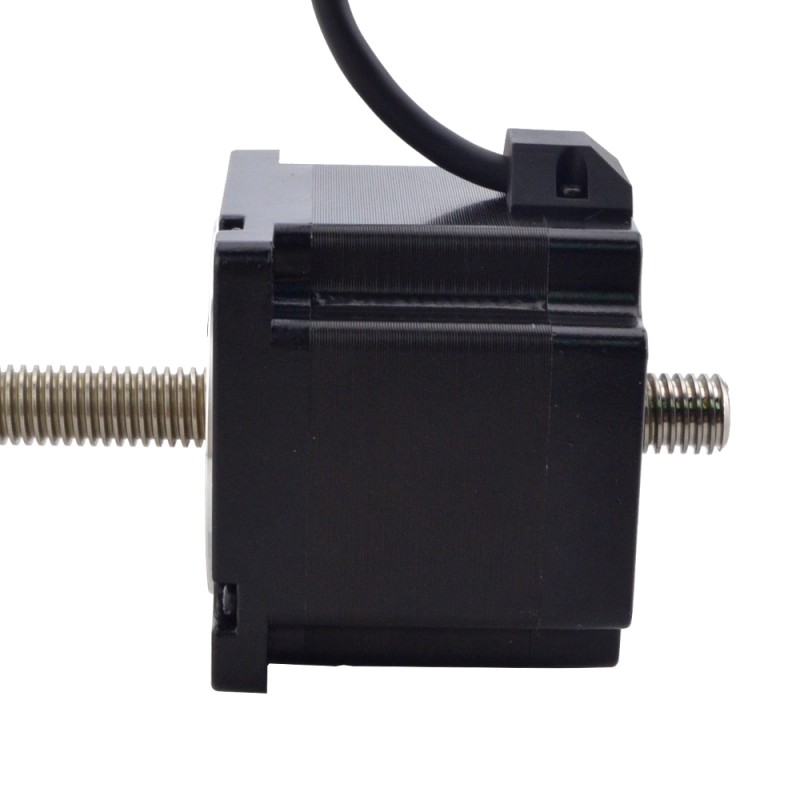

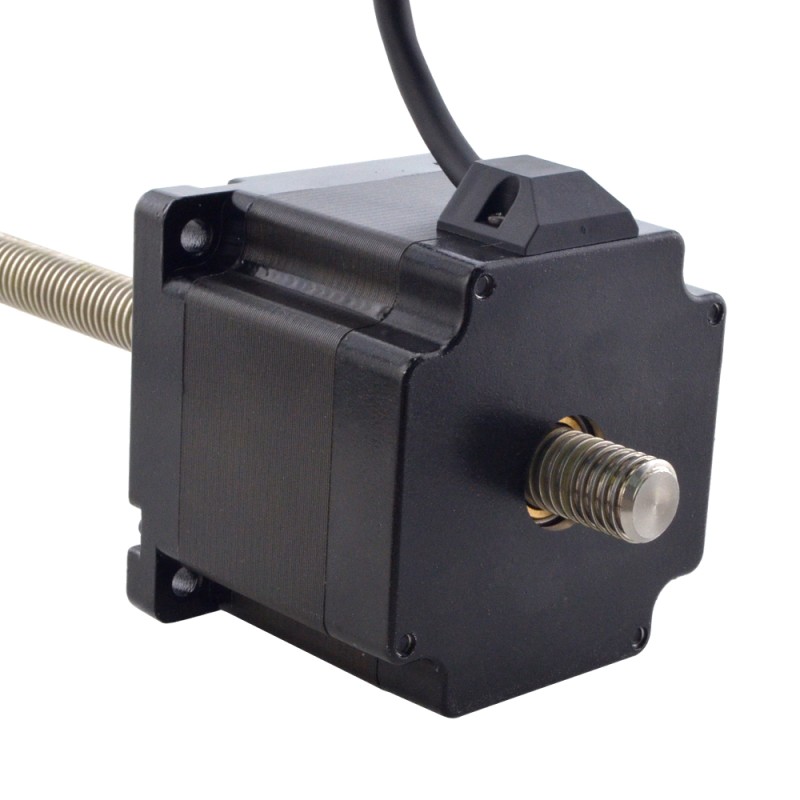

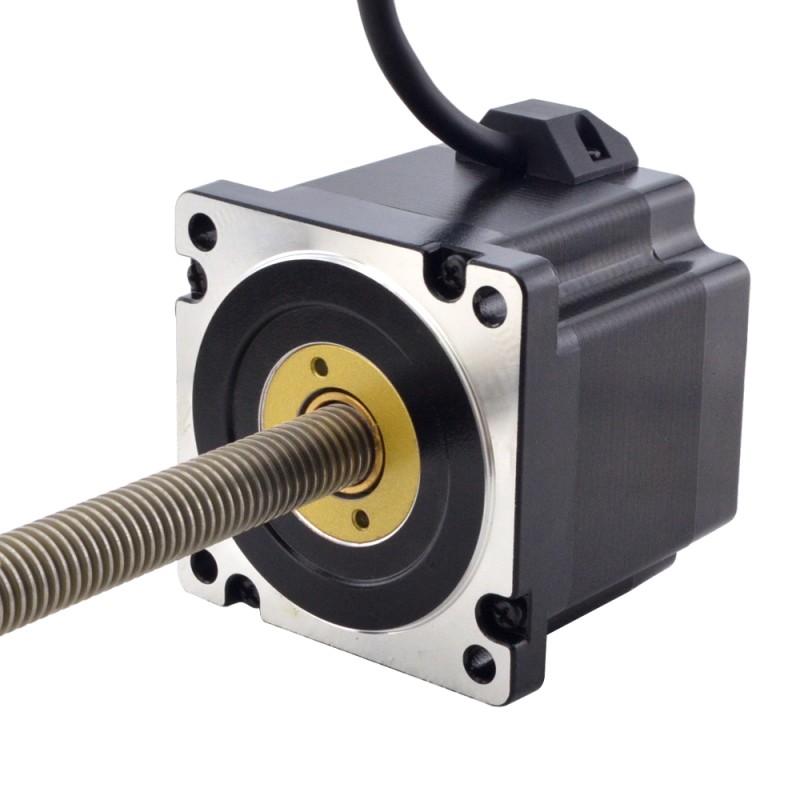

This is integrated with a Φ15.875mm(0.625") diameter, 300mm(11.811") lead screw length and the linear travel is 2.54mm(0.1") per revolution. This model is a Nema 34 Non-Captive screw linear stepper motor with a 76mm body length, 1.8 degree step angle and 5.5A rated current. It has the characteristics of high performance, long life, low noise and high efficiency.

Electrical Specification

  • Manufacturer Part Number: 34N30S5504GK5-300RS
  • Motor Type: Non-Captive
  • Step Angle: 1.8°
  • Holding Torque: 4.5Nm(637.38oz.in)
  • Rated Current/phase: 5.5A
  • Phase Resistance: 0.5ohms
  • Inductance: 4.5mH±20%(1KHz)

Physical Specification

  • Frame Size: 86 x 86mm
  • Body Length: 76mm
  • Lead Screw Length: 300mm(11.811")
  • Lead Screw Diameter: Φ15.875mm(0.625")
  • Lead/Step: 0.0127mm(0.0005")
  • Lead Travel/Revolution: 2.54mm(0.1")
  • Number of Leads: 4
  • Number of Thread Starts: 2
  • Cable Length: 500mm

Connection

A+
A-
B+
B-
Red
Red/White
Green
Green/White

● How to order a custom linear motor?  Custom Linear Stepper Motor

● If you only have the old part number, get the new one here  Show Details

● How we named linear motor?  Part Number Construction

Physical Specification
No. of Lead 4
Lead Length(mm) 500
Linear Motor Type Non-Captive
Lead Travel/Revolution(mm) 2.54
Lead Travel/Step(mm) 0.0127
Lead Screw Length(mm) 300
Lead Screw Diameter(mm) 15.875
Frame Size(mm) Nema 34 (86 x 86)
Body Length(mm) 76
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Rated Current(A) 5.5
Bipolar/Unipolar Bipolar
Step Angle(deg.) 1.8
Phase Resistance(ohms) 0.5
Inductance(mH) 4.5
Has Torque/Thrust Curve? Yes
