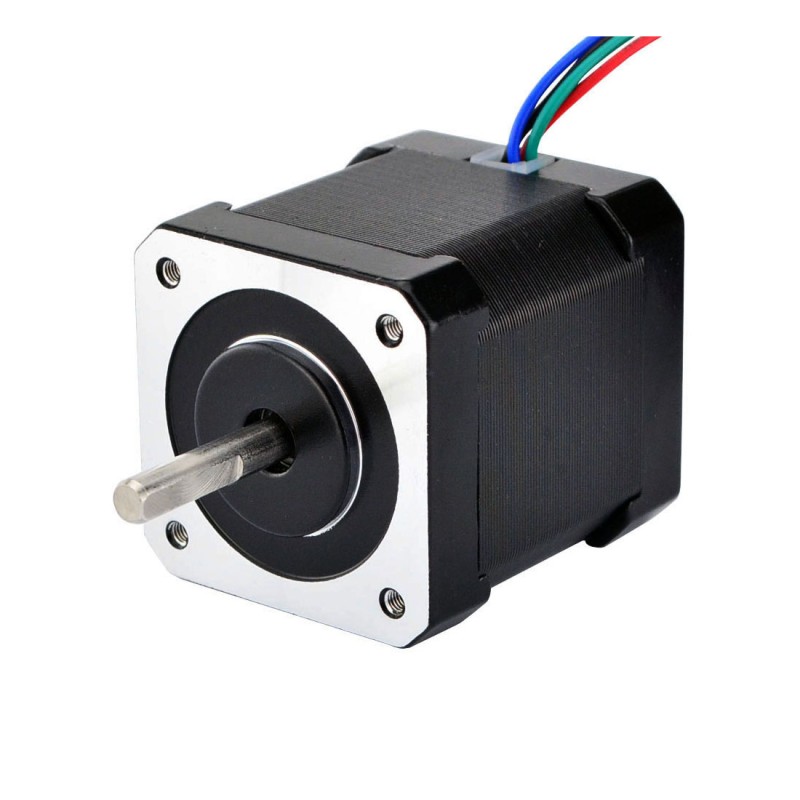

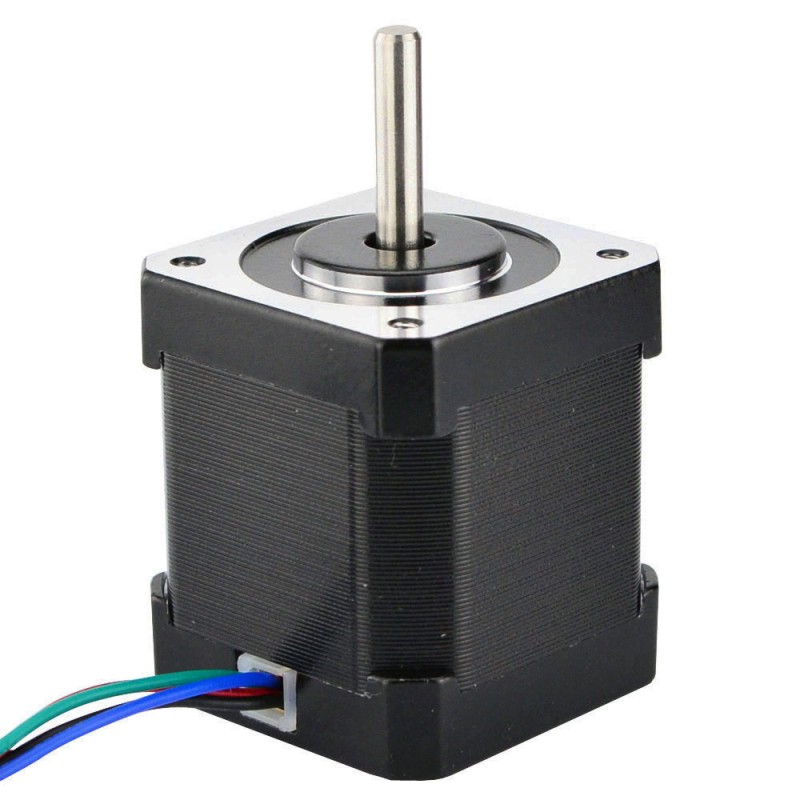

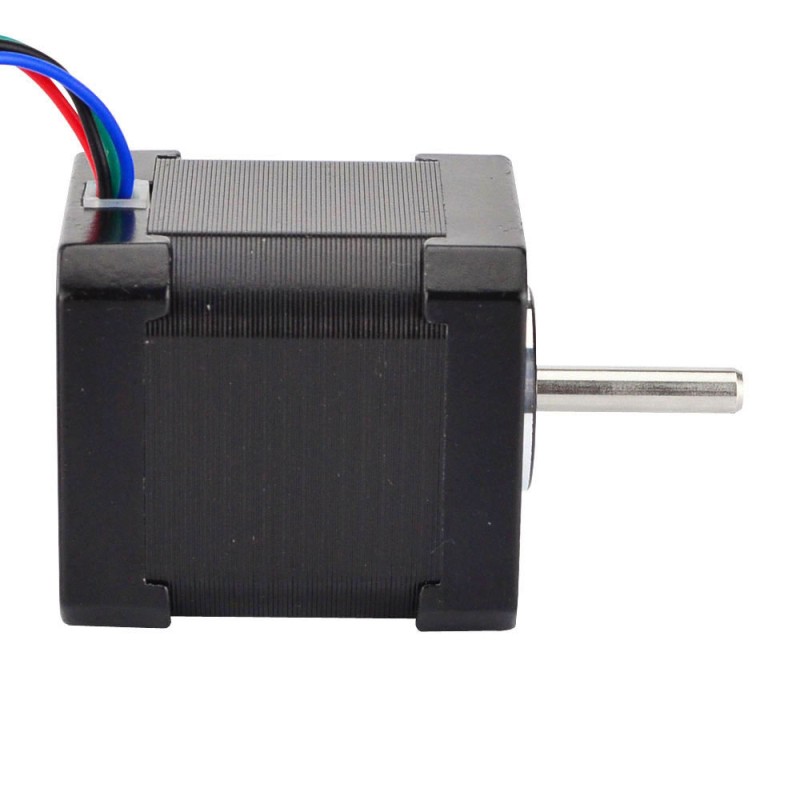

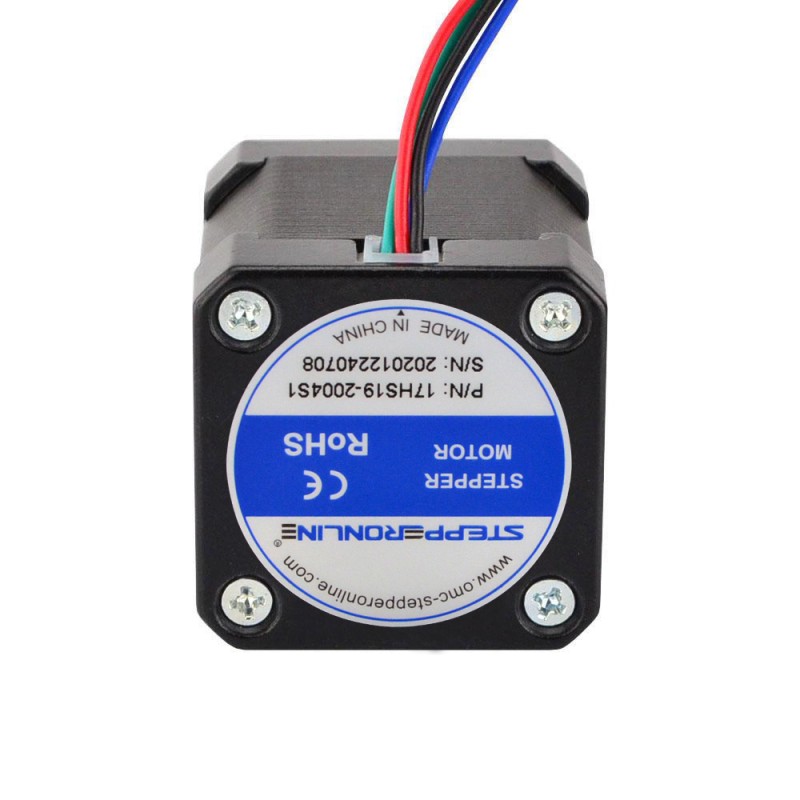

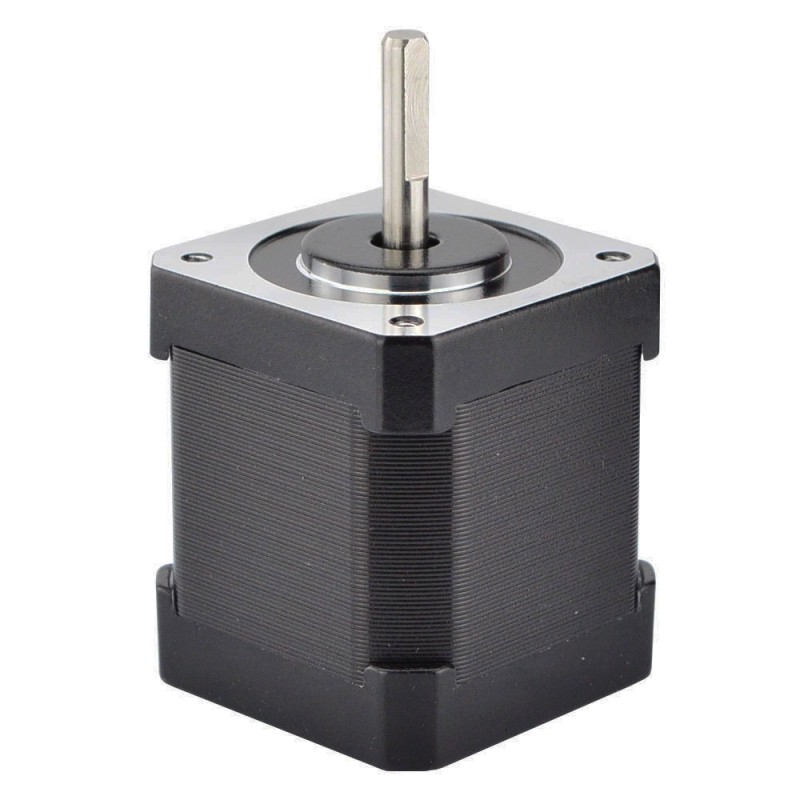

Name: Nema 17 Bipolar 59Ncm(83.55oz.in) 2A 42x42x48mm 4 Wires w/ 1m Cable & Connector
SKU: 17HS19-2004S1
Price: 12.51 USD
Availability: InStock

Nema 17 Bipolar 59Ncm(83.55oz.in) 2A 42x42x48mm 4 Wires w/ 1m Cable & Connector

Nema 17 Bipolar 59Ncm(83.55oz.in) 2A 42x42x48mm 4 Wires w/ 1m Cable & Connector

0 reviews • Write a review

from

$12.51

10 or more $11.39

100 or more $10.44

Model: 17HS19-2004S1
Weight: 0.45kg

Available Options

Ships From

China

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Looking to custom design this motor?

Request a Quote or Ask a Question

Your Name

Your Email

Quantity to Quote

Your questions or requirements

Captcha

Enter the code in the box below

Custom Design Options

You can select from the customization options listed below.

Motor Shaft

Length, Keyway, Flattened, Diameter...

Cable & Connector

Length, Connector, Terminal...

Body

Body Dimensions, Mounting Holes...

Performance

Current/Torque, Step Angle...

Optional Accessories

Encoder, Brake

Labeling

No Label / Custom Label, Laser Marking...

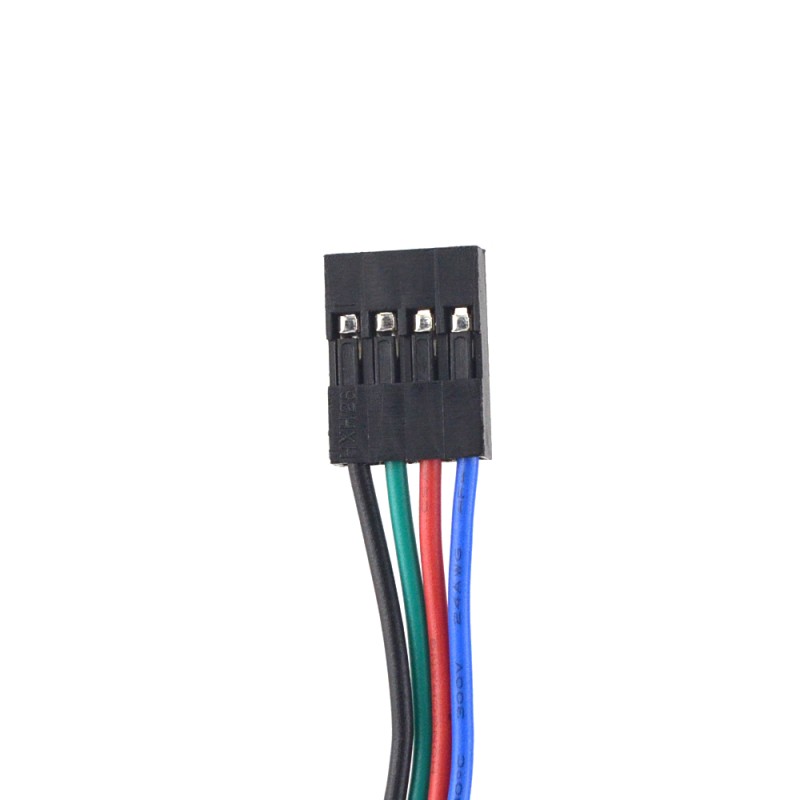

This is an updated version nema 17 stepper motor with holding torque of 59Ncm(83.55oz.in) . Based on old verstion, we have lengthened motor cable length to 1 metre, and add a 4-pin 0.1" pitch(2.54mm) Harwin female connector at the end of cable. It's good ideal for 3D printers, as well as CNC and robotics applications.

Electrical Specification

Manufacturer Part Number: 17HS19-2004S1
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 59Ncm(83.55oz.in)
Rated Current/phase: 2.0A
Phase Resistance: 1.6ohms
Inductance: 3.0mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 48mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 1000mm
Weight: 390g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Please note that the wiring sequence of 17HE19-2004S and 17HS19-2004S1 is different and they cannot be directly substituted for each other.

Full D-Cut version: 17HS19-2004S2

This motor is now available in packs of 3 and 5. It has a better price. For more details, please see 3-17HS19-2004S1 and 5-17HS19-2004S1.

Physical Specification
Output Shaft Type	D
Shaft Diameter(mm)	5
Shaft Length(mm)	24
No. of Lead	4
Lead Length(mm)	1000
Weight(g)	390
Single Shaft/Dual Shaft	Single Shaft
Frame Size(mm)	Nema 17 (42 x 42)
Body Length(mm)	48
Product Series	S
Inventory Method	Dedicated Inventory
IP Rating	40
Electrical Specification
Holding Torque(Ncm)	59
Rated Current(A)	2
Holding Torque(oz.in)	83.55
Bipolar/Unipolar	Bipolar
Step Angle(deg.)	1.8
Phase Resistance(ohms)	1.6
Inductance(mH)	3
Has Torque/Thrust Curve?	Yes
Product Type
Product Type	Hybrid Stepper Motor
