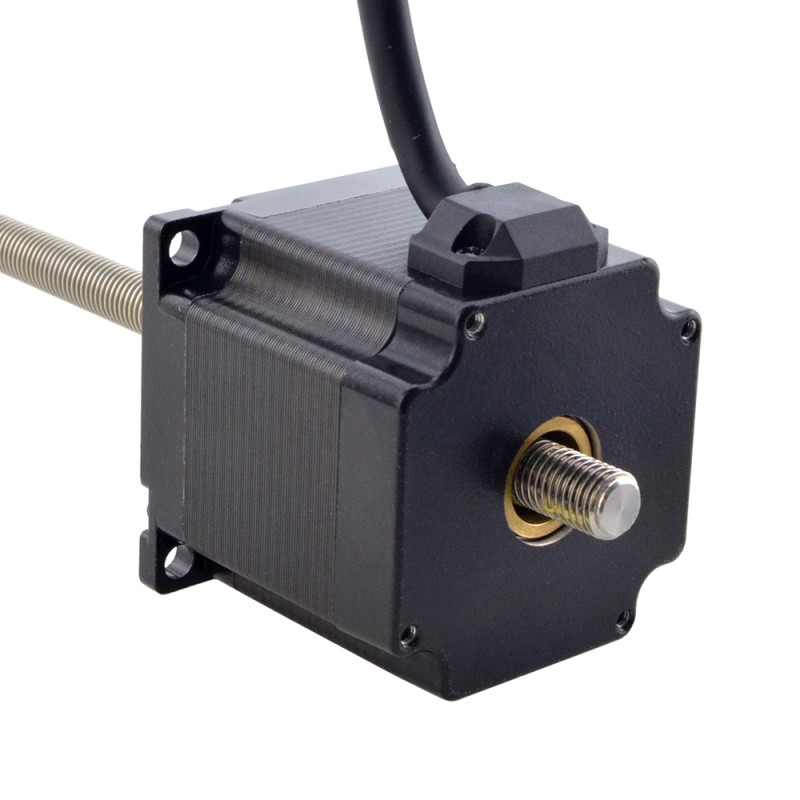

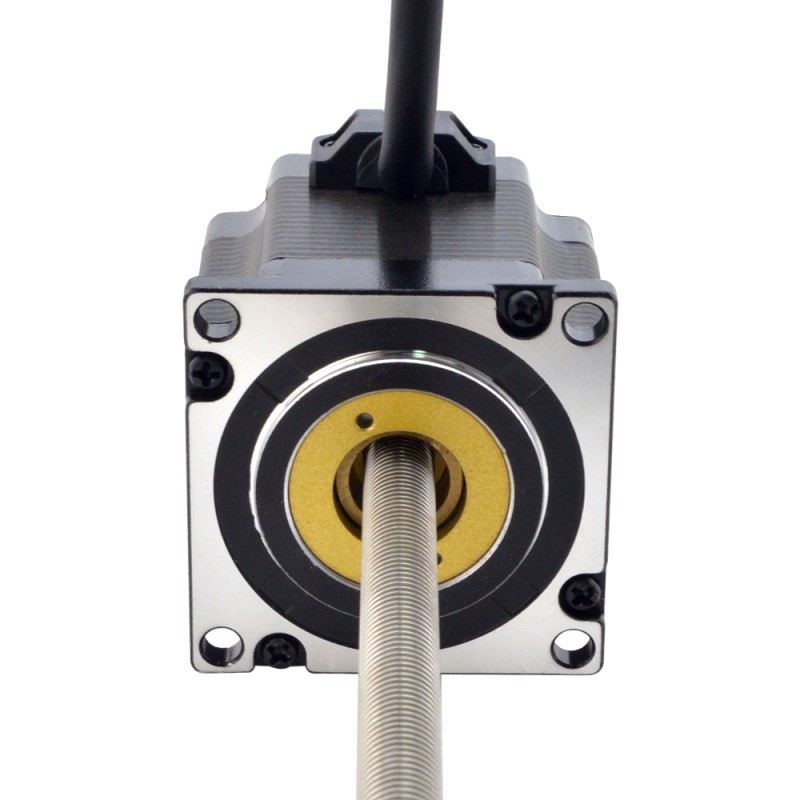

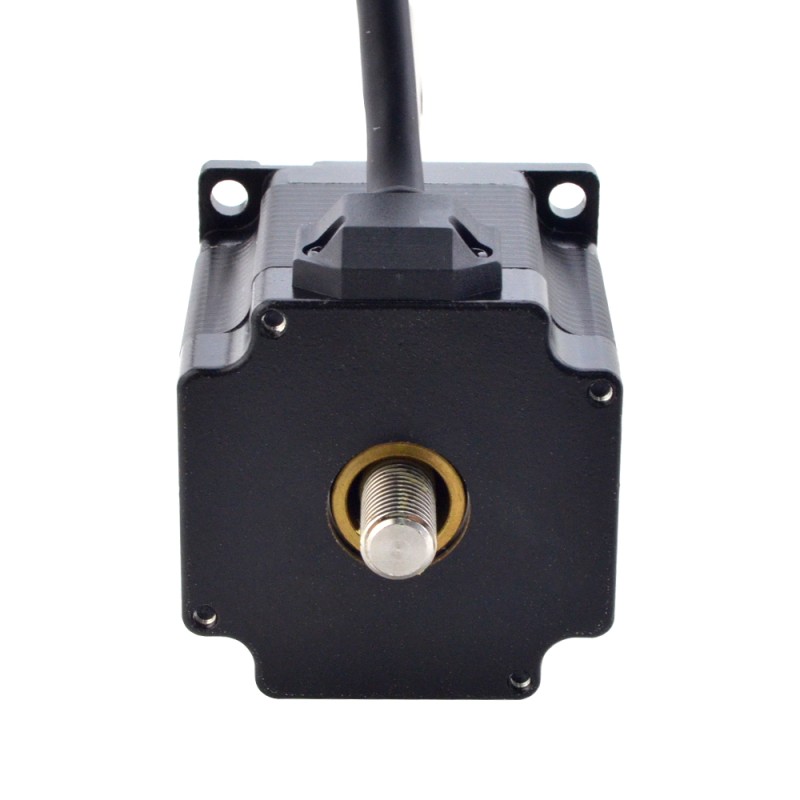

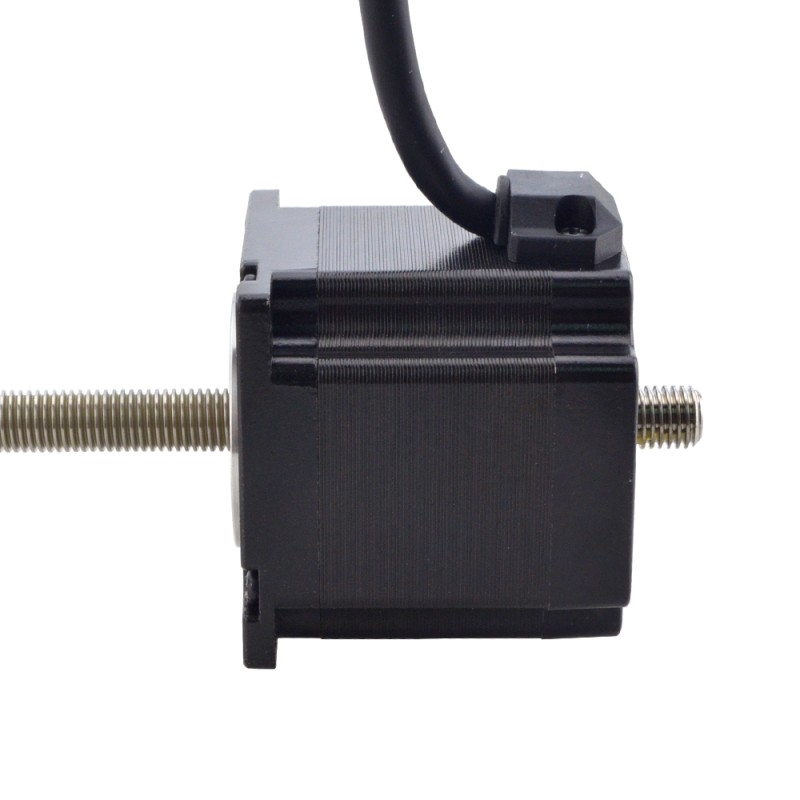

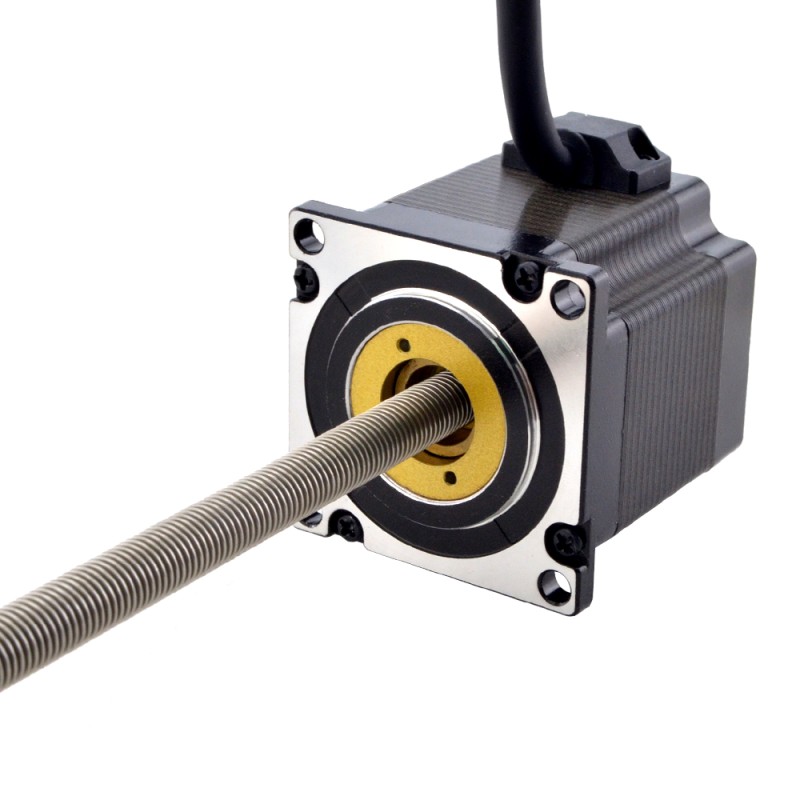

NEMA 23 Non-Captive Acme Linear Stepper Motor 3.0A 56mm Stack Screw Lead 1.27mm(0.05") Lead Length 250mm

NEMA 23 Non-Captive Acme Linear Stepper Motor 3.0A 56mm Stack Screw Lead 1.27mm(0.05") Lead Length 250mm
NEMA 23 Non-Captive Acme Linear Stepper Motor 3.0A 56mm Stack Screw Lead 1.27mm(0.05") Lead Length 250mm
NEMA 23 Non-Captive Acme Linear Stepper Motor 3.0A 56mm Stack Screw Lead 1.27mm(0.05") Lead Length 250mm
NEMA 23 Non-Captive Acme Linear Stepper Motor 3.0A 56mm Stack Screw Lead 1.27mm(0.05") Lead Length 250mm
NEMA 23 Non-Captive Acme Linear Stepper Motor 3.0A 56mm Stack Screw Lead 1.27mm(0.05") Lead Length 250mm
NEMA 23 Non-Captive Acme Linear Stepper Motor 3.0A 56mm Stack Screw Lead 1.27mm(0.05") Lead Length 250mm
NEMA 23 Non-Captive Acme Linear Stepper Motor 3.0A 56mm Stack Screw Lead 1.27mm(0.05") Lead Length 250mm
NEMA 23 Non-Captive Acme Linear Stepper Motor 3.0A 56mm Stack Screw Lead 1.27mm(0.05") Lead Length 250mm
NEMA 23 Non-Captive Acme Linear Stepper Motor 3.0A 56mm Stack Screw Lead 1.27mm(0.05") Lead Length 250mm
NEMA 23 Non-Captive Acme Linear Stepper Motor 3.0A 56mm Stack Screw Lead 1.27mm(0.05") Lead Length 250mm
NEMA 23 Non-Captive Acme Linear Stepper Motor 3.0A 56mm Stack Screw Lead 1.27mm(0.05") Lead Length 250mm
NEMA 23 Non-Captive Acme Linear Stepper Motor 3.0A 56mm Stack Screw Lead 1.27mm(0.05") Lead Length 250mm
NEMA 23 Non-Captive Acme Linear Stepper Motor 3.0A 56mm Stack Screw Lead 1.27mm(0.05") Lead Length 250mm
0 reviews • Write a review
from
$66.55
10 or more $62.67
100 or more $59.21
  • Model: 23N22S3004FG5-250RS
  • Weight: 0.98kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Lead Screw
Lead, Length, Screw End Machining, Thread Type...
Nut
Material, Profile/Shape, Dimensions...
Body
Body Dimensions, Mounting Holes...
Cable
Length, Connector, Terminal...
Optional Accessories
Encoder, Brake

This is integrated with a Φ9.525mm(0.375") diameter, 250mm(9.8425") lead screw length and the linear travel is 1.27mm(0.05") per revolution. This model is a Nema 23 Non-Captive screw linear stepper motor with a 56mm body length, 1.8 degree step angle and 3A rated current. It has the characteristics of high performance, long life, low noise and high efficiency.

Electrical Specification

  • Manufacturer Part Number: 23N22S3004FG5-250RS
  • Motor Type: Non-Captive
  • Step Angle: 1.8°
  • Holding Torque: 1Nm(141.64oz.in)
  • Rated Current/phase: 3A
  • Phase Resistance: 1.1ohms
  • Inductance: 4.5mH±20%(1KHz)

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 56mm
  • Lead Screw Length: 250mm(9.8425")
  • Lead Screw Diameter: Φ9.525mm(0.375")
  • Lead/Step: 0.00635mm(0.00025")
  • Lead Travel/Revolution: 1.27mm(0.05")
  • Number of Leads: 4
  • Number of Thread Starts: 1
  • Cable Length: 500mm

Connection

A+
A-
B+
B-
Red
Red/White
Green
Green/White

● How to order a custom linear motor?  Custom Linear Stepper Motor

● If you only have the old part number, get the new one here  Show Details

● How we named linear motor?  Part Number Construction

Physical Specification
No. of Lead 4
Lead Length(mm) 500
Linear Motor Type Non-Captive
Lead Travel/Revolution(mm) 1.27
Lead Travel/Step(mm) 0.00635
Lead Screw Length(mm) 250
Lead Screw Diameter(mm) 9.525
Frame Size(mm) Nema 23 (57 x 57)
Body Length(mm) 56
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Rated Current(A) 3.0
Bipolar/Unipolar Bipolar
Step Angle(deg.) 1.8
Phase Resistance(ohms) 1.1
Inductance(mH) 4.5
Has Torque/Thrust Curve? Yes
