Nema 23 External 56mm Stack 2.0A Lead 2mm(0.07874") Length 300mm

0 reviews • Write a review

from

$60.94

10 or more $56.11

100 or more $51.99

Model: 23E22S2004AJ4-300RS
Weight: 1.11kg

Available Options

Ships From

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Looking to custom design this motor?

Request a Quote or Ask a Question

Your Name

Your Email

Quantity to Quote

Your questions or requirements

Captcha

Enter the code in the box below

Custom Design Options

You can select from the customization options listed below.

Lead Screw

Lead, Length, Screw End Machining, Thread Type...

Nut

Material, Profile/Shape, Dimensions...

Body

Body Dimensions, Mounting Holes...

Cable

Length, Connector, Terminal...

Optional Accessories

Encoder, Brake

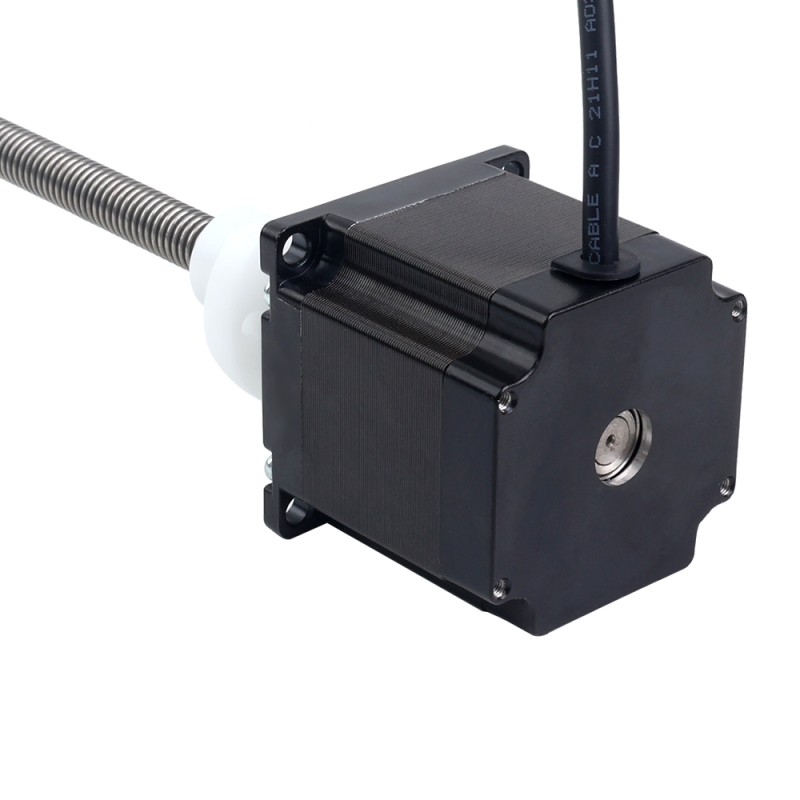

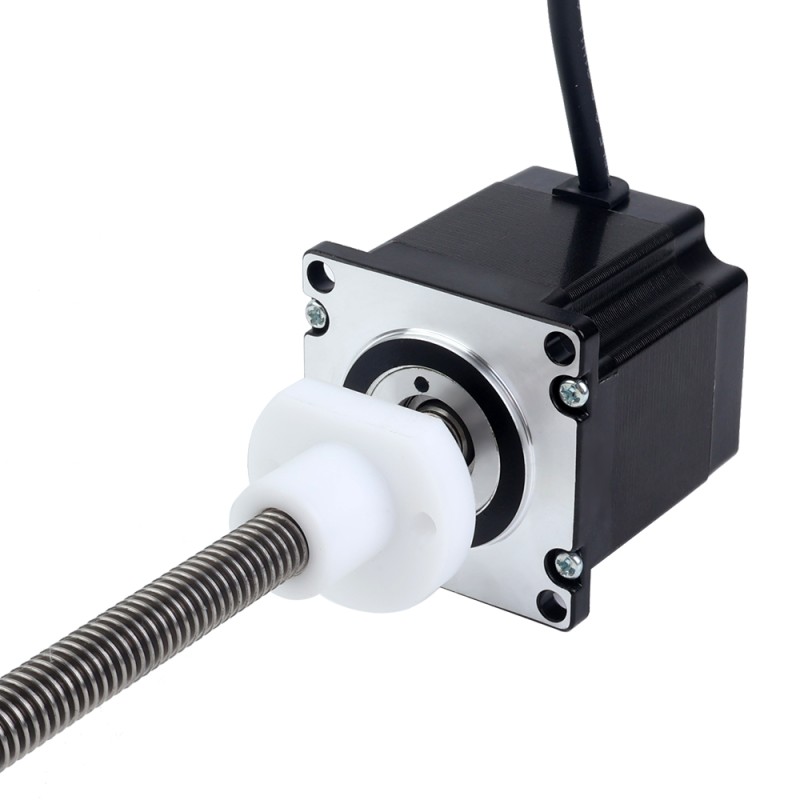

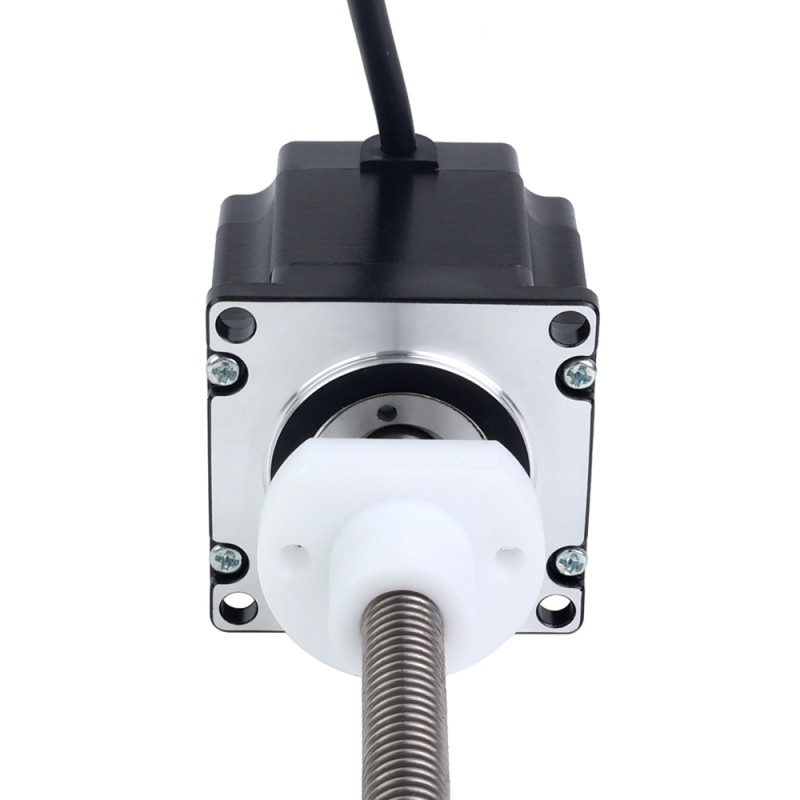

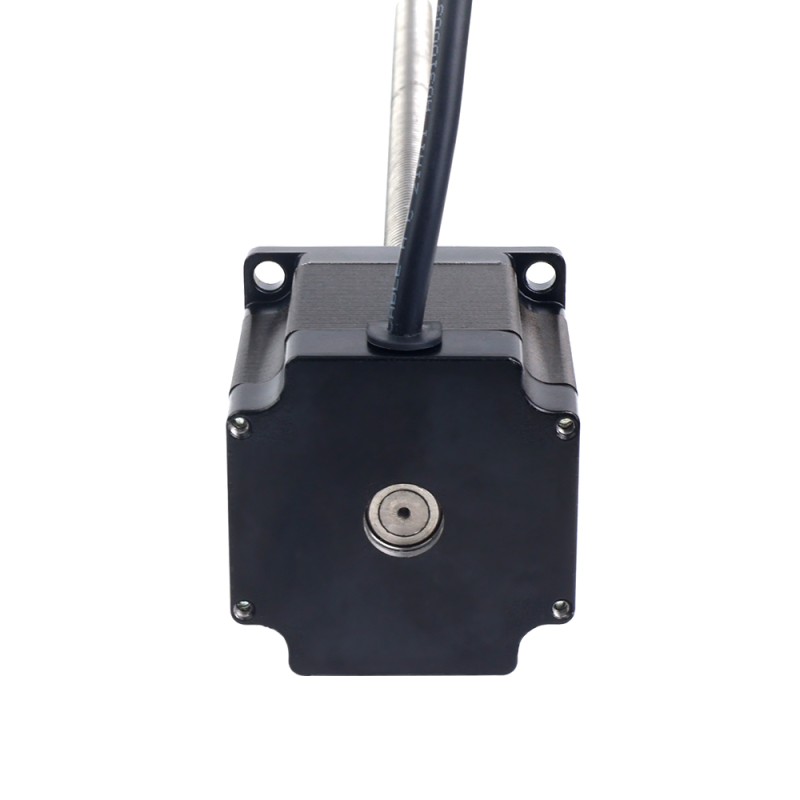

This model is an economy linear stepper motor which named Nema 23 external linear actuator, the motor part is 56mm 1.8 degree 2.0A Nema 23 stepper motor. It was integrated with 300mm Tr11x2 threaded rod, and a POM screw nut move along the threaded rod.

Electrical Specification

Manufacturer Part Number: 23E22S2004AJ4-300RS
Motor Type: External(ACME)
Holding Torque: 1.26Nm(178.43oz.in)
Rated Current/phase: 2.0A
Phase Resistance: 3.6ohms ± 10%
Inductance: 12mH ± 20%(1KHz)

Physical Specification

Frame Size: 57 x 57mm
Motor Length: 56mm
Lead Screw Length: 300mm(11.811")
Lead Screw Diameter: Φ11mm(0.433")
Lead/Step: 0.01mm(0.0003937")
Lead/Revolution: 2mm(0.0787")
Number of Leads: 4
Cable Length: 500mm
Weight: 908g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

● How to order a custom linear motor? Custom Linear Stepper Motor

● If you only have the old part number, get the new one here Show Details

● How we named linear motor? Part Number Construction

Physical Specification
No. of Lead	4
Lead Length(mm)	500
Linear Motor Type	External(Acme)
Lead Travel/Revolution(mm)	2
Lead Travel/Step(mm)	0.01
Lead Screw Length(mm)	300
Lead Screw Diameter(mm)	11
Frame Size(mm)	Nema 23 (57 x 57)
Body Length(mm)	56
With Encoder	No
Inventory Method	Dedicated Inventory
IP Rating	40
Electrical Specification
Holding Torque(Ncm)	126
Rated Current(A)	2.0
Holding Torque(oz.in)	178.43
Bipolar/Unipolar	Bipolar
Step Angle(deg.)	1.8
Phase Resistance(ohms)	3.6
Inductance(mH)	12
Has Torque/Thrust Curve?	No
