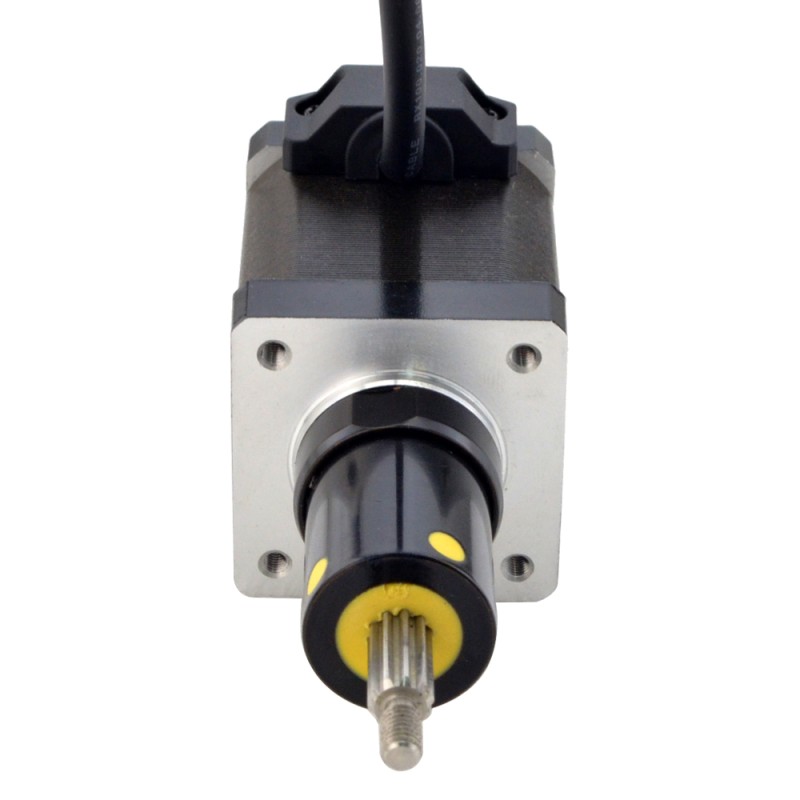

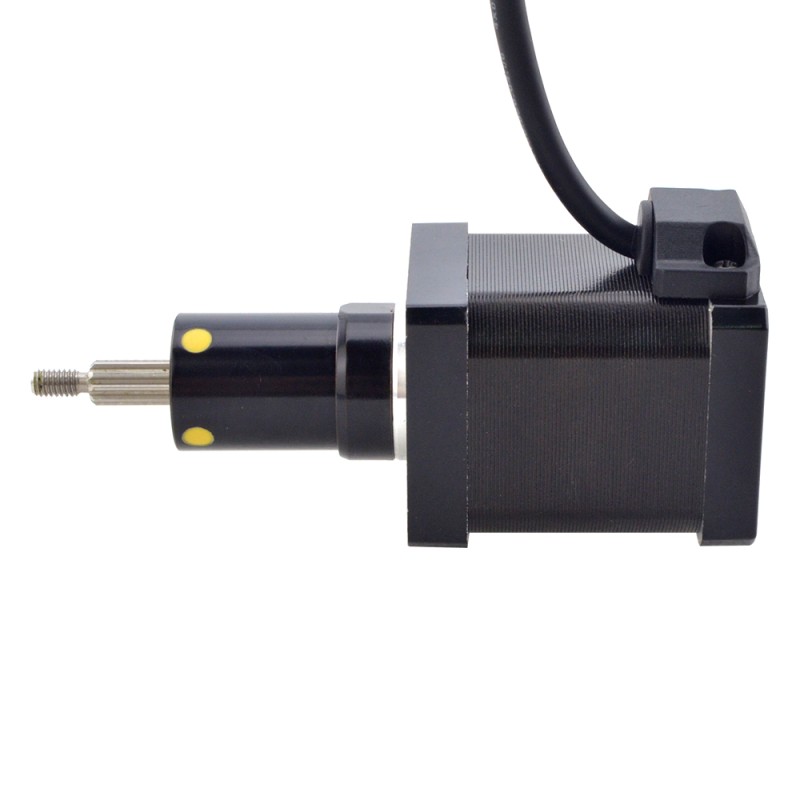

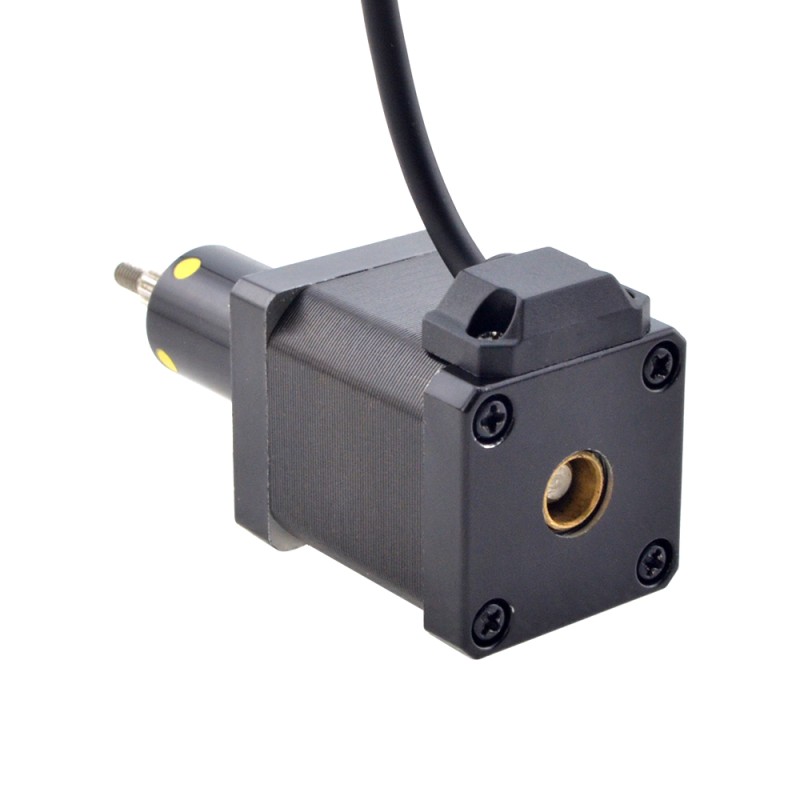

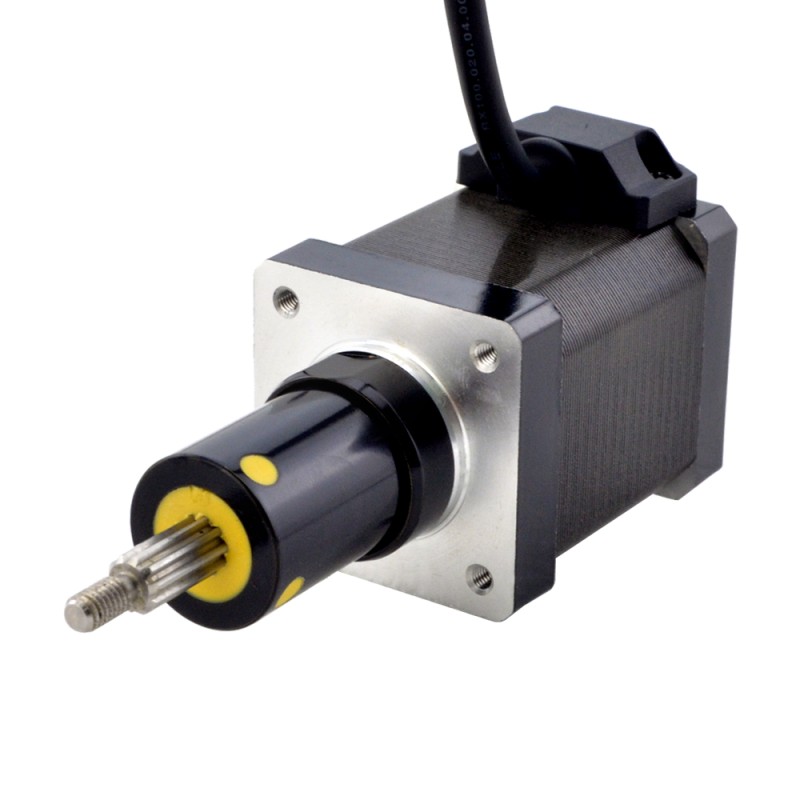

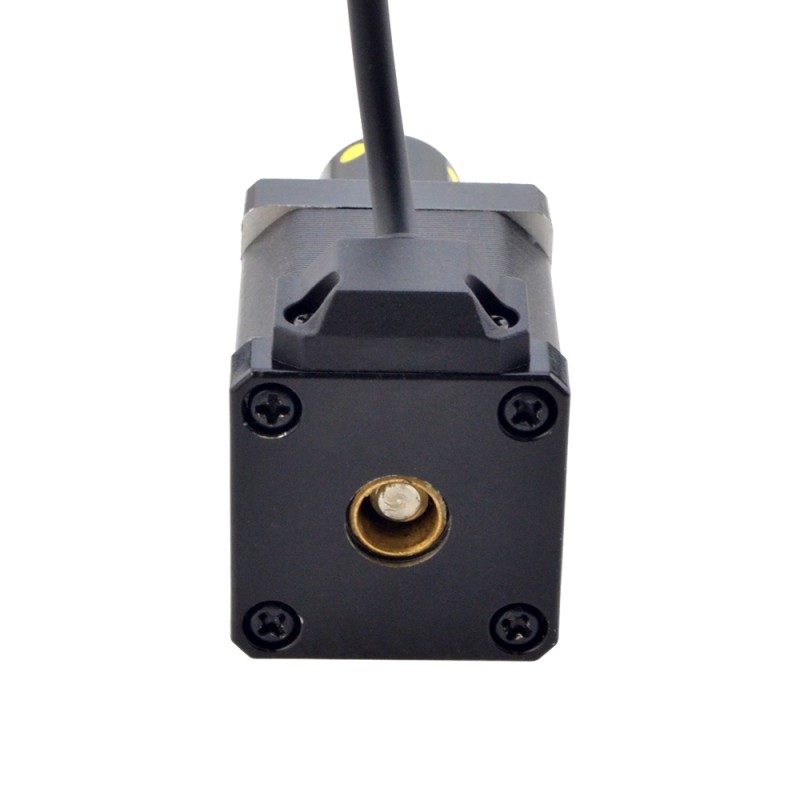

NEMA 14 Captive Acme Linear Stepper Motor 1.5A 47mm Stack Screw Lead 2.54mm(0.1") Travel 25.4mm

0 reviews • Write a review

from

$79.86

10 or more $75.21

100 or more $71.06

Model: 14C19S1504GF5-025RS
Weight: 0.43kg

Available Options

Ships From

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Looking to custom design this motor?

Request a Quote or Ask a Question

Your Name

Your Email

Quantity to Quote

Your questions or requirements

Captcha

Enter the code in the box below

Custom Design Options

You can select from the customization options listed below.

Lead Screw

Lead, Length, Screw End Machining, Thread Type...

Nut

Material, Profile/Shape, Dimensions...

Body

Body Dimensions, Mounting Holes...

Cable

Length, Connector, Terminal...

Optional Accessories

Encoder, Brake

This model is a Nema 14 Captive ACME screw linear stepper motor with a 47mm body length, 1.8 degree step angle and 1.5A rated current. It is integrated with a 6.35mm(0.25") diameter, 25.4mm(1") Stroke Length, the linear travel is 2.54mm(0.1") per revolution. It has the characteristics of high performance, long life, low noise and high efficiency.

Electrical Specification

Manufacturer Part Number: 14C19S1504GF5-025RS
Motor Type: Captive
Step Angle: 1.8°
Holding Torque: 0.2Nm(28.328oz.in)
Rated Current/phase: 1.5A
Phase Resistance: 1.5ohms
Inductance: 2mH±20%(1KHz)

Physical Specification

Frame Size: 35 x 35mm
Body Length: 47mm
Stroke Length: 25.4mm(1")
Lead Screw Diameter: Φ6.35mm(0.25")
Lead/Step: 0.0127mm(0.0005")
Lead Travel/Revolution: 2.54mm(0.1")
Number of Leads: 4
Cable Length: 500mm

Connection

A+	A-	B+	B-
Red	Red/White	Green	Green/White

● How to order a custom linear motor? Custom Linear Stepper Motor

● If you only have the old part number, get the new one here Show Details

● How we named linear motor? Part Number Construction

Physical Specification
No. of Lead	4
Lead Length(mm)	500
Linear Motor Type	Captive
Lead Travel/Revolution(mm)	2.54
Lead Travel/Step(mm)	0.0127
Lead Screw Diameter(mm)	6.35
Stroke Length(mm/ft)	25.4
Frame Size(mm)	Nema 14 (35 x 35)
Body Length(mm)	47
Inventory Method	Dedicated Inventory
IP Rating	40
Electrical Specification
Rated Current(A)	1.5
Bipolar/Unipolar	Bipolar
Step Angle(deg.)	1.8
Phase Resistance(ohms)	1.5
Inductance(mH)	2
Has Torque/Thrust Curve?	Yes
