NEMA 17 External Ball Screw Linear Stepper Motor 2.5A 48mm Stack Screw Lead 8mm(0.3150") Lead Length 150mm

NEMA 17 External Ball Screw Linear Stepper Motor 2.5A 48mm Stack Screw Lead 8mm(0.3150") Lead Length 150mm
NEMA 17 External Ball Screw Linear Stepper Motor 2.5A 48mm Stack Screw Lead 8mm(0.3150") Lead Length 150mm
NEMA 17 External Ball Screw Linear Stepper Motor 2.5A 48mm Stack Screw Lead 8mm(0.3150") Lead Length 150mm
NEMA 17 External Ball Screw Linear Stepper Motor 2.5A 48mm Stack Screw Lead 8mm(0.3150") Lead Length 150mm
NEMA 17 External Ball Screw Linear Stepper Motor 2.5A 48mm Stack Screw Lead 8mm(0.3150") Lead Length 150mm
NEMA 17 External Ball Screw Linear Stepper Motor 2.5A 48mm Stack Screw Lead 8mm(0.3150") Lead Length 150mm
NEMA 17 External Ball Screw Linear Stepper Motor 2.5A 48mm Stack Screw Lead 8mm(0.3150") Lead Length 150mm
New
NEMA 17 External Ball Screw Linear Stepper Motor 2.5A 48mm Stack Screw Lead 8mm(0.3150") Lead Length 150mm
NEMA 17 External Ball Screw Linear Stepper Motor 2.5A 48mm Stack Screw Lead 8mm(0.3150") Lead Length 150mm
NEMA 17 External Ball Screw Linear Stepper Motor 2.5A 48mm Stack Screw Lead 8mm(0.3150") Lead Length 150mm
NEMA 17 External Ball Screw Linear Stepper Motor 2.5A 48mm Stack Screw Lead 8mm(0.3150") Lead Length 150mm
NEMA 17 External Ball Screw Linear Stepper Motor 2.5A 48mm Stack Screw Lead 8mm(0.3150") Lead Length 150mm
NEMA 17 External Ball Screw Linear Stepper Motor 2.5A 48mm Stack Screw Lead 8mm(0.3150") Lead Length 150mm
NEMA 17 External Ball Screw Linear Stepper Motor 2.5A 48mm Stack Screw Lead 8mm(0.3150") Lead Length 150mm
NEMA 17 External Ball Screw Linear Stepper Motor 2.5A 48mm Stack Screw Lead 8mm(0.3150") Lead Length 150mm
0 reviews • Write a review
from
$226.28
10 or more $213.07
100 or more $201.31
  • Model: 17E19S2504BMB5-150RS
  • Weight: 0.63kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Lead Screw
Lead, Length, Screw End Machining, Thread Type...
Nut
Material, Profile/Shape, Dimensions...
Body
Body Dimensions, Mounting Holes...
Cable
Length, Connector, Terminal...
Optional Accessories
Encoder, Brake

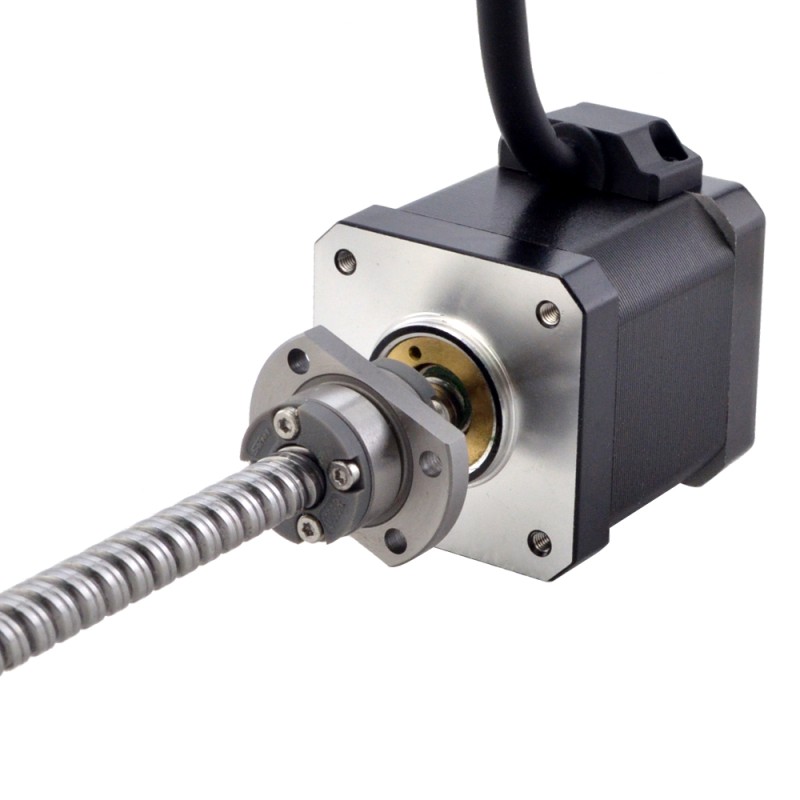

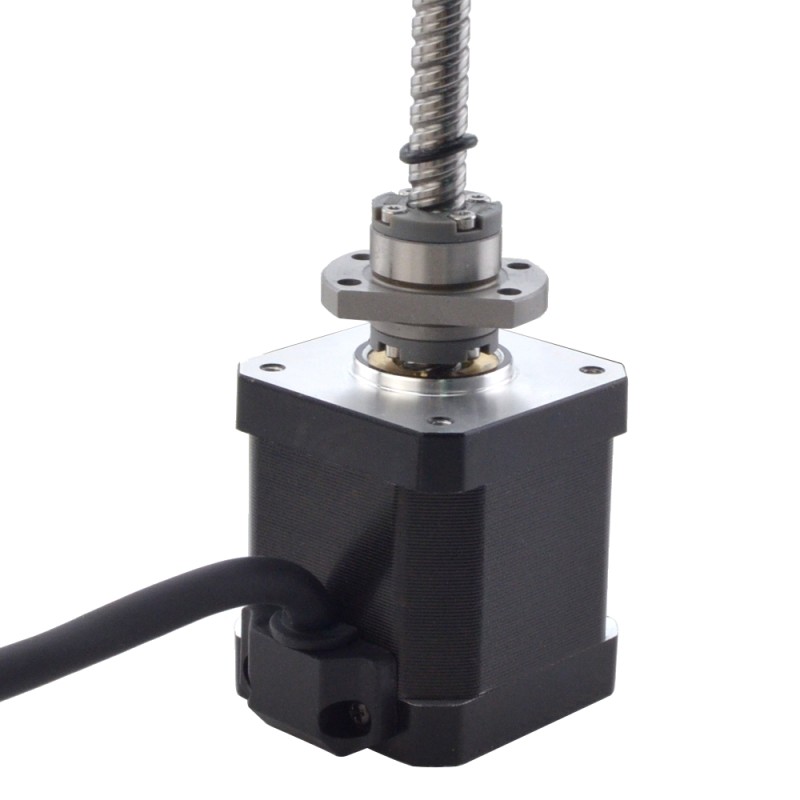

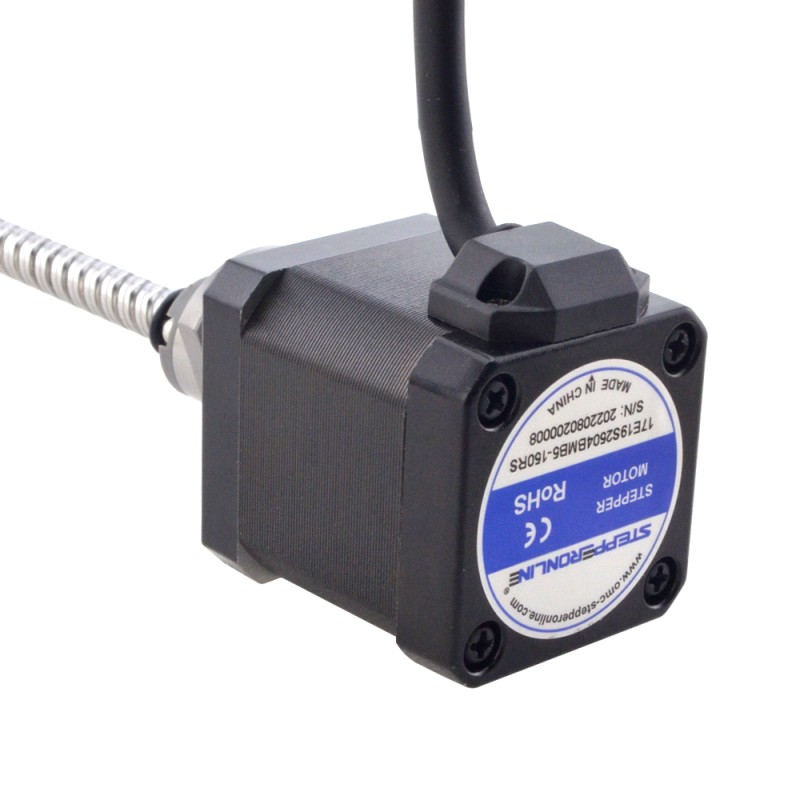

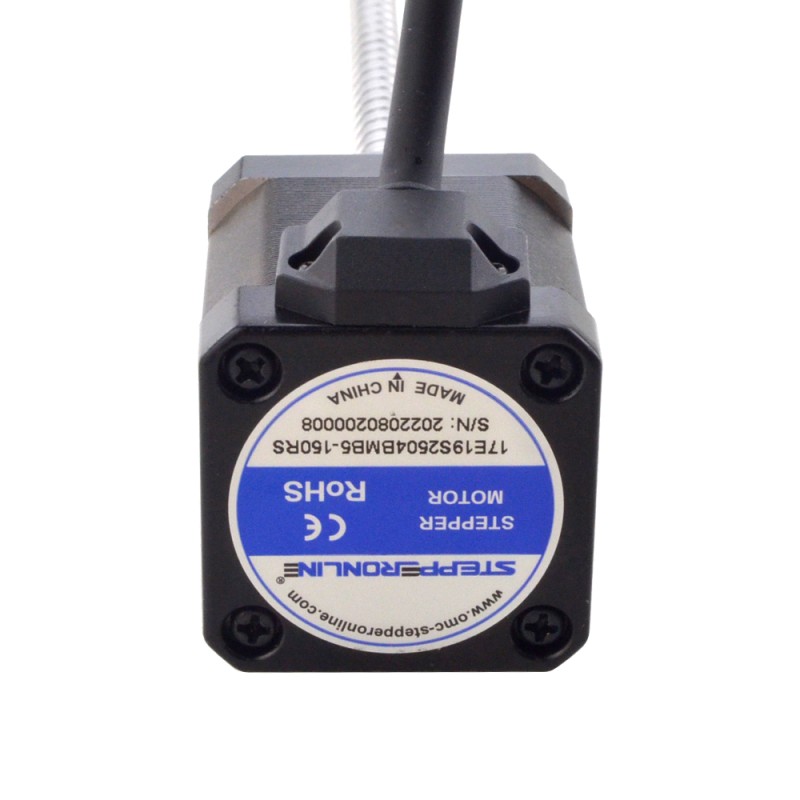

This model is a Nema 17 ball screw linear stepper motor with a 48mm body length, 1.8 degree step angle and 2.5A rated current. It is integrated with a 8mm(0.3150") diameter 150mm(5.9055") length ball screw length and a steel screw nut, the linear travel is 8mm(0.3150") per revolution. It has the characteristics of high performance, long life, low noise and high efficiency.

Electrical Specification

  • Manufacturer Part Number: 17E19S2504BMB5-150RS
  • Motor Type: External(Ball Screw)
  • Step Angle: 1.8°
  • Holding Torque: 0.5Nm(70.81oz.in)
  • Rated Current/phase: 2.5A
  • Phase Resistance: 0.78ohms
  • Inductance: 1.5mH±20%(1KHz)
  • Accuracy Grade: C7

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 48mm

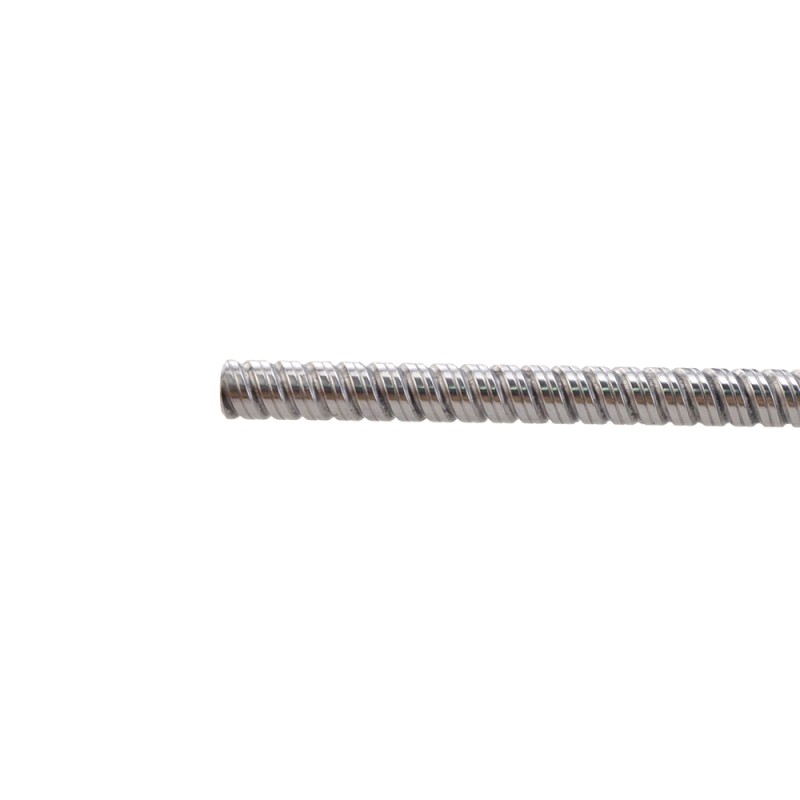

  • Lead Screw Length: 150mm(5.9055")
  • Lead Screw Diameter: Φ8mm(0.3150")
  • Lead/Step: 0.04mm(0.001575")
  • Lead Travel/Revolution: 8mm(0.3150")
  • Number of Leads: 4
  • Cable Length: 500mm

Connection

A+
A-
B+
B-
Red
Red/White
Green
Green/White

● How to order a custom linear motor?  Custom Linear Stepper Motor

● If you only have the old part number, get the new one here  Show Details

● How we named linear motor?  Part Number Construction

Physical Specification
No. of Lead 4
Lead Length(mm) 500
Linear Motor Type External(Ball Screw)
Lead Travel/Revolution(mm) 8
Lead Travel/Step(mm) 0.04
Lead Screw Length(mm) 150
Lead Screw Diameter(mm) 6
Frame Size(mm) Nema 17 (42 x 42)
Body Length(mm) 48
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Rated Current(A) 2.5
Bipolar/Unipolar Bipolar
Step Angle(deg.) 1.8
Phase Resistance(ohms) 0.78
Inductance(mH) 1.5
Has Torque/Thrust Curve? No
