NEMA 17 External Ball Screw Linear Stepper Motor 2.5A 48mm Stack Screw Lead 1mm(0.03937") Lead Length 150mm

New

NEMA 17 External Ball Screw Linear Stepper Motor 2.5A 48mm Stack Screw Lead 1mm(0.03937") Lead Length 150mm

0 reviews • Write a review

from

$138.44

10 or more $130.35

100 or more $123.16

Model: 17E19S2504BSM5-150RS
Weight: 0.63kg

Available Options

Ships From

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Looking to custom design this motor?

Request a Quote or Ask a Question

Your Name

Your Email

Quantity to Quote

Your questions or requirements

Captcha

Enter the code in the box below

Custom Design Options

You can select from the customization options listed below.

Lead Screw

Lead, Length, Screw End Machining, Thread Type...

Nut

Material, Profile/Shape, Dimensions...

Body

Body Dimensions, Mounting Holes...

Cable

Length, Connector, Terminal...

Optional Accessories

Encoder, Brake

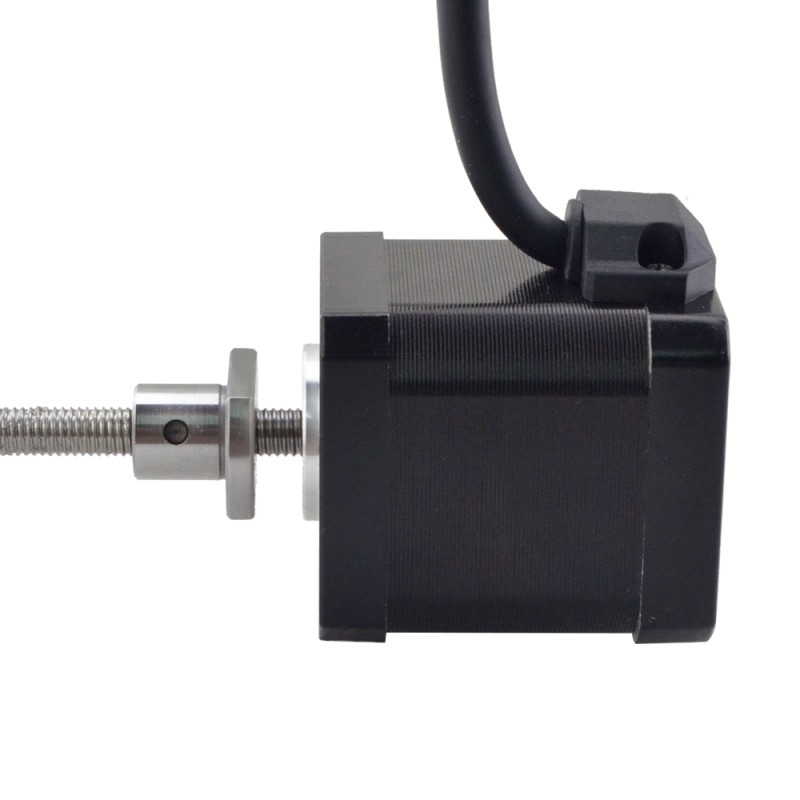

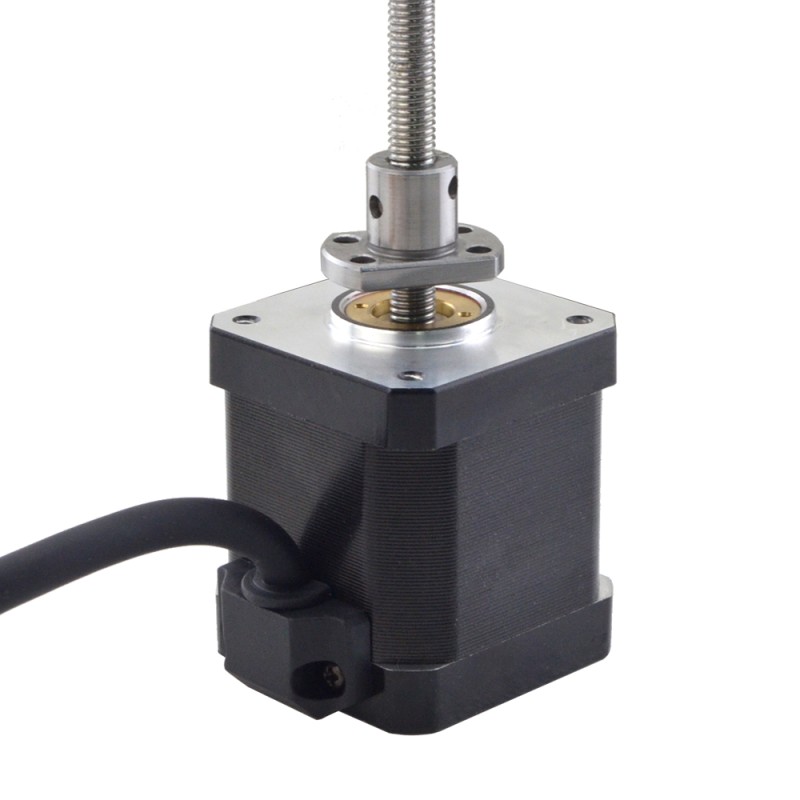

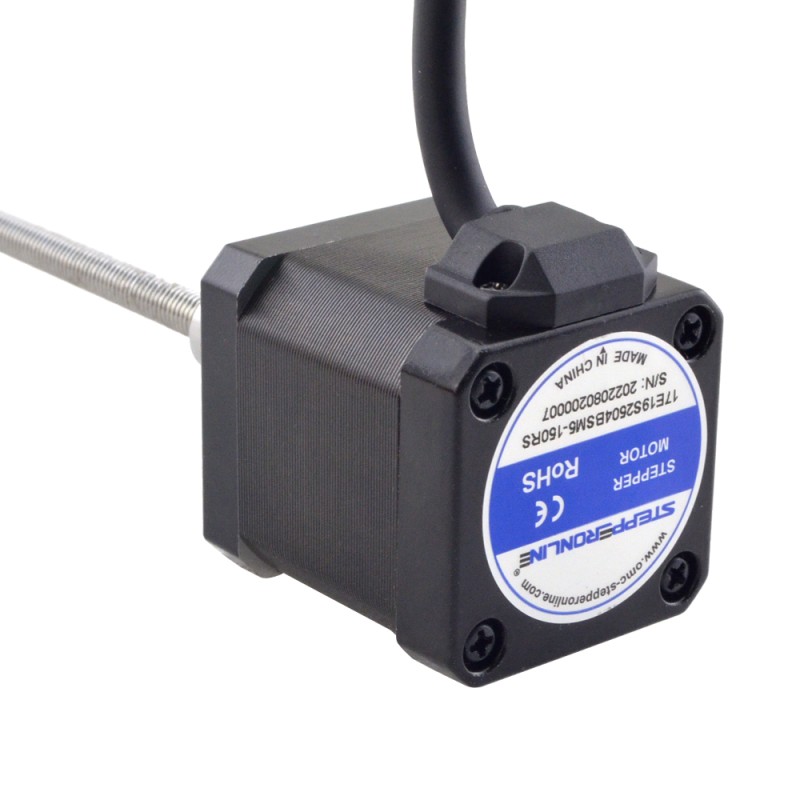

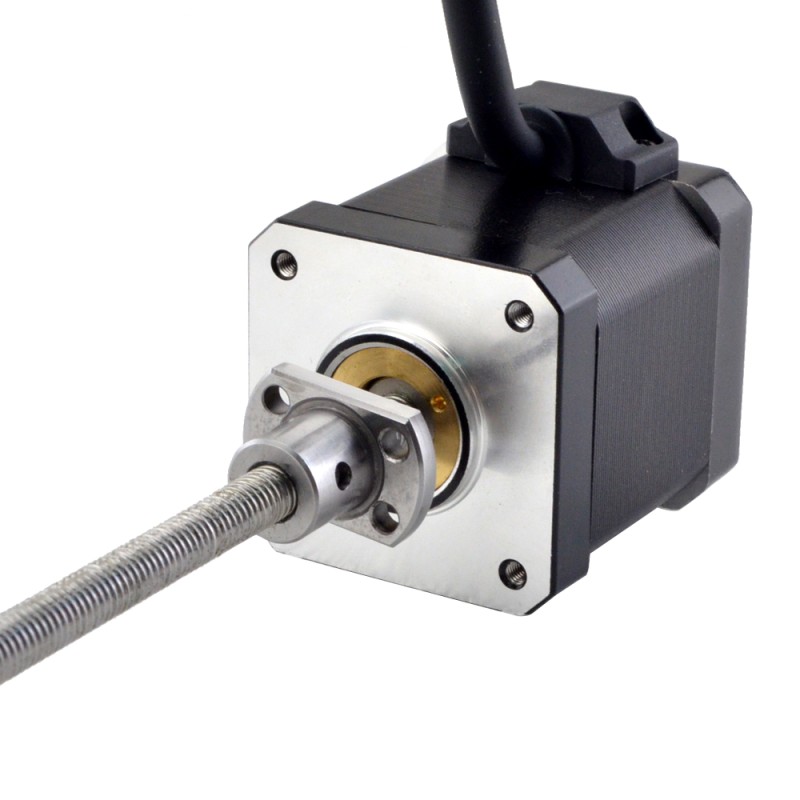

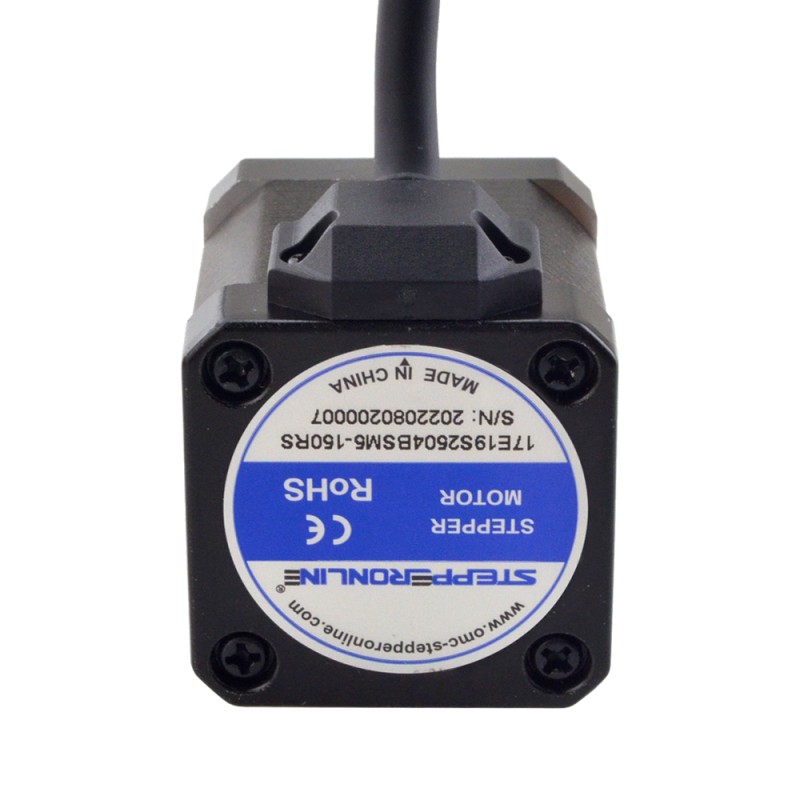

This is integrated with a 6mm(0.2362") diameter 150mm(5.9055") length ball screw length and a steel screw nut, the linear travel is 1mm(0.03937") per revolution. This model is a Nema 17 ball screw linear stepper motor with a 48mm body length, 1.8 degree step angle and 2.5A rated current. It has the characteristics of high performance, long life, low noise and high efficiency.

Electrical Specification

Manufacturer Part Number: 17E19S2504BSM5-150RS
Motor Type: External(Ball Screw)
Step Angle: 1.8°
Holding Torque: 0.5Nm(70.81oz.in)
Rated Current/phase: 2.5A
Phase Resistance: 0.78ohms
Inductance: 1.5mH±20%(1KHz)
Accuracy Grade: C7

Physical Specification

Frame Size: 42 x 42mm
Body Length: 48mm
Lead Screw Length: 150mm(5.9055")

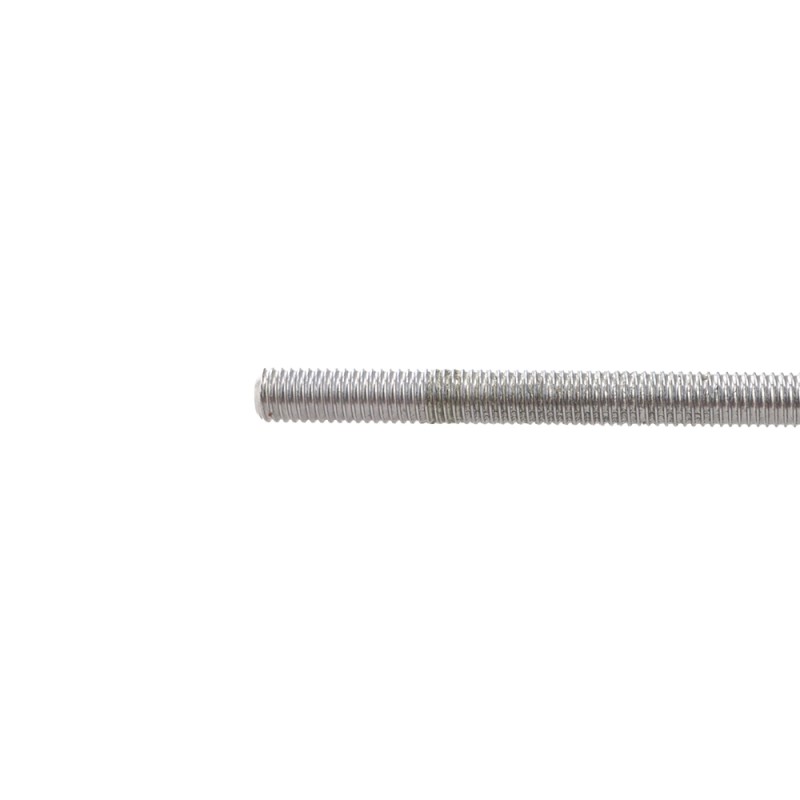

Lead Screw Diameter: Φ6mm(0.2362")
Lead/Step: 0.005mm(0.0001969")
Lead Travel/Revolution: 1mm(0.03937")
Number of Leads: 4
Cable Length: 500mm

Connection

A+	A-	B+	B-
Red	Red/White	Green	Green/White

● How to order a custom linear motor? Custom Linear Stepper Motor

● If you only have the old part number, get the new one here Show Details

● How we named linear motor? Part Number Construction

Physical Specification
No. of Lead	4
Lead Length(mm)	500
Linear Motor Type	External(Ball Screw)
Lead Travel/Revolution(mm)	1
Lead Travel/Step(mm)	0.005
Lead Screw Length(mm)	150
Lead Screw Diameter(mm)	6
Frame Size(mm)	Nema 17 (42 x 42)
Body Length(mm)	48
Inventory Method	Dedicated Inventory
IP Rating	40
Electrical Specification
Rated Current(A)	2.5
Bipolar/Unipolar	Bipolar
Step Angle(deg.)	1.8
Phase Resistance(ohms)	0.78
Inductance(mH)	1.5
Has Torque/Thrust Curve?	No
