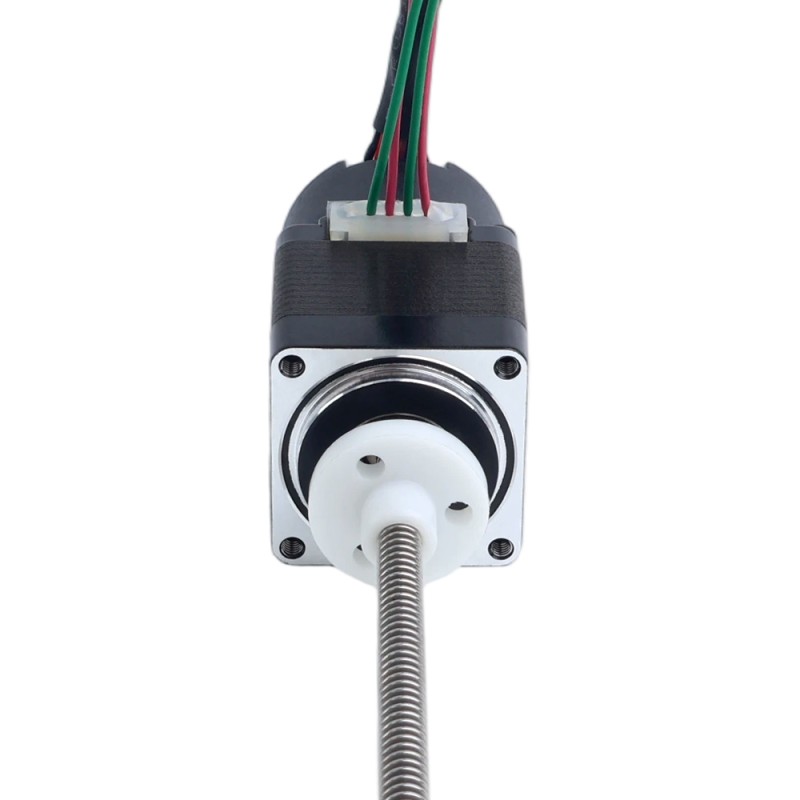

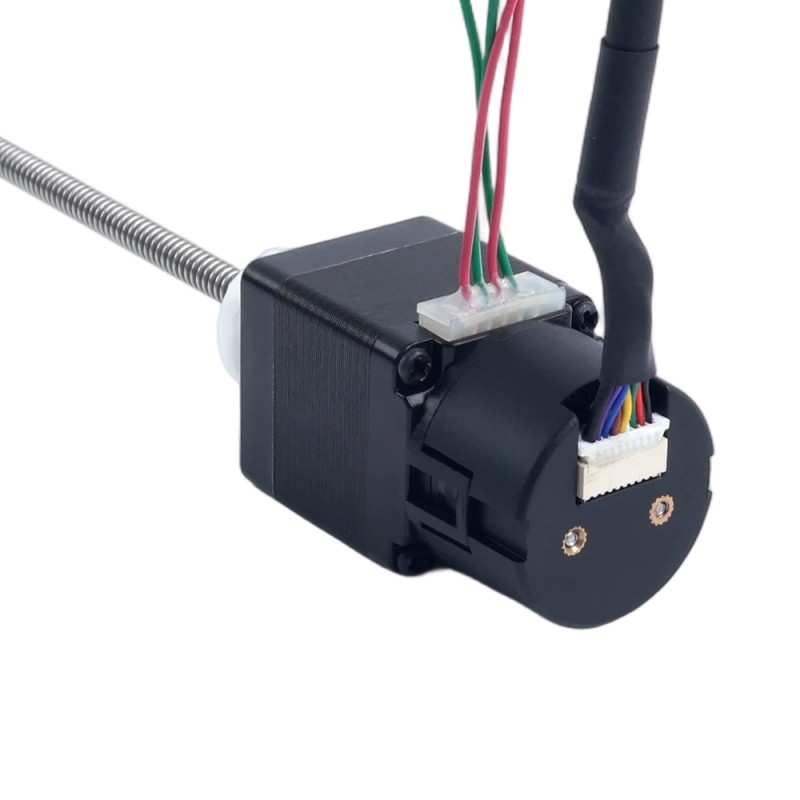

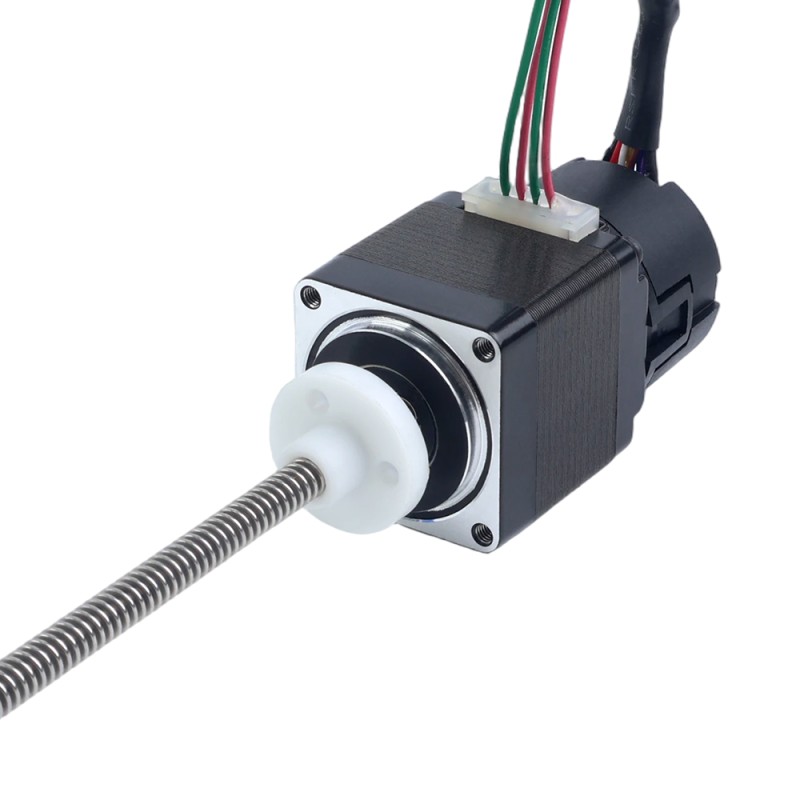

NEMA 11 External Acme Linear Stepper Motor 1.0A 32mm Stack Screw Lead 1.27mm(0.05") w/ Optical Incremental Encoder 1000PPR

This Nema 11 linear stepper motor integrates a high-resolution 1000PPR optical incremental encoder. It features a 150mm(5.9055") long ACME lead screw with a diameter of Φ4.76mm(0.315") and a POM nut, delivering a linear travel of 1.27mm(0.05") per revolution. The inclusion of the encoder significantly enhances the motor's positional accuracy and operational stability, making it an ideal solution for a wide range of applications including automated production, logistics systems, medical devices, stage equipment, and robotics.

Motor Specification

• Manufacturer Part Number: 11E13S1004FD4-150RS-OE1K
• Motor Type: External(ACME)
• Step Angle: 1.8°
• Holding Torque: 0.06Nm(8.5oz.in)
• Rated Current/phase: 1A
• Phase Resistance: 2.1ohms
• Inductance: 1.5mH±20%(1KHz)
• Frame Size: 28 x 28mm
• Body Length: 32mm

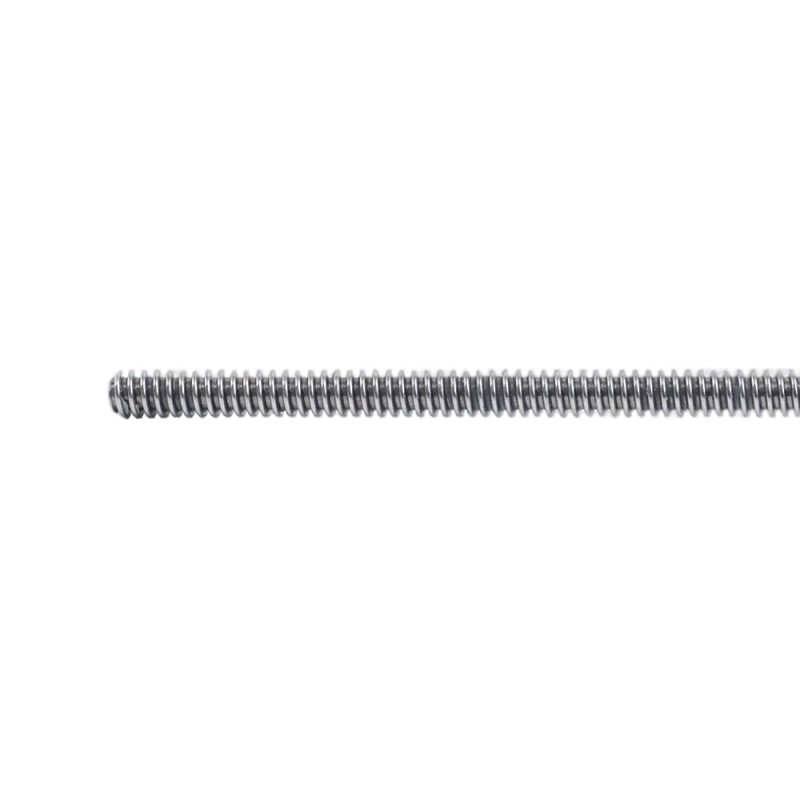

• Lead Screw Length: 150mm(5.9055")
• Lead Screw Diameter: Φ4.76mm(0.315")
• Lead/Step: 0.00635mm(0.00025")
• Lead Travel/Revolution: 1.27mm(0.05")
• Number of Leads: 4
• Number of Thread Starts: 1
• Cable Length: 500mm

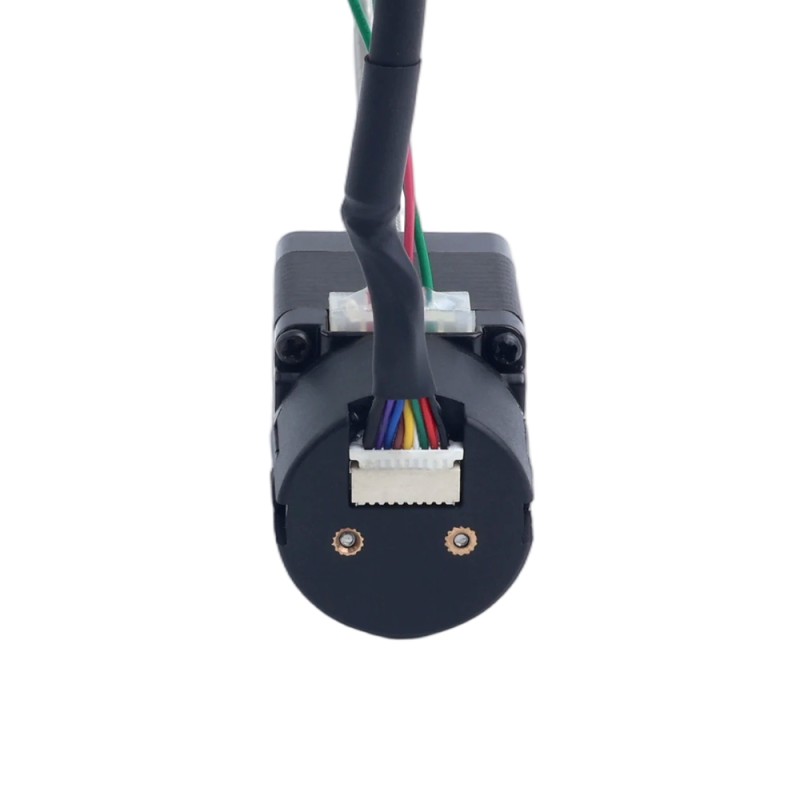

Encoder Specification

• Output Circuit Type: Differential Type
• Encoder Type: Optical Incremental
• Encoder Resolution: 1000PPR(4000CPR)
• Output Signal Channels: 3 Channels
• Supply Voltage Min: 4.5V
• Supply Voltage Max: 5.5V
• High Level Output Voltage: 2.4V - Vcc
• Low Level Output Voltage: ≤ 0.4V
