Nema 11 External 45mm Stack 0.75A Lead 1.27mm(0.05") Length 250mm

0 reviews • Write a review

from

$53.55

10 or more $49.30

100 or more $45.69

Model: 11E18S0754FD4-250RS
Weight: 0.39kg

Available Options

Ships From

China

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Looking to custom design this motor?

Request a Quote or Ask a Question

Your Name

Your Email

Quantity to Quote

Your questions or requirements

Captcha

Enter the code in the box below

Custom Design Options

You can select from the customization options listed below.

Lead Screw

Lead, Length, Screw End Machining, Thread Type...

Nut

Material, Profile/Shape, Dimensions...

Body

Body Dimensions, Mounting Holes...

Cable

Length, Connector, Terminal...

Optional Accessories

Encoder, Brake

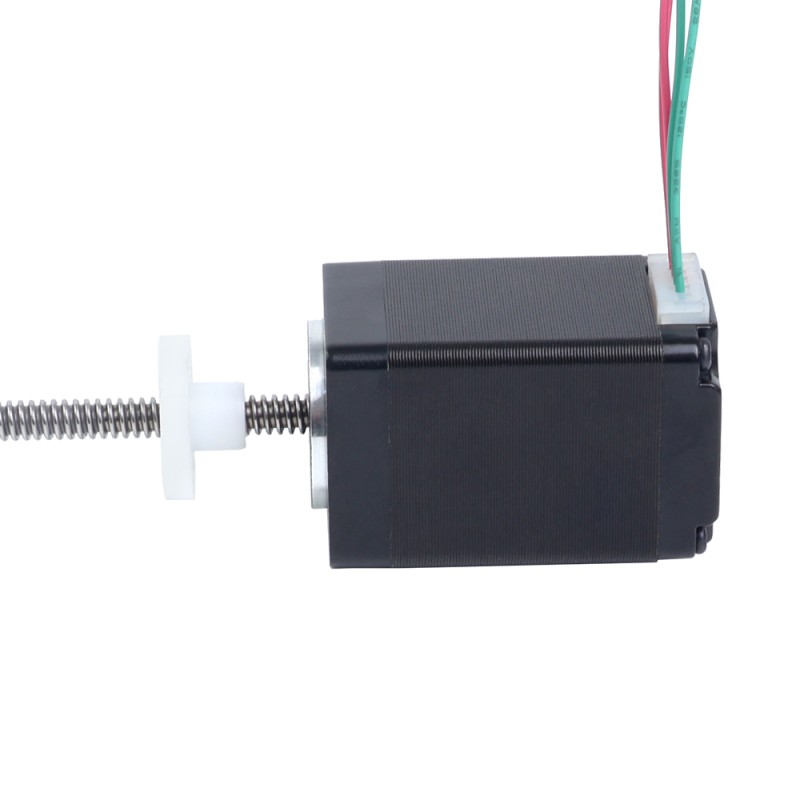

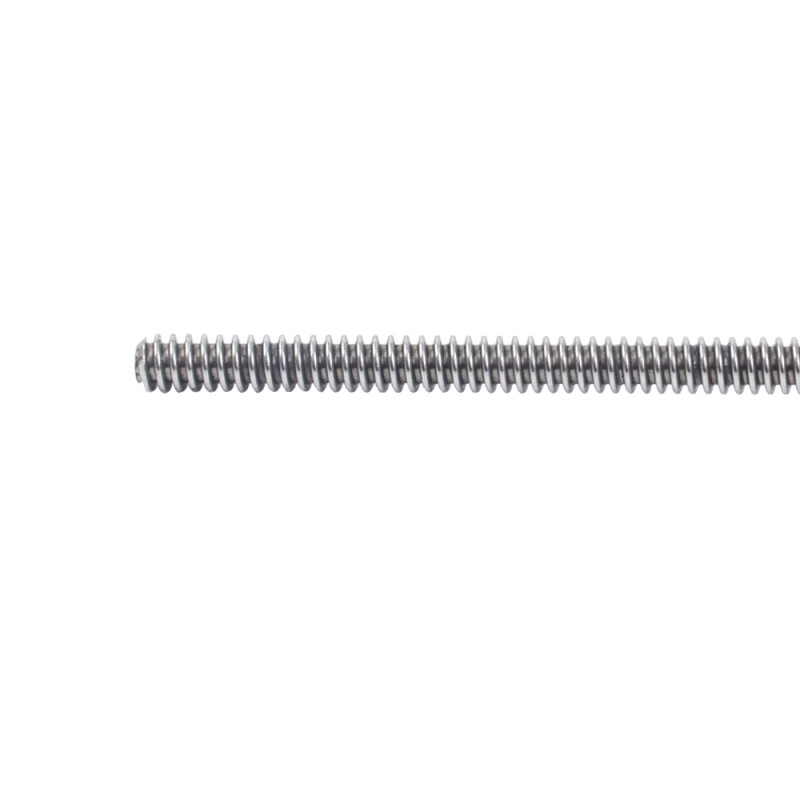

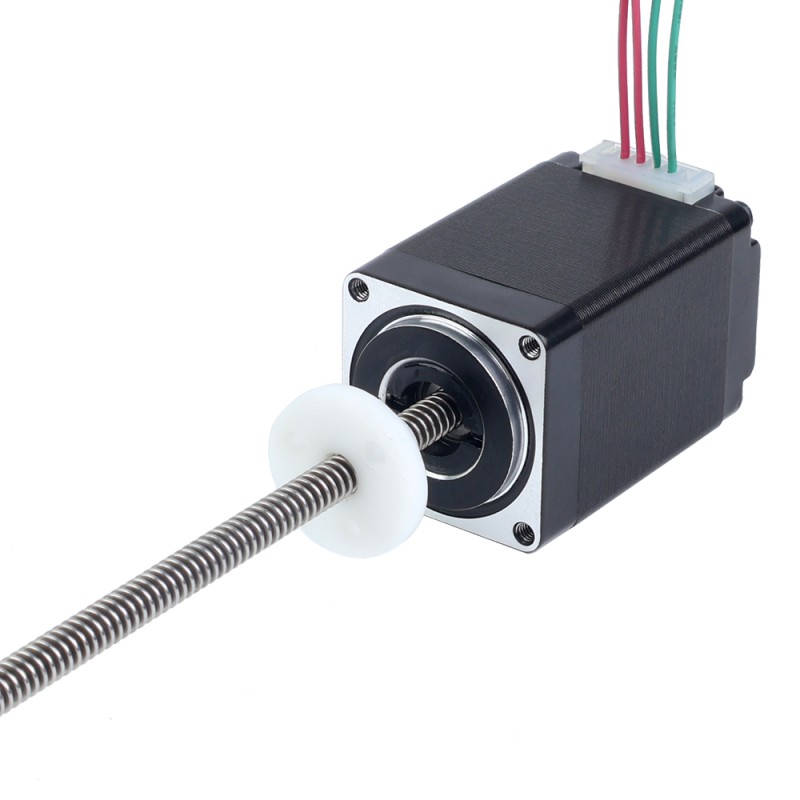

The motor part is 45mm body 1.8 degree 0.75A Nema 11 stepper motor, and it has integrated with a 4.76mm(0.1874") diameter 250mm(9.8425") length lead screw and a POM screw nut, the linear travel is 1.27mm(0.05") per revolution. This model is almost exactly same as Haydon Kerk 28000 series size 11 double stack external stepper motor linear actuator.

Electrical Specification

Manufacturer Part Number: 11E18S0754FD4-250RS
Motor Type: External Linear Stepper
Step Angle: 1.8°
Holding Torque: 0.1Nm(14.16oz.in)
Rated Current/phase: 0.75A
Phase Resistance: 6.7ohms
Inductance: 5.8mH±20%(1KHz)

Physical Specification

Frame Size: 28 x 28mm
Body Length: 45mm
Lead Screw Length: 250mm(9.8425")
Lead Screw Diameter: Φ4.76mm(0.1874")
Lead/Step: 0.00635mm(0.00025")
Lead Travel/Revolution: 1.27mm(0.05")
Number of Leads: 4
Cable Length: 300mm
Weight : 190g

Connection

A+	A-	B+	B-
Red	Red/White	Green/White	Green

● How to order a custom linear motor? Custom Linear Stepper Motor

● If you only have the old part number, get the new one here Show Details

● How we named linear motor? Part Number Construction

Physical Specification
No. of Lead	4
Linear Motor Type	External(Acme)
Lead Travel/Revolution(mm)	1.27
Lead Travel/Step(mm)	0.00635
Lead Screw Length(mm)	250
Lead Screw Diameter(mm)	4.76
Frame Size(mm)	Nema 11 (28 x 28)
Body Length(mm)	45
Cable Length(mm)	300
With Encoder	No
Inventory Method	Dedicated Inventory
IP Rating	40
Electrical Specification
Holding Torque(Ncm)	10
Rated Current(A)	0.75
Holding Torque(oz.in)	14.16
Bipolar/Unipolar	Bipolar
Step Angle(deg.)	1.8
Phase Resistance(ohms)	6.7
Inductance(mH)	5.8
Has Torque/Thrust Curve?	No
Product Type
Product Type	Linear Stepper Motor
