Nema 11 External 45mm Stack 0.75A Lead 0.635mm(0.025") Length 101mm

Nema 11 External 45mm Stack 0.75A Lead 0.635mm(0.025") Length 101mm
Nema 11 External 45mm Stack 0.75A Lead 0.635mm(0.025") Length 101mm
Nema 11 External 45mm Stack 0.75A Lead 0.635mm(0.025") Length 101mm
Nema 11 External 45mm Stack 0.75A Lead 0.635mm(0.025") Length 101mm
Nema 11 External 45mm Stack 0.75A Lead 0.635mm(0.025") Length 101mm
Nema 11 External 45mm Stack 0.75A Lead 0.635mm(0.025") Length 101mm
Nema 11 External 45mm Stack 0.75A Lead 0.635mm(0.025") Length 101mm
Nema 11 External 45mm Stack 0.75A Lead 0.635mm(0.025") Length 101mm
Nema 11 External 45mm Stack 0.75A Lead 0.635mm(0.025") Length 101mm
Nema 11 External 45mm Stack 0.75A Lead 0.635mm(0.025") Length 101mm
Nema 11 External 45mm Stack 0.75A Lead 0.635mm(0.025") Length 101mm
Nema 11 External 45mm Stack 0.75A Lead 0.635mm(0.025") Length 101mm
Nema 11 External 45mm Stack 0.75A Lead 0.635mm(0.025") Length 101mm
Nema 11 External 45mm Stack 0.75A Lead 0.635mm(0.025") Length 101mm
Nema 11 External 45mm Stack 0.75A Lead 0.635mm(0.025") Length 101mm
0 reviews • Write a review
from
$36.92
10 or more $34.01
100 or more $31.52
  • Model: 11E18S0754ED4-101RS
  • Weight: 0.27kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Lead Screw
Lead, Length, Screw End Machining, Thread Type...
Nut
Material, Profile/Shape, Dimensions...
Body
Body Dimensions, Mounting Holes...
Cable
Length, Connector, Terminal...
Optional Accessories
Encoder, Brake

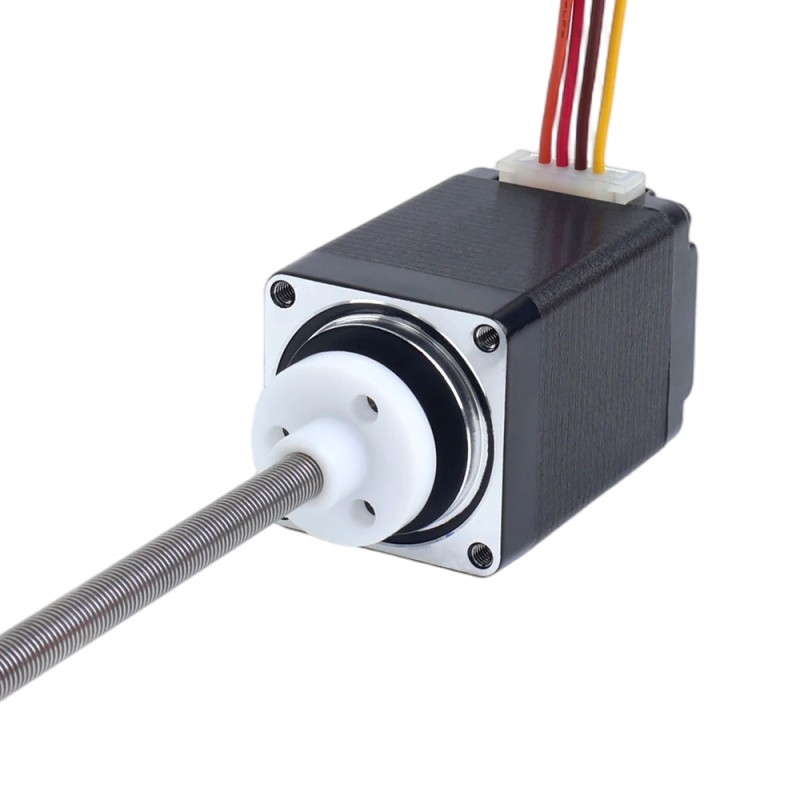

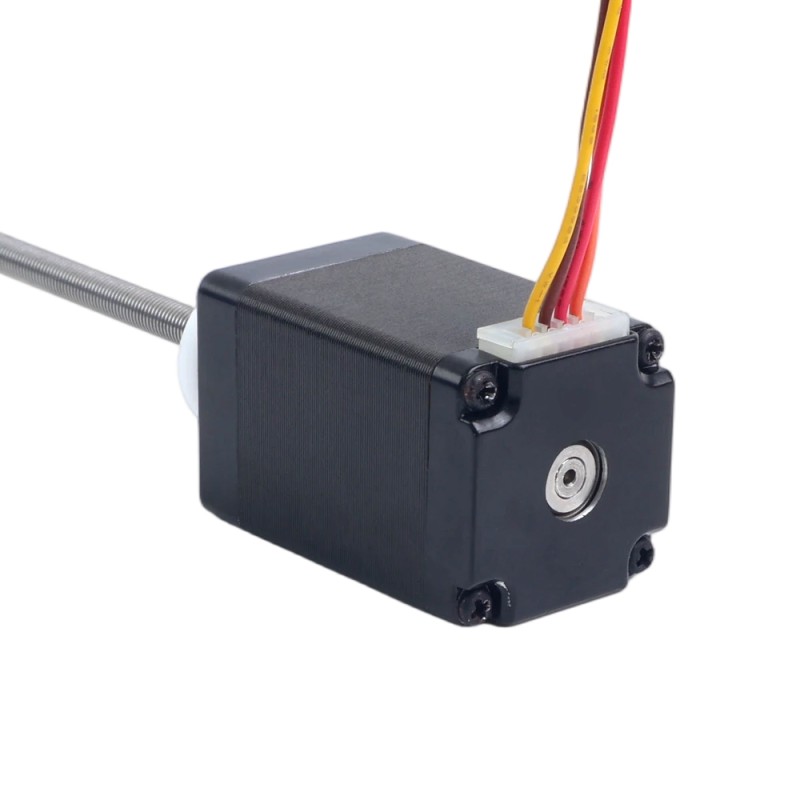

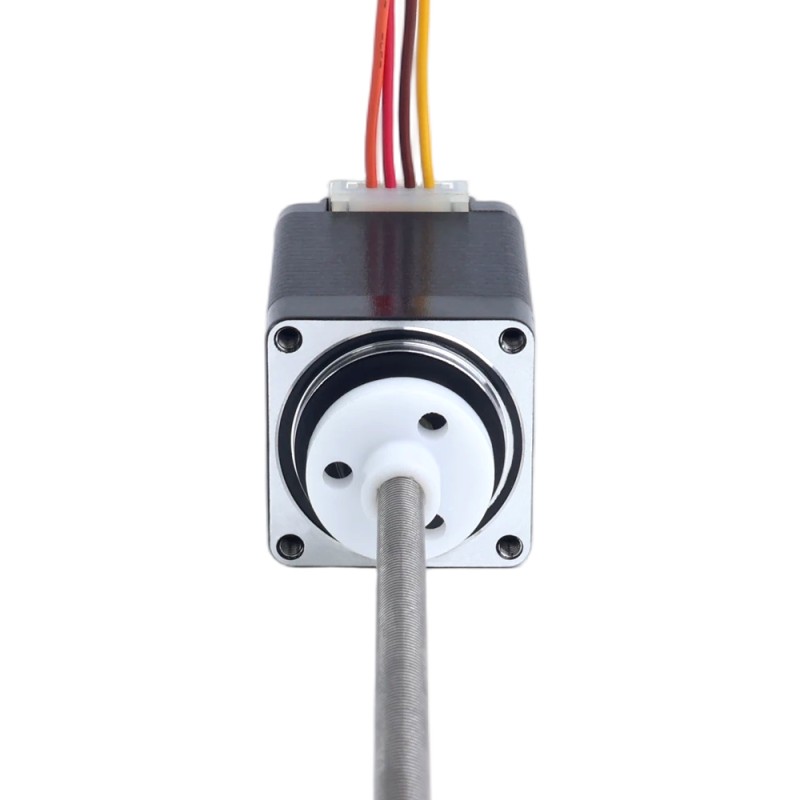

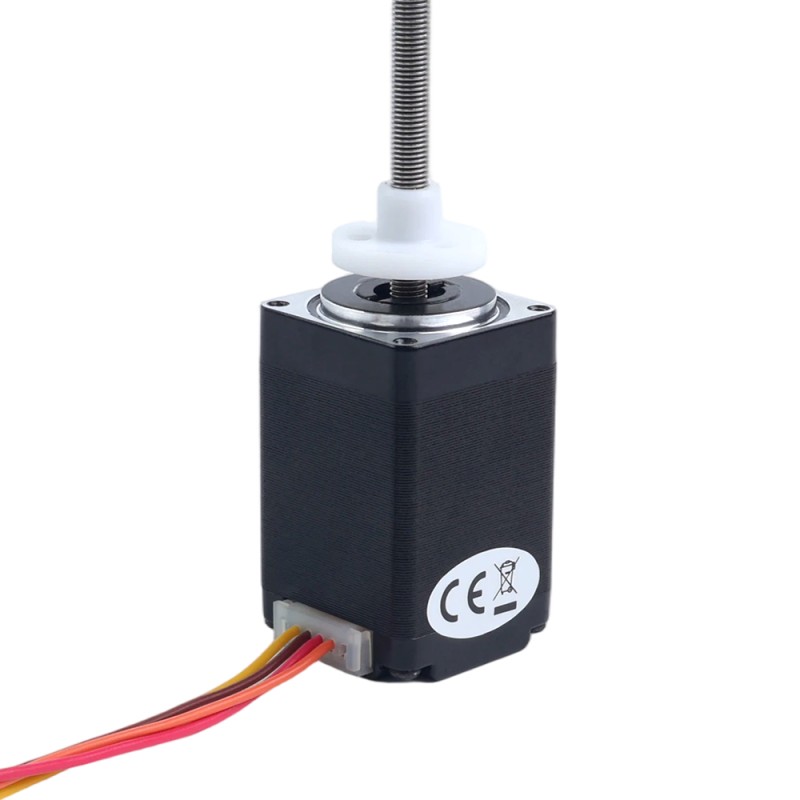

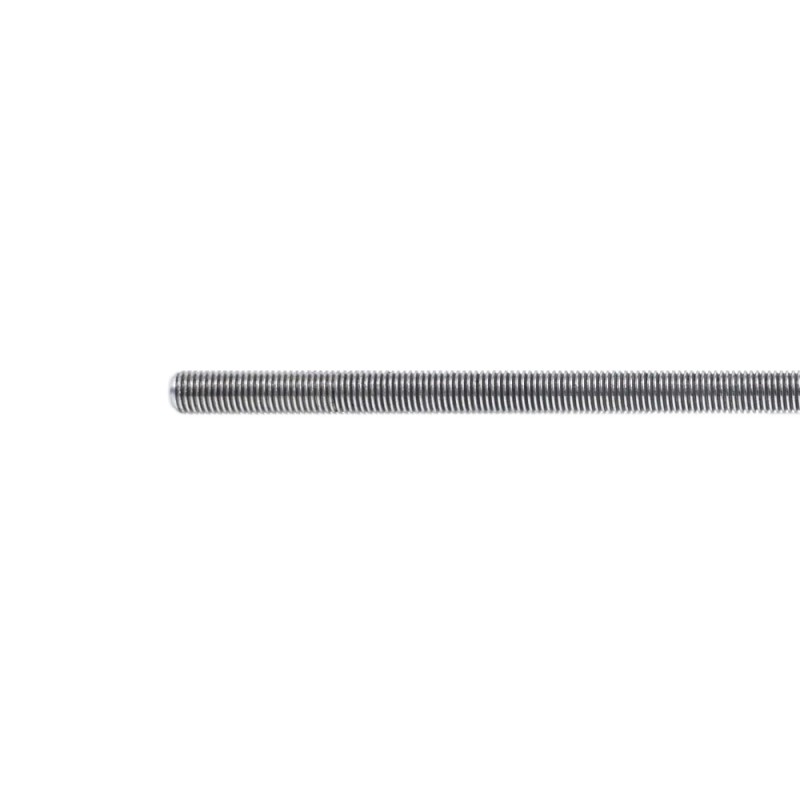

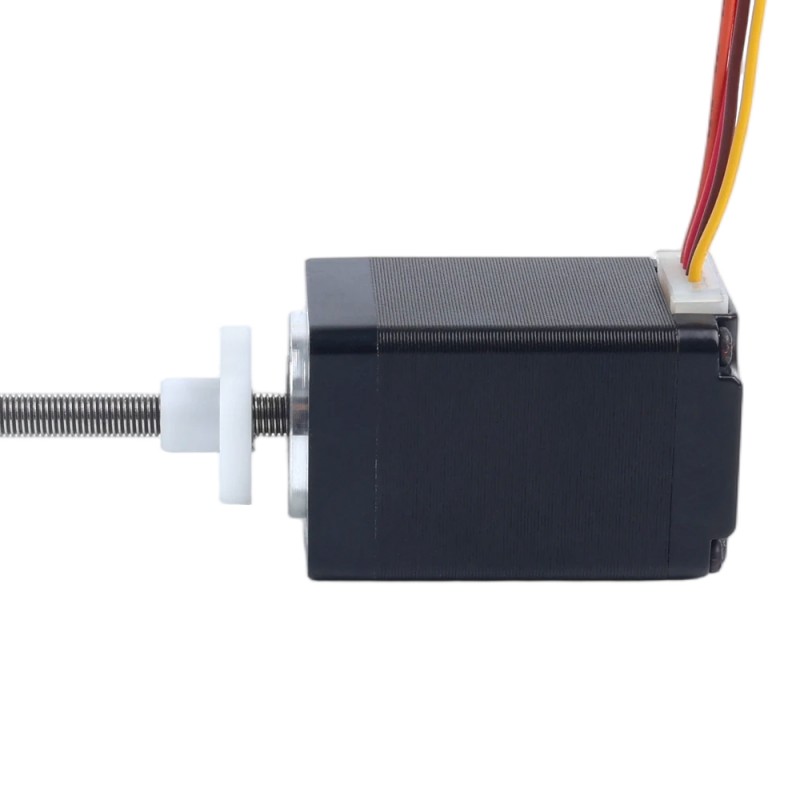

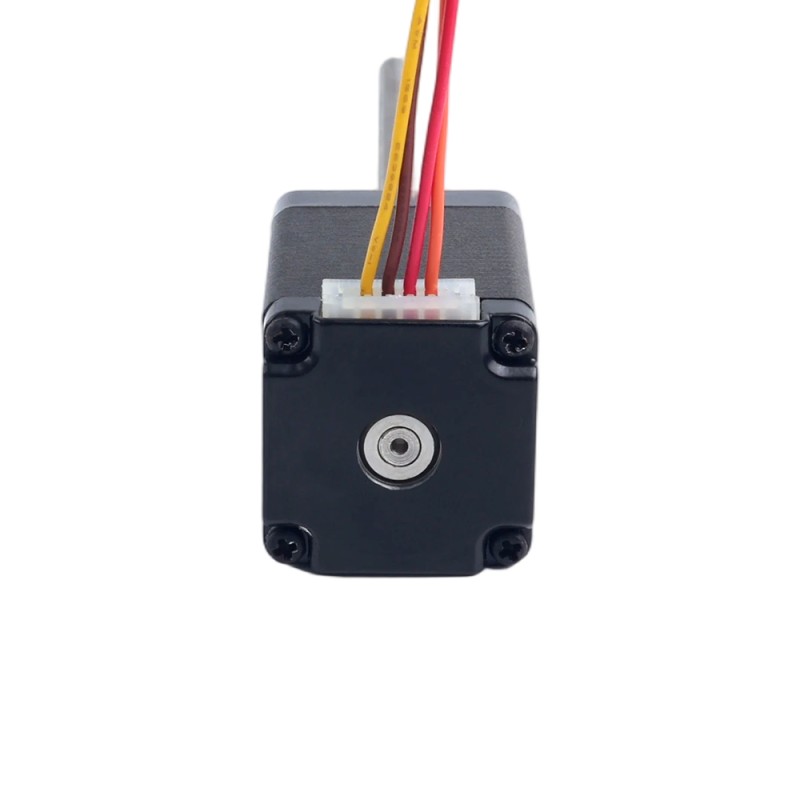

This model is an economy linear stepper motor which named Nema 11 external linear actuator. It was integrated with a 45mm 1.8 degree 0.75A Nema 11 stepper motor and a 101mm Tr4.76x0.635 threaded rod , along which a POM screw nut travels.

Electrical Specification

  • Manufacturer Part Number: 11E18S0754ED4-101RS
  • Motor Type: External Linear Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 0.095Nm(13.45oz.in)
  • Rated Current/phase: 0.75A
  • Phase Resistance: 6.7ohms
  • Inductance: 3.0mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 28 x 28mm
  • Body Length: 45mm
  • Lead Screw Length: 101mm(3.976")
  • Lead Screw Diameter: Φ4.76mm(0.1874")
  • Lead/Step: 0.003175mm(0.000125")
  • Lead/Revolution: 0.635mm(0.025")
  • Number of Leads: 4
  • Cable Length: 300mm
  • Weight: 176g

Connection

A+
A-
B+
B-
Red
Yellow
Orange
Brown

● How to order a custom linear motor?  Custom Linear Stepper Motor

● If you only have the old part number, get the new one here  Show Details

● How we named linear motor?  Part Number Construction

Physical Specification
No. of Lead 4
Linear Motor Type External(Acme)
Lead Travel/Revolution(mm) 0.635
Lead Travel/Step(mm) 0.003175
Lead Screw Length(mm) 101.6
Lead Screw Diameter(mm) 4.76
Frame Size(mm) Nema 11 (28 x 28)
Body Length(mm) 45
Cable Length(mm) 300
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Holding Torque(Ncm) 9.5
Rated Current(A) 0.75
Holding Torque(oz.in) 13.45
Bipolar/Unipolar Bipolar
Step Angle(deg.) 1.8
Phase Resistance(ohms) 6.7
Inductance(mH) 3
Has Torque/Thrust Curve? No
