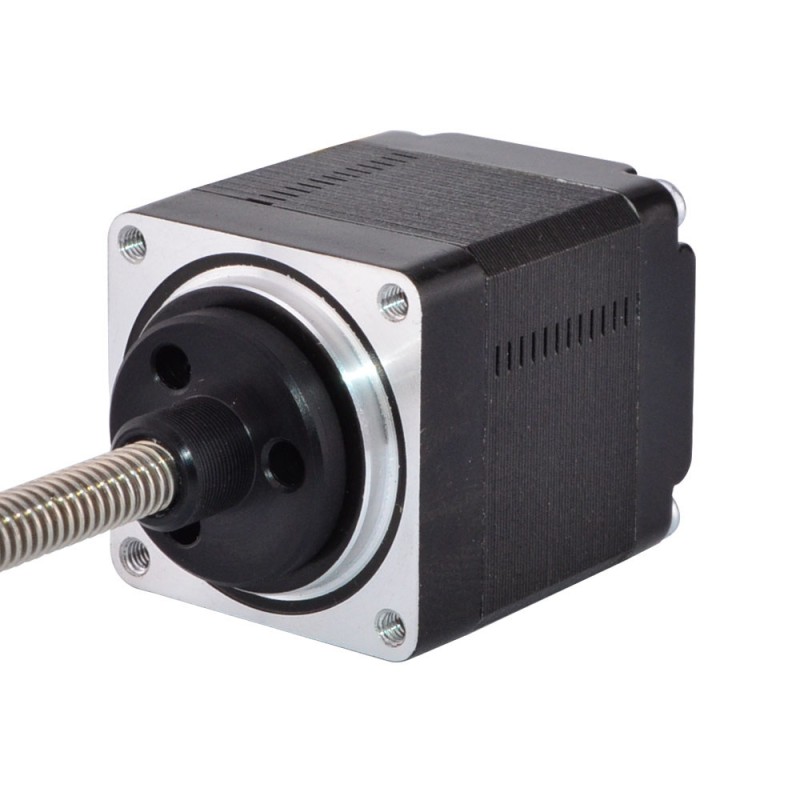

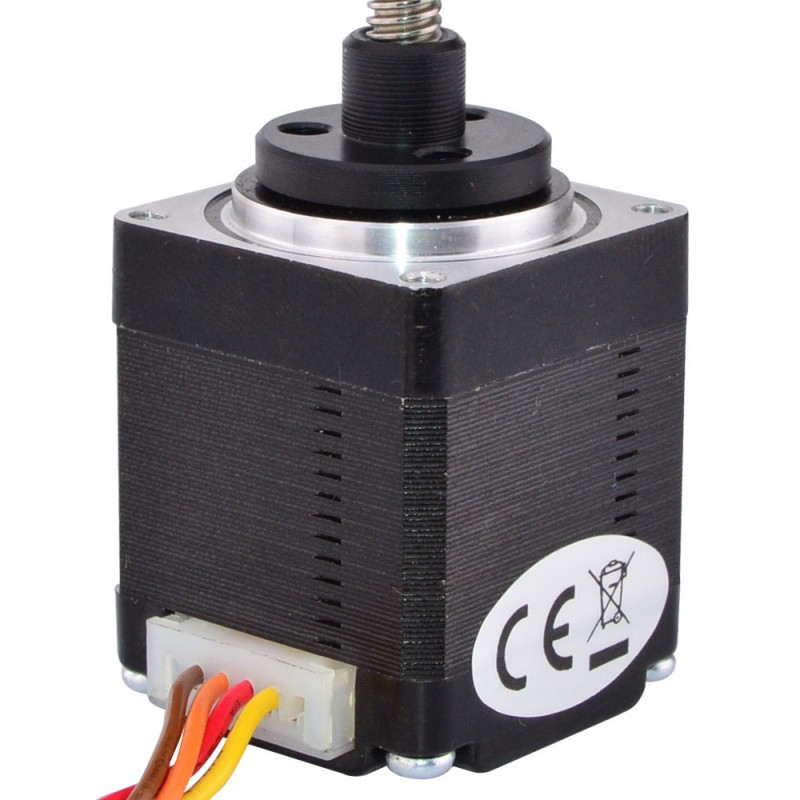

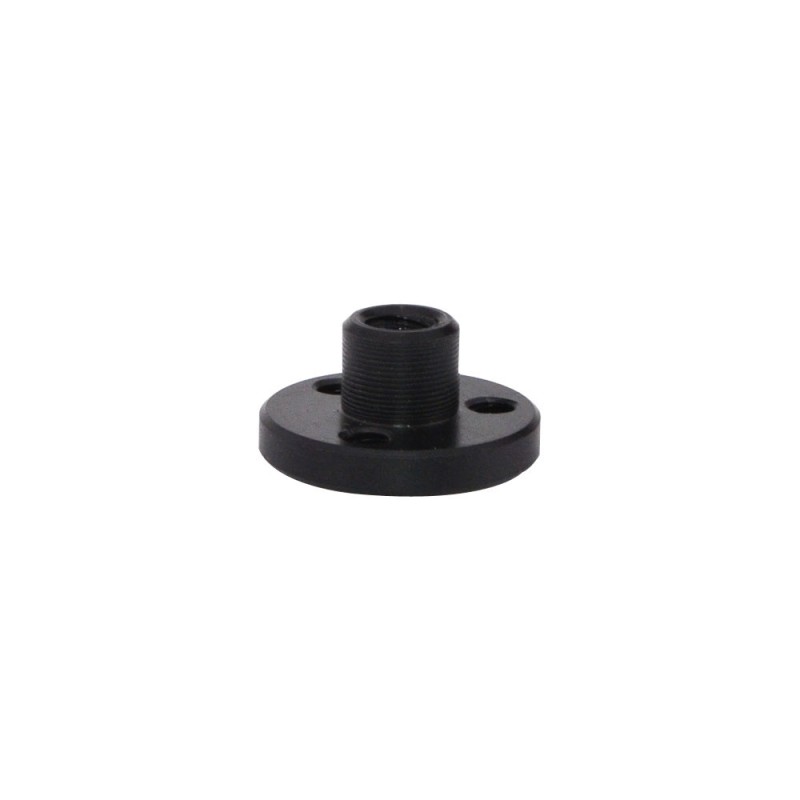

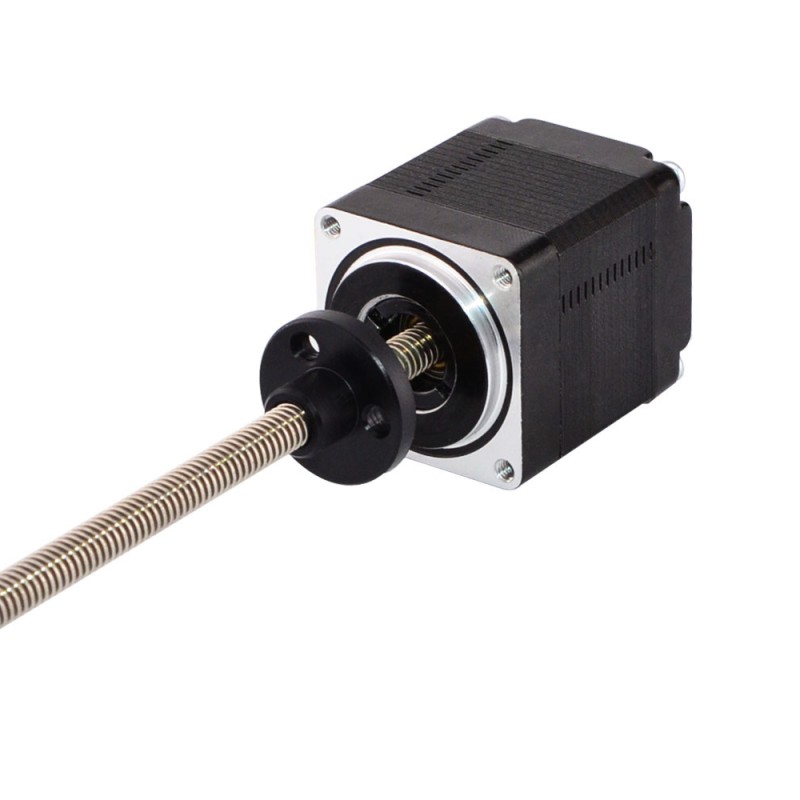

This model is economy linear stepper motor which named Nema 11 external linear actuator, the motor part is 34mm 1.8 degree 0.75A Nema 11 stepper motor. It was integrated with 100mm Tr4.76x0.635 threaded rod and a POM screw nut move along the threaded rod.

Electrical Specification

  • Manufacturer Part Number: 11E13S0754ED2-100RS(11E13S0754ED-100RS)
  • Motor Type: External Linear Stepper
  • Step Angle: 1.8deg
  • Minimal Thrust: 4.8N(300pps)
  • Rated Current/phase: 0.75A
  • Phase Resistance: 3.2ohms
  • Voltage: 2.4V
  • Inductance: 2.0mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 28 x 28mm
  • Body Length: 34mm
  • Lead Screw Length: 100mm(3.937")
  • Lead Screw Diameter: Φ4.76mm(0.1874")
  • Lead/Step: 0.003175mm(0.000125")
  • Lead/Revolution: 0.635mm(0.025")
  • Number of Leads: 4
  • Cable Length: 300mm
  • Weight: 150g

Connection

A+
A-
B+
B-
Red
Brown
Yellow
Orange

● How to order a custom linear motor?  Custom Linear Stepper Motor

● If you only have the old part number, get the new one here  Show Details

● How we named linear motor?  Part Number Construction

Physical Specification
No. of Lead 4
Lead Length(mm) 304
Linear Motor Type External(Acme)
Lead Travel/Revolution(mm) 0.635
Lead Travel/Step(mm) 0.003175
Lead Screw Length(mm) 100
Lead Screw Diameter(mm) 4.76
Frame Size(mm) Nema 11 (28 x 28)
Body Length(mm) 34
With Encoder No
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Holding Torque(Ncm) 8
Rated Current(A) 0.75
Holding Torque(oz.in) 11.33
Bipolar/Unipolar Bipolar
Step Angle(deg.) 1.8
Phase Resistance(ohms) 3.2
Inductance(mH) 2
Has Torque/Thrust Curve? No
