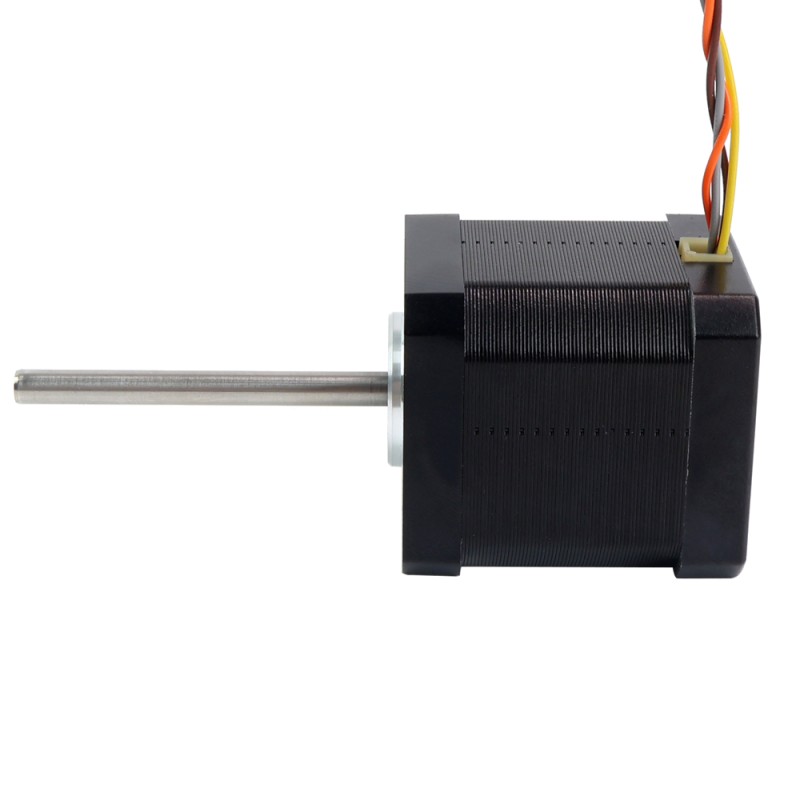

Nema 17 High Temp Stepper Motor 55Ncm(77.93oz.in) 55mm Round Shaft Insulation Class H 180C

Nema 17 High Temp Stepper Motor 55Ncm(77.93oz.in) 55mm Round Shaft Insulation Class H 180C
Nema 17 High Temp Stepper Motor 55Ncm(77.93oz.in) 55mm Round Shaft Insulation Class H 180C
Nema 17 High Temp Stepper Motor 55Ncm(77.93oz.in) 55mm Round Shaft Insulation Class H 180C
Nema 17 High Temp Stepper Motor 55Ncm(77.93oz.in) 55mm Round Shaft Insulation Class H 180C
Nema 17 High Temp Stepper Motor 55Ncm(77.93oz.in) 55mm Round Shaft Insulation Class H 180C
Nema 17 High Temp Stepper Motor 55Ncm(77.93oz.in) 55mm Round Shaft Insulation Class H 180C
Nema 17 High Temp Stepper Motor 55Ncm(77.93oz.in) 55mm Round Shaft Insulation Class H 180C
Nema 17 High Temp Stepper Motor 55Ncm(77.93oz.in) 55mm Round Shaft Insulation Class H 180C
Nema 17 High Temp Stepper Motor 55Ncm(77.93oz.in) 55mm Round Shaft Insulation Class H 180C
Nema 17 High Temp Stepper Motor 55Ncm(77.93oz.in) 55mm Round Shaft Insulation Class H 180C
Nema 17 High Temp Stepper Motor 55Ncm(77.93oz.in) 55mm Round Shaft Insulation Class H 180C
0 reviews • Write a review
from
$17.42
10 or more $15.62
100 or more $14.15
  • Model: 17HS19-2504S-H-V1
  • Weight: 0.47kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

IP Rating
Insulation Class
Vacuum
Hollow Shaft
Motor Phase Number

This NEMA 17 stepper motor features a 1.8-degree step angle, a holding torque of 55Ncm(77.93oz.in), and draws 2.5A per phase. It comes equipped with a 55mm round shaft and 1m cables.
This motor boasts an insulation class of H, making it suitable for operating environments up to 180°C. It is specially designed and manufactured for 3D printers.

Electrical Specification

  • Manufacturer Part Number: 17HS19-2504S-H-V1
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 55Ncm(77.93oz.in)
  • Rated Current/phase: 2.5A
  • Phase Resistance: 1.1ohms
  • Inductance: 1.6mH±20%(1KHz)
  • Insulation Class: H 180C(356F)

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 48mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 55mm
  • Shaft Type: Round
  • Number of Leads: 4
  • Cable Length: 1000mm

Connection

A+
A-
B+
B-
Gray
Brown
Orange
Yellow
This motor is now available in a pack of 4. It has a better price. For more details, please see 4-17HS19-2504S-H-V1.
Physical Specification
Output Shaft Type O
Shaft Diameter(mm) 5
Shaft Length(mm) 55
No. of Lead 4
Single Shaft/Dual Shaft Single Shaft
Frame Size(mm) Nema 17 (42 x 42)
Body Length(mm) 48
Cable Length(mm) 1000
Inventory Method Dedicated Inventory
Electrical Specification
Holding Torque(Ncm) 55
Rated Current(A) 2.5
Holding Torque(oz.in) 77.93
Bipolar/Unipolar Bipolar
Step Angle(deg.) 1.8
Phase Resistance(ohms) 1.1
Inductance(mH) 1.6
Open-loop/Closed-loop Open-loop
Insulation Class H 180C(356F)
Product Type
Product Type High Temp Stepper Motor
