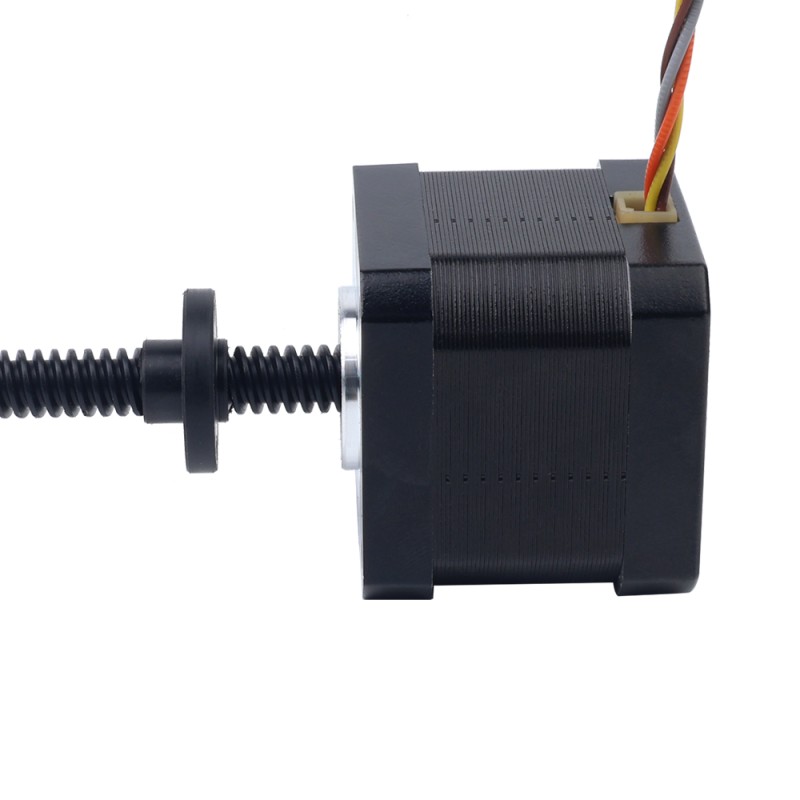

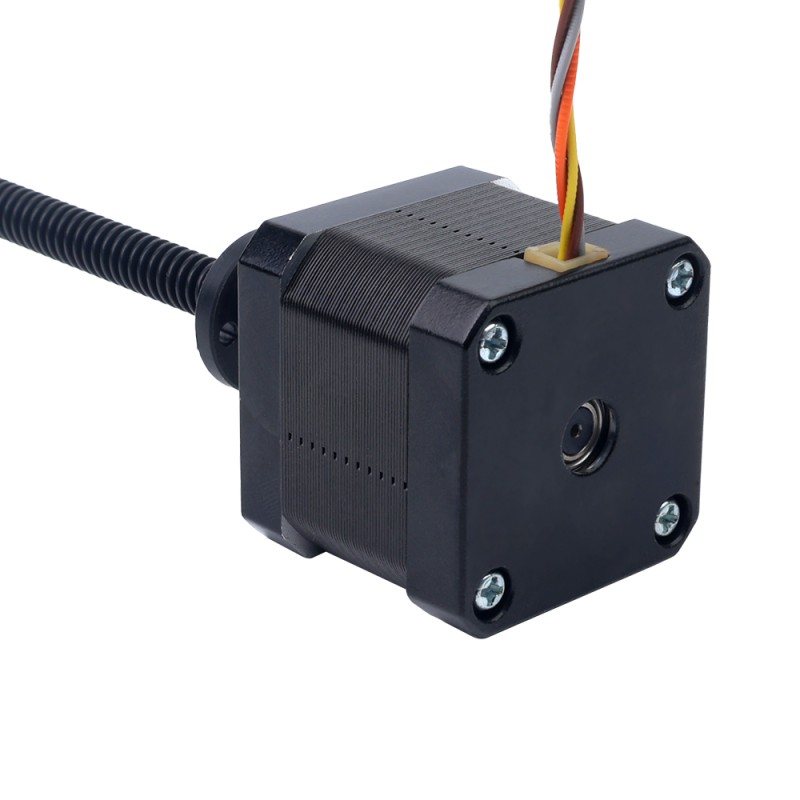

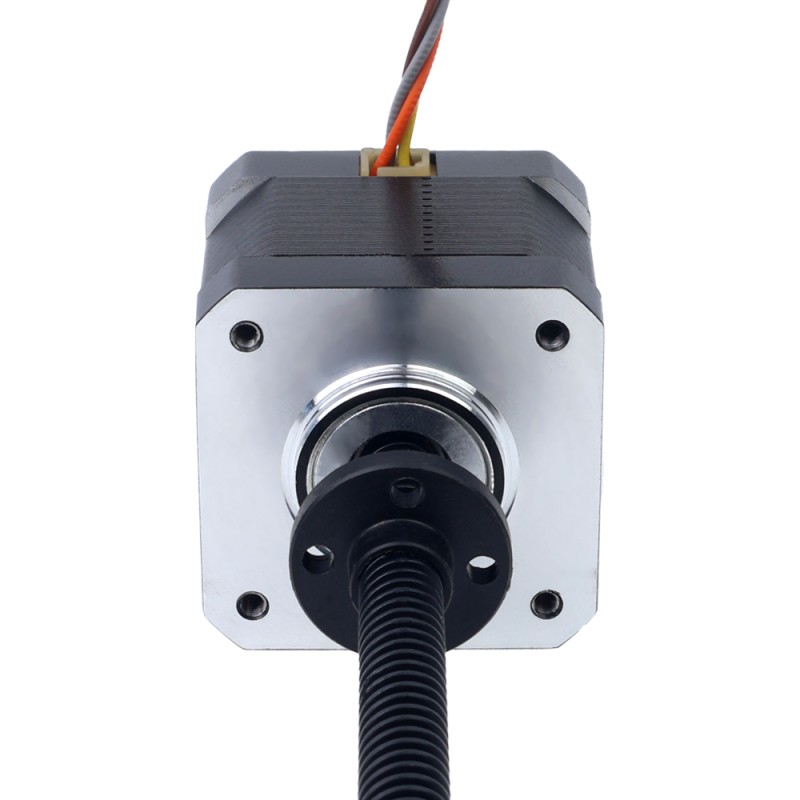

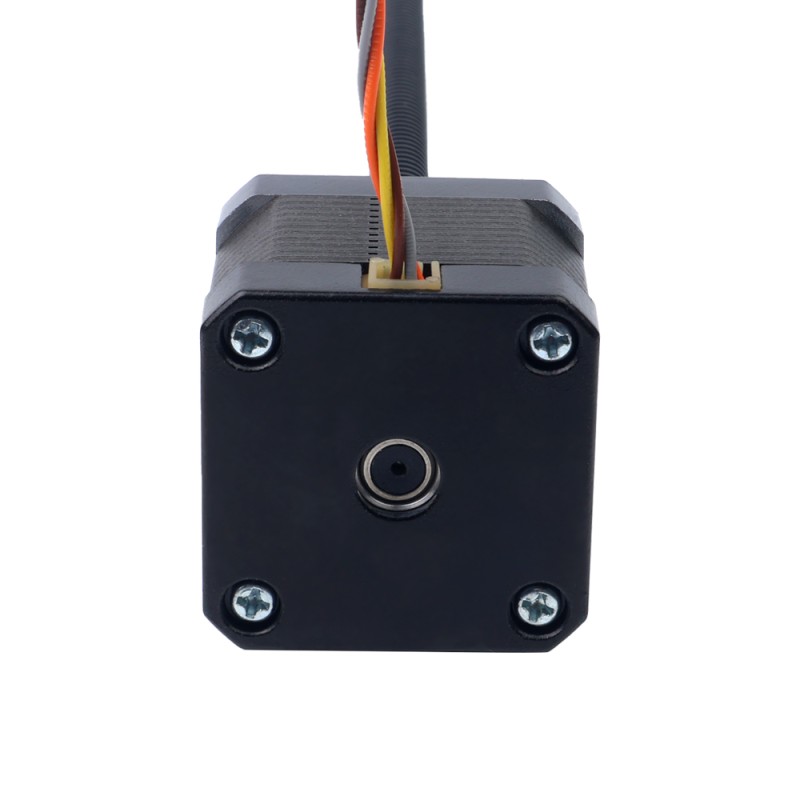

This linear stepper motor consists of a Nema 17 motor and a lead screw and has a body length of 40mm, a step angle of 1.8 degrees and a rated current of 1.68A. It is equipped with a 350mm long Tr8x4 threaded rod and a POM screw nut move along the threaded rod. This motor has insulation class H and is therefore suitable for operating environments up to 180°C. It is specially developed and manufactured for 3D printers.

Electrical Specification

  • Manufacturer Part Number: 17E15S1684DB4-350RS-H
  • Motor Type: External (Trapezoidal)
  • Step Angle: 1.8deg
  • Holding Torque: 0.45Nm(63.73oz.in)
  • Rated Current/phase: 1.68A
  • Phase Resistance: 1.65ohms±10%
  • Inductance: 3.00mH±20%(1KHz)
  • Insulation Class: H 180C(356F)

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 40mm
  • Lead Screw Length: 350mm(13.7795")
  • Lead Screw Diameter: Φ8mm(0.315")
  • Linear Travel/Step: 0.02mm(0.0007874")
  • Lead/Revolution: 4mm(0.15748")
  • Number of Leads: 4
  • Cable Length: 1000mm
  • Weight: 392g

Connection

A+
A-
B+
B-
Gray
Brown
Orange
Yellow
Physical Specification
No. of Lead 4
Linear Motor Type External (Trapezoidal)
Lead Travel/Revolution(mm) 4
Lead Travel/Step(mm) 0.02
Lead Screw Length(mm) 350
Lead Screw Diameter(mm) 8
Frame Size(mm) Nema 17 (42 x 42)
Body Length(mm) 40
With Encoder No
Inventory Method Dedicated Inventory
Electrical Specification
Holding Torque(Ncm) 45
Rated Current(A) 1.68
Holding Torque(oz.in) 63.73
Bipolar/Unipolar Bipolar
Step Angle(deg.) 1.8
Phase Resistance(ohms) 1.65
Inductance(mH) 3.0
Insulation Class H 180C(356F)
