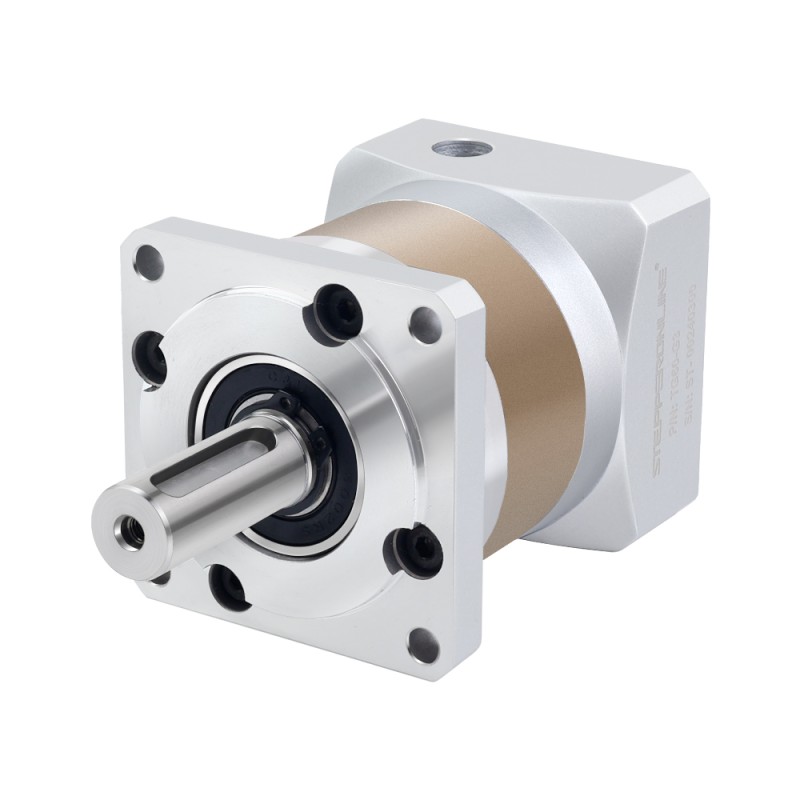

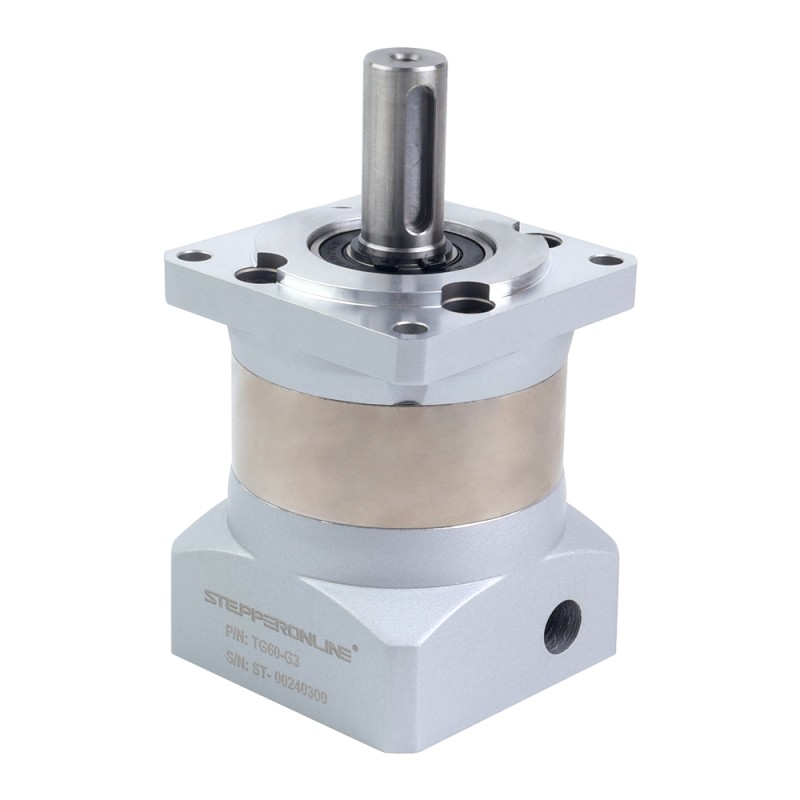

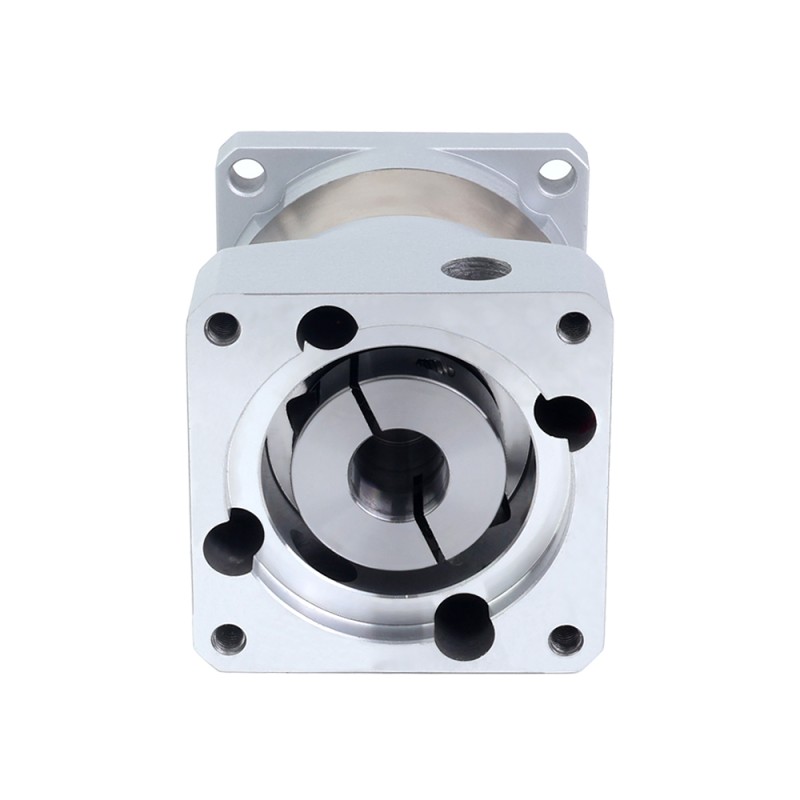

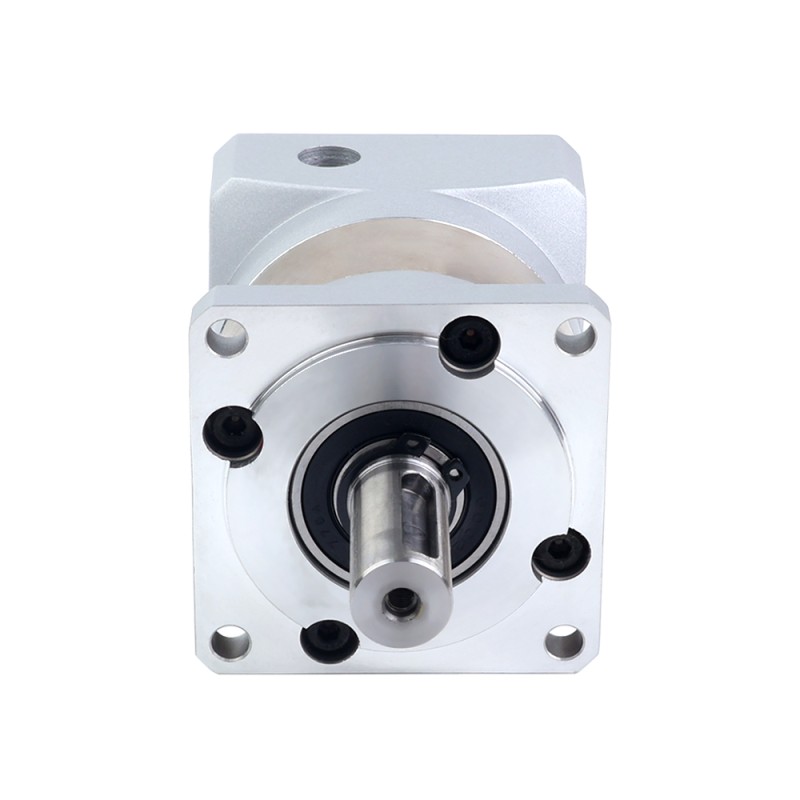

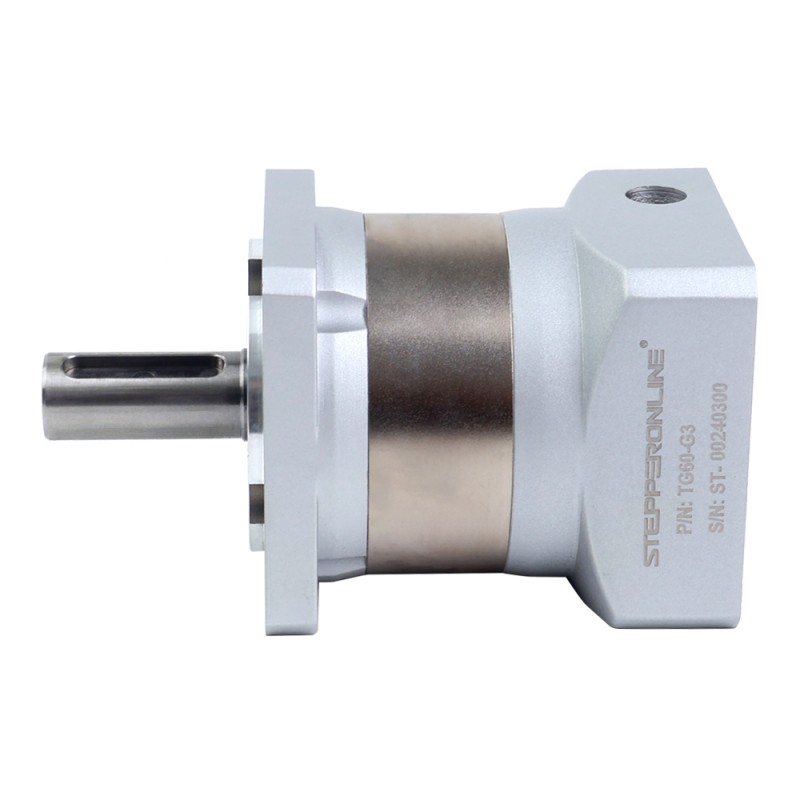

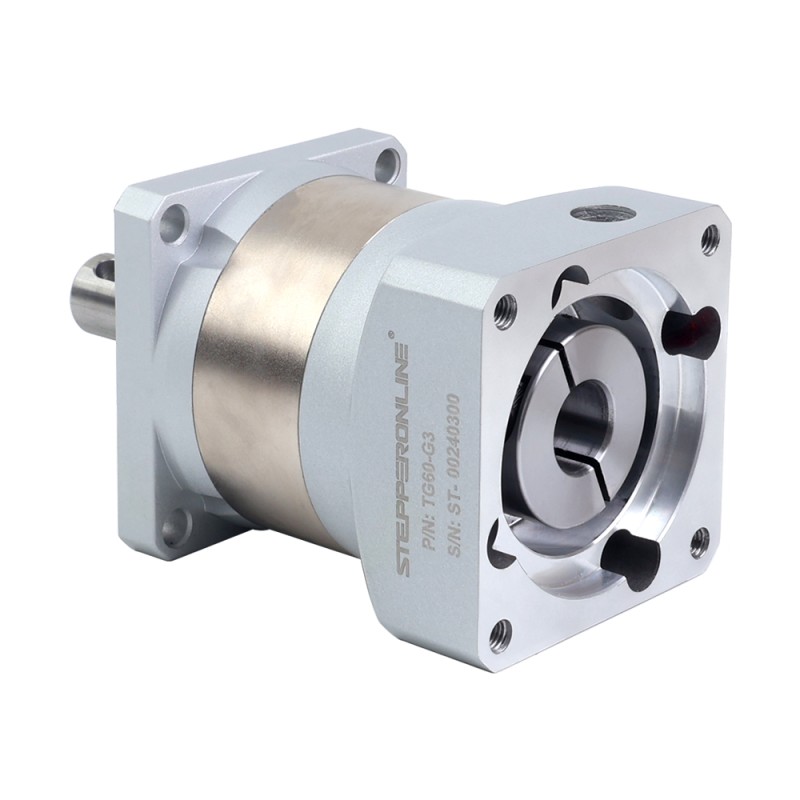

TG Series 60mm 3:1 Planetary Gearbox Backlash 10arc-min for Servo Motors

This high-precision 60mm planetary gearbox is belong to TG series gearbox, with a gear ratio 3:1 and a maximum 10arc-min backlash. It's an excellent choice for applications that require good accuracy and reliability at an exceptional value.
This in-line planetary gearbox can match most servo motors on the market.

Gearbox Specifications

• Part Number: TG60-G3
• Gearbox Type: Spur Planetary
• Gear Material: Alloy Steel
• Gear Ratio: 3:1
• Efficiency: 96%
• Rotor Inertia: 0.13kg.cm²
• Backlash at No-load: <=10arc-min
• Max.Permissible Torque: 16Nm(141.61lb-in)
• Moment Permissible Torque: 32Nm(283.22lb-in)
• Noise: <=55dB(1000rpm)/65dB(3000rpm)
• Waterproof Rating: IP54
• Lifetime: 20000hours

Physical Specifications

• Frame Size: 60 x 60mm
• Gearbox Length: 73.5mm
• Output Shaft Type: Key way
• Output Shaft Diameter: Φ14mm
• Output Shaft Length: 35mm
• Input Shaft Diameter: Φ14mm
• Input Shaft Length: 12-31mm

Other optional reduction ratios.
