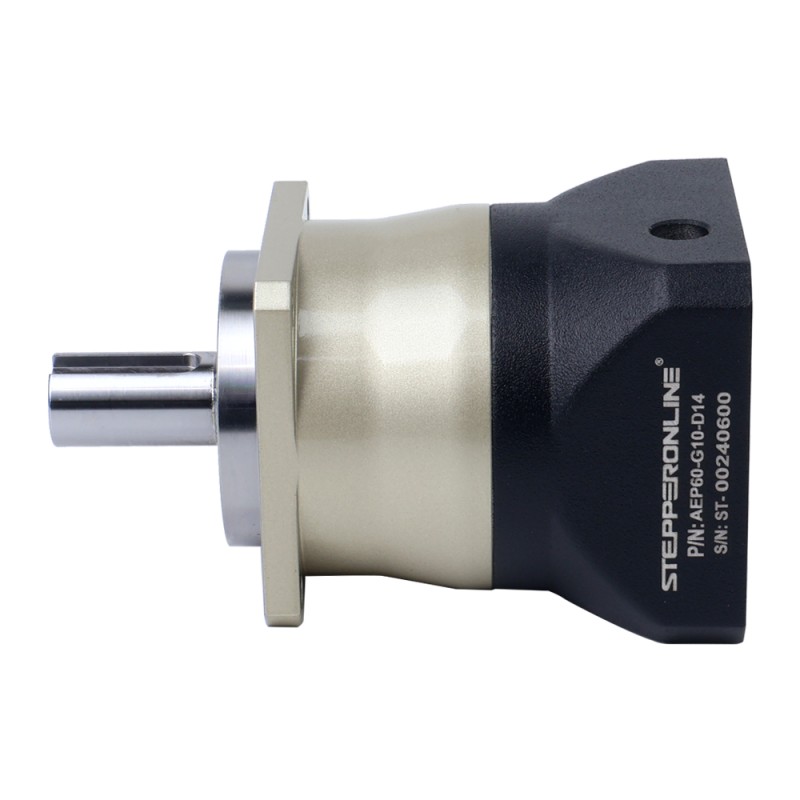

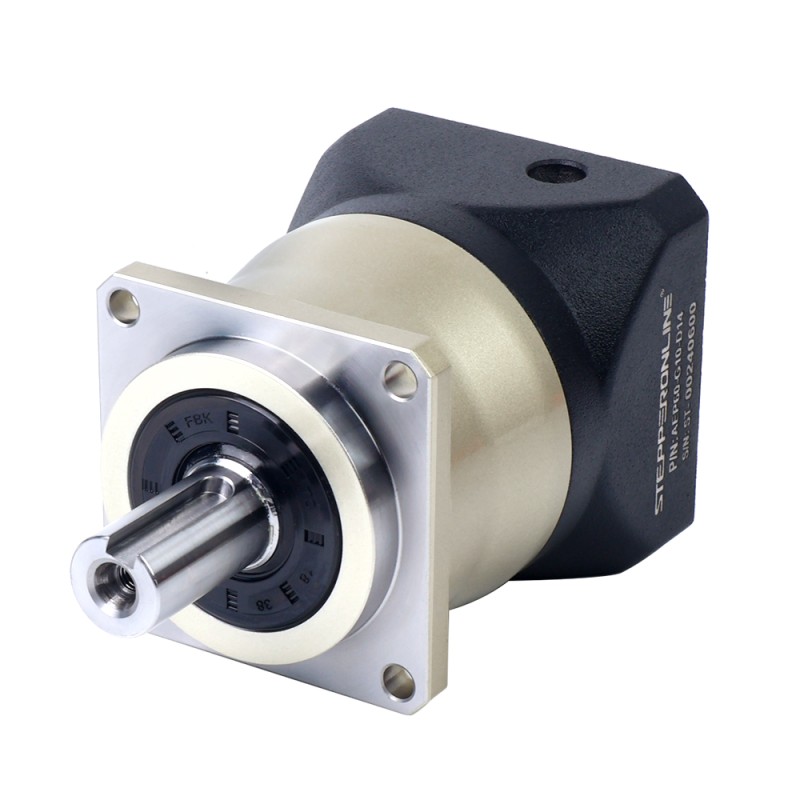

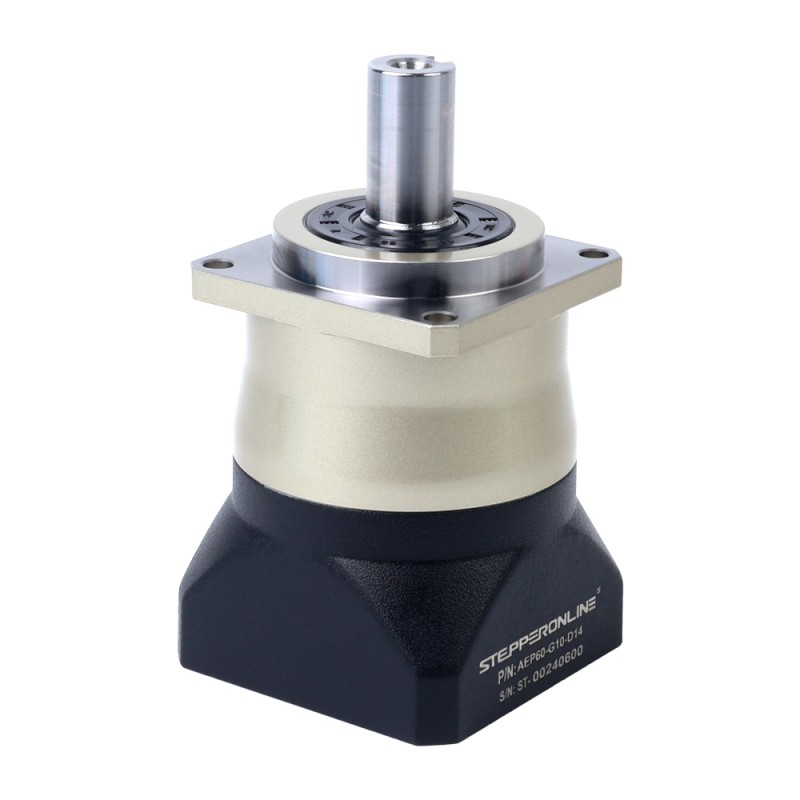

AEP Series 60mm 10:1 Helical Planetary Gearbox Backlash 5arcmin for Servo Motors IP65

The size of this gearbox is 60 x 60mm and the input shaft diameter is 14mm. This AEP series helical planetary gearbox offers a gear ratio of 10:1 with a backlash of 5arcmin. It is designed for servo motors with a size of 60mm and a shaft diameter of 14mm.
This gearbox is designed for harsh environments with a high protection rating of IP65 and features helical gearing for smooth, quiet operation with high torque and accuracy. In addition, the design offers high load capacity for demanding applications like automated production lines, packaging machines, textile machines, etc.

Gearbox Specifications

• Part Number: AEP60-G10-D14
• Gearbox Type: Helical Planetary
• Gear Material: Alloy Steel
• Gear Ratio: 10:1
• Efficiency: 95%
• Backlash at No-load: 5arc-min
• Rated Input Speed: 3000rpm
• Maximum Input Speed: 6000rpm
• Max.Permissible Torque: 18Nm(159.31lb-in)
• Moment Permissible Torque: 80Nm(708.06lb-in)
• Shaft Maximum Axial Load: 765N
• Shaft Maximum Radial Load: 1377N
• Waterproof Rating: IP65
• Lifetime: 20000hours

Physical Specifications

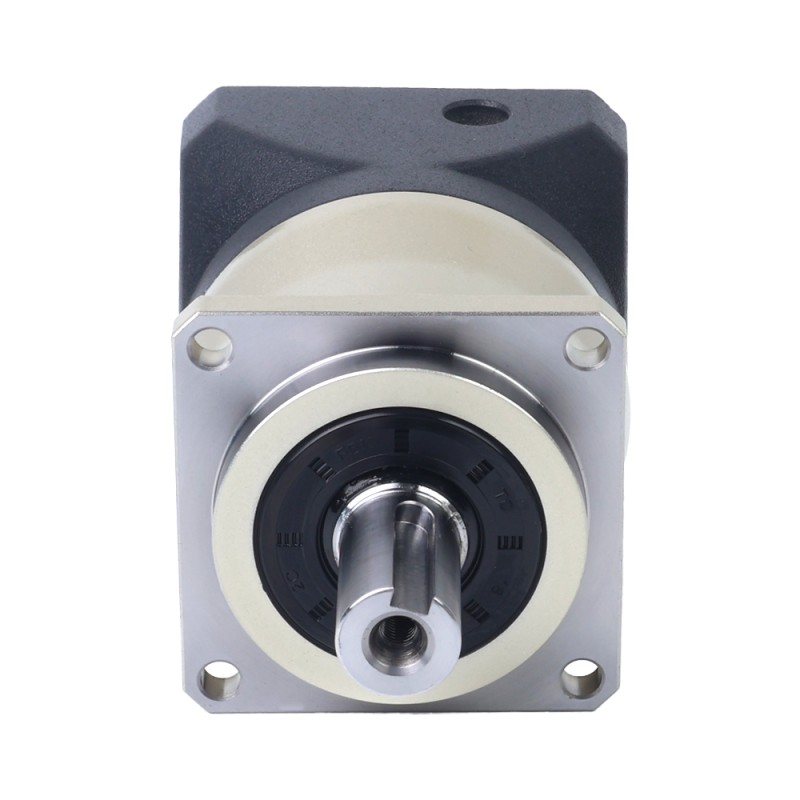

• Output Frame Size: 66 x 66mm

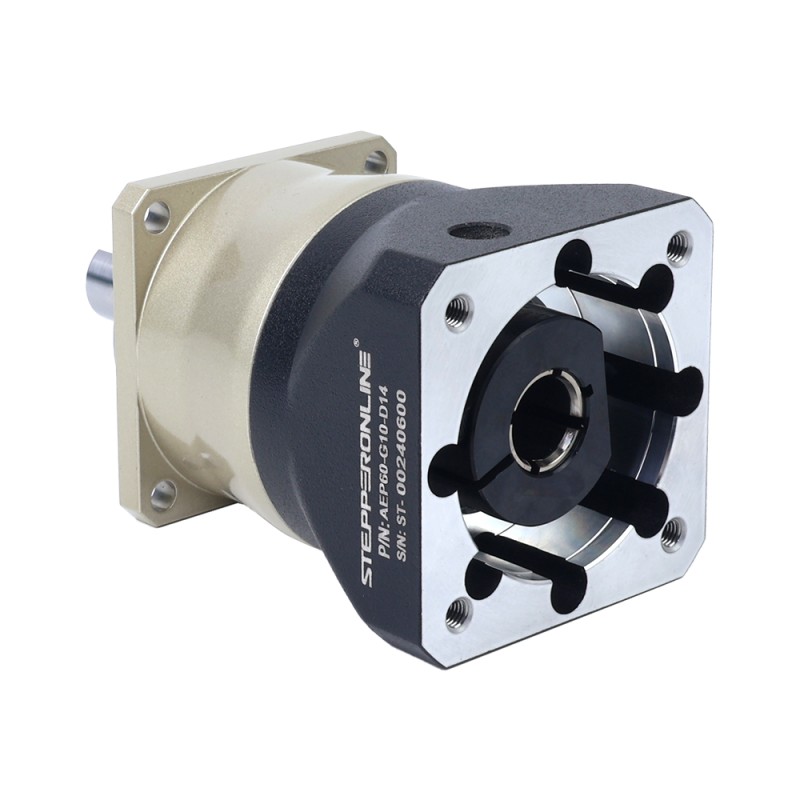

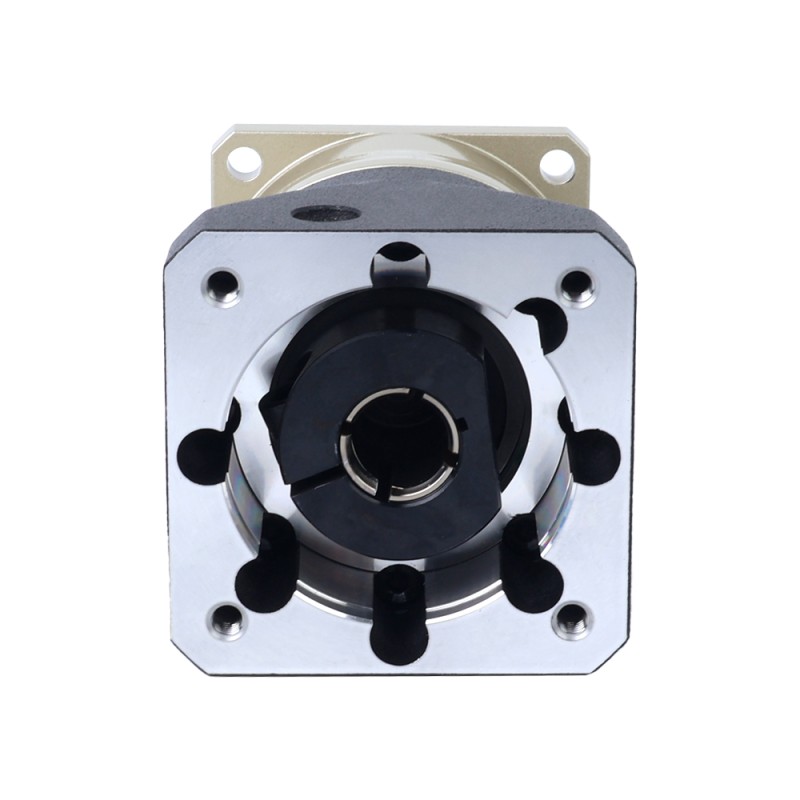

• Input Frame Size: 60 x 60mm
• Output Shaft Diameter: Φ16mm
• Output Shaft Length: 36.5mm
• Output Shaft Type: Keyway
• Input Shaft Diameter: Φ14mm
• Input Shaft Length: Max. 30mm
