EG Series Planetary Gearbox Gear Ratio 100:1 Backlash 25arc-min for Nema 11 Stepper Motor

EG Series Planetary Gearbox Gear Ratio 100:1 Backlash 25arc-min for Nema 11 Stepper Motor

0 reviews • Write a review

from

$59.09

10 or more $54.41

100 or more $50.42

Model: EGS11-G100
Weight: 0.20kg

Available Options

Ships From

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Looking to custom design this motor?

Request a Quote or Ask a Question

Your Name

Your Email

Quantity to Quote

Your questions or requirements

Captcha

Enter the code in the box below

Custom Design Options

Select from the customization options below.

Reduction Ratio

3:1, 4:1, 7:1, 16:1, 35:1...

Material

Powder Metallurgy / Steel Gears...

Input Side

Input Bore Diameter, Input Shaft Length...

Output Side

Mounting Screw Hole Size...

Shaft

Length, Keyway, Flattened, Diameter...

Labeling

No Label / Custom Label, Laser Marking...

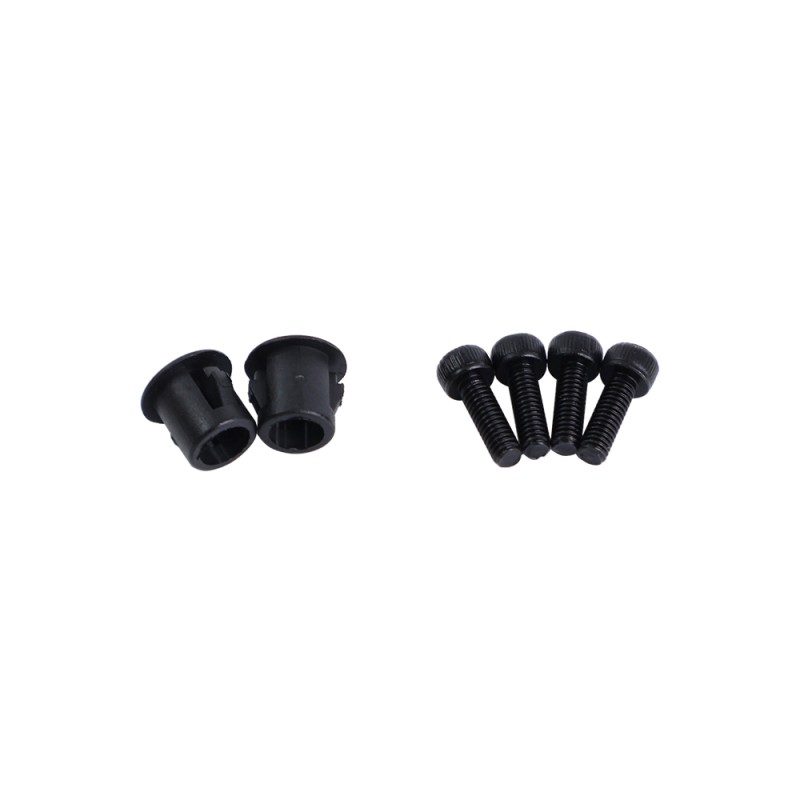

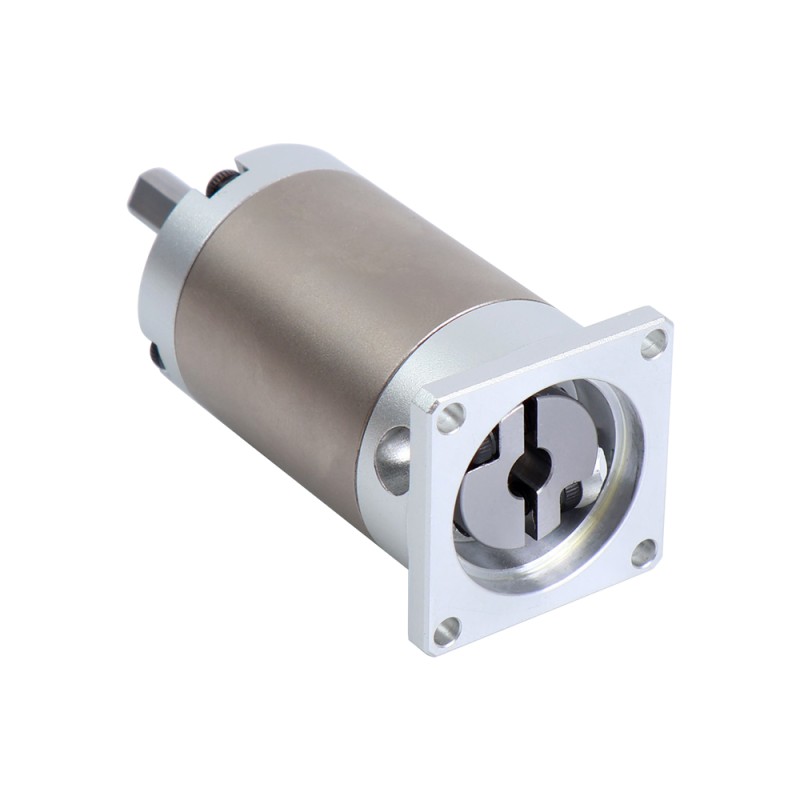

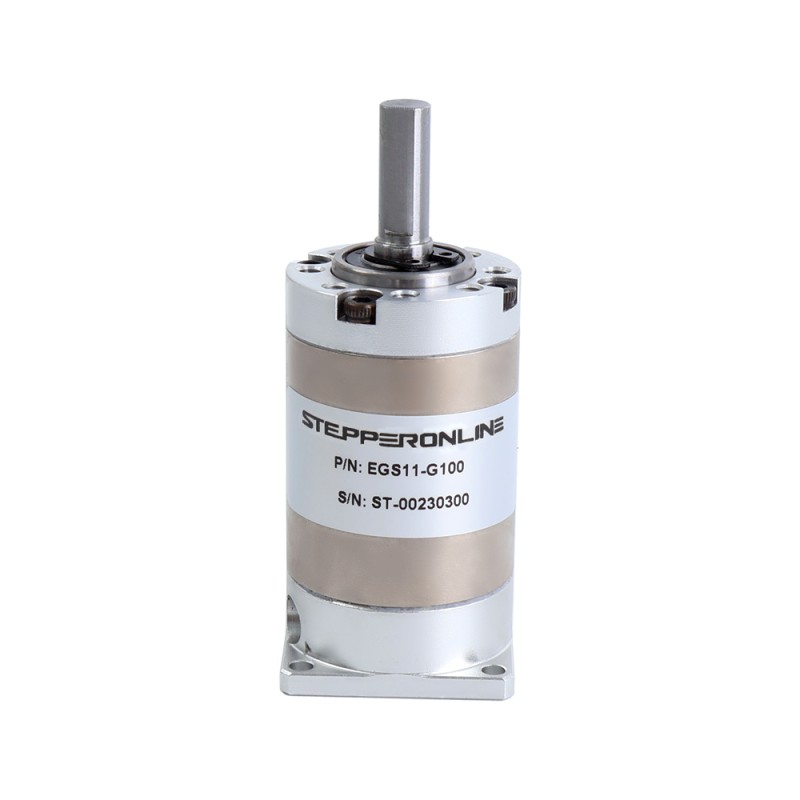

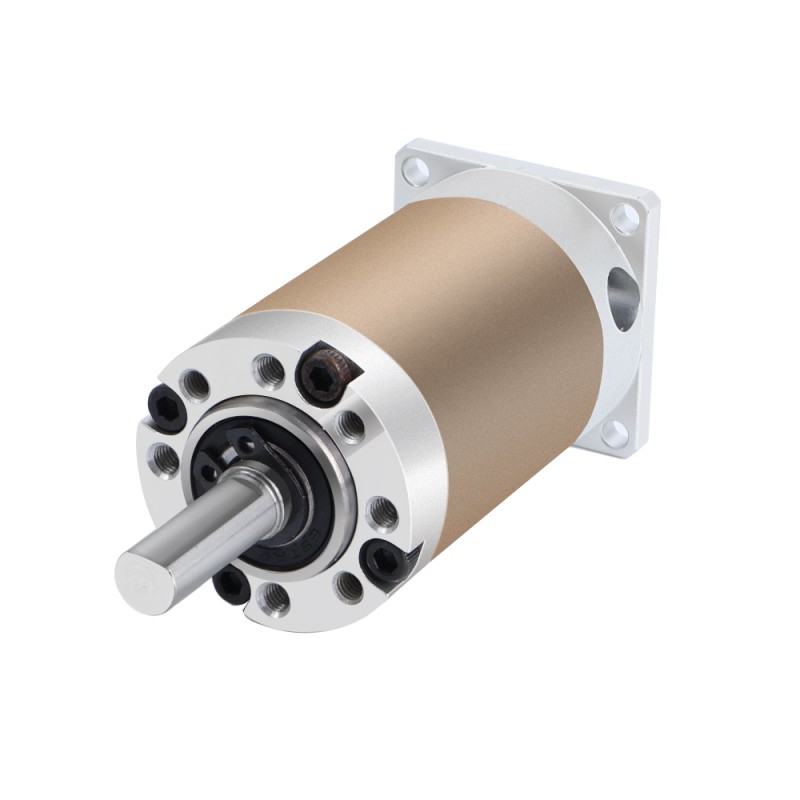

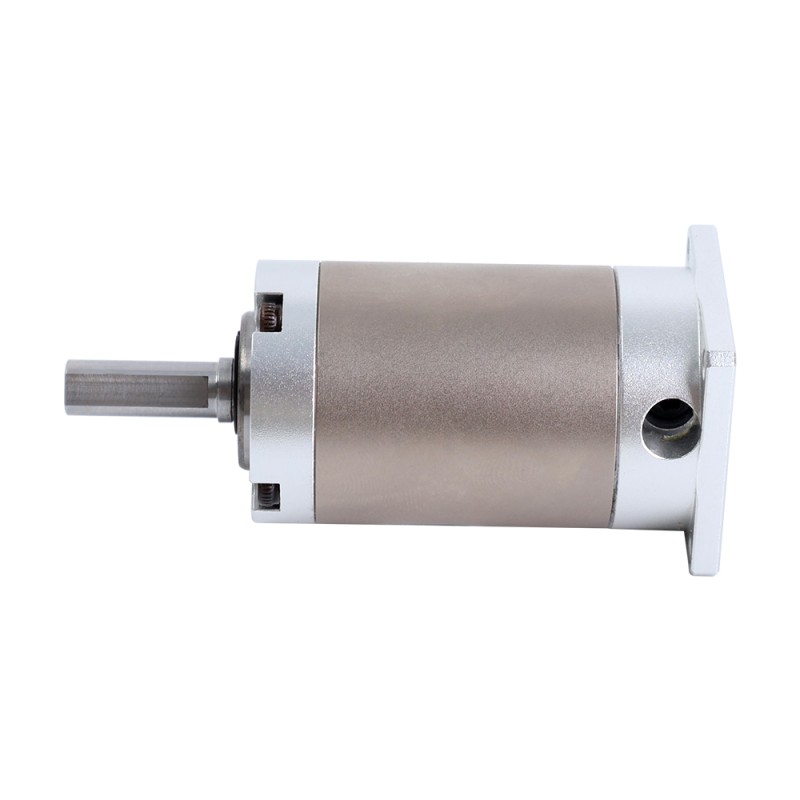

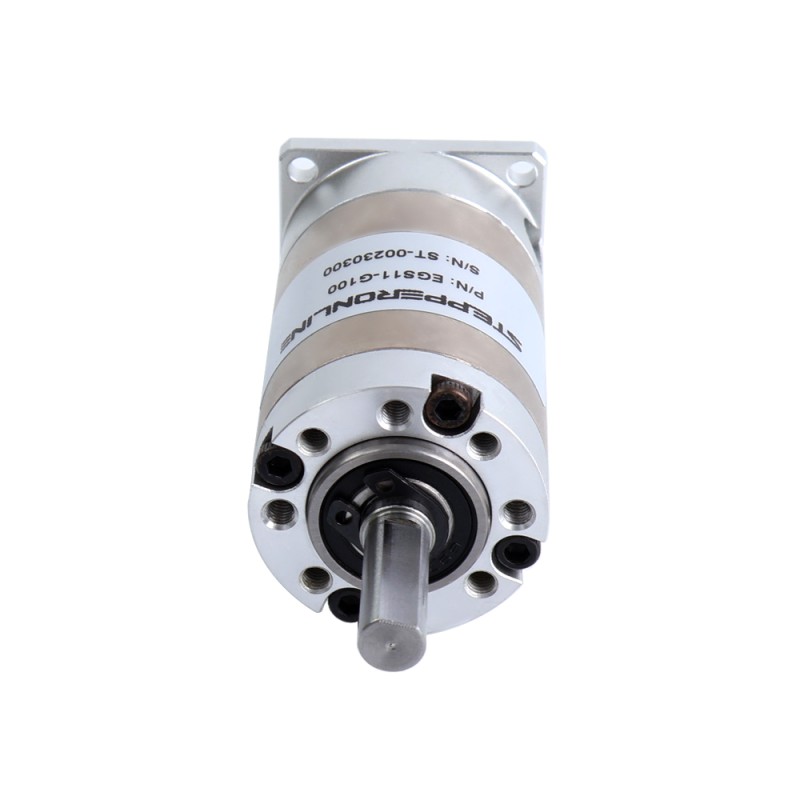

The size of this gearbox is 28 x 28mm and the input shaft diameter is 5mm. This high-precision planetary gearbox is belong to EG series gearbox, it with gear ratio 100:1 and a maximum 25arc-min backlash. It's an excellent choice for applications that require good accuracy and reliability at an exceptional value.

Gearbox Specifications

Part Number: EGS11-G100
Gearbox Type: Spur Planetary
Gear Material: Alloy Steel
Gear Ratio: 100:1
Efficiency: 90%
Backlash at No-load: <=25arcmin
Max.Permissible Torque: 6Nm(53.1lb-in)
Moment Permissible Torque: 12Nm(106.21lb-in)
Rated Input Speed: 1000rpm
Noise: <=55dB(1000rpm)
Waterproof Rating: IP54
Lifetime: 20000hours

Physical Specifications

Frame Size: 28 x 28mm
Gearbox Length: 50mm
Output Shaft Type: D-cut
Output Shaft Diameter: Φ6mm
Output Shaft Length: 20mm
Input Shaft Diameter: Φ5mm
Input Shaft Length: 6.5-10.5mm

This in-line planetary gearbox has a built-in input shaft coupling and can only match Nema 11 stepper motors with a diameter of 5mm and a shaft length of 6.5-10.5mm. Currently, we have these motors 11HS12-1004D-E1000-EGS,11HS20-1004D-E1000-EGS,11HS12-0704S and 11HS20-0704S available to match this gearbox.

Physical Specification
Output Shaft Type	D
Output Shaft Diameter(mm)	6
Output Shaft Length(mm)	20
Input Shaft Diameter(mm)	5
Input Shaft Length(mm)	6.5 - 10.5
Gearbox Length(mm)	50
Matching Motor Size	Nema 11 Stepper Motor
Frame Size(mm)	28 x 28
Gear Ratio	100
Product Series	EG
Gearbox Type	Spur Planetary
Inventory Method	Dedicated Inventory
Gear Material	Alloy Steel
