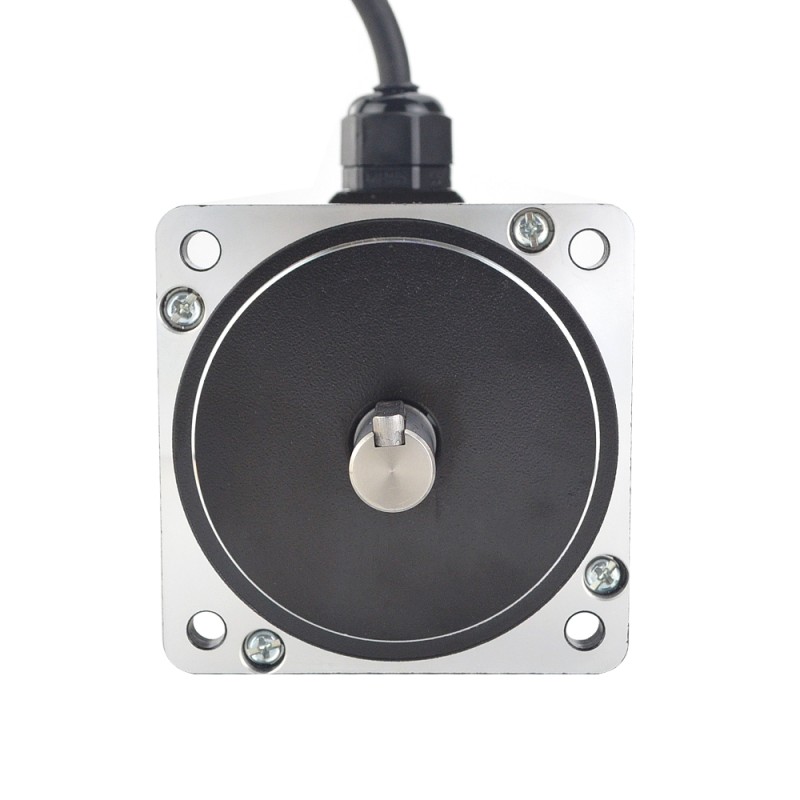

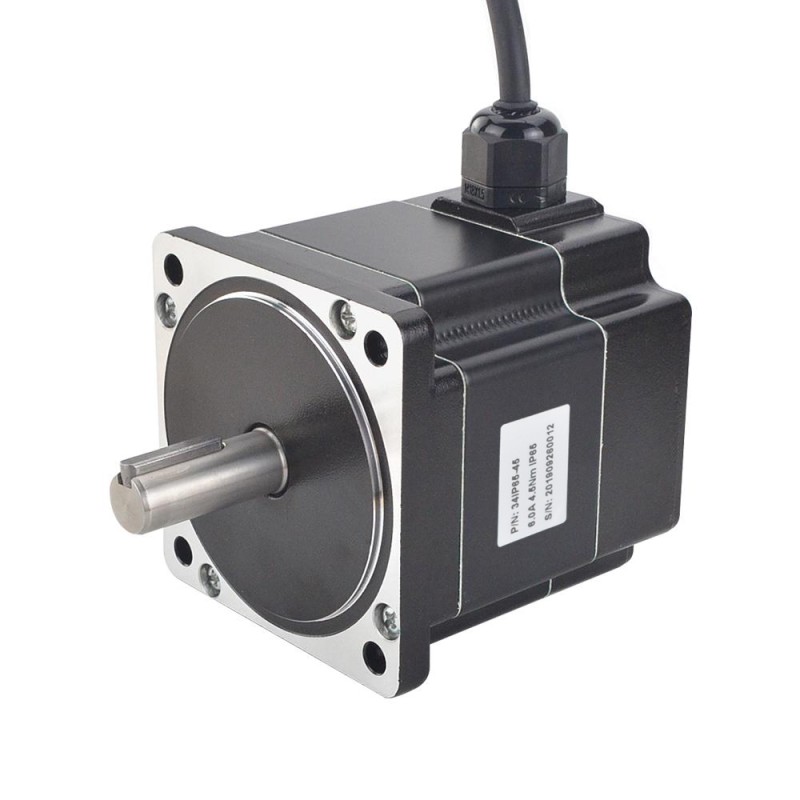

P Series IP65 Waterproof Nema 34 Stepper Motor 6.0A 4.5Nm(637.38oz.in)

P Series IP65 Waterproof Nema 34 Stepper Motor 6.0A 4.5Nm(637.38oz.in)
P Series IP65 Waterproof Nema 34 Stepper Motor 6.0A 4.5Nm(637.38oz.in)
P Series IP65 Waterproof Nema 34 Stepper Motor 6.0A 4.5Nm(637.38oz.in)
P Series IP65 Waterproof Nema 34 Stepper Motor 6.0A 4.5Nm(637.38oz.in)
P Series IP65 Waterproof Nema 34 Stepper Motor 6.0A 4.5Nm(637.38oz.in)
P Series IP65 Waterproof Nema 34 Stepper Motor 6.0A 4.5Nm(637.38oz.in)
P Series IP65 Waterproof Nema 34 Stepper Motor 6.0A 4.5Nm(637.38oz.in)
P Series IP65 Waterproof Nema 34 Stepper Motor 6.0A 4.5Nm(637.38oz.in)
P Series IP65 Waterproof Nema 34 Stepper Motor 6.0A 4.5Nm(637.38oz.in)
P Series IP65 Waterproof Nema 34 Stepper Motor 6.0A 4.5Nm(637.38oz.in)
P Series IP65 Waterproof Nema 34 Stepper Motor 6.0A 4.5Nm(637.38oz.in)
P Series IP65 Waterproof Nema 34 Stepper Motor 6.0A 4.5Nm(637.38oz.in)
P Series IP65 Waterproof Nema 34 Stepper Motor 6.0A 4.5Nm(637.38oz.in)
0 reviews • Write a review
from
$100.39
10 or more $89.39
100 or more $80.55
  • Model: 34IP65-45
  • Weight: 2.74kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

IP Rating
Insulation Class
Vacuum
Hollow Shaft
Motor Phase Number

This P series Nema 34 stepper motor with IP65 waterproof ratings and 4.5Nm(637.38oz.in), that meaning this IP65 stepper motor can be totally protected against dust, and can be protected against low pressure jets if water from all directions - limited ingress permitted.


Electrical Specification

  • Manufacturer Part Number: 34IP65-45
  • Number of phase: 2
  • Step Angle: 1.8deg
  • Holding Torque: 4.5Nm(637.38oz.in)
  • Rated Current/phase: 6.0A
  • Phase Resistance: 0.34ohms
  • Inductance: 2.4mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 86 x 86mm
  • Body Length: 87.8mm
  • Shaft Diameter: Φ14mm
  • Shaft Length: 37mm
  • keyway Length: 25mm
  • Lead Length: 1000mm
  • IP Rating: IP65
  • Weight: 2.1kg

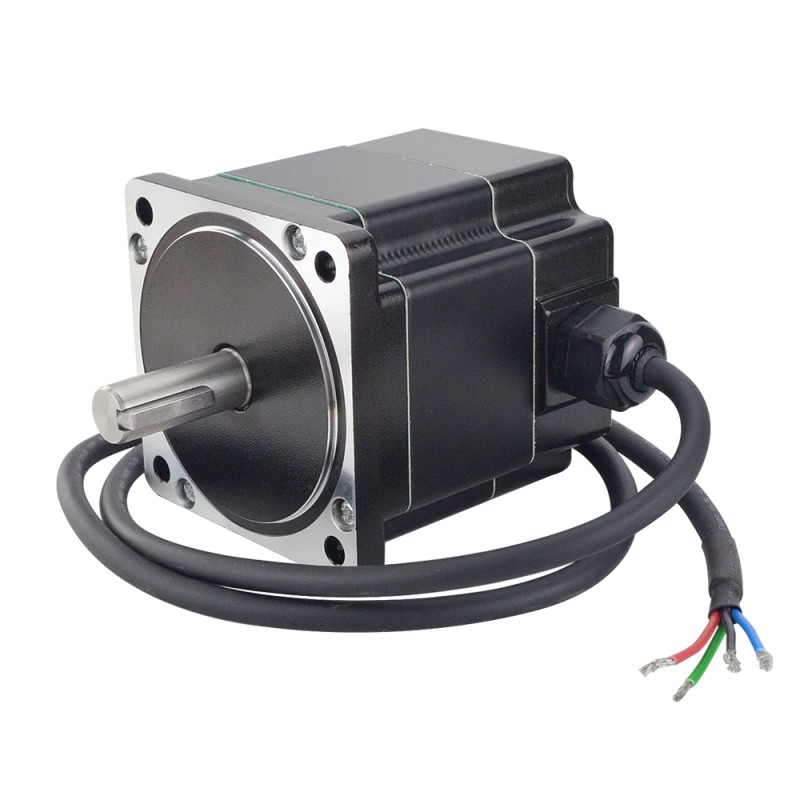

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Physical Specification
Output Shaft Type D
Shaft Diameter(mm) 14
Shaft Length(mm) 37
Lead Length(mm) 1000
Single Shaft/Dual Shaft Single Shaft
Frame Size(mm) Nema 34 (86 x 86)
Body Length(mm) 87.8
Weight(Kg) 2.1
Inventory Method Dedicated Inventory
IP Rating 65
Electrical Specification
Holding Torque(Ncm) 450
Rated Current(A) 6.0
Holding Torque(oz.in) 637.38
Bipolar/Unipolar Bipolar
Phase Resistance(ohms) 0.34
Inductance(mH) 2.4
Open-loop/Closed-loop Open-loop
Insulation Class B 130C(266F)
Product Type
Product Type Waterproof Stepper Motor
