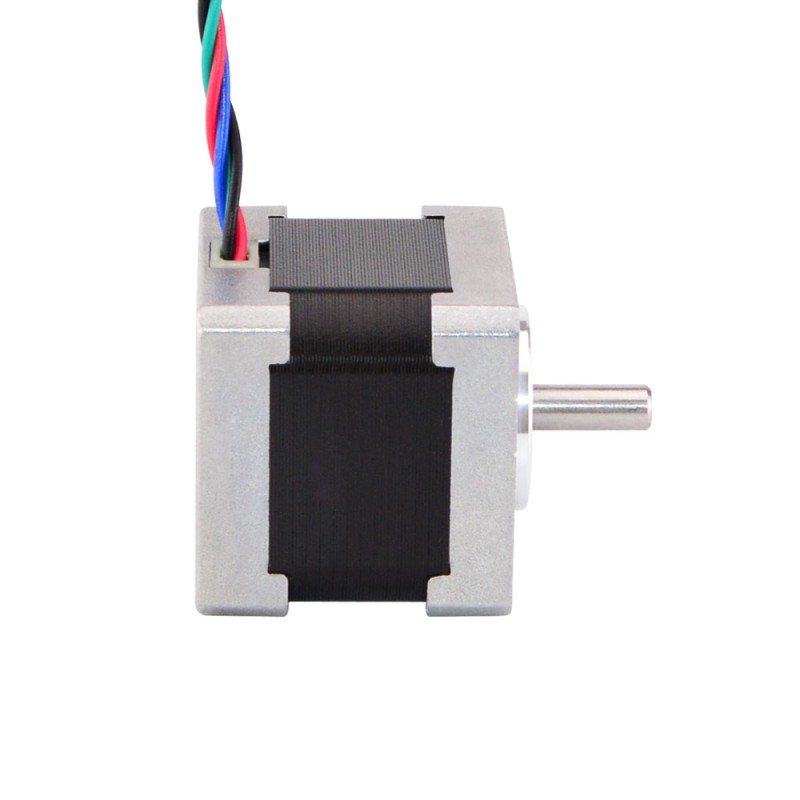

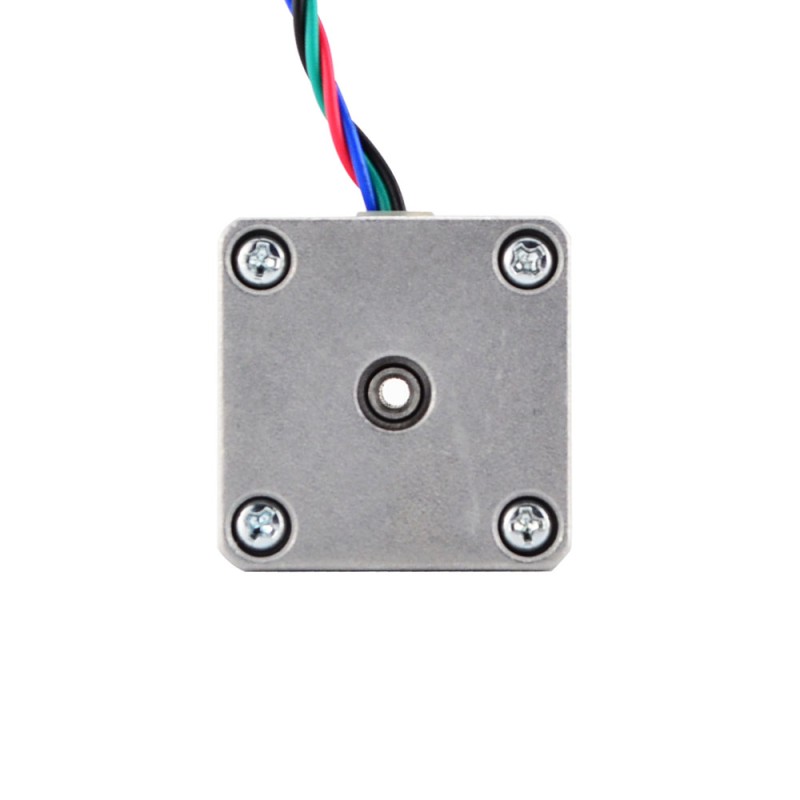

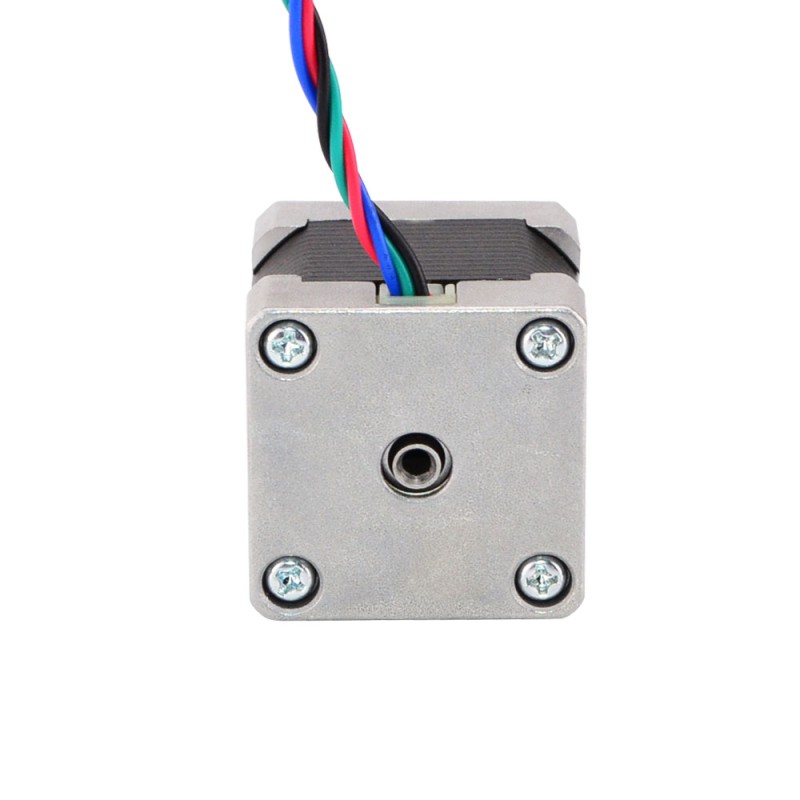

Nema 14 Hollow Shaft Stepper Motor Bipolar 18Ncm(25.5oz.in) 0.8A 35x35x34mm

0 reviews • Write a review

from

$15.81

10 or more $14.03

100 or more $12.61

Model: 14HS13-0804SH
Weight: 0.25kg

Available Options

Ships From

China

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Looking to custom design this motor?

Request a Quote or Ask a Question

Your Name

Your Email

Quantity to Quote

Your questions or requirements

Captcha

Enter the code in the box below

Custom Design Options

You can select from the customization options listed below.

IP Rating

Insulation Class

Vacuum

Hollow Shaft

Motor Phase Number

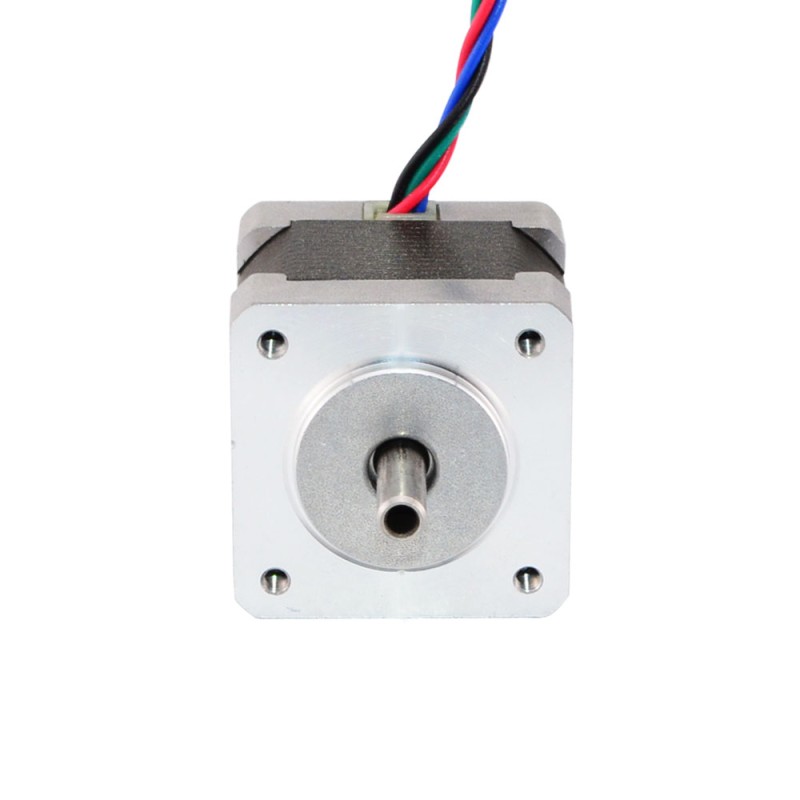

This bipolar Nema 14 stepper motor with a hollow shaft. The shaft with 5mm OD and 3mm ID, It has 4 wires, each phase draws 0.8A, with holding torque 18Ncm(25.5oz.in).

Electrical Specification

Manufacturer Part Number: 14HS13-0804SH
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 18Ncm(25.5oz.in)
Rated Current/phase: 0.8A
Phase Resistance: 6.8ohms
Inductance: 10mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 35 x 35mm
Body Length: 34mm
Shaft Outer Diameter: Φ5mm
Shaft Inner Diameter: Φ3mm
Shaft Length: 15mm
Number of Leads: 4
Lead Length: 400mm
Weight: 190g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Physical Specification
Output Shaft Type	Hollow
No. of Lead	4
Weight(g)	190
Single Shaft/Dual Shaft	Single Shaft
Frame Size(mm)	Nema 14 (35 x 35)
Body Length(mm)	34
Product Series	S
Shaft Outer Diameter(mm)	5
Cable Length(mm)	400
Shaft Inner Diameter(mm)	3
Inventory Method	Dedicated Inventory
IP Rating	40
Electrical Specification
Holding Torque(Ncm)	18
Rated Current(A)	0.8
Holding Torque(oz.in)	25.5
Bipolar/Unipolar	Bipolar
Step Angle(deg.)	1.8
Phase Resistance(ohms)	6.8
Inductance(mH)	10
Has Torque/Thrust Curve?	No
Product Type
Product Type	Hybrid Stepper Motor
