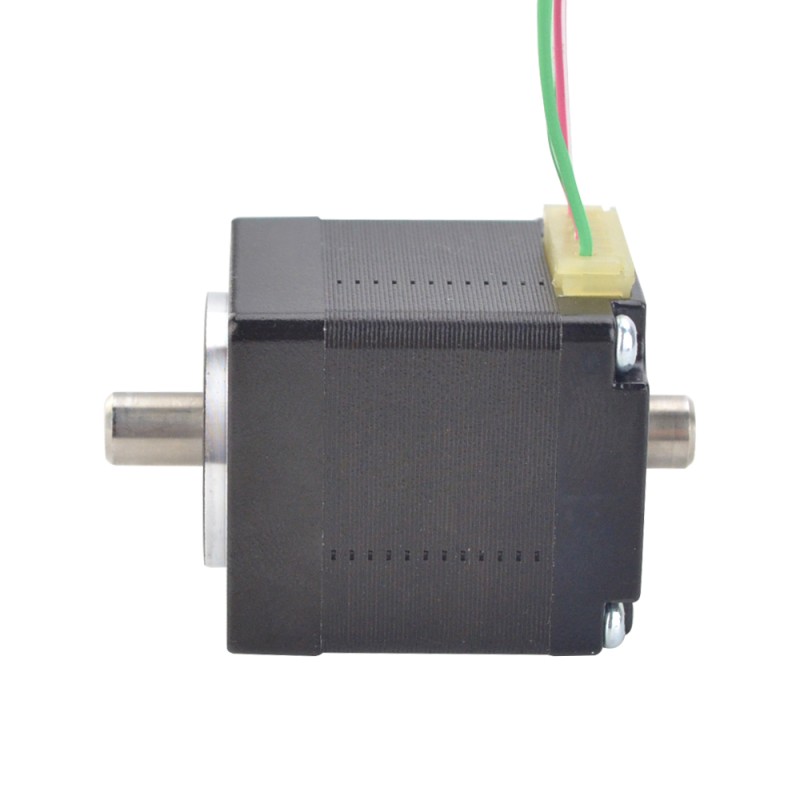

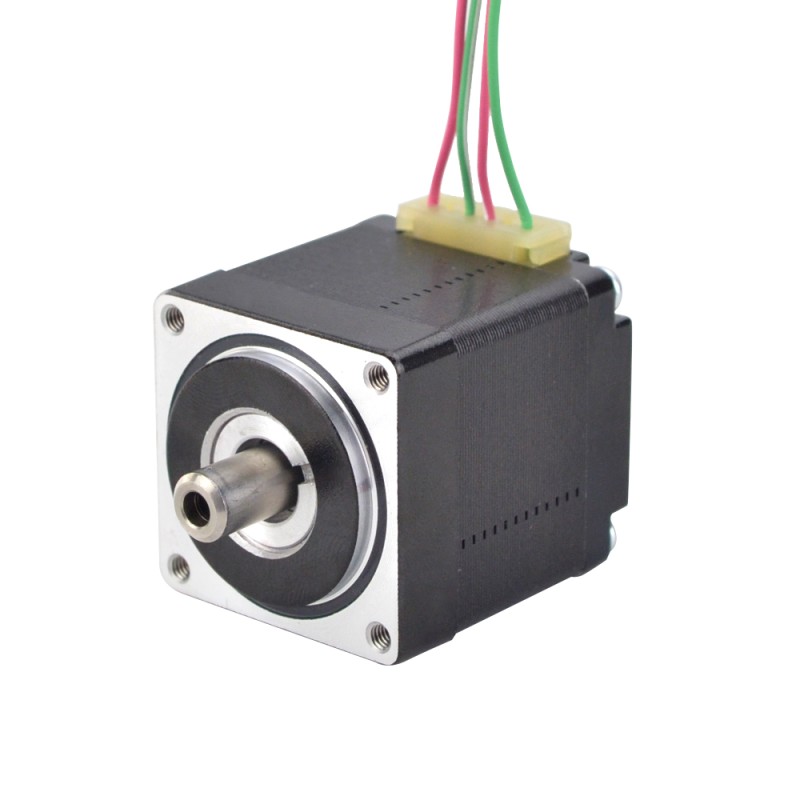

Dual Shaft Nema 11 Hollow Shaft Stepper Motor Bipolar 6Ncm(8.5oz.in) 1.0A 28x28x32mm

Dual Shaft Nema 11 Hollow Shaft Stepper Motor Bipolar 6Ncm(8.5oz.in) 1.0A 28x28x32mm
Dual Shaft Nema 11 Hollow Shaft Stepper Motor Bipolar 6Ncm(8.5oz.in) 1.0A 28x28x32mm
Dual Shaft Nema 11 Hollow Shaft Stepper Motor Bipolar 6Ncm(8.5oz.in) 1.0A 28x28x32mm
Dual Shaft Nema 11 Hollow Shaft Stepper Motor Bipolar 6Ncm(8.5oz.in) 1.0A 28x28x32mm
Dual Shaft Nema 11 Hollow Shaft Stepper Motor Bipolar 6Ncm(8.5oz.in) 1.0A 28x28x32mm
Dual Shaft Nema 11 Hollow Shaft Stepper Motor Bipolar 6Ncm(8.5oz.in) 1.0A 28x28x32mm
Dual Shaft Nema 11 Hollow Shaft Stepper Motor Bipolar 6Ncm(8.5oz.in) 1.0A 28x28x32mm
Dual Shaft Nema 11 Hollow Shaft Stepper Motor Bipolar 6Ncm(8.5oz.in) 1.0A 28x28x32mm
Dual Shaft Nema 11 Hollow Shaft Stepper Motor Bipolar 6Ncm(8.5oz.in) 1.0A 28x28x32mm
Dual Shaft Nema 11 Hollow Shaft Stepper Motor Bipolar 6Ncm(8.5oz.in) 1.0A 28x28x32mm
Dual Shaft Nema 11 Hollow Shaft Stepper Motor Bipolar 6Ncm(8.5oz.in) 1.0A 28x28x32mm
Dual Shaft Nema 11 Hollow Shaft Stepper Motor Bipolar 6Ncm(8.5oz.in) 1.0A 28x28x32mm
Dual Shaft Nema 11 Hollow Shaft Stepper Motor Bipolar 6Ncm(8.5oz.in) 1.0A 28x28x32mm
0 reviews • Write a review
from
$20.71
10 or more $18.39
100 or more $16.53
  • Model: 11HS13-1004H
  • Weight: 0.16kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

IP Rating
Insulation Class
Vacuum
Hollow Shaft
Motor Phase Number

Electrical Specification

  • Manufacturer Part Number: 11HS13-1004H
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 0.06Nm(8.5oz.in)
  • Rated Current/phase: 1.0A
  • Phase Resistance: 2.1ohms± 10%
  • Inductance: 1.5mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 28 x 28mm
  • Body Length: 32.2mm
  • Shaft Outer Diameter: Φ6mm
  • Shaft Inner Diameter: Φ3mm
  • Shaft Front Length: 10mm
  • Rear Shaft Length: 5mm
  • Number of Leads: 4
  • Cable Length: 310mm
  • Weight: 0.11kg

Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green
Physical Specification
Output Shaft Type Hollow
No. of Lead 4
Weight(g) 110
Single Shaft/Dual Shaft Dual Shaft
Frame Size(mm) Nema 11 (28 x 28)
Body Length(mm) 32.2
Product Series S
Shaft Outer Diameter(mm) 6
Cable Length(mm) 310
Shaft Inner Diameter(mm) 3
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Holding Torque(Ncm) 6
Rated Current(A) 1.0
Holding Torque(oz.in) 8.5
Bipolar/Unipolar Bipolar
Step Angle(deg.) 1.8
Phase Resistance(ohms) 2.1
Inductance(mH) 1.5
Has Torque/Thrust Curve? No
Product Type
Product Type Hybrid Stepper Motor
