Model: 11HS20-0674D-EGS16-AR4
Stock: In Stock
This geared motor is the J4 motor in AR4-MK2 kit. It is integrated with a higher precision planetary gearbox of 16:1 gear ratio and a encoder with 3 channels and 1000PPR(4000CPR) resolution. It has higher precision and can also meet the higher requir..
from
$138.65
Model: 11HS20-0674D-PG100-E22-300
Stock: In Stock
This NEMA 11 closed-loop stepper motor integrates a 99.548:1 planetary gearbox and a 300ppr optical incremental encoder, delivering high torque and precise positioning even at low speeds. The closed-loop control system ensures accuracy and stability,..
from
$85.01

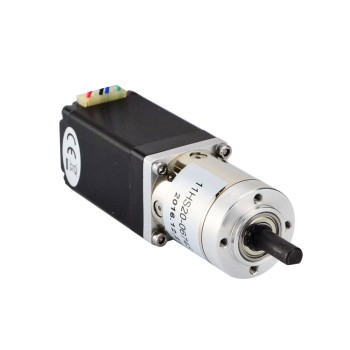

Model: 11HS20-0674D-PG14
Stock: In Stock
This Nema 11 stepper motor with 51mm body and 0.67A rated current, integrated a planetary gearbox of 13.73:1 gear ratio. A Φ4mm diameter rear shaft with screw holes on rear endcap is available. It's a good solution to applications that with limi..
from
$46.17

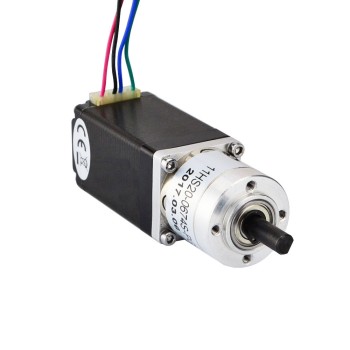

Model: 11HS20-0674D-PG5-E22-300
Stock: In Stock
Motor Specification
Manufacturer Part Number: 11HS20-0674D-PG5-E22-300
Motor Type: Bipolar Stepper
Step Angle without Gearbox: 1.8deg
Holding Torque without Gearbox: 0.12Nm(16.997oz.in)
Rated Current/phase: 0.67A
Phase Resistance: 12.00ohms
..
from
$84.24
Model: 11HS20-0674D-PG51
Stock: In Stock
This Nema 11 stepper motor with 51mm body and 0.67A rated current, integrated a planetary gearbox of 51.9:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.
Electrical Specification
..
from
$47.51
Model: 11HS20-0674D-PG51-E22-300
Stock: In Stock
Motor Specification
Manufacturer Part Number: 11HS20-0674D-PG51-E22-300
Motor Type: Bipolar Stepper
Step Angle without Gearbox: 1.8deg
Holding Torque without Gearbox: 0.14Nm(19.83oz.in)
Rated Current/phase: 0.67A
Phase Resistance: 12.00ohms
..
from
$82.46
Model: 11HS20-0674S
Stock: In Stock
This bipolar nema 11 stepper motor with step angle 1.8deg and size 28x28x51mm. It has 4 wires, each phase draws 0.67A at 6.2V, with holding torque 12Ncm(16.99oz.in). Planetary Gearbox is available for this model.
Electrical Specification
Manufa..
from
$13.99
Model: 11HS20-0674S-PG100
Stock: In Stock
This Nema 11 stepper motor with 51mm body and 0.67A rated current, integrated a planetary gearbox of 99.548:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.
Electrical Specification
..
from
$47.51

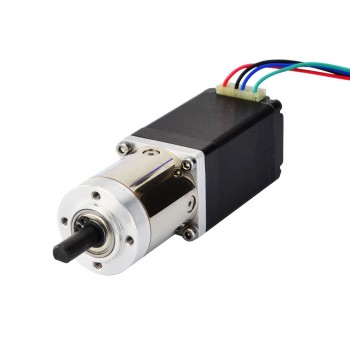

Model: 11HS20-0674S-PG14
Stock: In Stock
This Nema 11 single shaft stepper motor with 51mm body and 0.67A rated current, integrated a planetary gearbox of 13.73:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.
Electrical..
from
$46.17

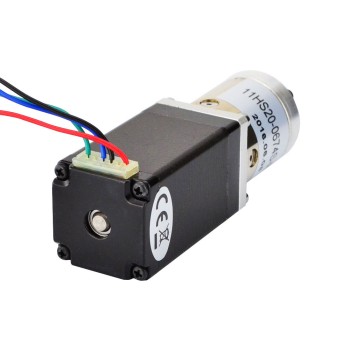

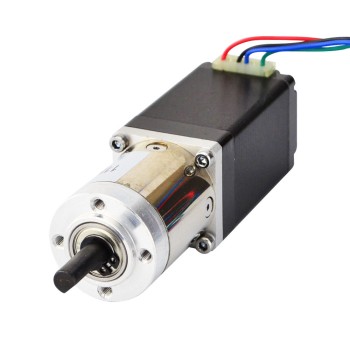

Model: 11HS20-0674S-PG19
Stock: In Stock
This Nema 11 stepper motor with 51mm body and 0.67A rated current, integrated a planetary gearbox of 19.19:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.
Electrical Specification
..
from
$46.17

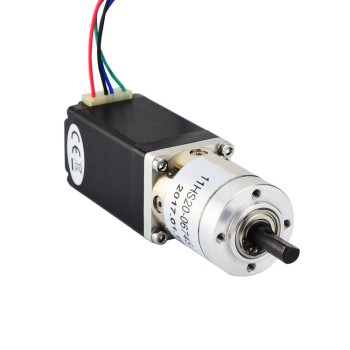

Model: 11HS20-0674S-PG27
Stock: In Stock
This Nema 11 stepper motor with 51mm body and 0.67A rated current, integrated a planetary gearbox of 26.85:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.
Electrical Specification
..
from
$47.51

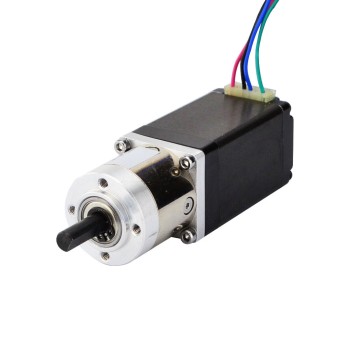

Model: 11HS20-0674S-PG5
Stock: In Stock
This Nema 11 single shaft stepper motor with 51mm body and 0.67A rated current, integrated a planetary gearbox of 5.18:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.
Electrical Speci..
from
$46.17
