Model: 14HS08-0404S
Stock: In Stock
This bipolar Nema 14 stepper motor with step angle 1.8deg and size 35x35x20mm. It has 4 wires, each phase draws 0.4A, with holding torque 5Ncm(7.08oz.in).
Electrical Specification
Manufacturer Part Number: 14HS08-0404S
Motor Type: Bipolar St..
from
$11.87
Model: 14HS10-0404S
Stock: In Stock
This bipolar Nema 14 stepper motor with step angle 1.8deg and size 35x35x26mm. It has 4 wires, each phase draws 0.4A at 12V, with holding torque 14Ncm(20oz.in).
Electrical Specification
Manufacturer Part Number: 14HS10-0404S
Motor Type: Bipo..
from
$11.87
Model: 14HS11-1004S
Stock: In Stock
This bipolar Nema 14 stepper motor with step angle 1.8deg and size 35x35x28mm. It has 4 wires, each phase draws 1 A at 3.5V, with holding torque 12.5Ncm(17.7oz.in).
Electrical Specification
Manufacturer Part Number: 14HS11-1004S
Motor Type: Bi..
from
$13.17
Model: 14HS13-0406S
Stock: In Stock
This unipolar Nema 14 stepper motor with step angle 1.8deg and size 35x35x34mm. It has 6 wires, each phase draws 0.4A at 10V, with holding torque 10Ncm(14.2oz.in).
Electrical Specification
Manufacturer Part Number: 14HS13-0406S
Motor Type: Uni..
from
$11.03
Model: 14HS13-0804D
Stock: In Stock
This model is dual shaft Nema 14 Bipolar stepper motor,it with step angle 1.8deg and size 35.2x35.2x34mm. It has 4 wires, each phase draws 0.8A at 5.4V, with holding torque 18Ncm(25.5oz.in).
Electrical Specification
Manufacturer Part Number: ..
from
$12.06
Model: 14HS13-0804S
Stock: In Stock
This bipolar Nema 14 stepper motor with step angle 1.8deg and size 35x35x34.8mm. It has 4 wires, each phase draws 0.8A at 5.4V, with holding torque 18Ncm(25.5oz.in).
Electrical Specification
Manufacturer Part Number: 14HS13-0804S
Motor Type: B..
from
$11.03
Model: 14HS13-1004S-EGS
Stock: In Stock
This is a 2-phase Nema 14 stepper motor with a 1.8° step angle. Each phase draws 1.0A and allows for holing torque of 18Ncm (25.49oz.in). It has a short shaft length of 10mm that is specifically designed to work with our EGS14 gearboxes.
Electrica..
from
$11.77
Model: 14HS17-0504S
Stock: In Stock
This bipolar Nema 14 stepper motor with step angle 1.8deg and size 35x35x42mm. It has 4 wires, each phase draws 0.5A, with holding torque 23Ncm(32.57oz.in).
Electrical Specification
Manufacturer Part Number: 14HS17-0504S
Motor Type: Bipolar ..
from
$13.58
Online Only

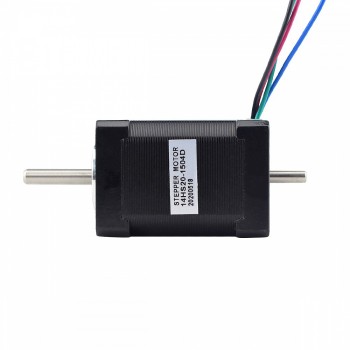

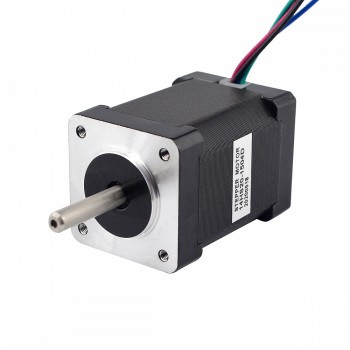

Model: 14HS20-1504D
Stock: In Stock
This model is dual shaft Nema 14 Bipolar stepper motor,it with step angle 1.8deg and size 35.2x35.2x52mm. It has 4 wires, each phase draws 1.5A at 4.2V, with holding torque 40Ncm(56.64oz.in).
Electrical Specification
Manufacturer Part Number:..
from
$16.97

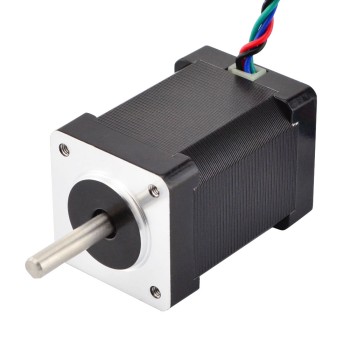

Model: 14HS20-1504S
Stock: In Stock
This Nema 14 stepper motor is the strongest model in Nema 14 size motors, it with step angle 1.8deg and size 35x35x52mm. It has 4 wires, each phase draws 1.5A at 4.2V, with holding torque 40Ncm(56.64oz.in).
Electrical Specification
Manufacturer..
from
$16.97
Online Only

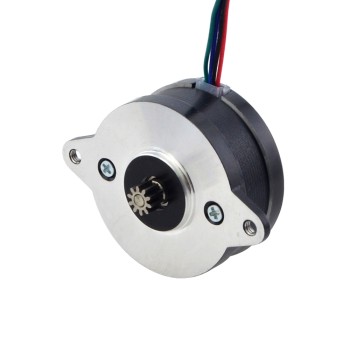

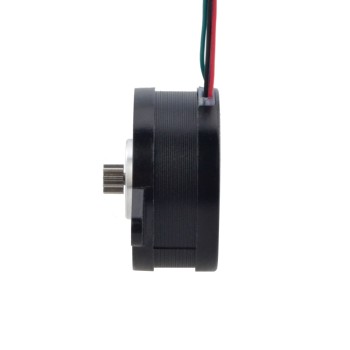

Model: 14RE07-1004VRN
Stock: In Stock
Electrical Specification
Manufacturer Part Number: 14RE07-1004VRN
Motor Type: Bipolar Stepper
Step Angle: 0.9deg
Holding Torque: 8Ncm(11.33oz.in)
Rated Current/phase: 1.0A
Phase Resistance: 3.9ohms
Inductance: 2.5mH±20%(1KHz)Insulation Class..
from
$10.78
Model: 16HM09-1204S
Stock: In Stock
This bipolar Nema 16 stepper motor with step angle 0.9deg and size 39x39x22mm. It has 4 wires, each phase draws 1.2 A, with holding torque 11Ncm(15.58oz.in).
Electrical Specification
Manufacturer Part Number: 16HM09-1204S
Motor Type: Bipolar..
from
$11.87
