Round Pancake Nema 24 Bipolar 1.8deg 6Ncm(8.5oz.in) 1A Φ60x9.6mm 4 Wires

0 reviews • Write a review

from

$30.58

10 or more $27.56

100 or more $25.08

Model: 24HR04-1004S
Weight: 0.15kg

Available Options

Ships From

China

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Looking to custom design this motor?

Request a Quote or Ask a Question

Your Name

Your Email

Quantity to Quote

Your questions or requirements

Captcha

Enter the code in the box below

Custom Design Options

You can select from the customization options listed below.

IP Rating

Insulation Class

Vacuum

Hollow Shaft

Motor Phase Number

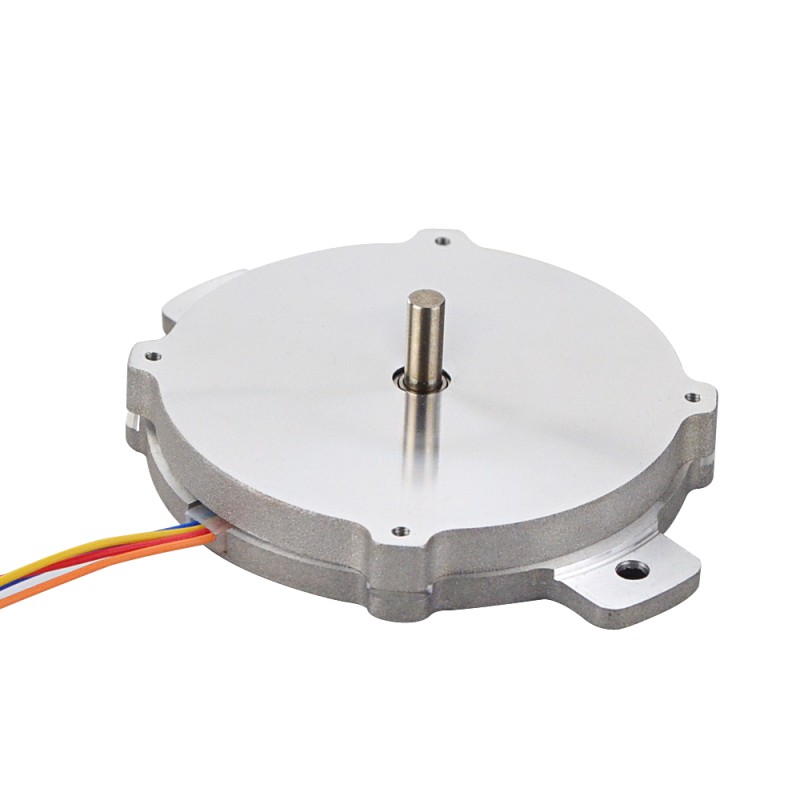

This bipolar pancake Nema 24 stepper motor with step angle 1.8deg and size Φ60x9.6mm. It has 4 wires, each phase draws 1A, with holding torque 6Ncm(8.5oz.in).

Electrical Specification

Manufacturer Part Number: 24HR04-1004S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 6Ncm(8.5oz.in)
Rated Current/phase: 1A
Phase Resistance: 3.6ohms
Inductance: 1.8mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: Φ60mm
Body Length: 9.6mm
Shaft Diameter: Φ4mm
Shaft Length: 10mm
Number of Leads: 4
Lead Length: 300mm
Weight: 79.6g

Connection

A+	A-	B+	B-
Red	Blue	Orange	Yellow

Physical Specification
Output Shaft Type	O
Shaft Diameter(mm)	4
Shaft Length(mm)	10
No. of Lead	4
Lead Length(mm)	300
Single Shaft/Dual Shaft	Single Shaft
Frame Size(mm)	Nema 24 (60 x 60)
Body Length(mm)	9.6
Product Series	S
Inventory Method	Dedicated Inventory
Electrical Specification
Holding Torque(Ncm)	6
Rated Current(A)	1
Holding Torque(oz.in)	8.5
Bipolar/Unipolar	Bipolar
Step Angle(deg.)	1.8
Phase Resistance(ohms)	3.6
Inductance(mH)	1.8
Has Torque/Thrust Curve?	No
Open-loop/Closed-loop	Open-loop
Insulation Class	B 130C(266F)
Product Type
Product Type	Pancake Motor
