Nema 11 Non-captive 34mm Stack 0.75A Lead 4.877mm(0.192") Length 150mm

Nema 11 Non-captive 34mm Stack 0.75A Lead 4.877mm(0.192") Length 150mm
Nema 11 Non-captive 34mm Stack 0.75A Lead 4.877mm(0.192") Length 150mm
Nema 11 Non-captive 34mm Stack 0.75A Lead 4.877mm(0.192") Length 150mm
Nema 11 Non-captive 34mm Stack 0.75A Lead 4.877mm(0.192") Length 150mm
Nema 11 Non-captive 34mm Stack 0.75A Lead 4.877mm(0.192") Length 150mm
Nema 11 Non-captive 34mm Stack 0.75A Lead 4.877mm(0.192") Length 150mm
Nema 11 Non-captive 34mm Stack 0.75A Lead 4.877mm(0.192") Length 150mm
Nema 11 Non-captive 34mm Stack 0.75A Lead 4.877mm(0.192") Length 150mm
Nema 11 Non-captive 34mm Stack 0.75A Lead 4.877mm(0.192") Length 150mm
Nema 11 Non-captive 34mm Stack 0.75A Lead 4.877mm(0.192") Length 150mm
Nema 11 Non-captive 34mm Stack 0.75A Lead 4.877mm(0.192") Length 150mm
Nema 11 Non-captive 34mm Stack 0.75A Lead 4.877mm(0.192") Length 150mm
Nema 11 Non-captive 34mm Stack 0.75A Lead 4.877mm(0.192") Length 150mm
0 reviews • Write a review
from
$42.48
10 or more $39.11
100 or more $36.24
  • Model: 11N13S0754QE4-150RS
  • Weight: 0.27kg

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Request a Quote or Ask a Question

Captcha

Custom Design Options

You can select from the customization options listed below.

Lead Screw
Lead, Length, Screw End Machining, Thread Type...
Nut
Material, Profile/Shape, Dimensions...
Body
Body Dimensions, Mounting Holes...
Cable
Length, Connector, Terminal...
Optional Accessories
Encoder, Brake

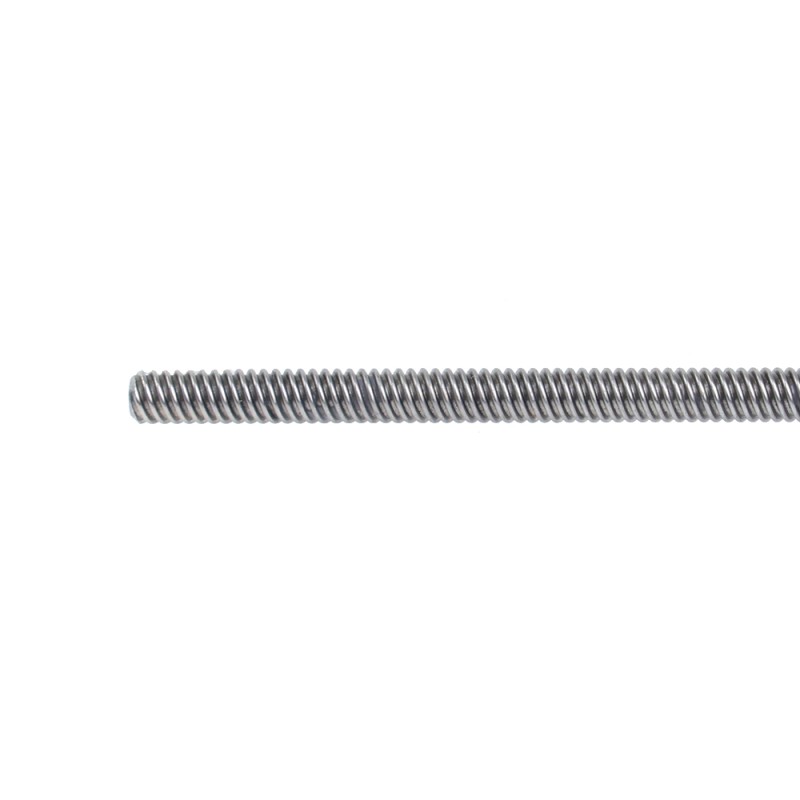

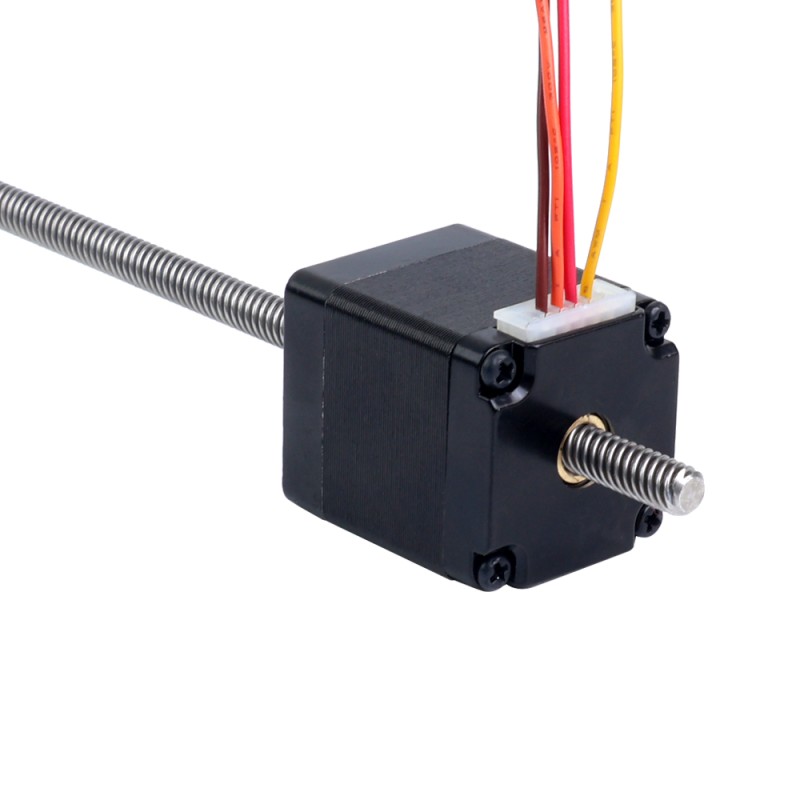

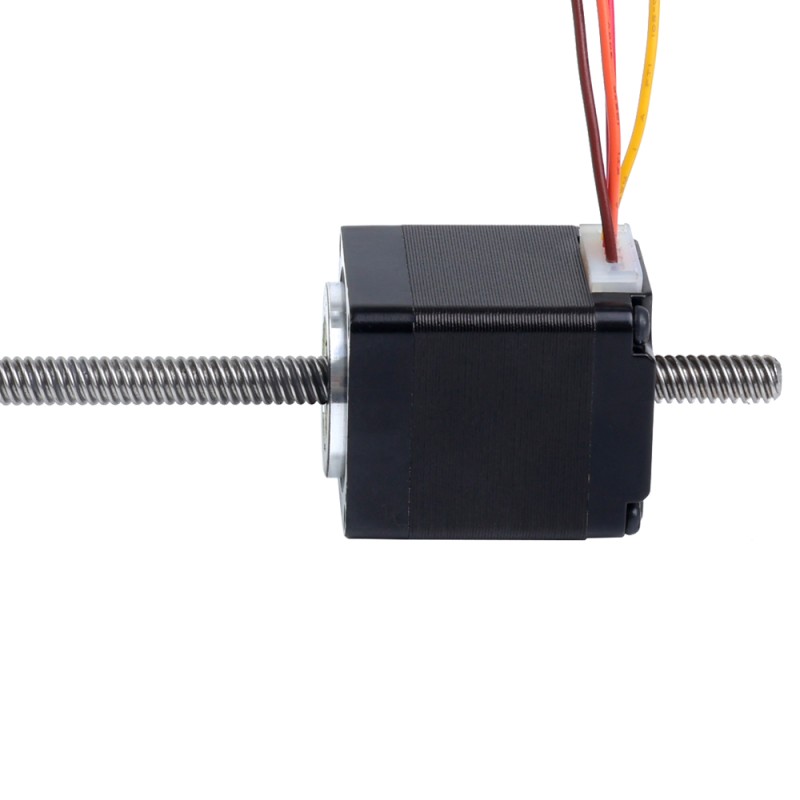

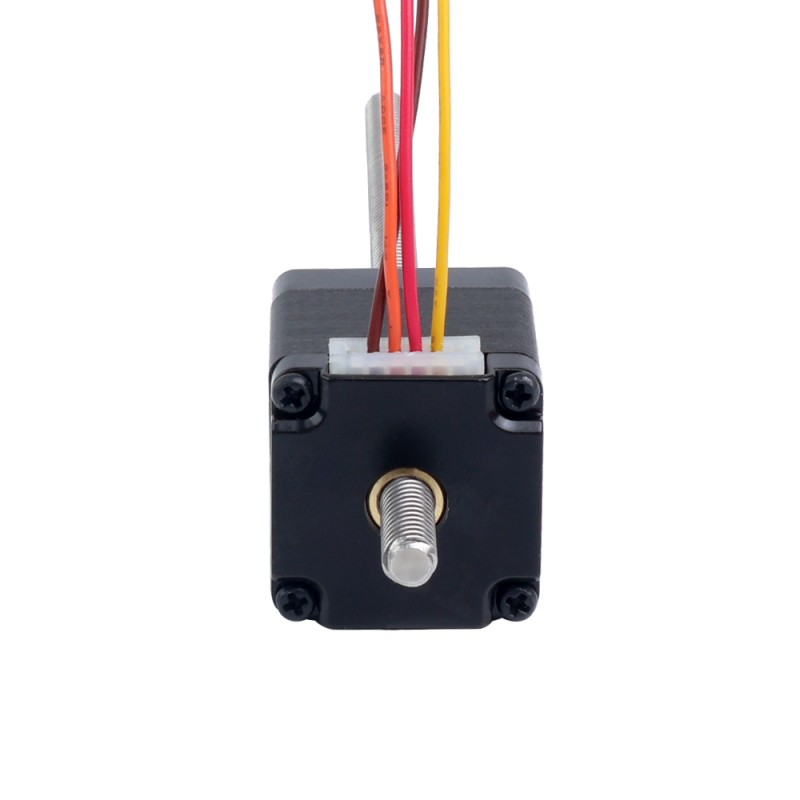

This model is economy linear stepper motor which named Nema 11 non-captive linear actuator, it was composed of 34mm 1.8 degree 0.75A Nema 11 stepper motor and 150mm length Tr5.56x4.8768 linear screw.

Electrical Specification

  • Manufacturer Part Number: 11N13S0754QE4-150RS
  • Motor Type: Non-captive Linear Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 0.06Nm(8.5oz.in)
  • Rated Current/phase: 0.75A
  • Phase Resistance: 3.2ohms
  • Inductance: 2.0mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 28 x 28mm
  • Body Length: 34mm
  • Lead Screw Length: 150mm(3.937")
  • Lead Screw Diameter: Φ5.56mm(0.2189")
  • Lead/Step: 0.024384mm(0.00096")
  • Lead/Revolution: 4.8768mm(0.192")
  • Number of Leads: 4
  • Cable Length: 300mm
  • Weight: 132g

Connection

A+
A-
B+
B-
Red
Brown
Yellow
Orange

● How to order a custom linear motor?  Custom Linear Stepper Motor

● If you only have the old part number, get the new one here  Show Details

● How we named linear motor?  Part Number Construction

Physical Specification
No. of Lead 4
Lead Length(mm) 300
Linear Motor Type Non-Captive
Lead Travel/Revolution(mm) 4.877
Lead Travel/Step(mm) 0.024384
Lead Screw Length(mm) 150
Lead Screw Diameter(mm) 5.56
Frame Size(mm) Nema 11 (28 x 28)
Body Length(mm) 34
Inventory Method Dedicated Inventory
IP Rating 40
Electrical Specification
Holding Torque(Ncm) 6
Rated Current(A) 0.75
Holding Torque(oz.in) 8.5
Bipolar/Unipolar Bipolar
Step Angle(deg.) 1.8
Phase Resistance(ohms) 3.2
Inductance(mH) 2
Has Torque/Thrust Curve? No
