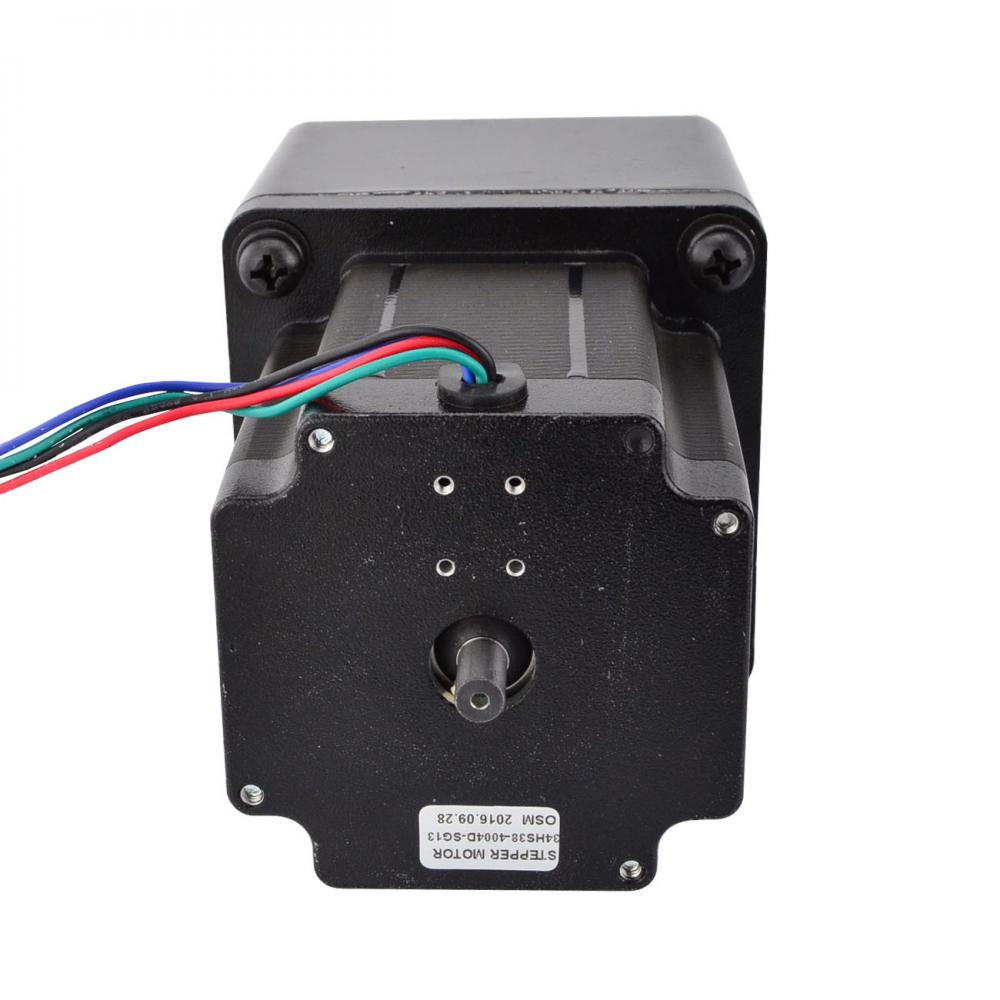

High Torque,Top Selling, Spur type planetary gearbox, Gear ratio 13, Efficiency 90%, Rated current 4.0A, 2 Phase Bipolar, Nema 34 size, length 97mm(Motor) + 72mm(Gearbox)

USD 200.63
Availability: 13
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Motor Specification
Inductance(mH) 4.5
Motor Nema Size Nema 34
Phase Resistance(ohm) 0.6
Rated Current(A) 4
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 450
Holding Torque w/o Gearbox(oz.in) 637.3
No. of Lead 4
Lead Length(mm) 500
Shaft Diameter(mm) 15
Gearbox Specification
Backlash at No-load(Max.°) 3
Efficiency 90%
Gear Ratio 13:1
Gearbox Type Spur
Max. Permissible Torque(Ncm) 4000
Physical Specification
Gearbox Length(mm) 72
Weight(g) 5000
Motor Length(mm) 97
Single Shaft/Dual Shaft Dual Shaft
Shaft Type Key-Way
Shaft Length(mm) 43
