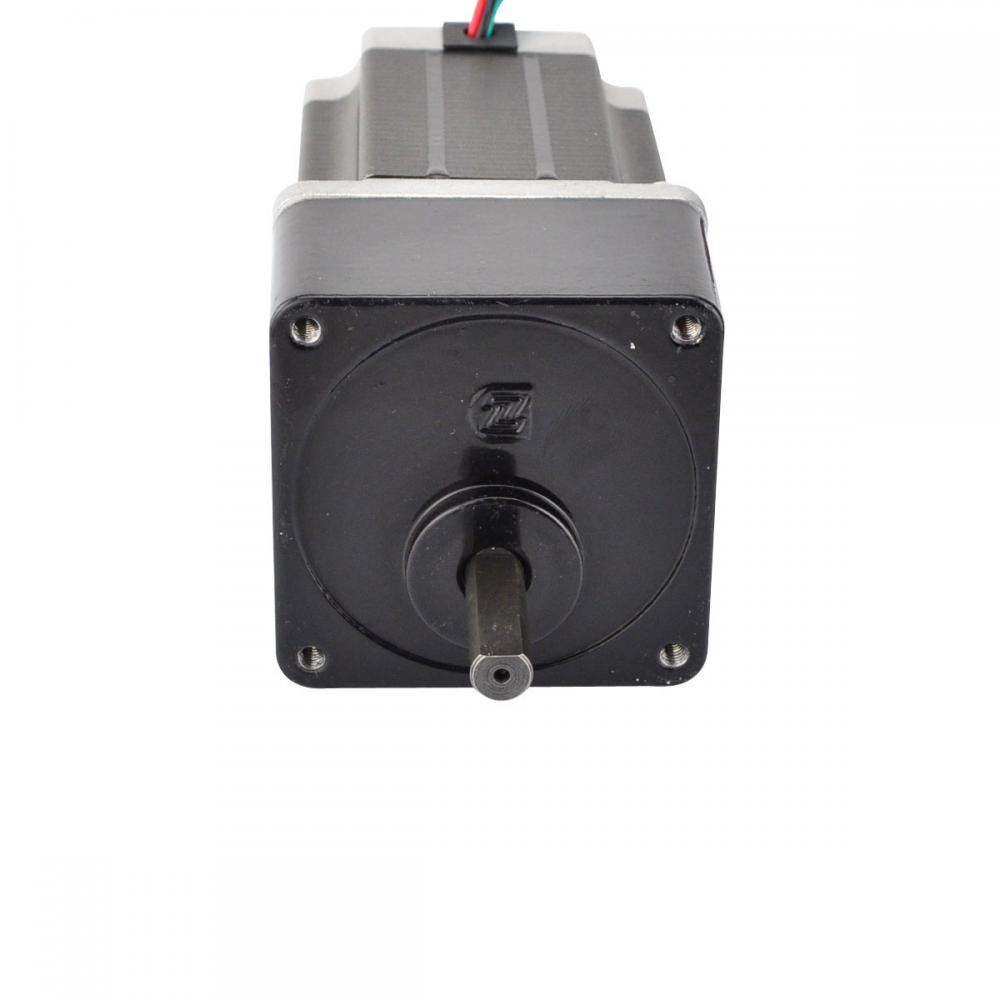

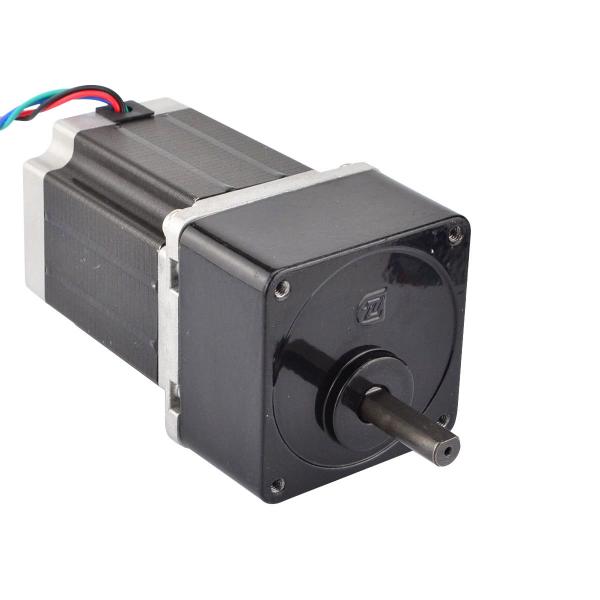

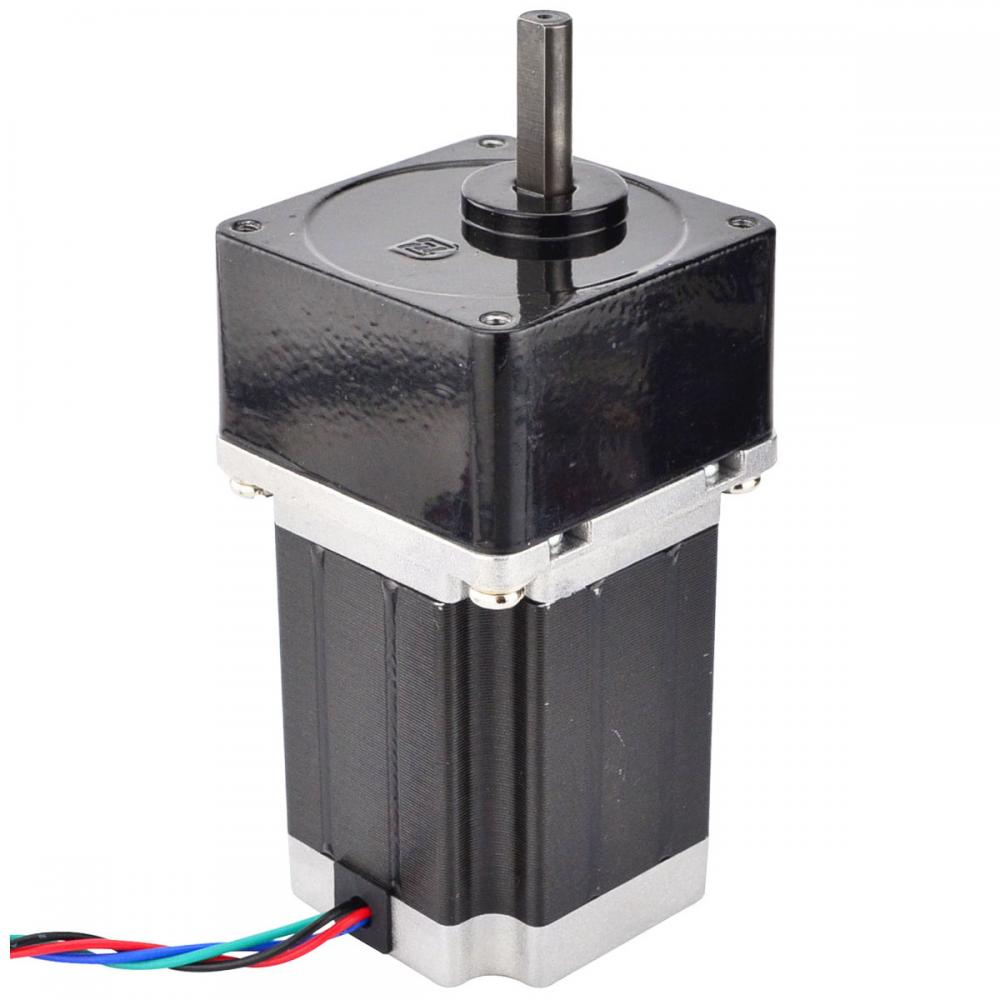

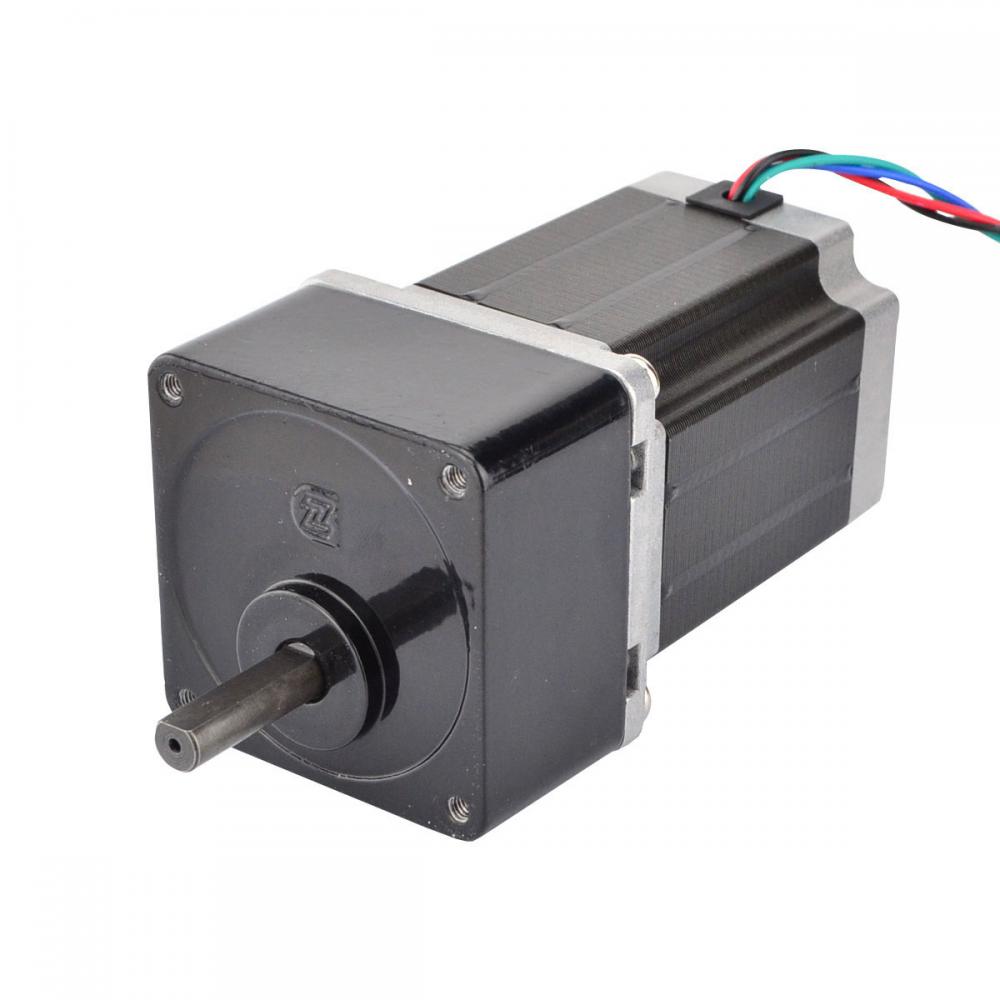

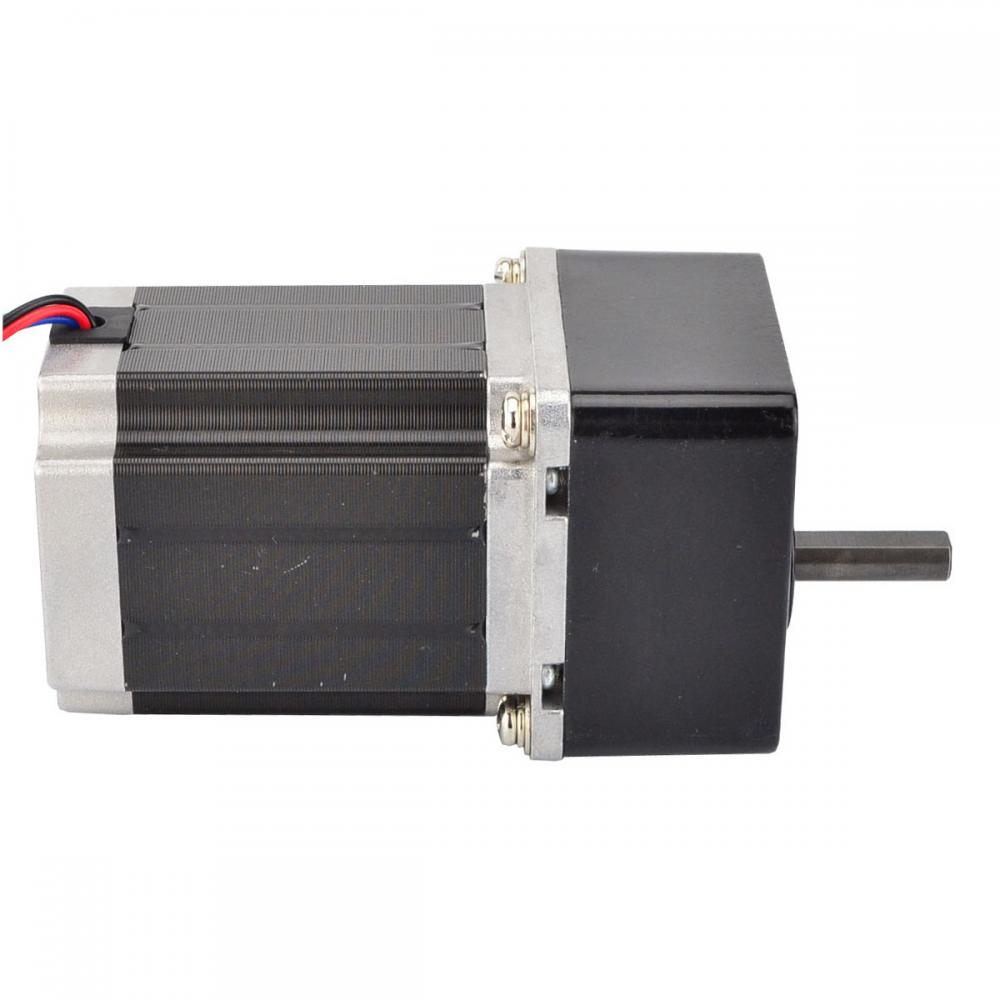

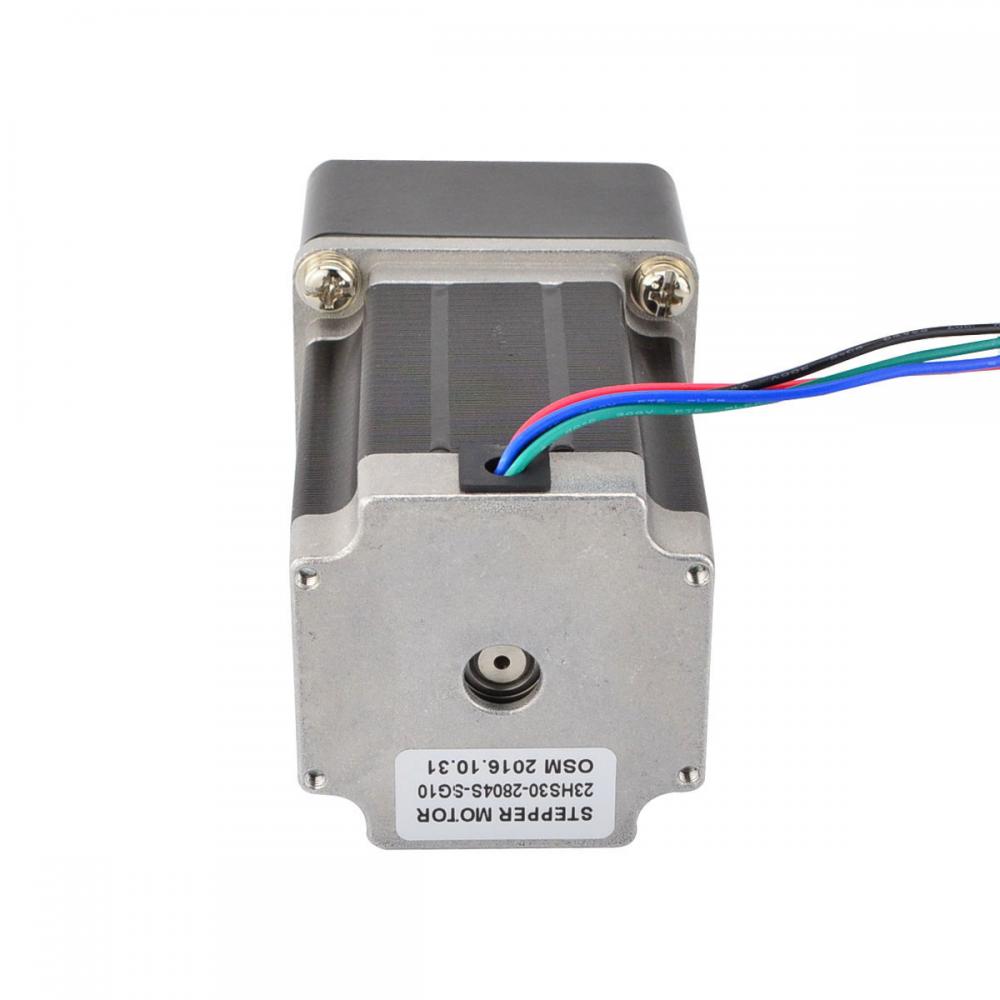

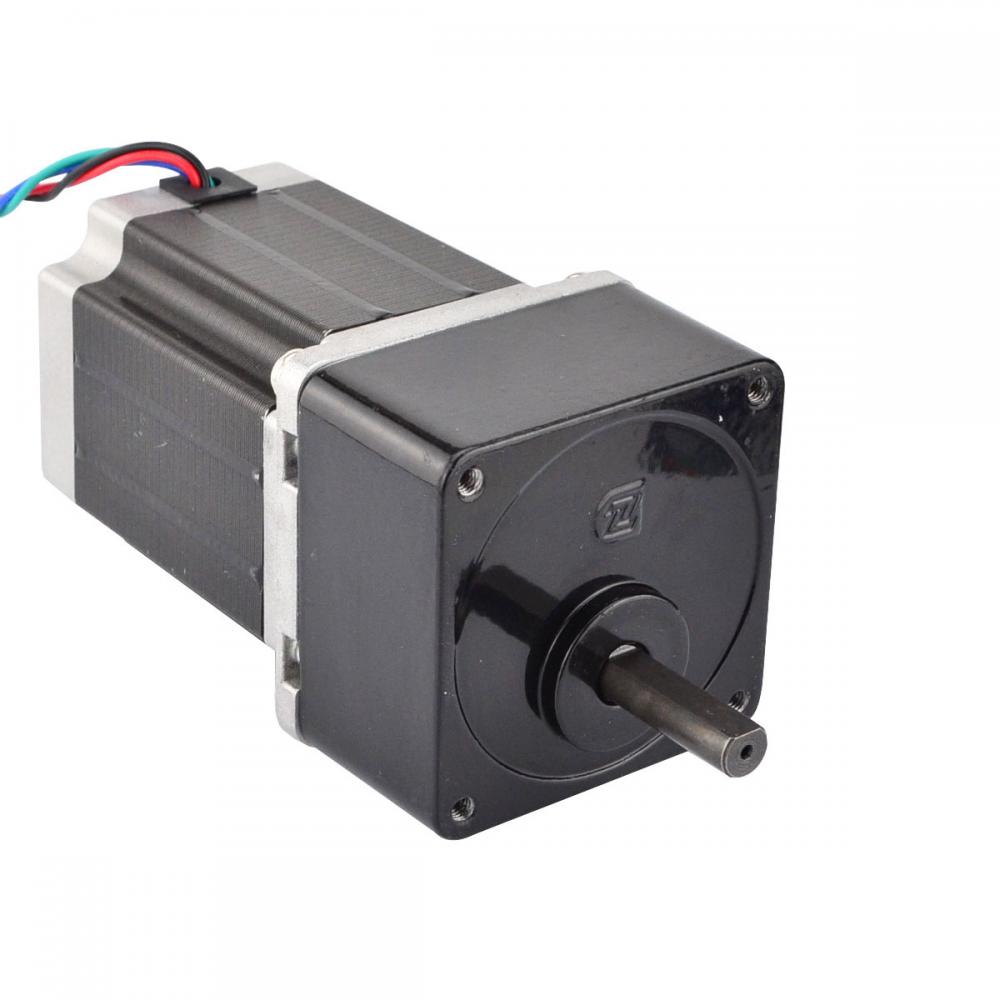

High Torque,D-cut Shaft, Spur type planetary gearbox, Gear ratio 10, Efficiency 80%, Rated current 2.8A, 2 Phase Bipolar, Nema 23 size, length 78mm(Motor) + 32mm(Gearbox)

USD 69.48
Availability: 61
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Motor Specification
Inductance(mH) 5.4
Motor Nema Size Nema 23
Phase Resistance(ohm) 1.13
Rated Current(A) 2.8
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 189
Holding Torque w/o Gearbox(oz.in) 267.6
No. of Lead 4
Lead Length(mm) 500
Shaft Diameter(mm) 8
Gearbox Specification
Backlash at No-load(Max.°) 3
Efficiency 80%
Gear Ratio 10:1
Gearbox Type Spur
Max. Permissible Torque(Ncm) 500
Max. Permissible Torque(oz.in) 708.1
Physical Specification
Gearbox Length(mm) 32
Weight(g) 1500
Motor Length(mm) 78
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Shaft Length(mm) 28

Do you have any questions about 23HS30-2804S-SG10?
