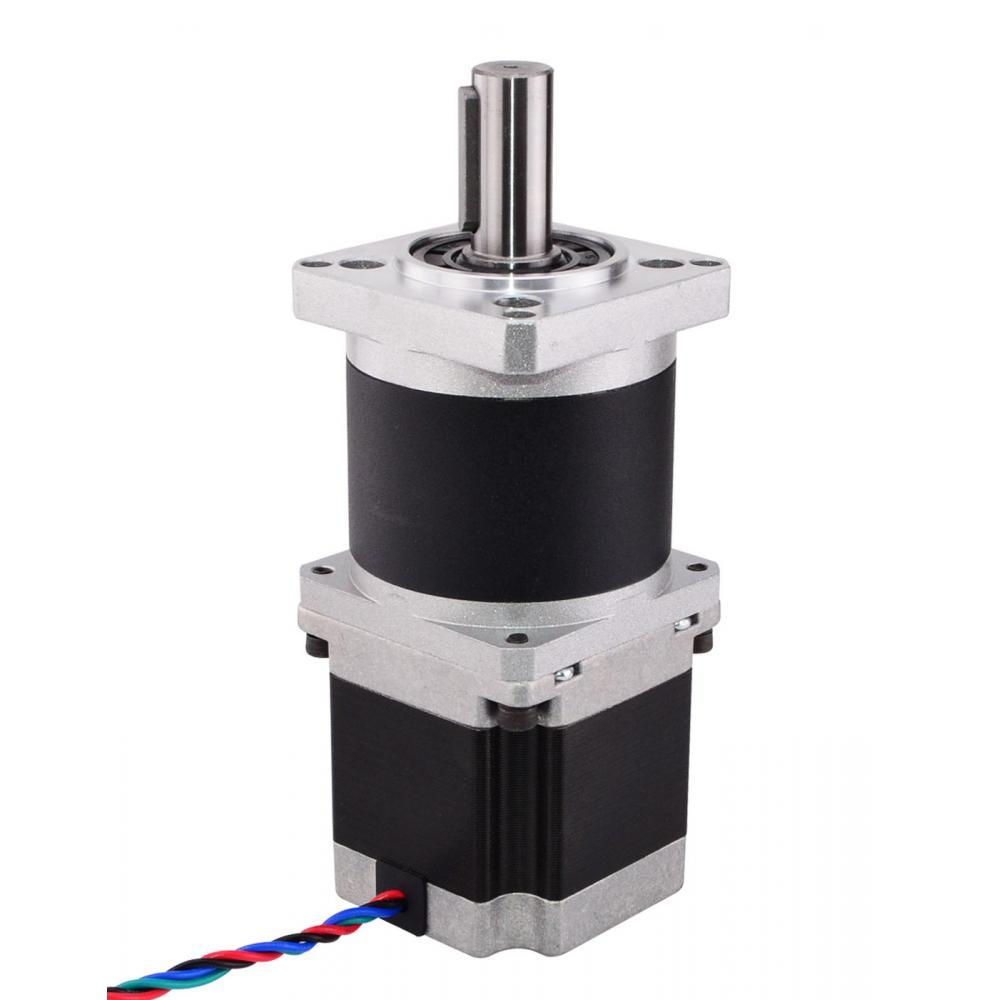

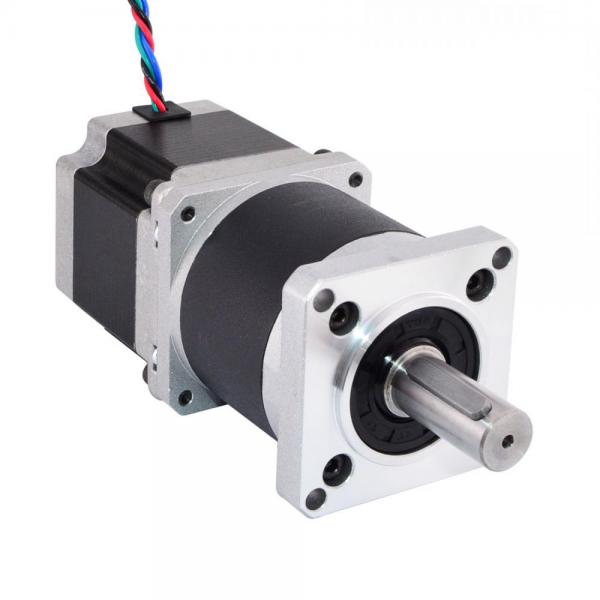

23HS22-2804S-HG50

High Torque,Low Losses , Precision type planetary gearbox, Gear ratio 50, Efficiency 90%, Rated current 2.8A, 2 Phase Bipolar, Nema 23 size, length 55mm(Motor) + 61.65mm(Gearbox)

USD 117.25
Availability: 61
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Electrical Specification
Inductance(mH) 2.8
Motor Specification
Motor Nema Size Nema 23
Phase Resistance(ohm) 0.9
Rated Current(A) 2.8
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 103
Holding Torque w/o Gearbox(oz.in) 145.86
No. of Lead 4
Lead Length(mm) 320
Shaft Diameter(mm) 14
Gearbox Specification
Backlash at No-load(Max.°) 0.25
Efficiency 90%
Gear Ratio 50:1
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 2500
Max. Permissible Torque(oz.in) 3540.3
Moment Permissible Torque(Ncm) 4000
Moment Permissible Torque(oz.in) 5664.5
Shaft Maximum Radial Load(N) 400
Physical Specification
Gearbox Length(mm) 61.65
Weight(g) 1800
Motor Length(mm) 55
Single Shaft/Dual Shaft Single Shaft
Shaft Type Key-way
Shaft Length(mm) 34
