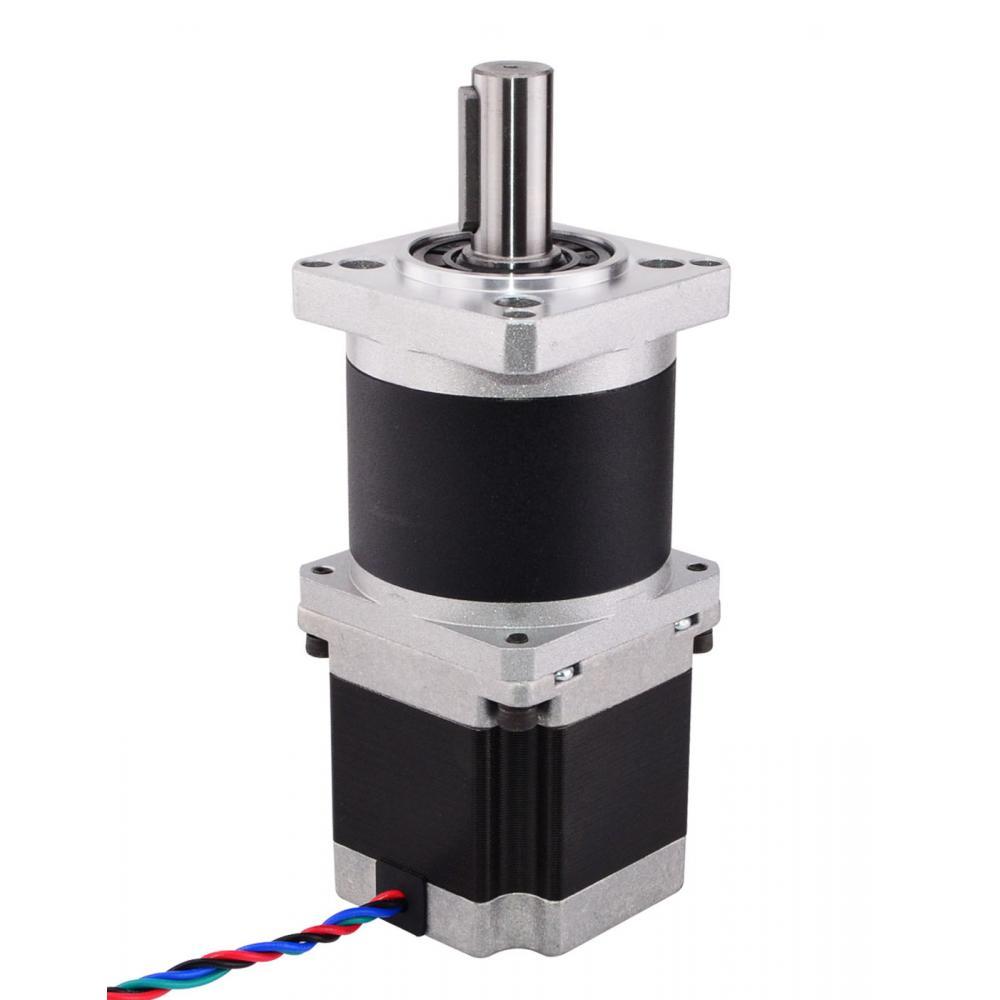

23HS22-2804S-HG100

23HS22-2804S-HG100

High Torque,Top Selling, Precision type planetary gearbox, Gear ratio 100, Efficiency 90%, Rated current 2.8A, 2 Phase Bipolar, Nema 23 size, length 55mm(Motor) + 61.65mm(Gearbox
USD 117.25
Availability: 242
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Motor Specification
Inductance(mH) 2.8
Motor Nema Size Nema 23
Phase Resistance(ohm) 0.9
Rated Current(A) 2.8
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 103
Holding Torque w/o Gearbox(oz.in) 145.86
No. of Lead 4
Lead Length(mm) 320
Shaft Diameter(mm) 14
Gearbox Specification
Backlash at No-load(Max.°) 0.25
Efficiency 90%
Gear Ratio 100:1
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 2500
Max. Permissible Torque(oz.in) 3540.3
Moment Permissible Torque(Ncm) 4000
Moment Permissible Torque(oz.in) 5664.5
Shaft Maximum Radial Load(N) 400
Physical Specification
Gearbox Length(mm) 61.65
Weight(g) 1800
Motor Length(mm) 55
Single Shaft/Dual Shaft Single Shaft
Shaft Type Key-way
Shaft Length(mm) 34
