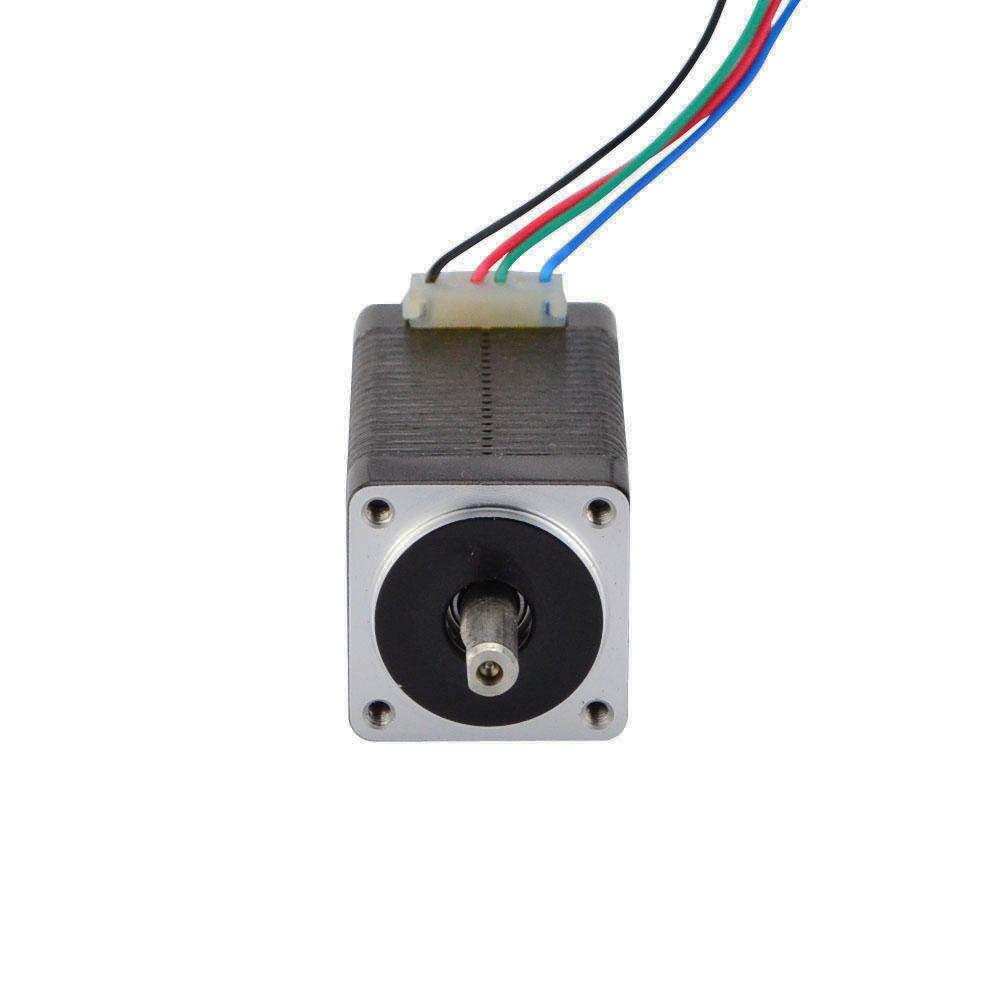

Low Losses, High Efficiency, Nema 8 - 20x20x38mm, 1.8 deg. (200 steps/rev), Rated current 0.6A, 2 Phase Bipolar, Holding torque 4Ncm(5.7oz-in)

USD 23.02
Availability: 204
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Electrical Specification
Bipolar/Unipolar Bipolar
Step Angle(°) 1.8
Holding Torque(Ncm) 4
Holding Torque(oz.in) 5.7
Inductance(mH) 5.5
Phase Resistance(ohm) 10
Rated Current(A) 0.6
Physical Specification
Shaft Type D-Cut
Shaft Diameter(mm) 4
Shaft Length(mm) 10
No. of Lead 4
Lead Length(mm) 300
Weight(g) 80
Single Shaft/Dual Shaft Single Shaft
Frame Size(mm) 20x20
Body Length(mm) 38

Do you have any questions about 8HS15-0604S?
