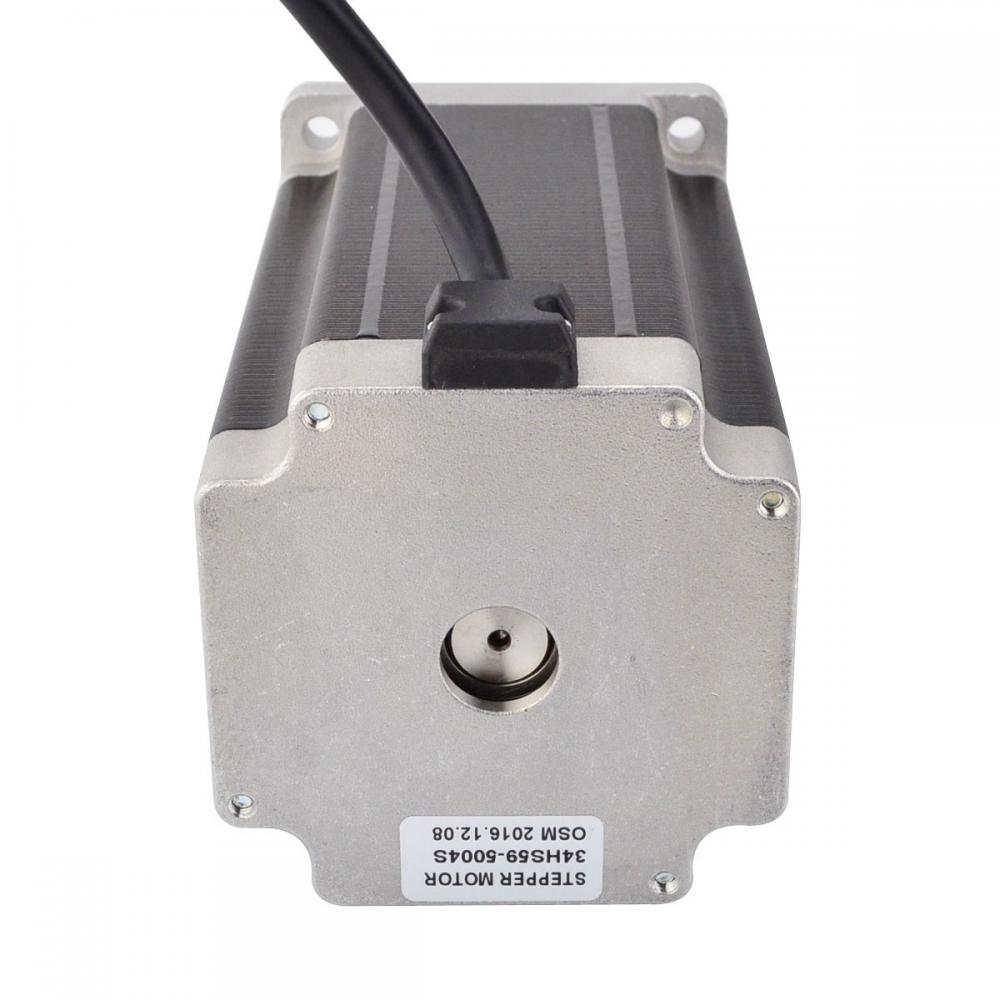

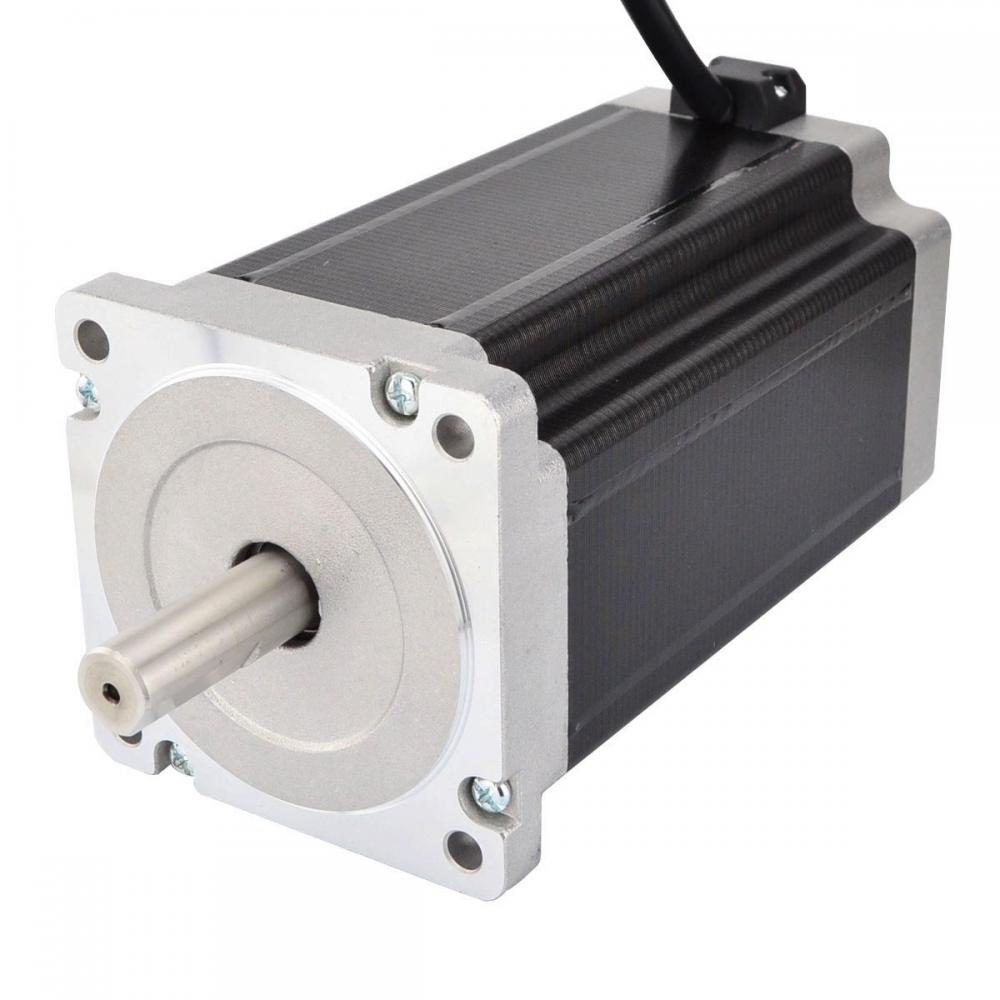

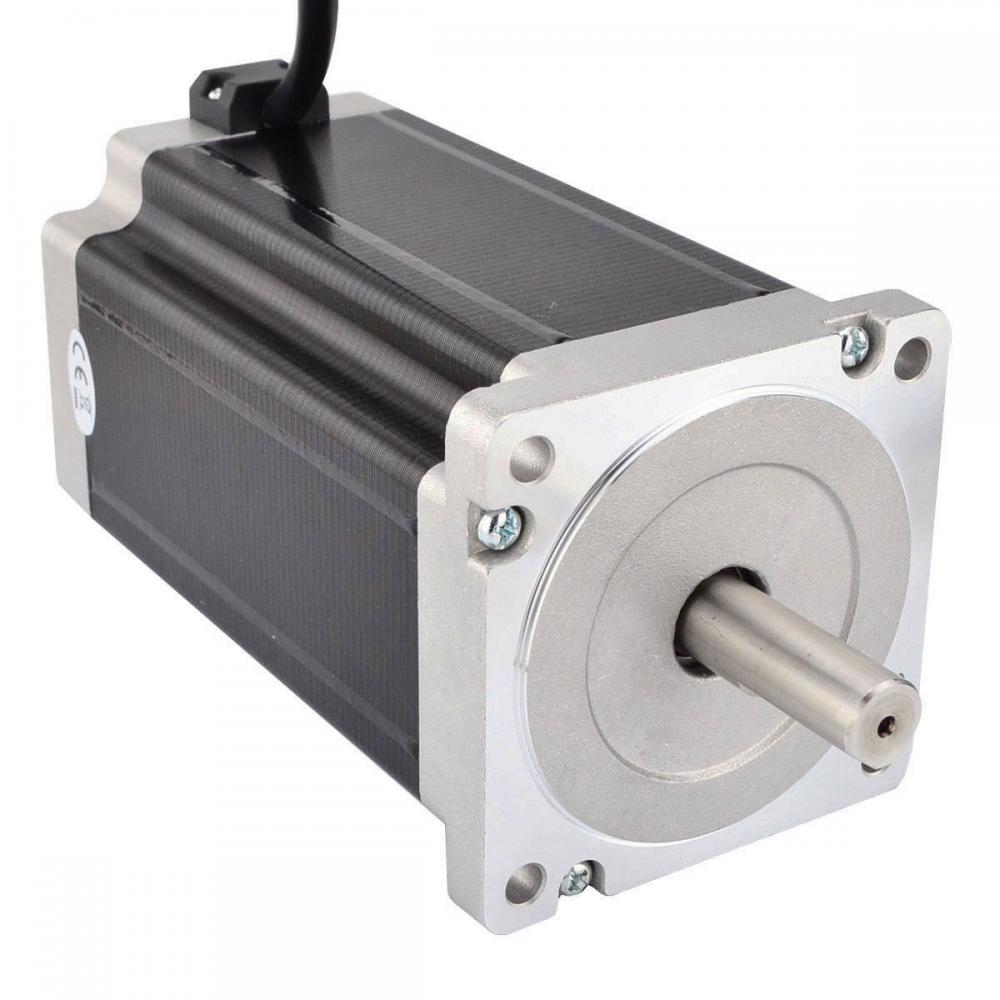

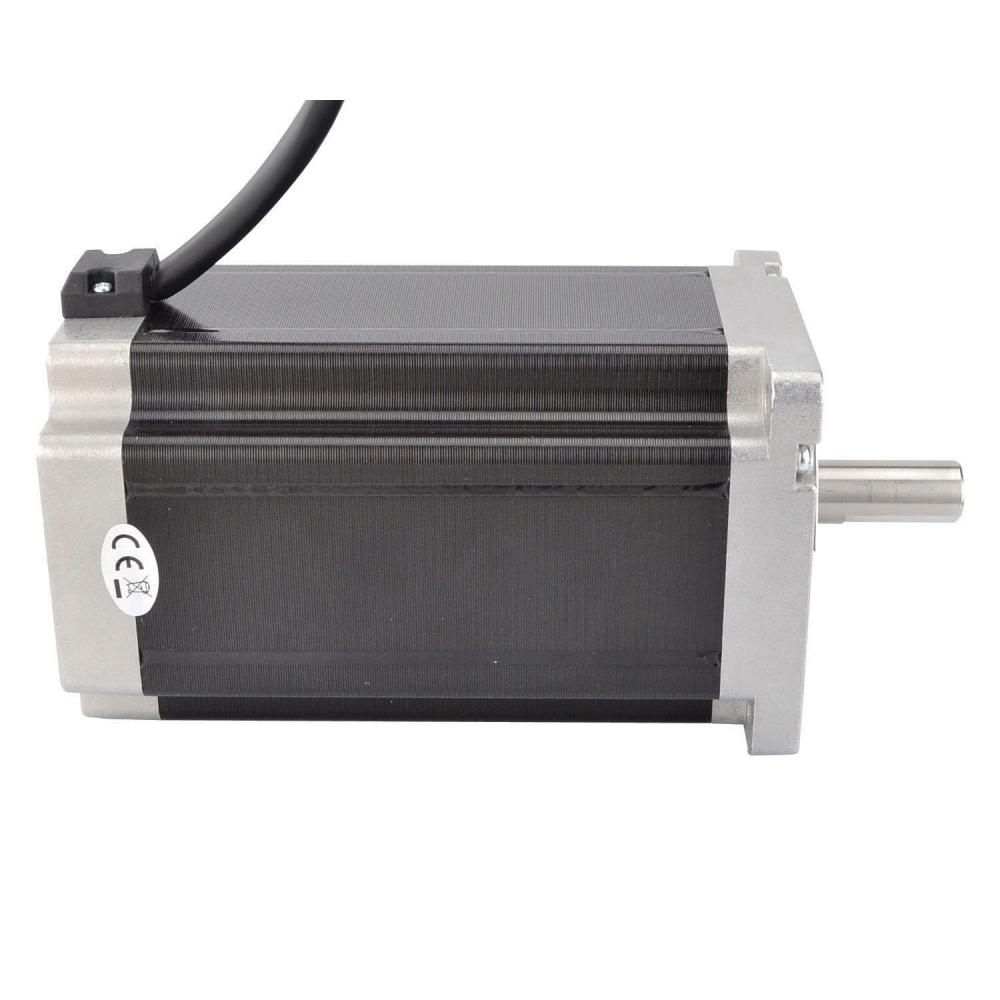

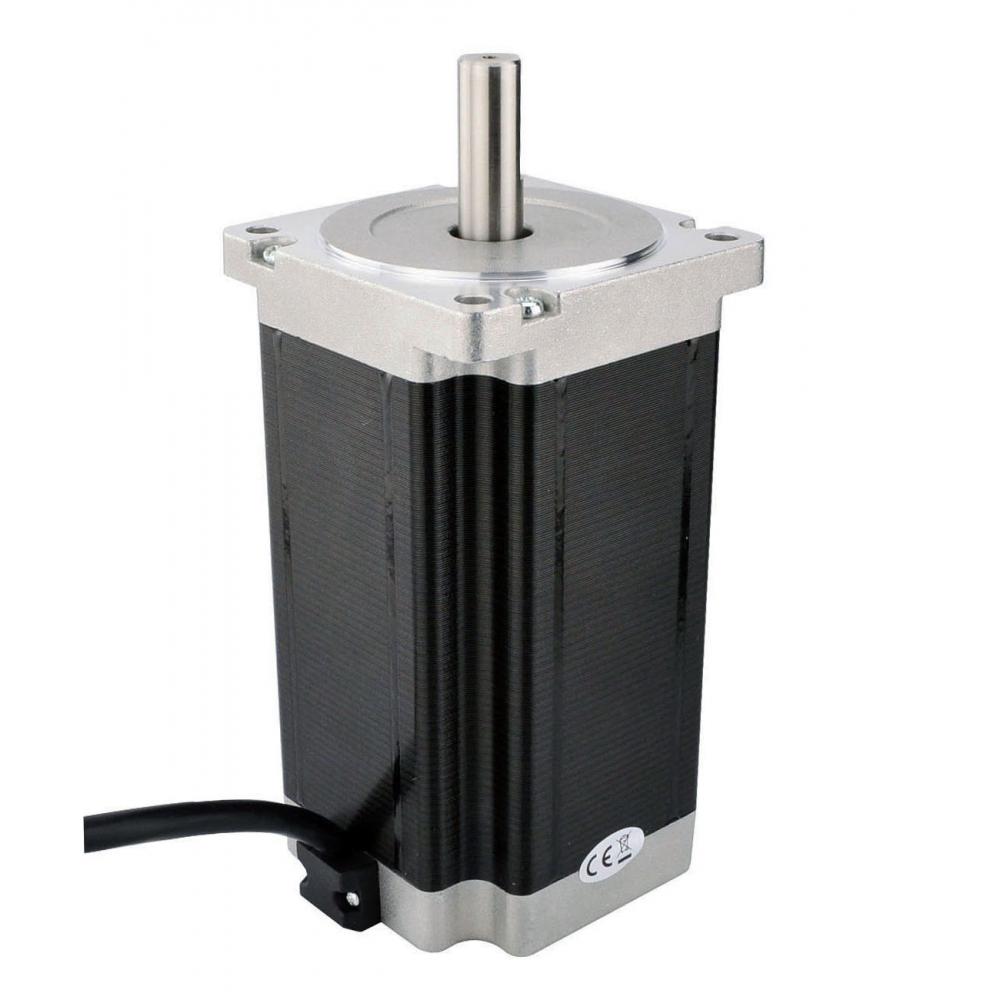

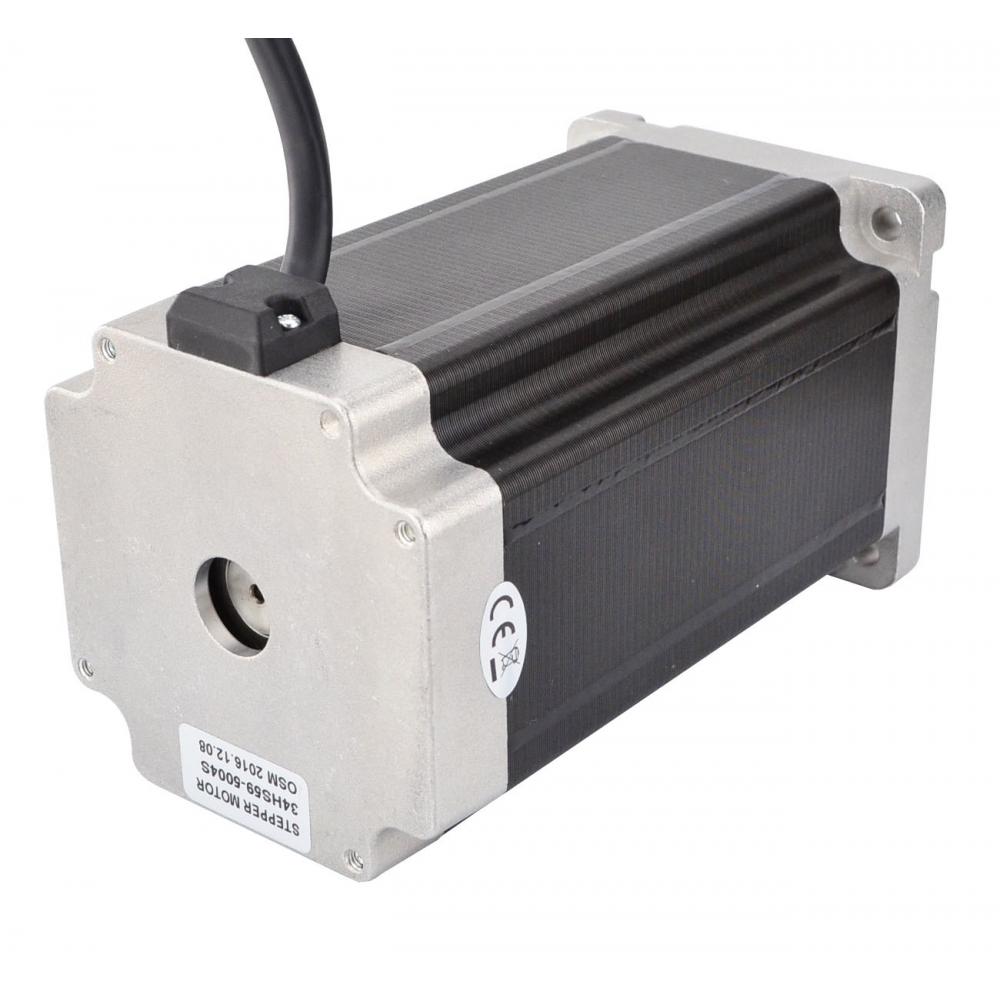

34HS59-5004S

34HS59-5004S

High Torque, D-cut Shaft, Nema 34 - 86x86x150mm, 1.8 deg. (200 steps/rev), Rated current 5.00A, 2 Phase Bipolar, Holding torque 13Nm(1841oz-in)
USD 140.70
Availability: 127
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Electrical Specification
Bipolar/Unipolar Bipolar
Step Angle(°) 1.8
Holding Torque(Ncm) 1300
Holding Torque(oz.in) 1841
Inductance(mH) 11
Phase Resistance(ohm) 1
Rated Current(A) 5
Physical Specification
Shaft Type D-Cut
Shaft Diameter(mm) 14
Shaft Length(mm) 37
No. of Lead 4
Lead Length(mm) 500
Weight(g) 5000
Single Shaft/Dual Shaft Single Shaft
Frame Size(mm) 86x86
Body Length(mm) 150
