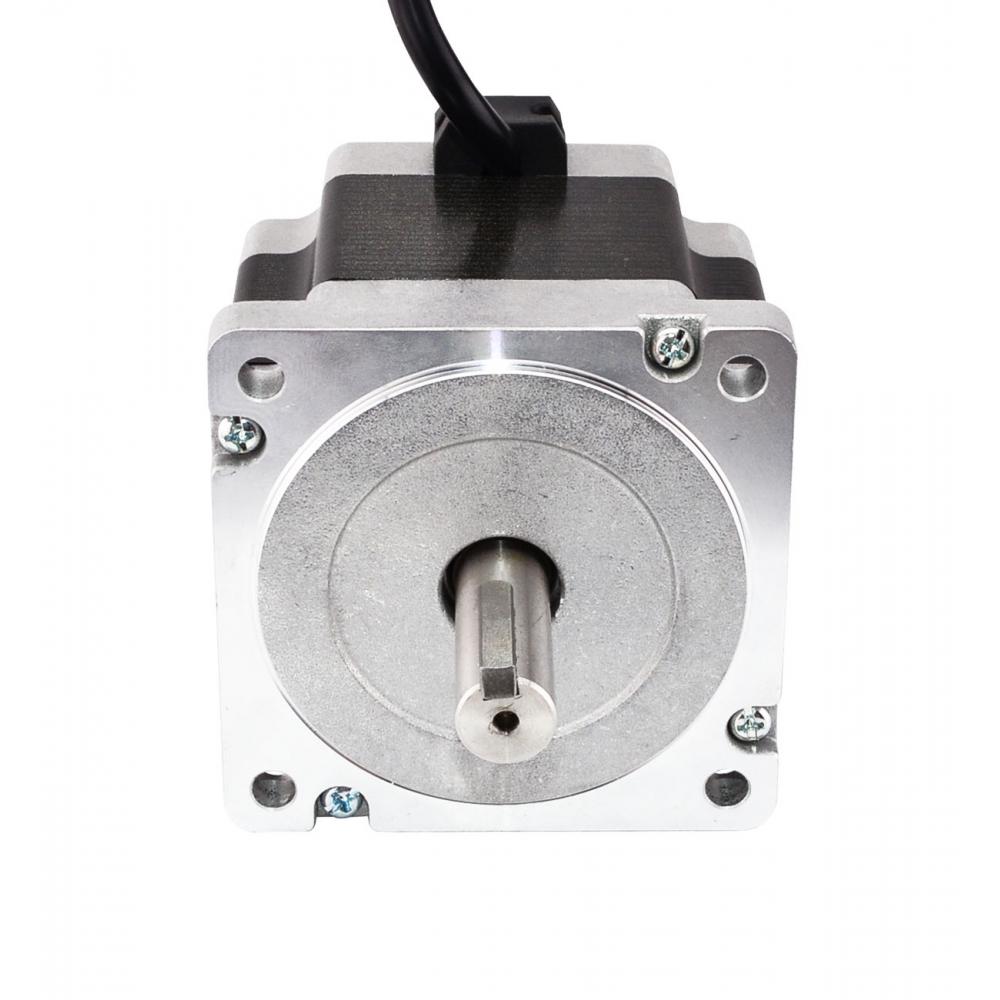

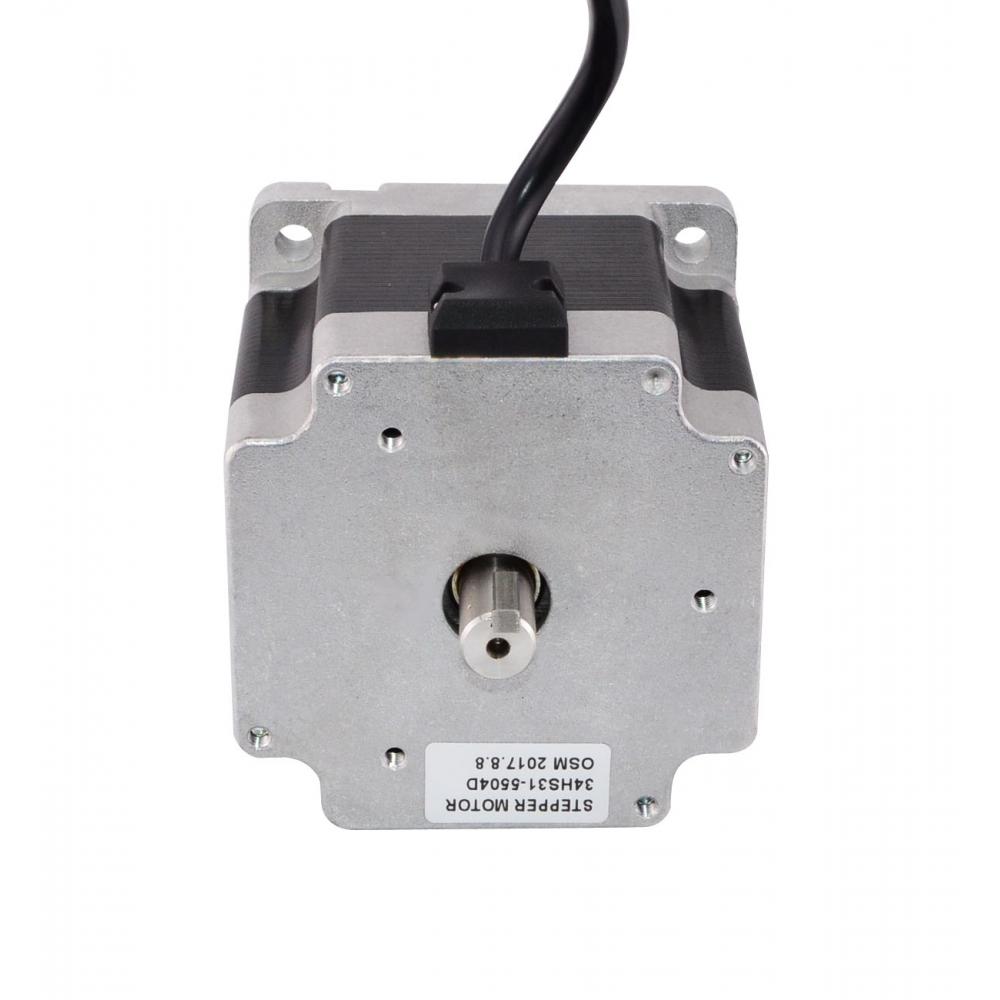

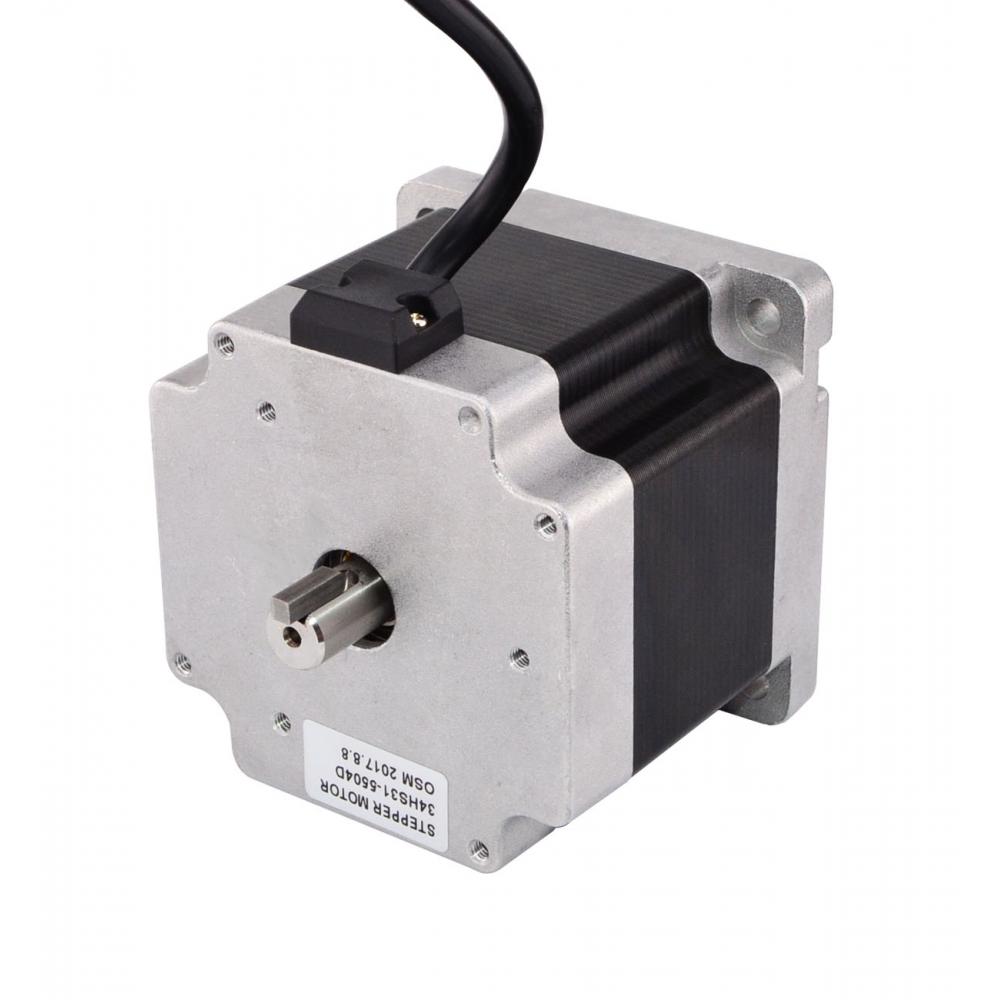

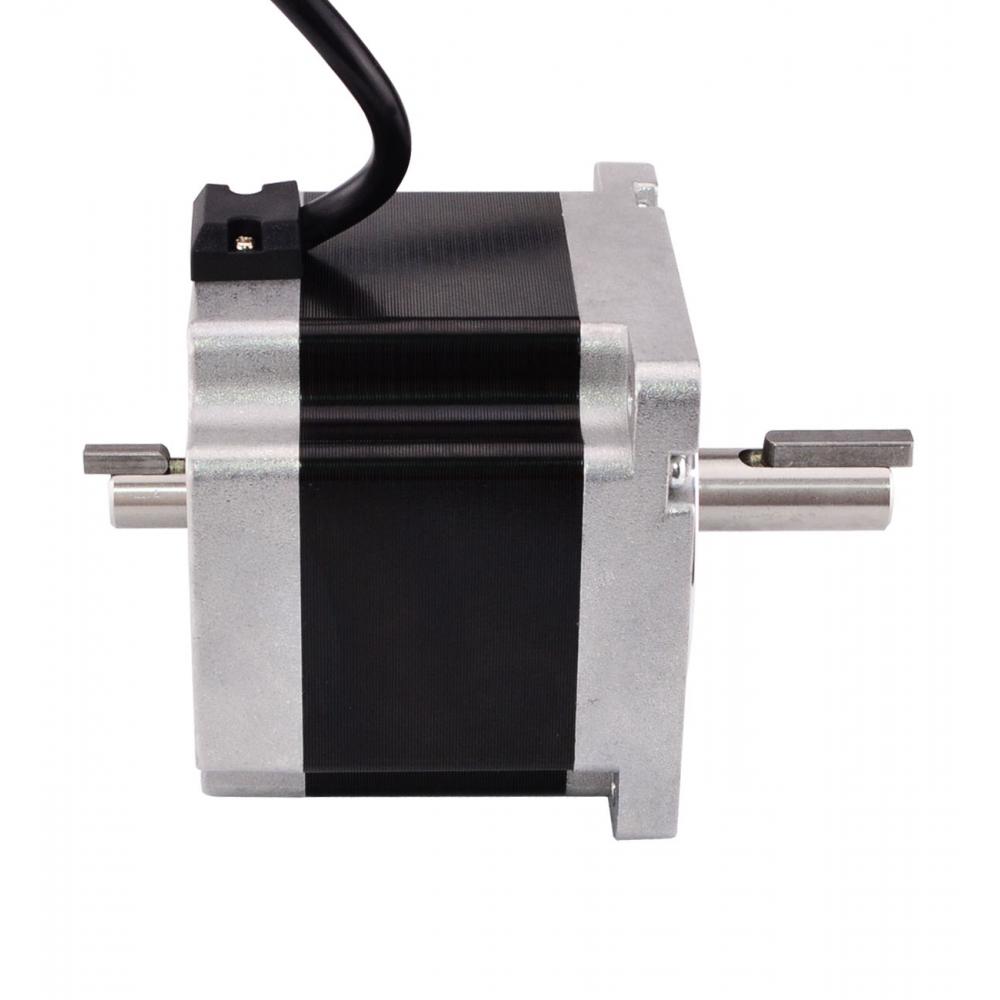

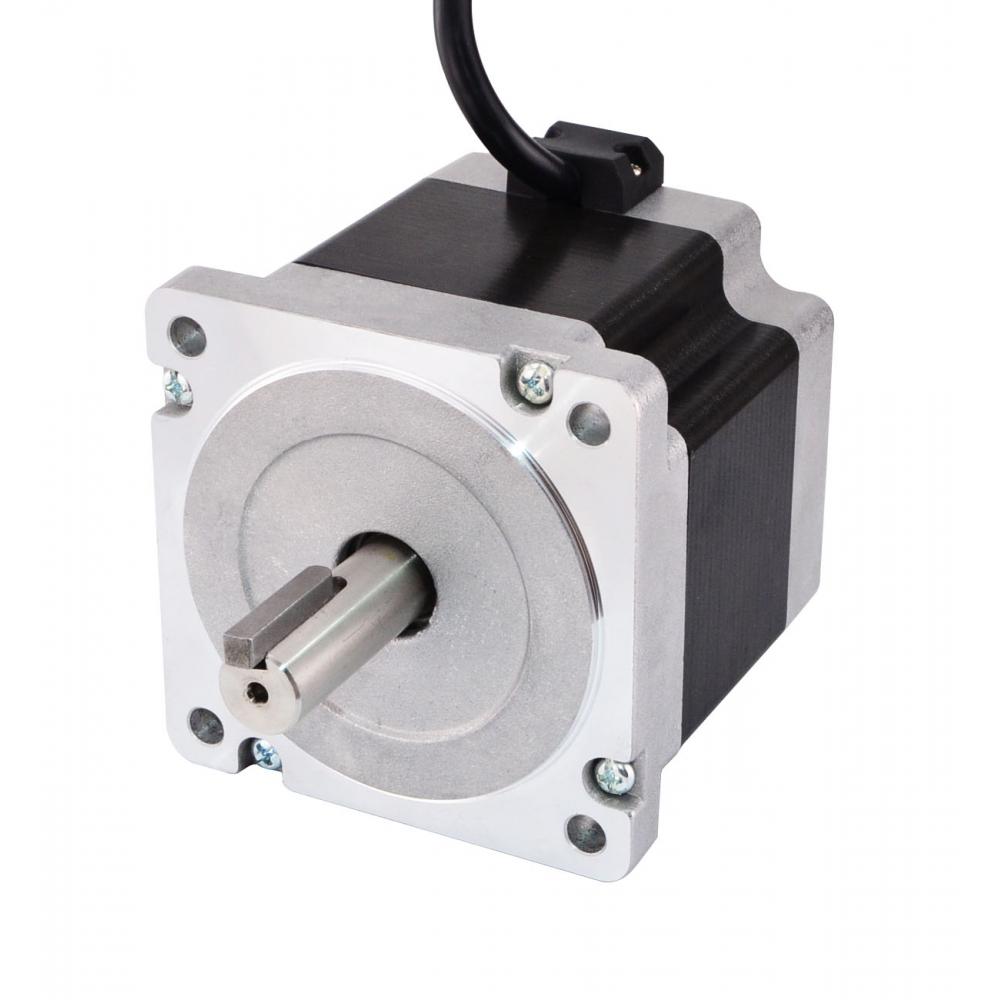

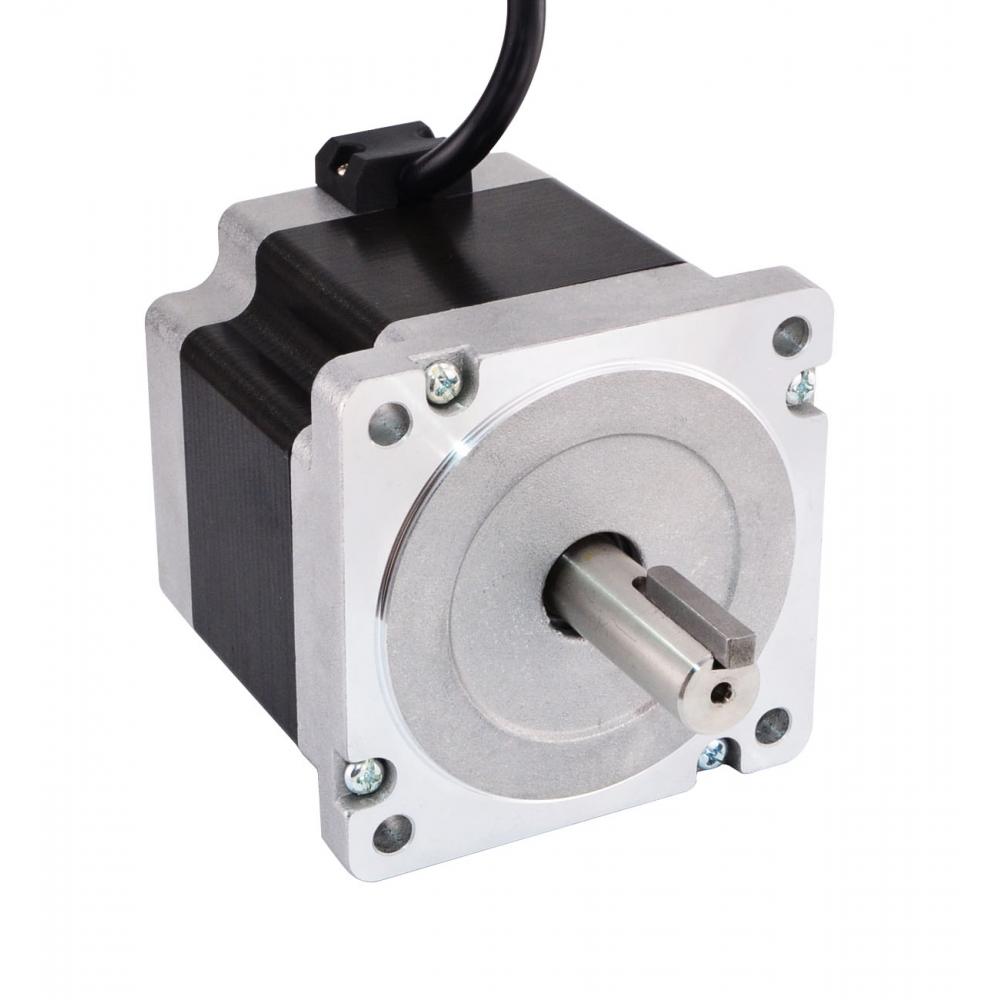

34HS31-5504D

High Torque, Keyway Dual Shaft, Nema 34 - 86x86x80mm, 1.8 deg. (200 steps/rev), Rated current 5.50A, 2 Phase Bipolar, Holding torque 4.50Nm(637oz-in)

USD 70.35
Availability: 20
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Electrical Specification
Bipolar/Unipolar Bipolar
Step Angle(°) 1.8
Holding Torque(Ncm) 450
Holding Torque(oz.in) 637.3
Inductance(mH) 3.5
Phase Resistance(ohm) 0.4
Rated Current(A) 5.5
Physical Specification
Shaft Type Key-Way
Shaft Diameter(mm) 14
Shaft Length(mm) 37
No. of Lead 4
Lead Length(mm) 500
Weight(g) 2500
Single Shaft/Dual Shaft Single Shaft/Dual Shaft
Frame Size(mm) 86x86
Body Length(mm) 80
