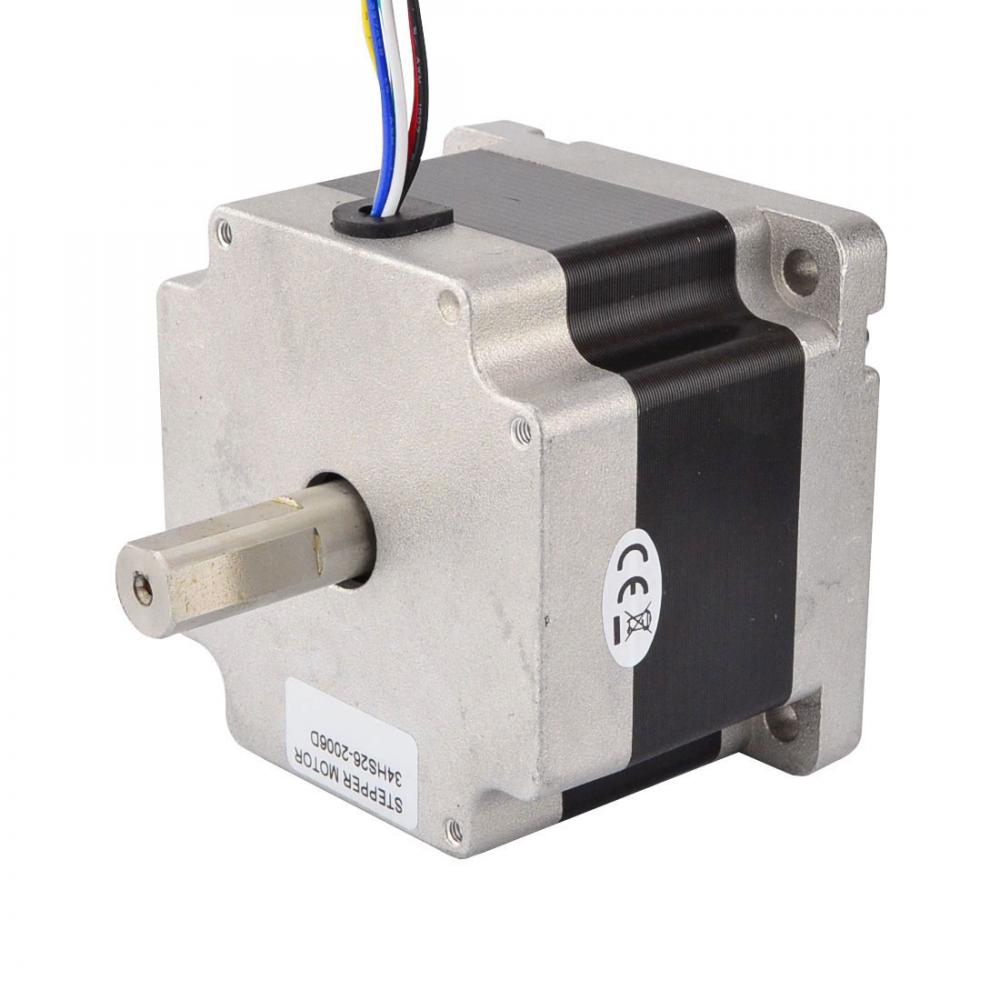

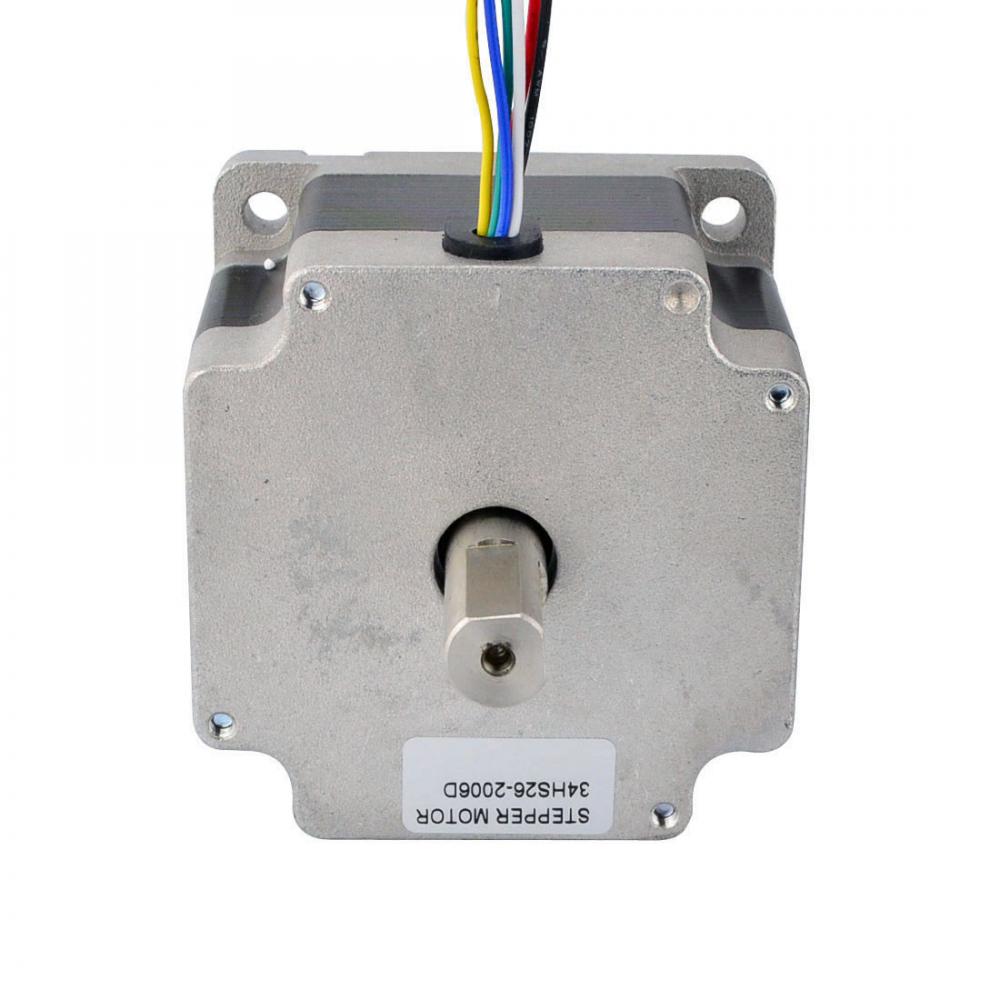

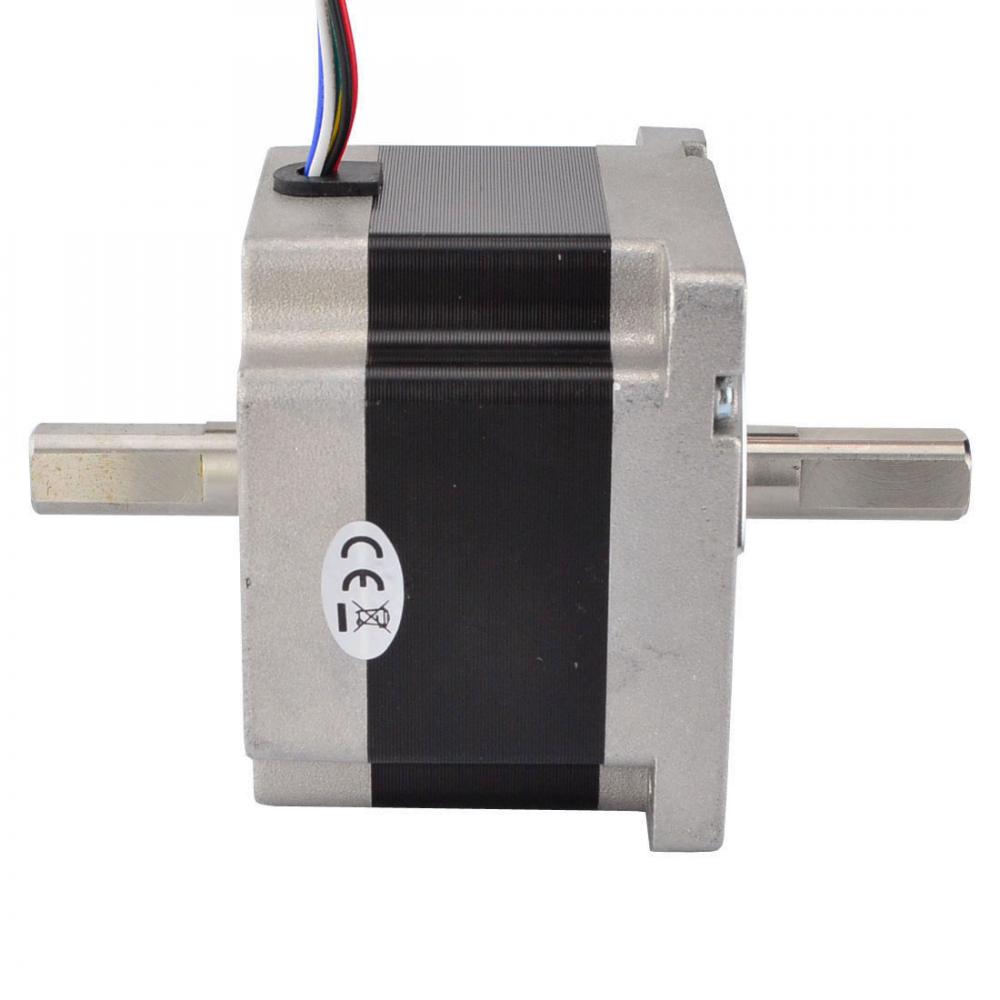

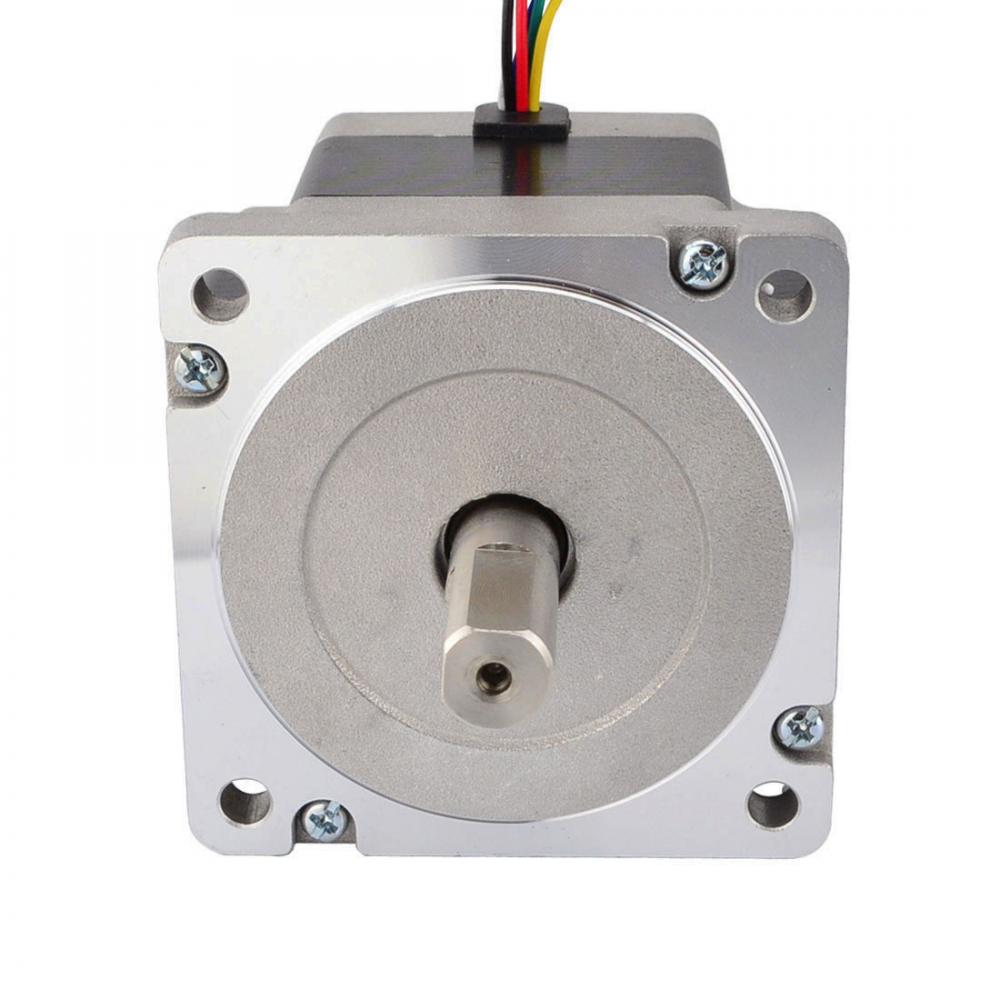

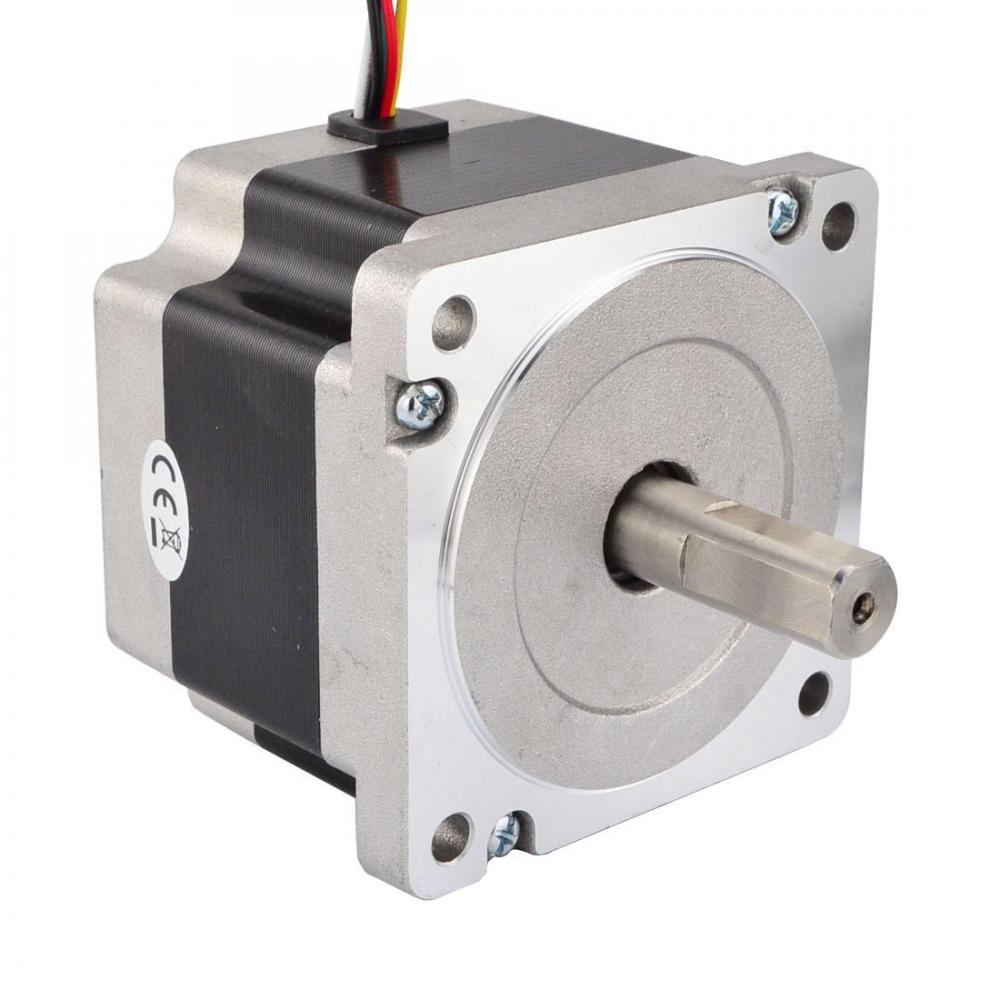

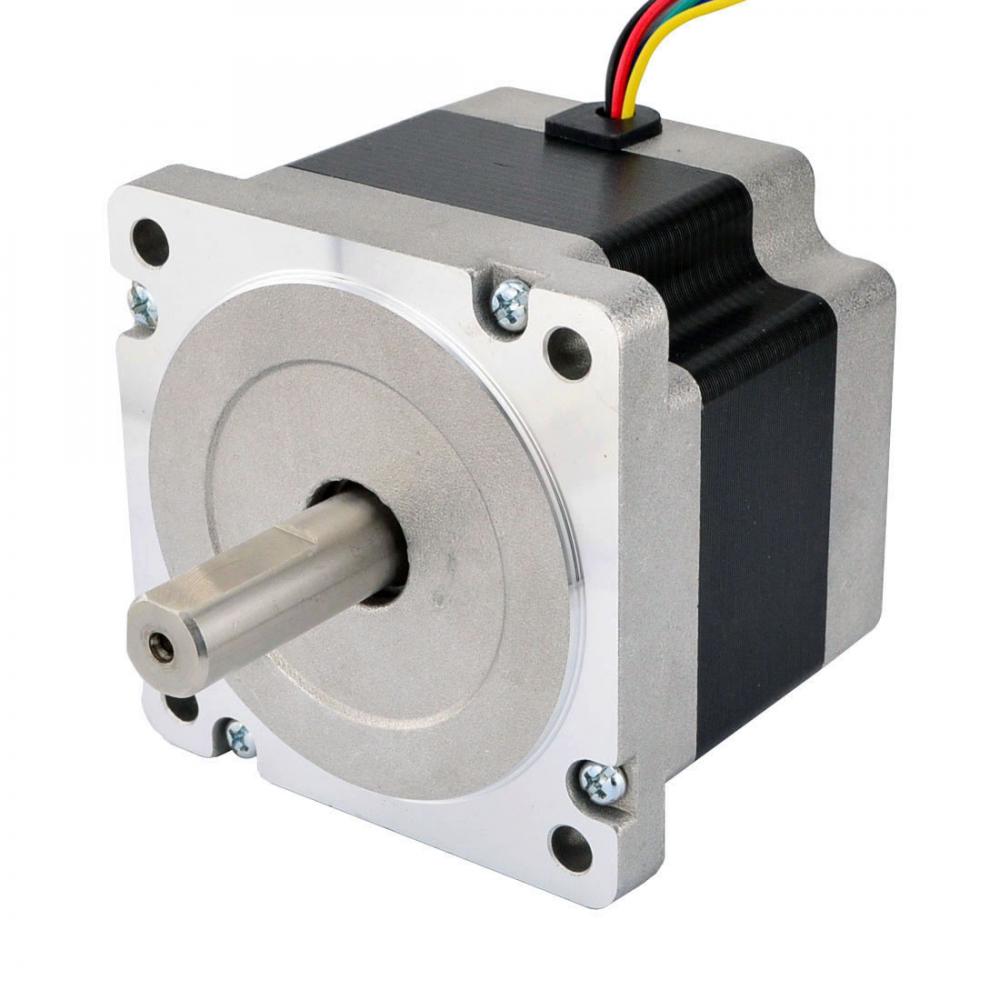

34HS26-2006D

34HS26-2006D

D-cut Shaft, Dual Shaft, Nema 34 - 86x86x66mm, 1.8 deg. (200 steps/rev), Rated current 2.00A, 2 Phase Uni/Bipolar, Holding torque 2.20Nm(312oz-in)
USD 59.93
Availability: 100
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Electrical Specification
Bipolar/Unipolar Unipolar
Step Angle(°) 1.8
Holding Torque(Ncm) 220
Holding Torque(oz.in) 312
Inductance(mH) 7
Phase Resistance(ohm) 2.2
Rated Current(A) 2
Physical Specification
Shaft Type D-Cut
Shaft Diameter(mm) 14
Shaft Length(mm) 37
No. of Lead 6
Lead Length(mm) 300
Weight(g) 1700
Single Shaft/Dual Shaft Dual Shaft
Frame Size(mm) 86x86
Body Length(mm) 66
