23HS45-3008D

23HS45-3008D

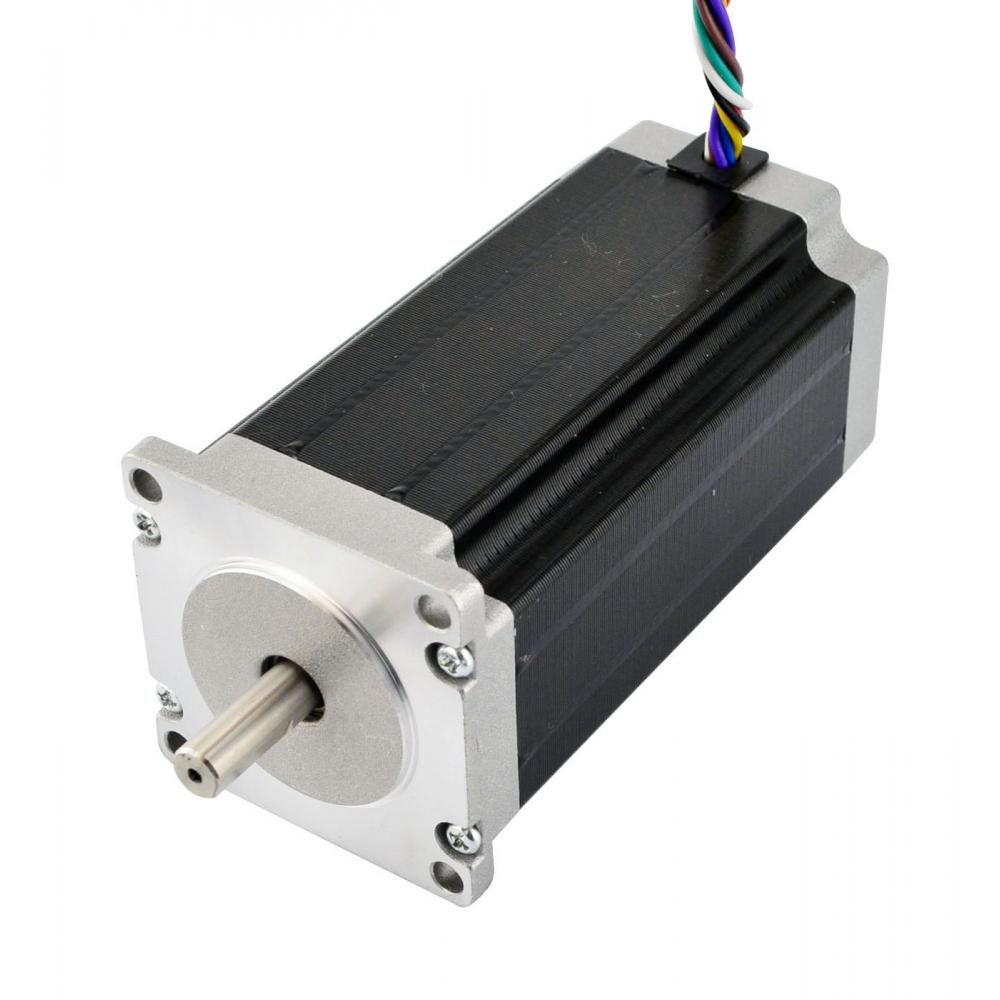

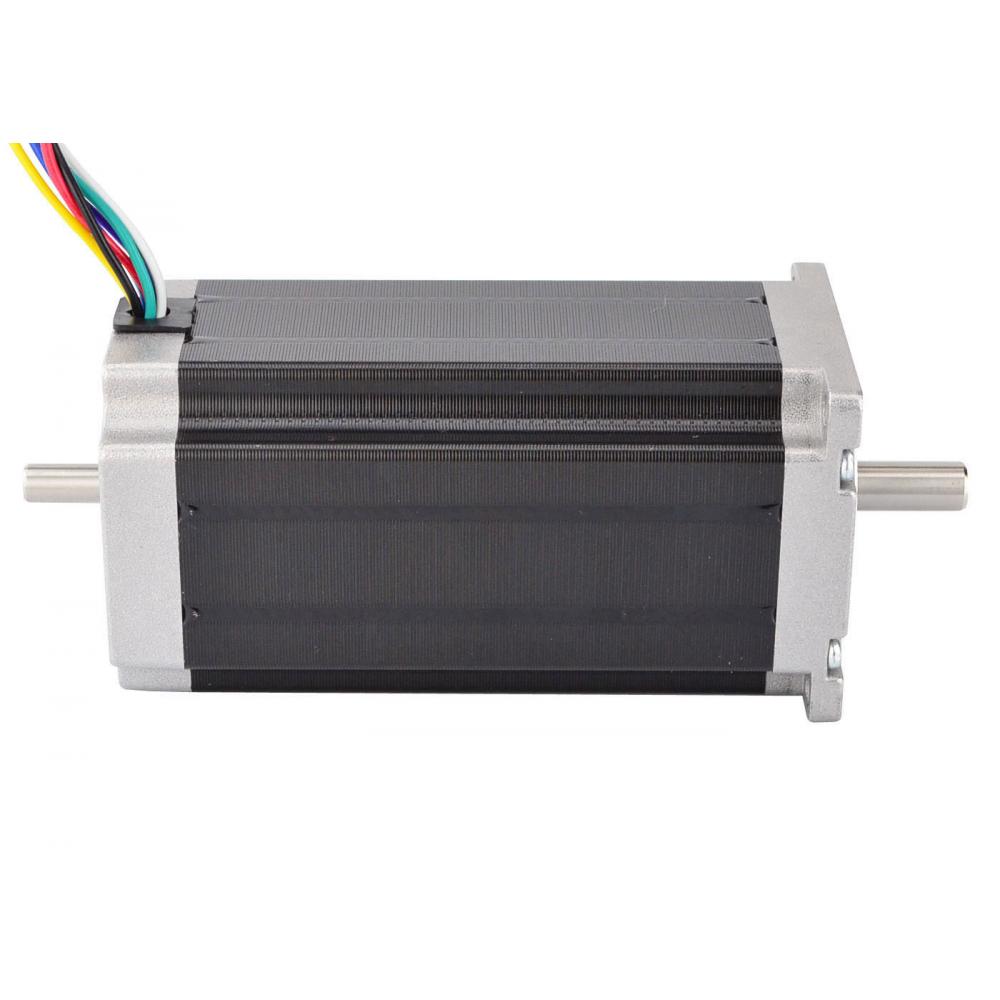

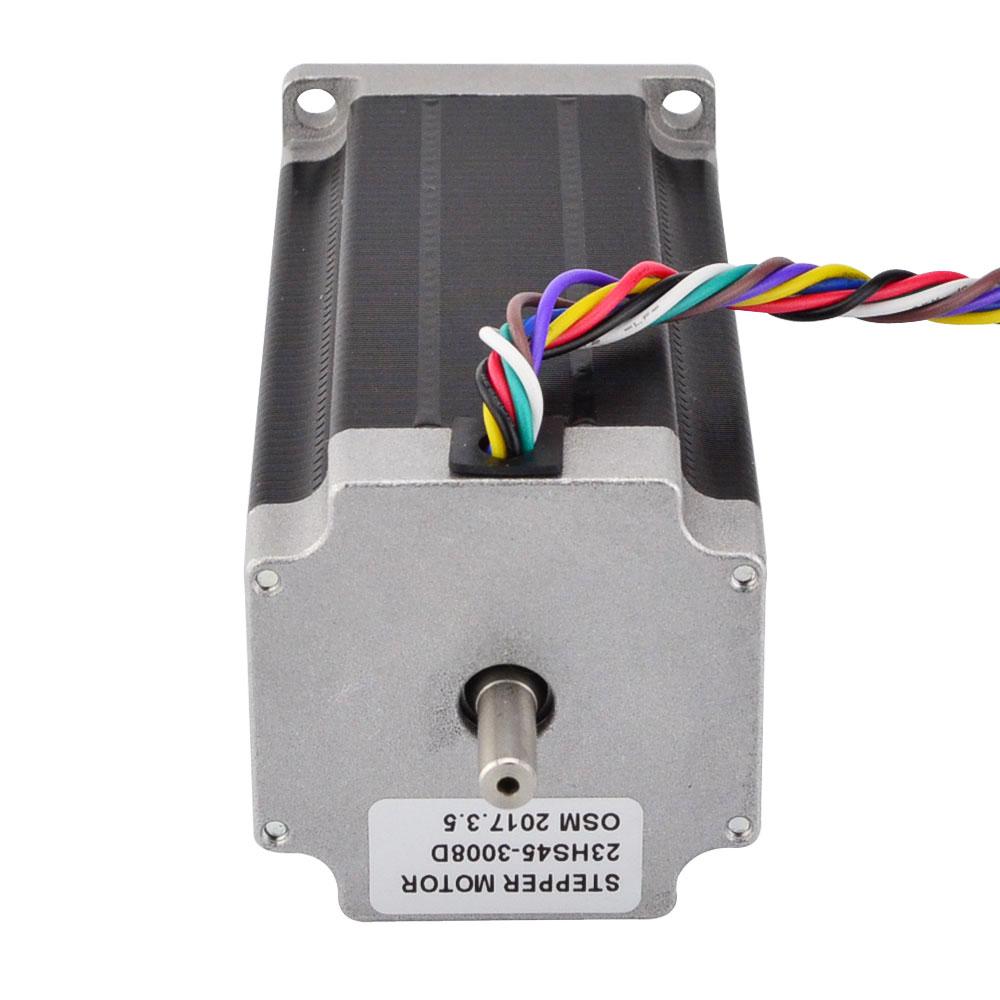

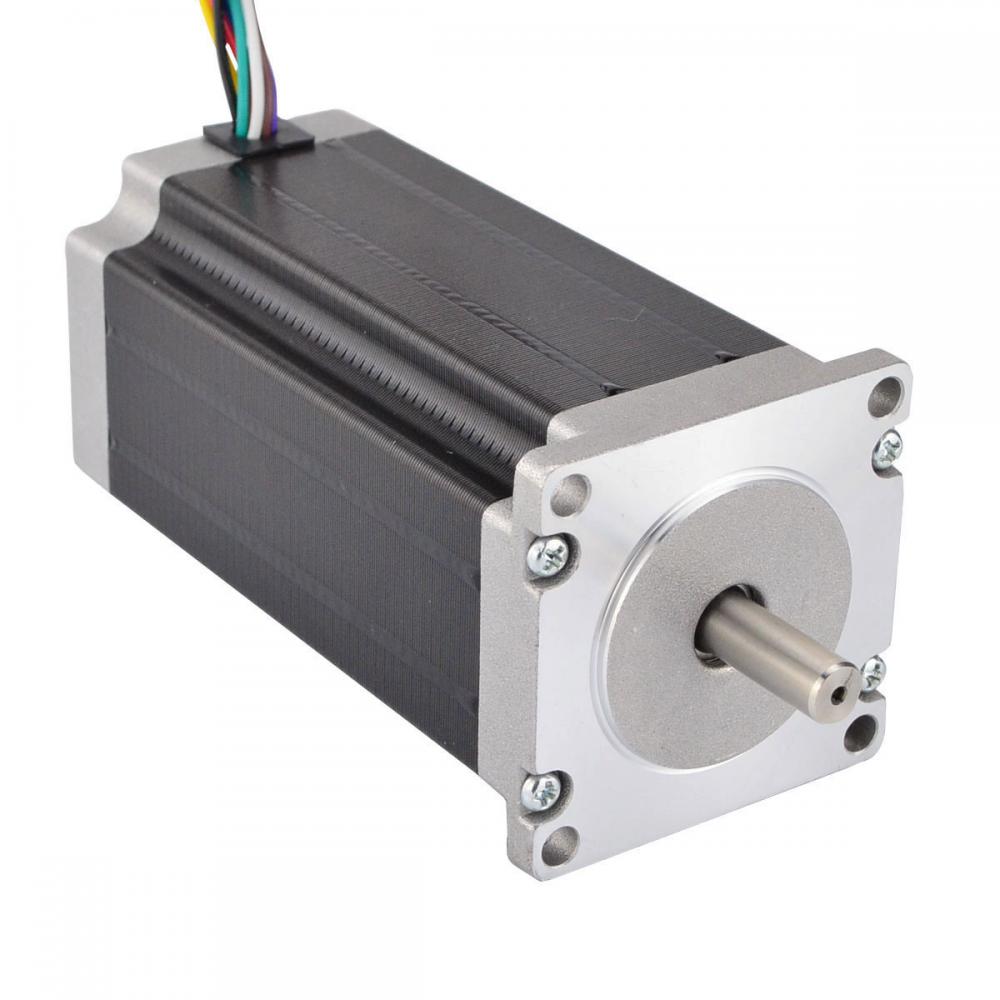

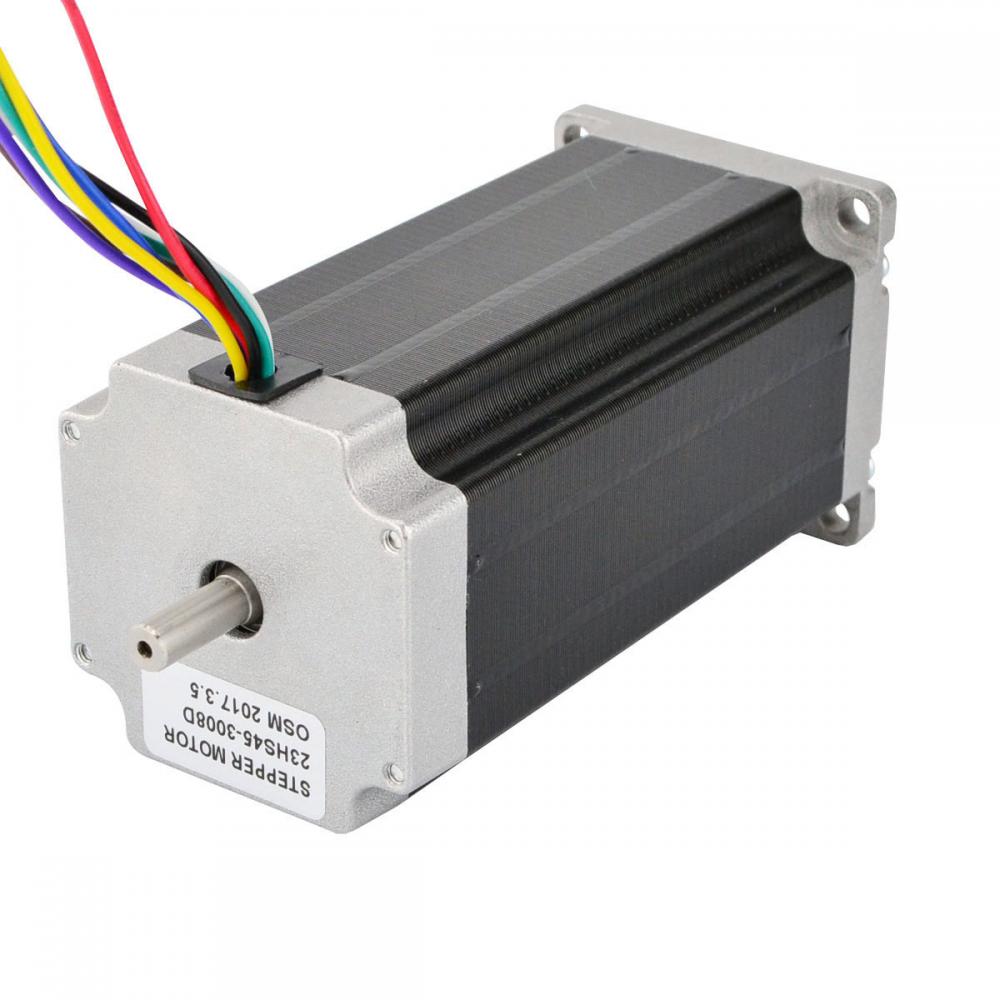

D-cut Shaft, Dual Shaft, Nema 23 - 57x57x114mm, 1.8 deg. (200 steps/rev), Rated current 3.00A, 2 Phase Uni/Bipolar, Holding torque 2.5Nm(354oz-in)
USD 49.51
Availability: 100
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Electrical Specification
Bipolar/Unipolar Bipolar/Unipolar
Step Angle(°) 1.8
Holding Torque(Ncm) 250
Holding Torque(oz.in) 354
Inductance(mH) 1.7
Phase Resistance(ohm) 0.4
Rated Current(A) 4.24
Physical Specification
Shaft Type D-Cut
Shaft Diameter(mm) 8
Shaft Length(mm) 21
No. of Lead 8
Lead Length(mm) 500
Weight(g) 1600
Single Shaft/Dual Shaft Dual Shaft
Frame Size(mm) 57x57
Body Length(mm) 114
