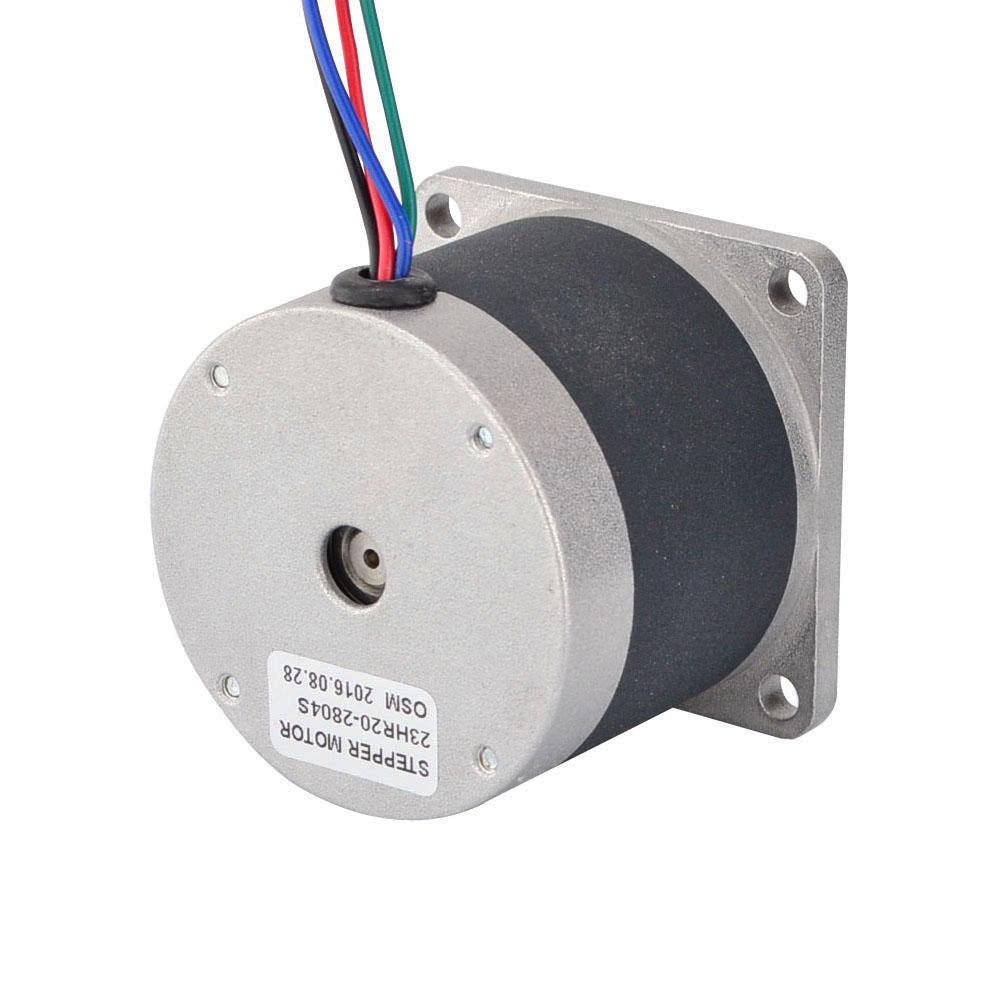

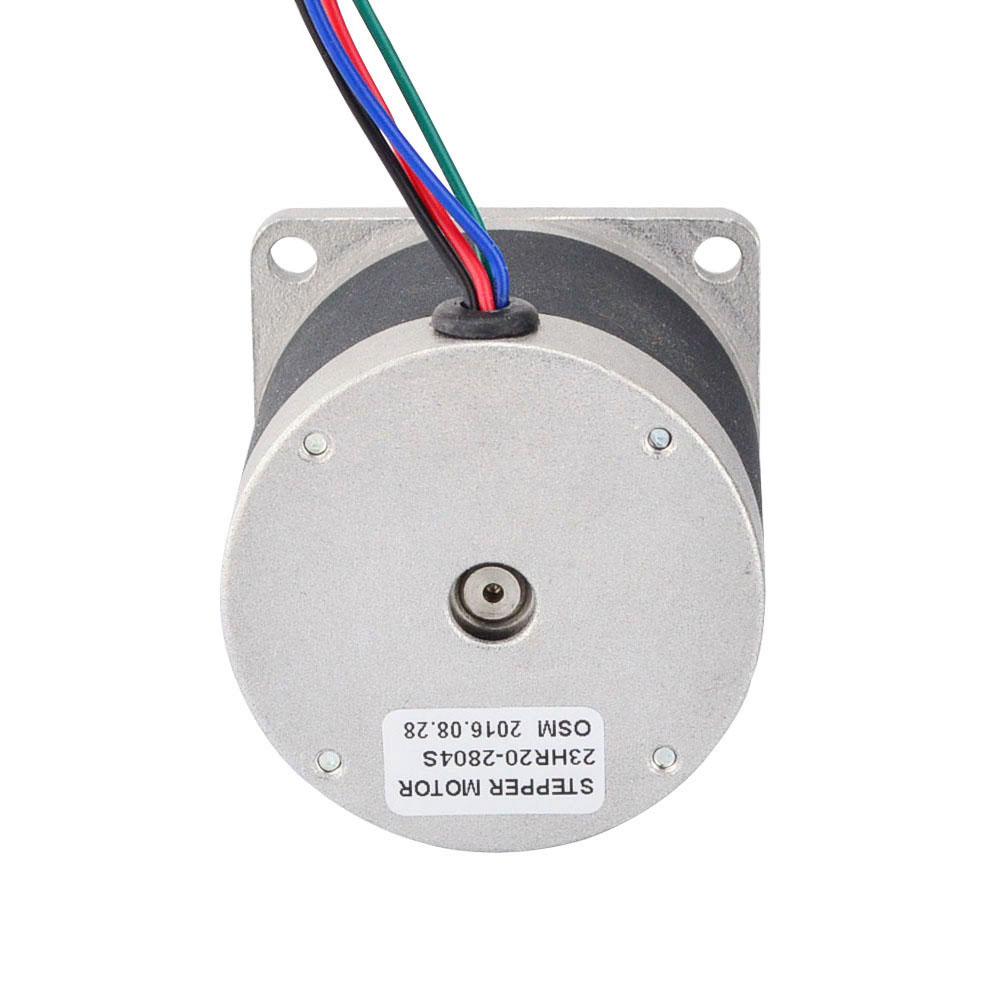

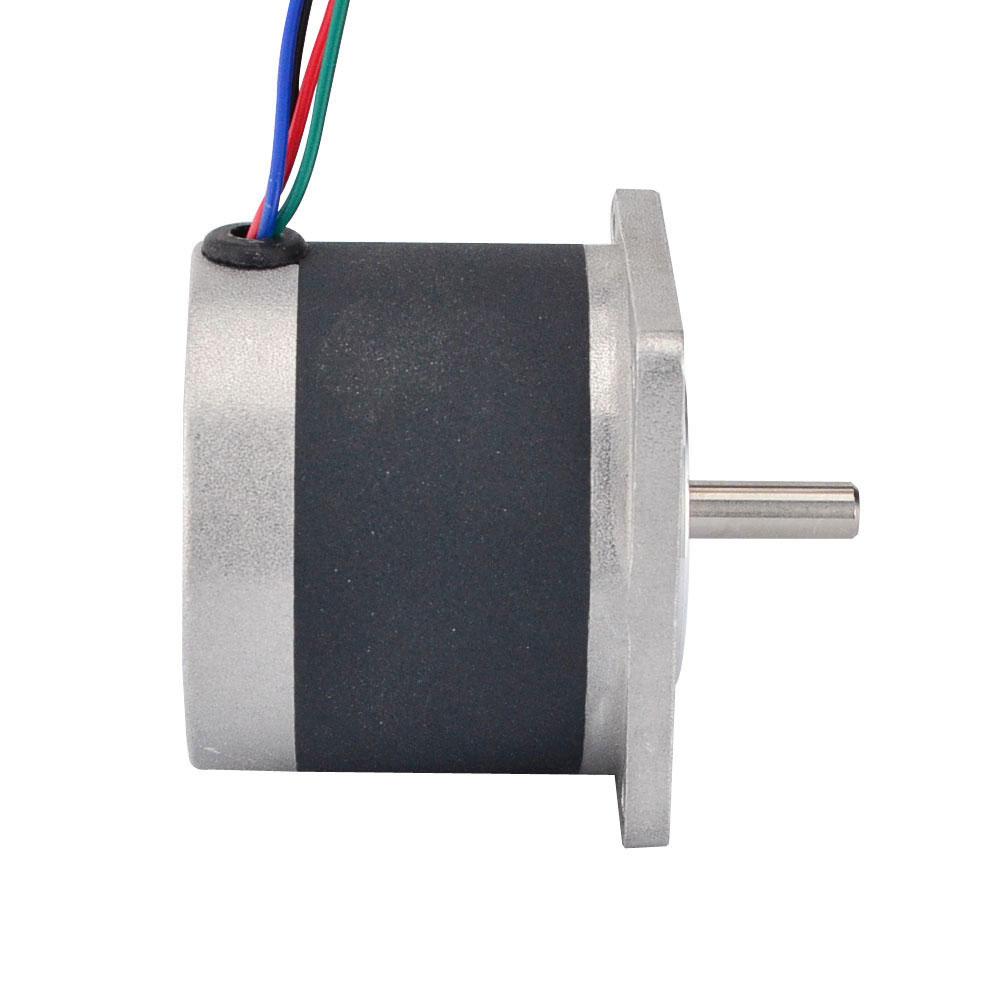

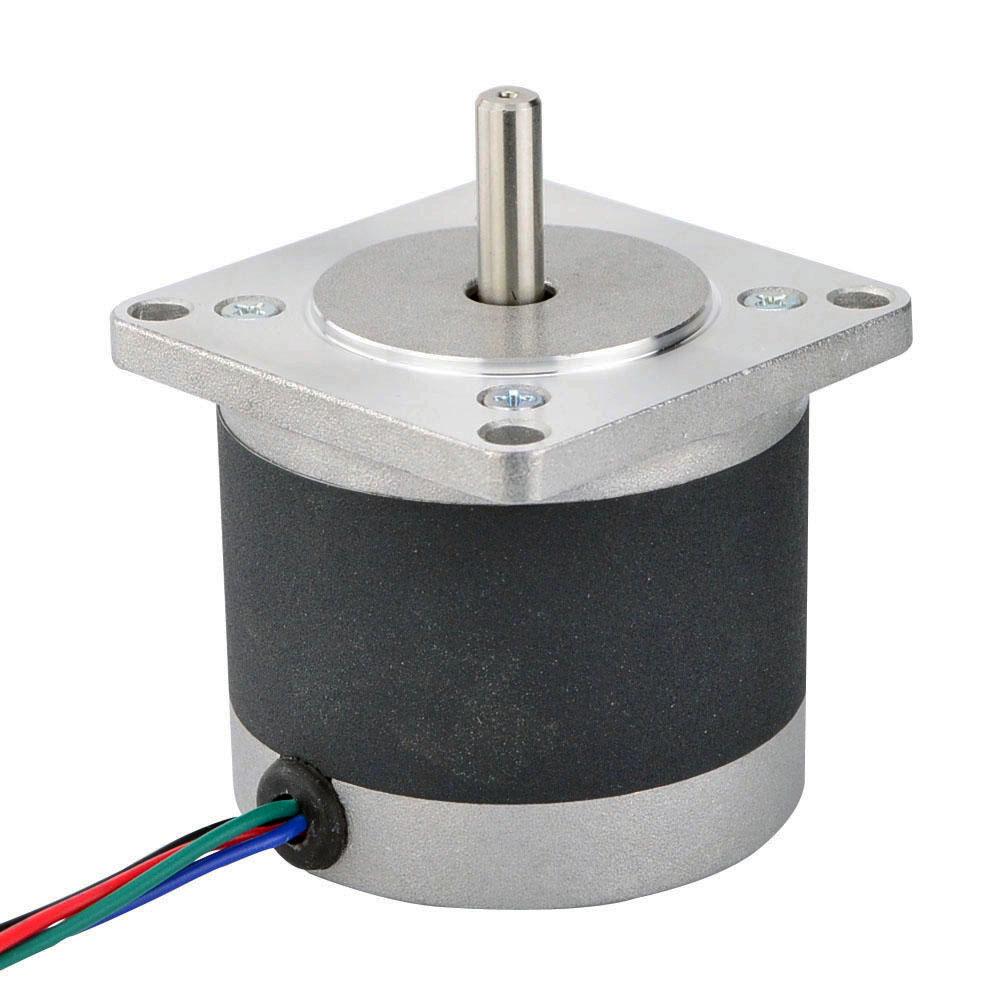

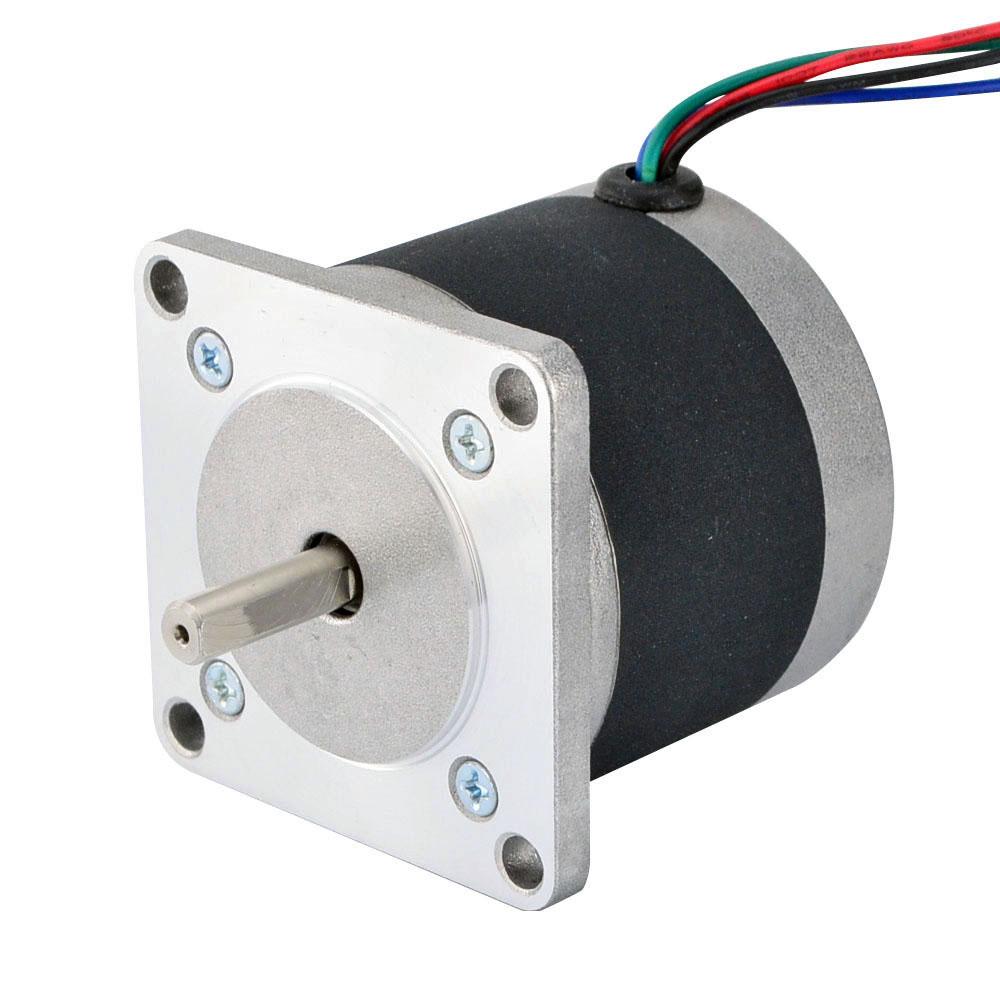

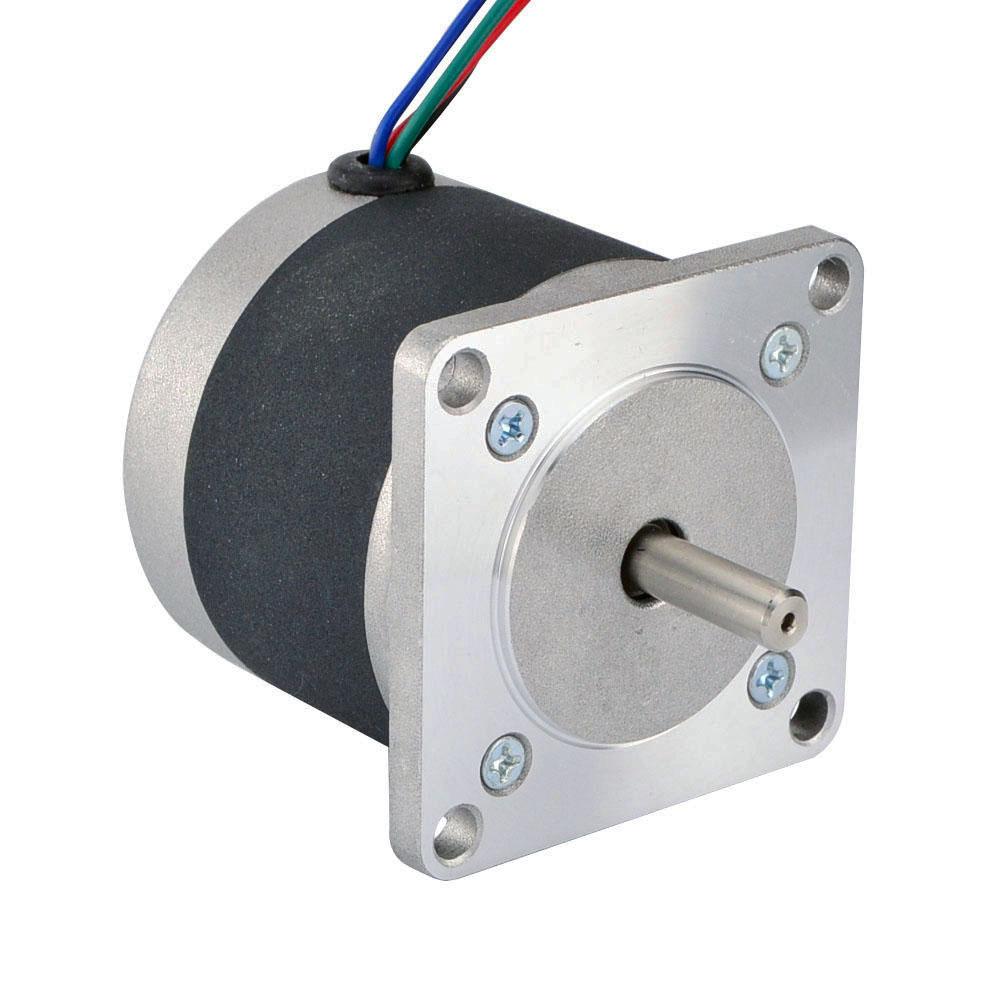

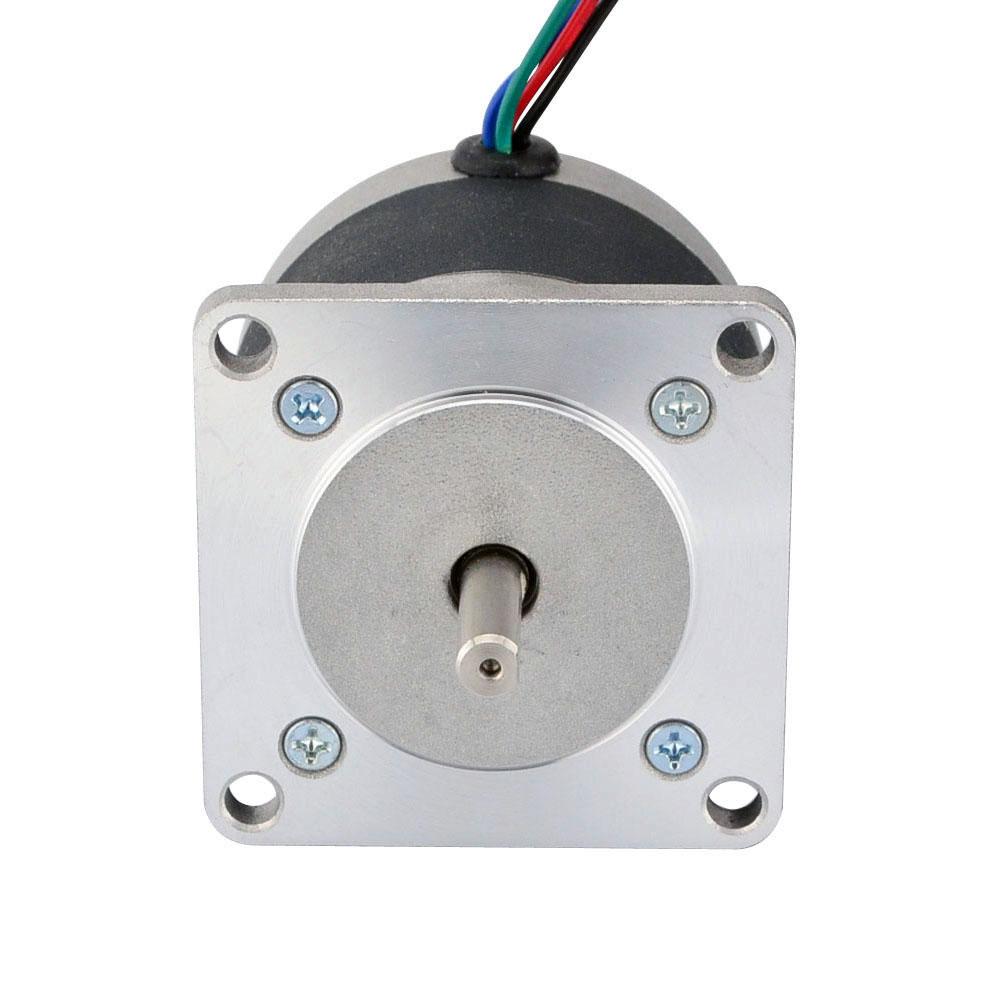

Round Body, D-cut Shaft, Nema 23 - 57x57x52mm, 1.8 deg. (200 steps/rev), Rated current 2.80A, 2 Phase Bipolar, Holding torque 0.7Nm(99.13oz-in)

USD 28.39
Availability: 20
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Electrical Specification
Bipolar/Unipolar Bipolar
Step Angle(°) 1.8
Holding Torque(Ncm) 70
Holding Torque(oz.in) 99.13
Inductance(mH) 1.6
Phase Resistance(ohm) 0.65
Rated Current(A) 2.8
Physical Specification
Shaft Type D-Cut
Shaft Diameter(mm) 6.35
Shaft Length(mm) 20.6
No. of Lead 4
Lead Length(mm) 500
Weight(g) 700
Single Shaft/Dual Shaft Single Shaft
Frame Size(mm) 57x57
Body Length(mm) 52
