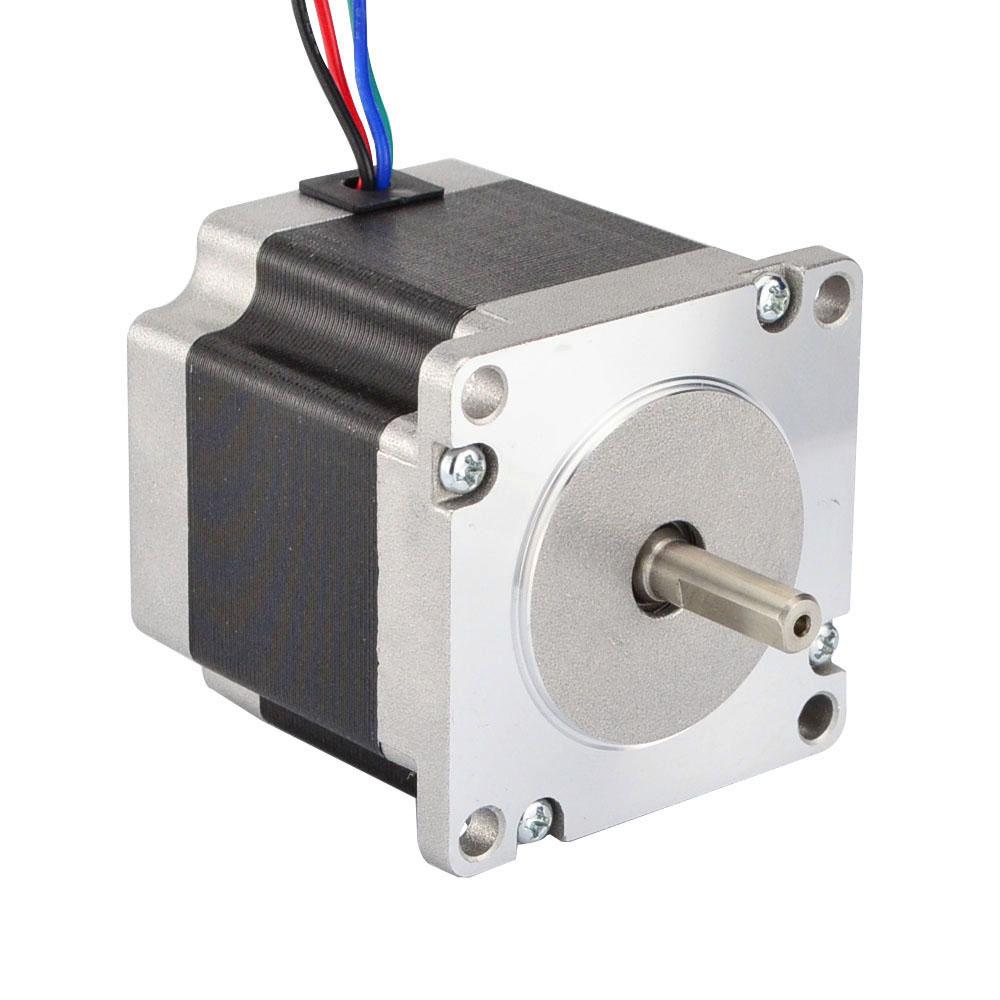

23HM22-2804S
23HM22-2804S
23HM22-2804S
Smooth movement, D-cut Shaft,
Nema 23 - 57x57x56mm,
0.9 deg. (400 steps/rev),
Rated current 2.80A, 2 Phase Bipolar,
Holding torque 1.26Nm(178.4oz-in)
USD 27.32
Availability: 1000
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Buyer Protection: 30 day returns and 1 years warranty. Read More
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 0.9 |
| Holding Torque(Ncm) | 126 |
| Holding Torque(oz.in) | 178.4 |
| Inductance(mH) | 4.5 |
| Phase Resistance(ohm) | 1 |
| Rated Current(A) | 2.8 |
| Physical Specification | |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 6.35 |
| Shaft Length(mm) | 21 |
| No. of Lead | 4 |
| Lead Length(mm) | 500 |
| Weight(g) | 700 |
| Single Shaft/Dual Shaft | Single Shaft |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 56 |
