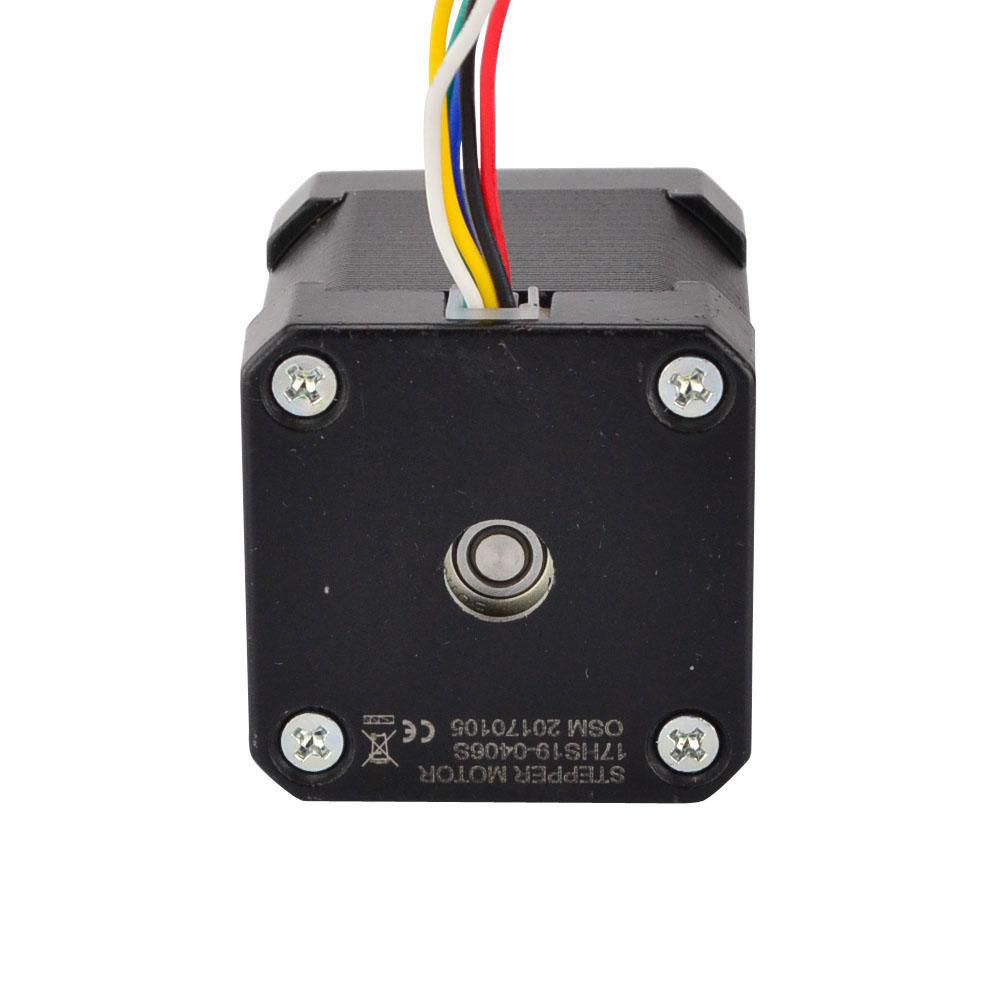

17HS19-0406S

Long Life, High Efficiency, Nema 17 - 42x42x48mm, 1.8 deg. (200 steps/rev), Rated current 0.4A, 2 Phase Unipolar, Holding torque 32Ncm(45.3oz-in)

USD 16.68
Availability: 132
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Electrical Specification
Bipolar/Unipolar Unipolar
Step Angle(°) 1.8
Holding Torque(Ncm) 32
Holding Torque(oz.in) 45.3
Inductance(mH) 25
Phase Resistance(ohm) 30
Rated Current(A) 0.4
Physical Specification
Shaft Type D-Cut
Shaft Diameter(mm) 5
Shaft Length(mm) 24
No. of Lead 6
Lead Length(mm) 500
Weight(g) 350
Single Shaft/Dual Shaft Single Shaft
Frame Size(mm) 42x42
Body Length(mm) 48
