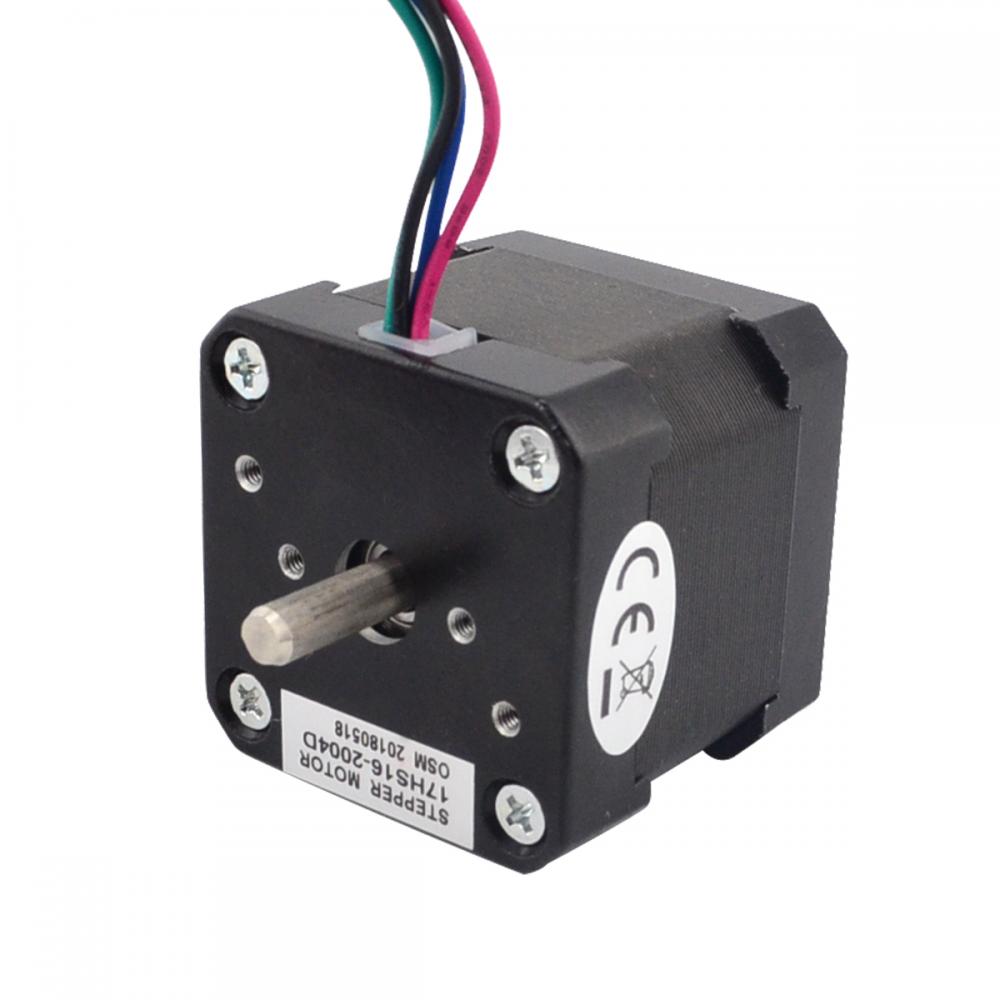

17HS16-2004D

17HS16-2004D

Dual Shaft, High Torque, Nema 17 - 42x42x40mm, 1.8 deg. (200 steps/rev), Rated current 2.0A, 2 Phase Bipolar, Holding torque 45Ncm(63.74oz-in)
USD 15.00
Availability: 20
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Electrical Specification
Bipolar/Unipolar Bipolar
Step Angle(°) 1.8
Holding Torque(Ncm) 45
Holding Torque(oz.in) 63.74
Inductance(mH) 2.6
Phase Resistance(ohm) 1.1
Rated Current(A) 2
Physical Specification
Shaft Type D-Cut
Shaft Diameter(mm) 5
No. of Lead 4
Lead Length(mm) 500
Weight(g) 300
Single Shaft/Dual Shaft Dual Shaft
Frame Size(mm) 42X42
Body Length(mm) 40
