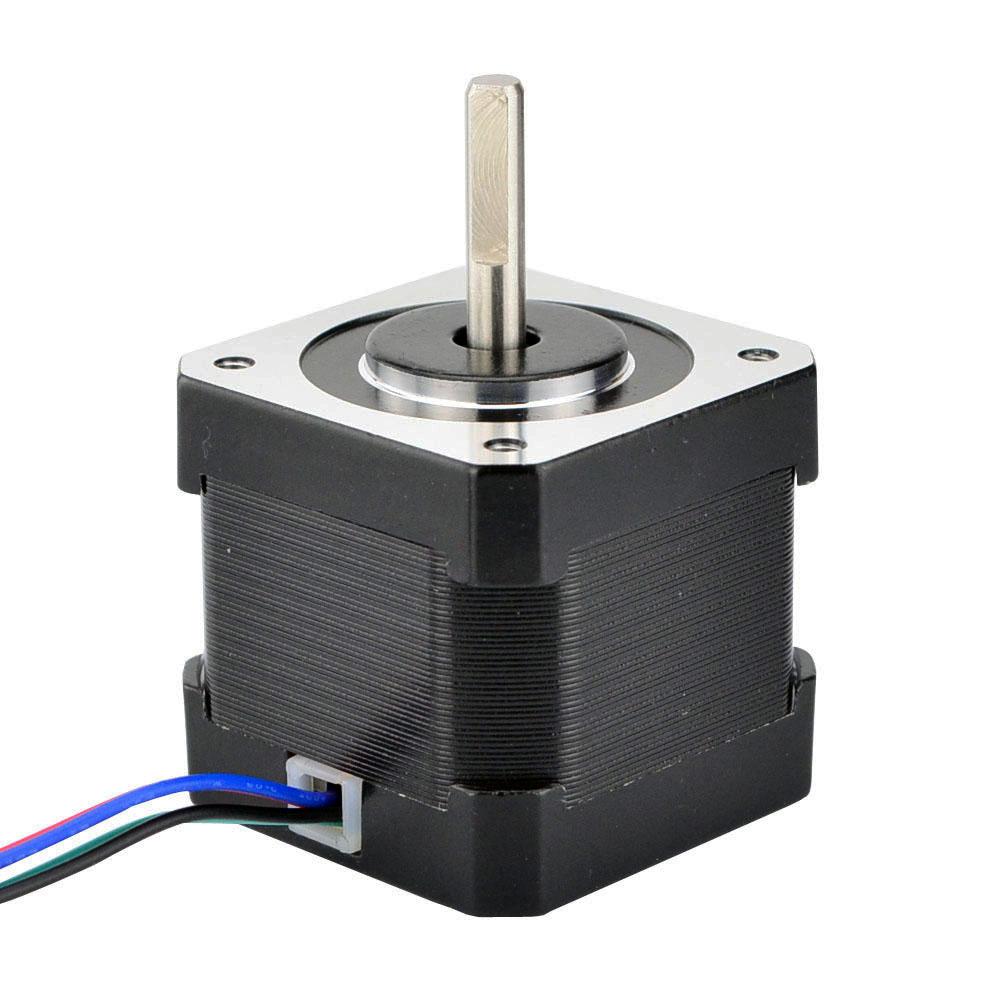

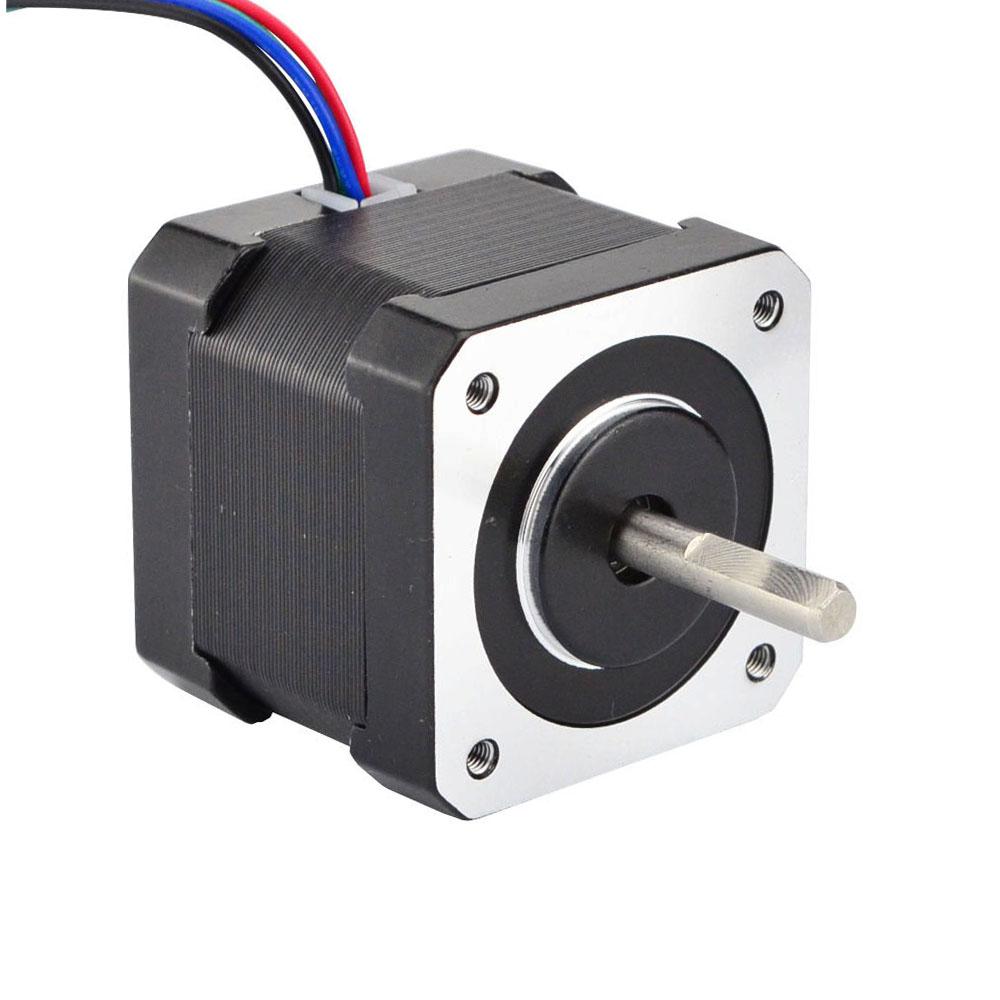

17HS15-0404S

17HS15-0404S

High Torque, Top Selling, Nema 17 - 42x42x39mm, 1.8 deg. (200 steps/rev), Rated current 0.4A, 2 Phase Bipolar, Holding torque 40Ncm(56.6oz-in)
USD 14.59
Availability: 497
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Electrical Specification
Bipolar/Unipolar Bipolar
Step Angle(°) 1.8
Holding Torque(Ncm) 40
Holding Torque(oz.in) 56.6
Inductance(mH) 58
Phase Resistance(ohm) 30
Rated Current(A) 0.4
Physical Specification
Shaft Type D-Cut
Shaft Diameter(mm) 5
Shaft Length(mm) 24
No. of Lead 4
Lead Length(mm) 500
Single Shaft/Dual Shaft Single Shaft
Frame Size(mm) 42x42
Body Length(mm) 39
