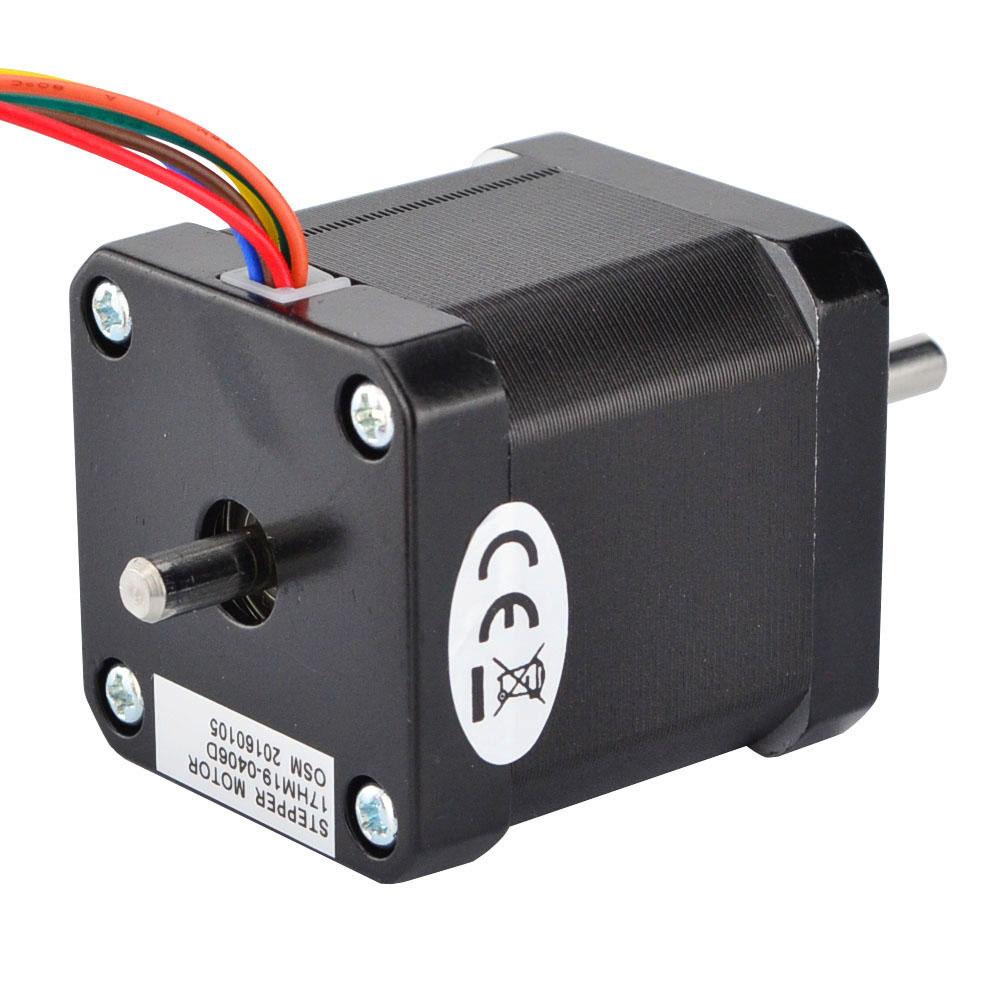

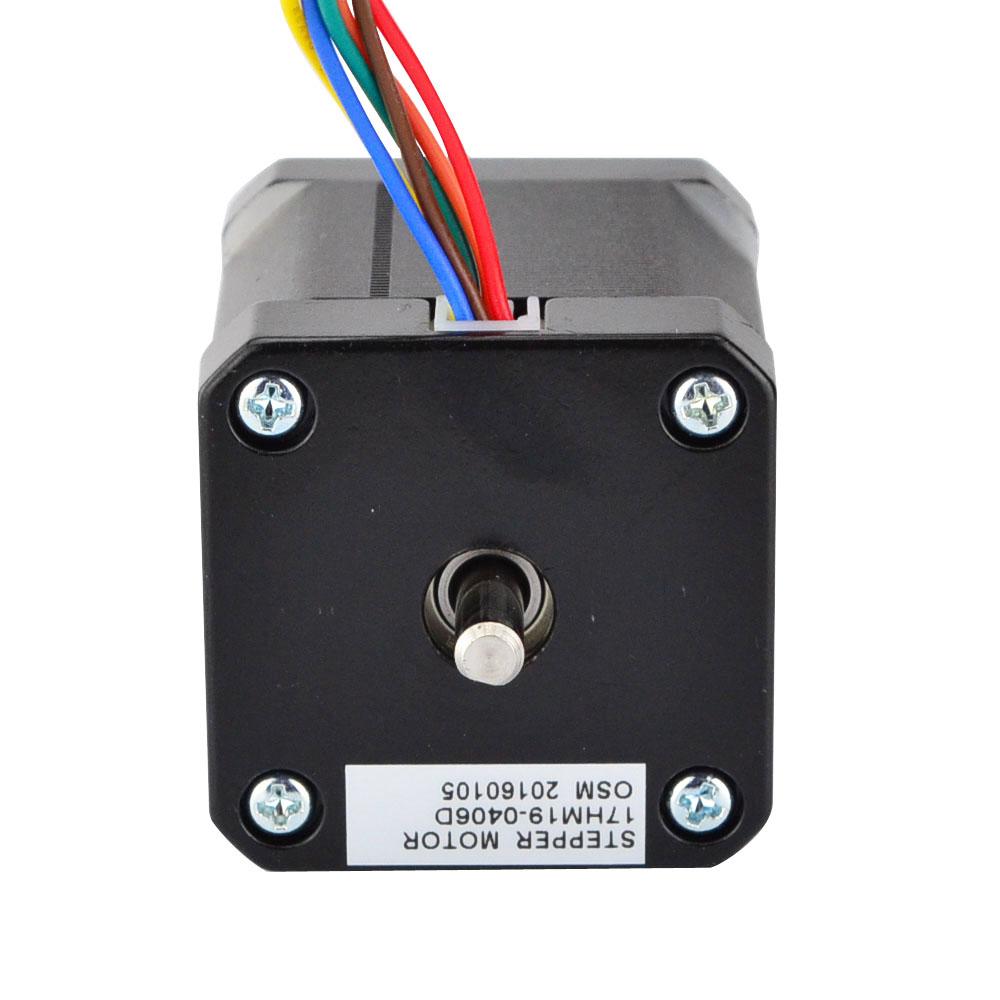

17HM19-0406D

Dual Shaft, D-cut Shaft, Nema 17 - 42x42x48mm, 0.9 deg. (400 steps/rev), Rated current 0.4A, 2 Phase Uni/Bipolar, Holding torque 32Ncm(45.3oz-in)

USD 22.29
Availability: 100
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Electrical Specification
Bipolar/Unipolar Unipolar
Step Angle(°) 0.9
Holding Torque(Ncm) 32
Holding Torque(oz.in) 45.3
Inductance(mH) 38
Phase Resistance(ohm) 30
Rated Current(A) 0.4
Physical Specification
Shaft Type D-Cut
Shaft Diameter(mm) 5
Shaft Length(mm) 24
No. of Lead 6
Lead Length(mm) 500
Weight(g) 350
Single Shaft/Dual Shaft Dual Shaft
Frame Size(mm) 42x42
Body Length(mm) 48
