17HM13-0316D

17HM13-0316D

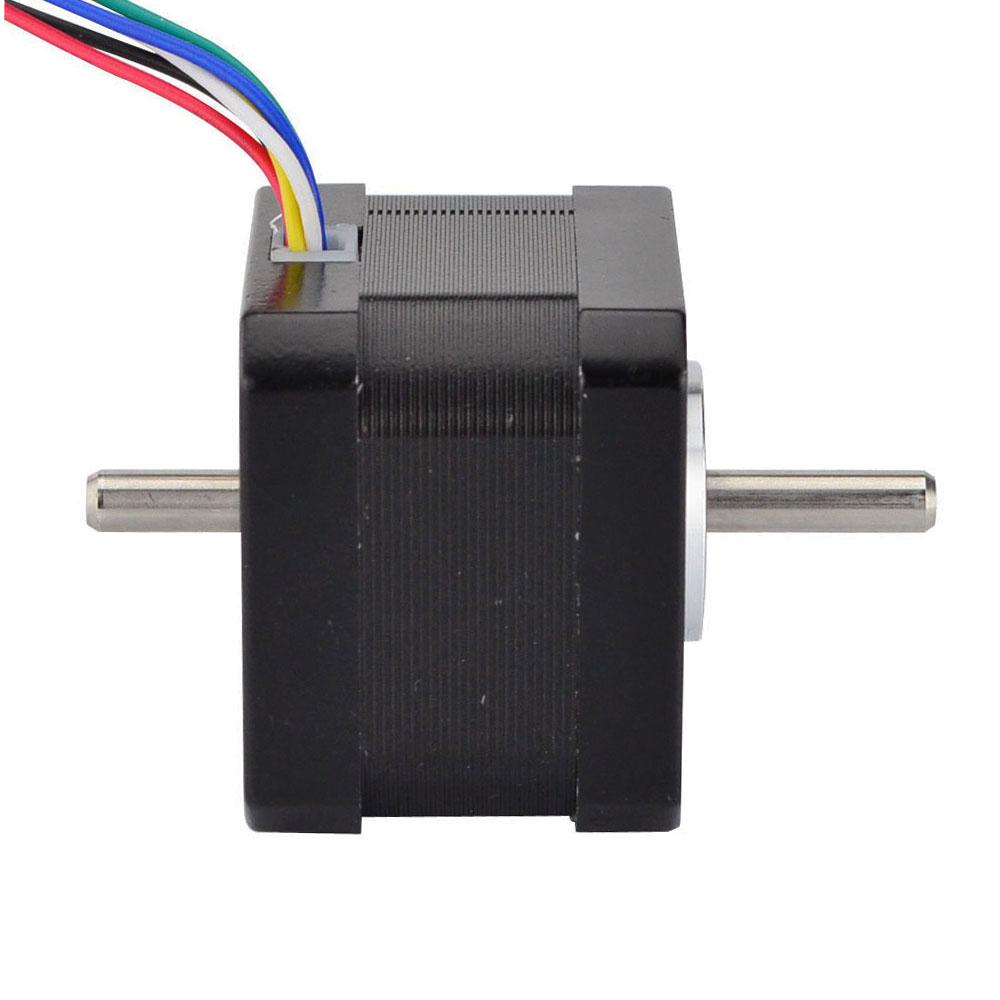

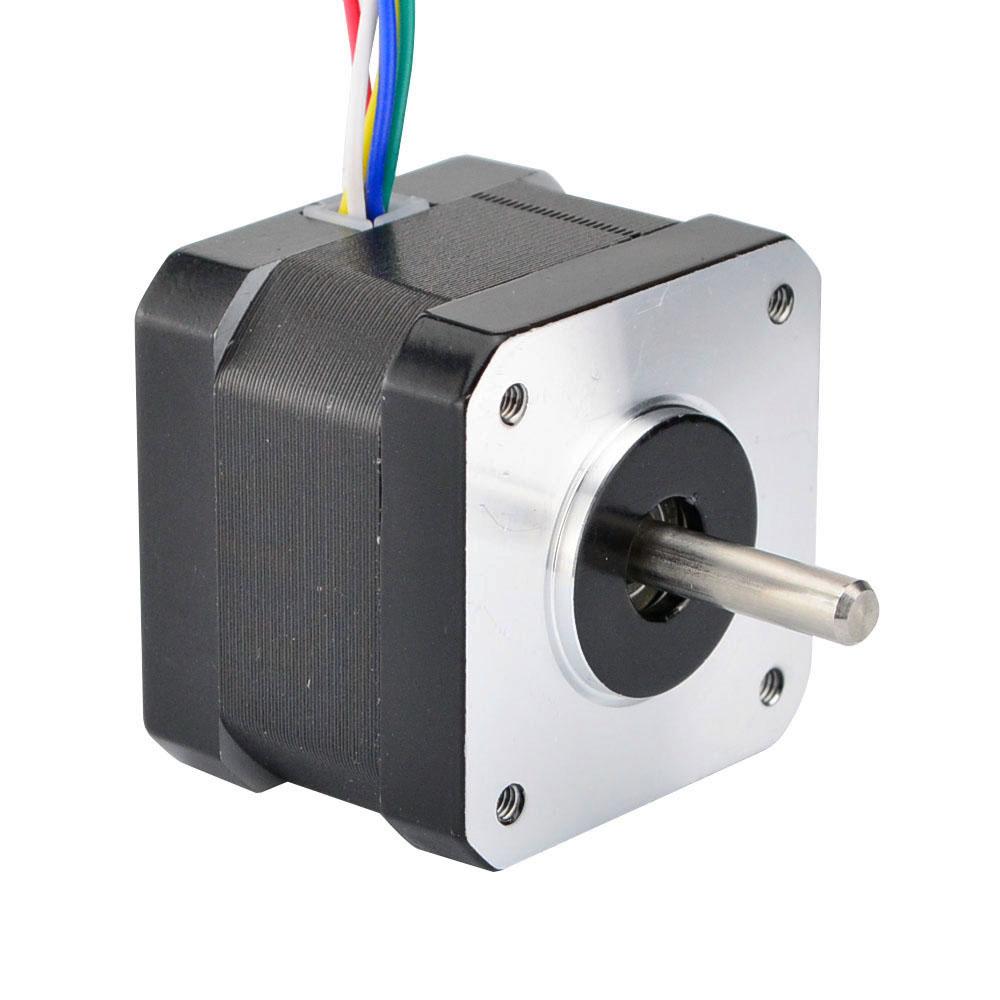

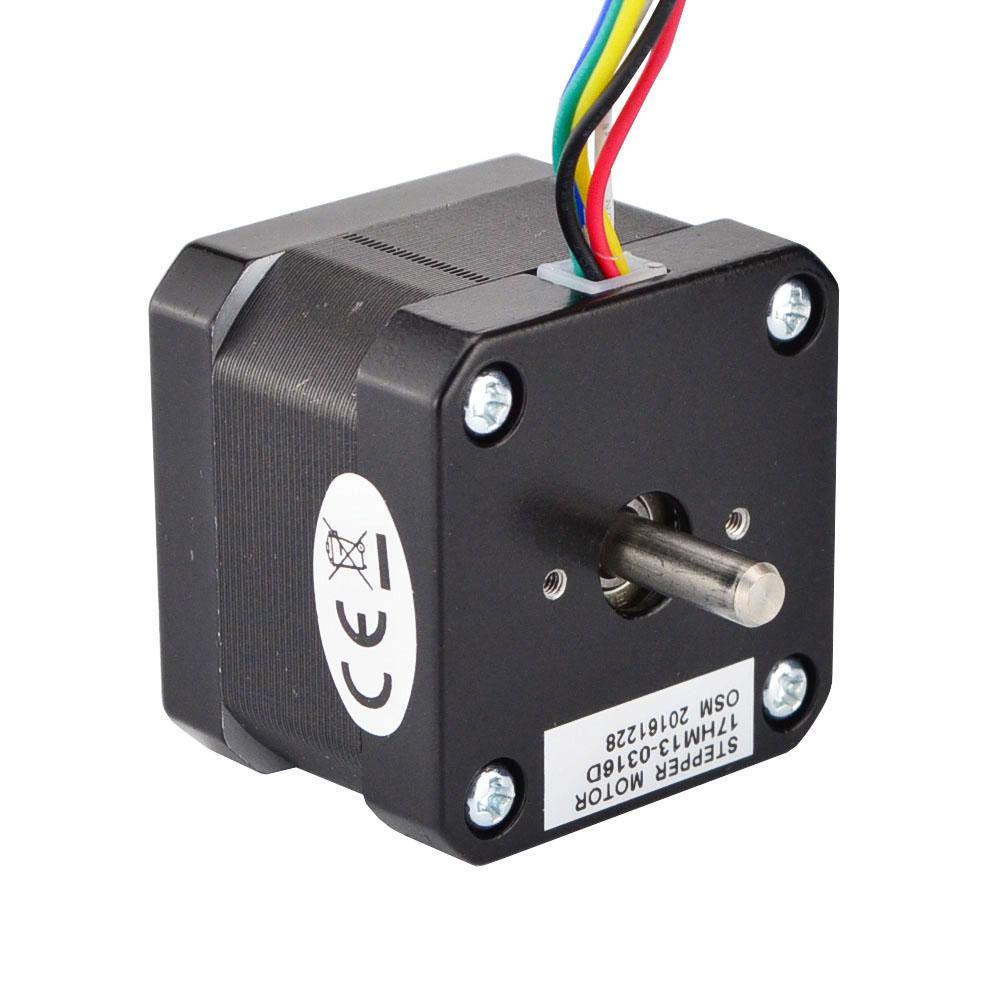

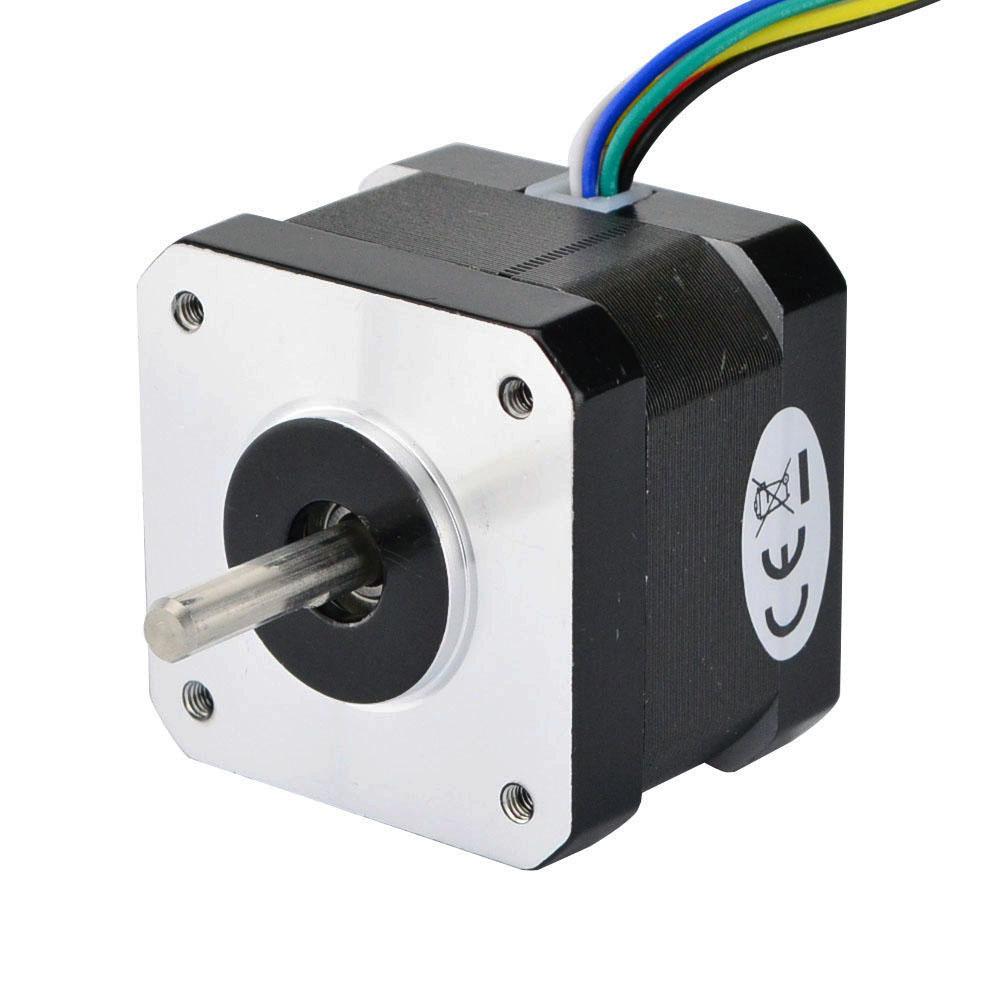

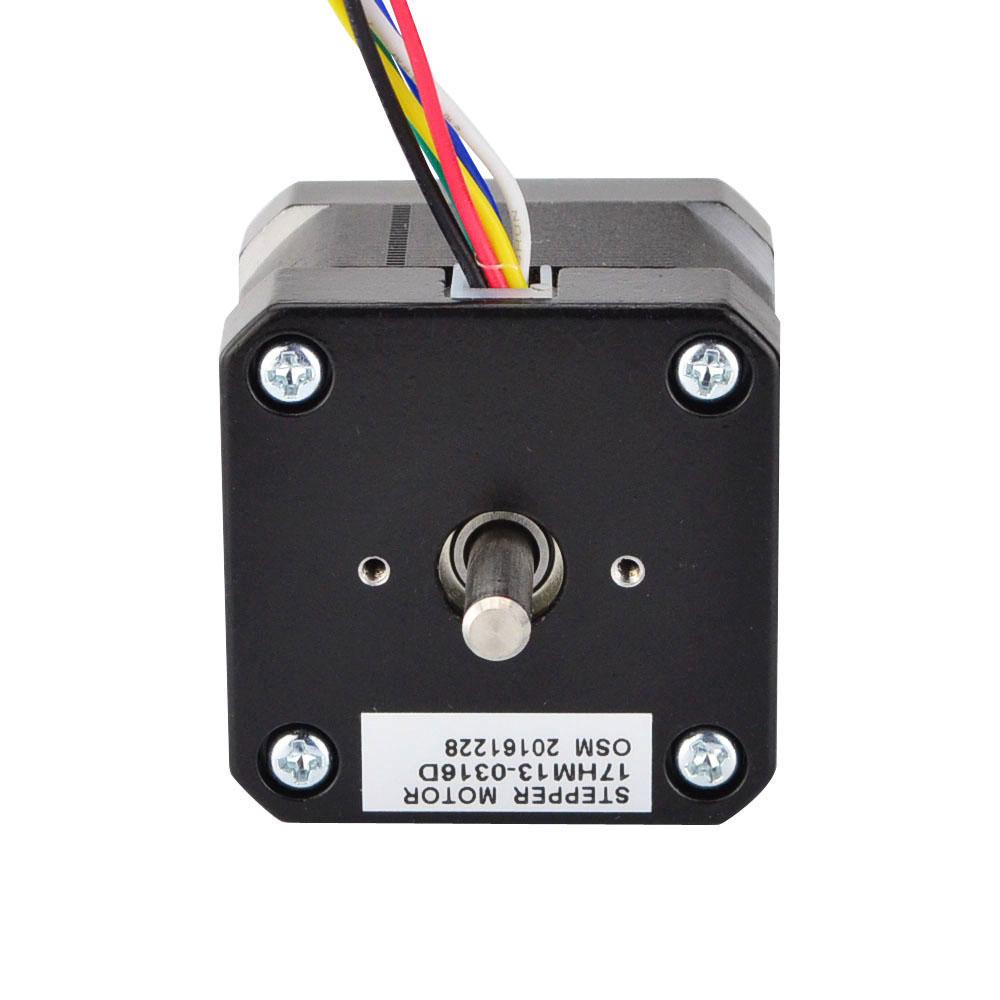

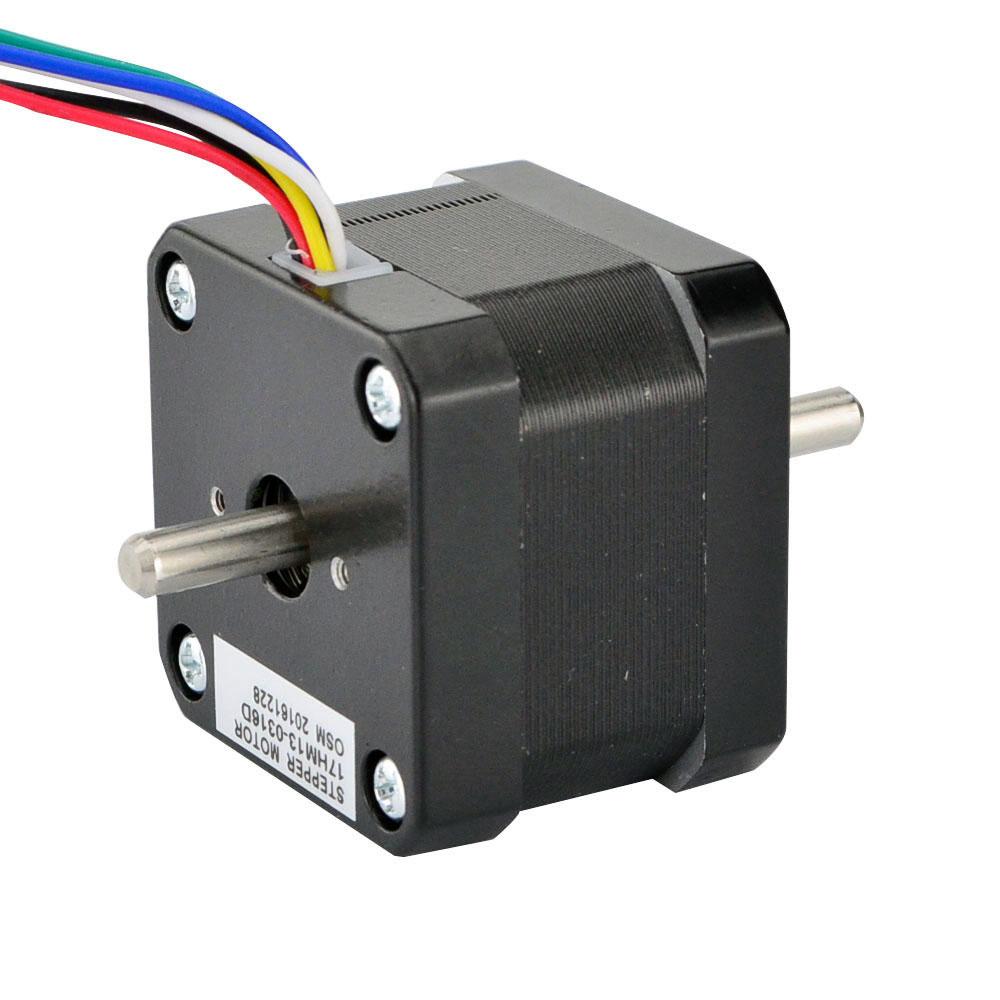

Smooth movement, Dual Shaft, Nema 17 - 42x42x34mm, 0.9 deg. (400 steps/rev), Rated current 0.3A, 2 Phase Uni/Bipolar, Holding torque 16Ncm(22.7oz-in)
USD 18.47
Availability: 100
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Electrical Specification
Bipolar/Unipolar Unipolar
Step Angle(°) 0.9
Holding Torque(Ncm) 16
Holding Torque(oz.in) 22.7
Inductance(mH) 36
Phase Resistance(ohm) 35.8
Rated Current(A) 0.31
Physical Specification
Shaft Type D-Cut
Shaft Diameter(mm) 5
Shaft Length(mm) 20
No. of Lead 6
Lead Length(mm) 500
Weight(g) 280
Single Shaft/Dual Shaft Dual Shaft
Frame Size(mm) 42x42
Body Length(mm) 34
