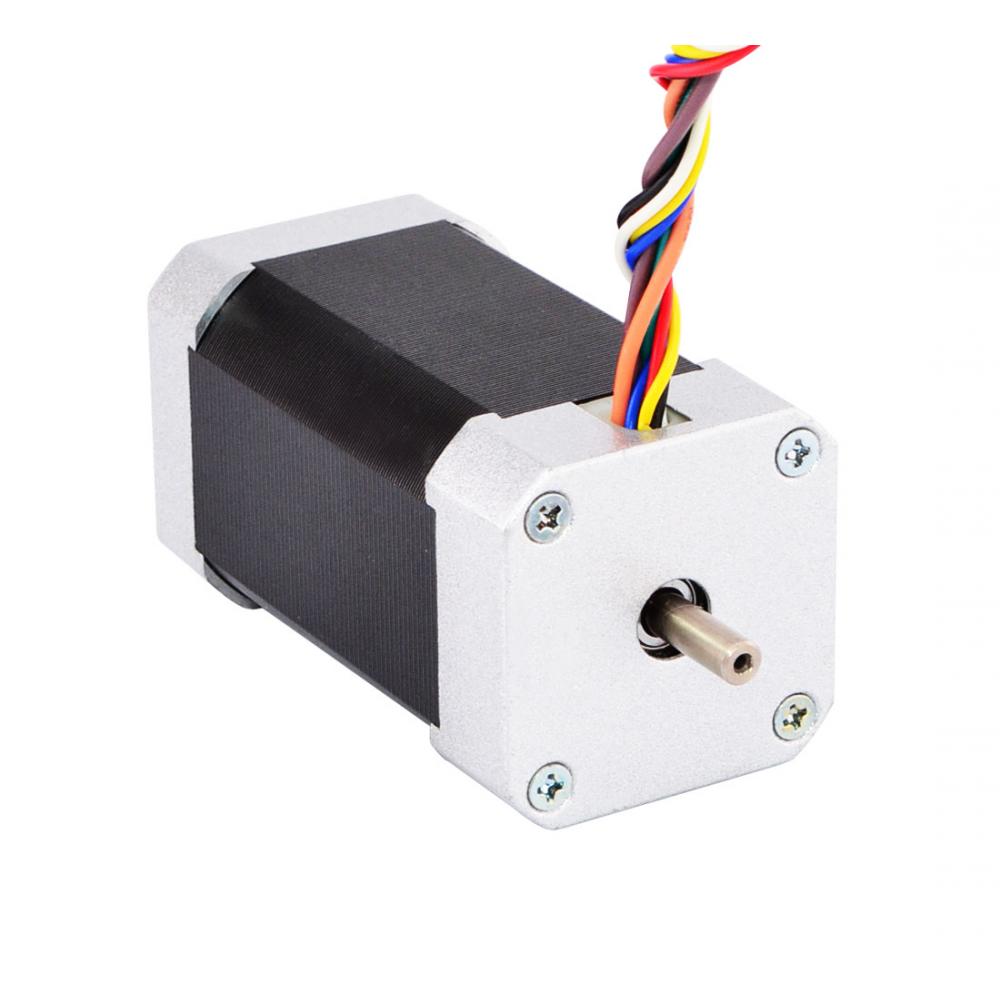

42BLS80-24-01

42BLS80-24-01

D-Cut Shaft, Dual Shaft, 3 Phase, 4 Poles, Rated Voltage 24V, Rated Power 77.5W, Rated Speed 4000RPM, Rated Torque 0.185Nm(26.20oz.in)
USD 48.28
Availability: 100
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Electrical Specification(BLDC)
Insulation Class Class B
Phase 3
Poles 4
Rated Current(A) 4.8
Rated Power(W) 77.5
Rated Speed(rpm) 4000±10%
Rated Torque(Nm) 0.185
Rated Torque(oz.in) 26.2
Rated Voltage(V) 24
Sensor Type Hall Sensor
Physical Specification
Weight(g) 650
Shaft Diameter(mm) 5
Shaft Length(mm) 20
Flange Size(mm) 42*42
Body Length(mm) 79.2
