11HS20-0674D

11HS20-0674D

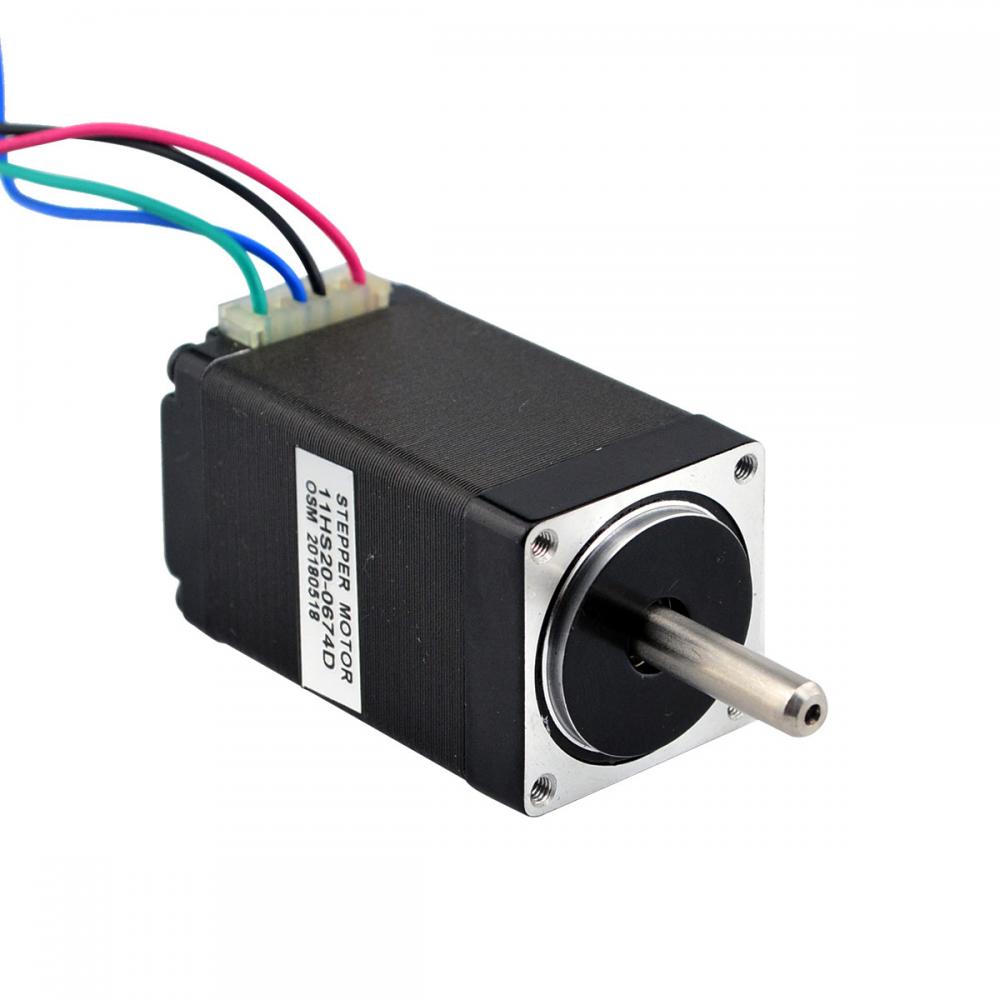

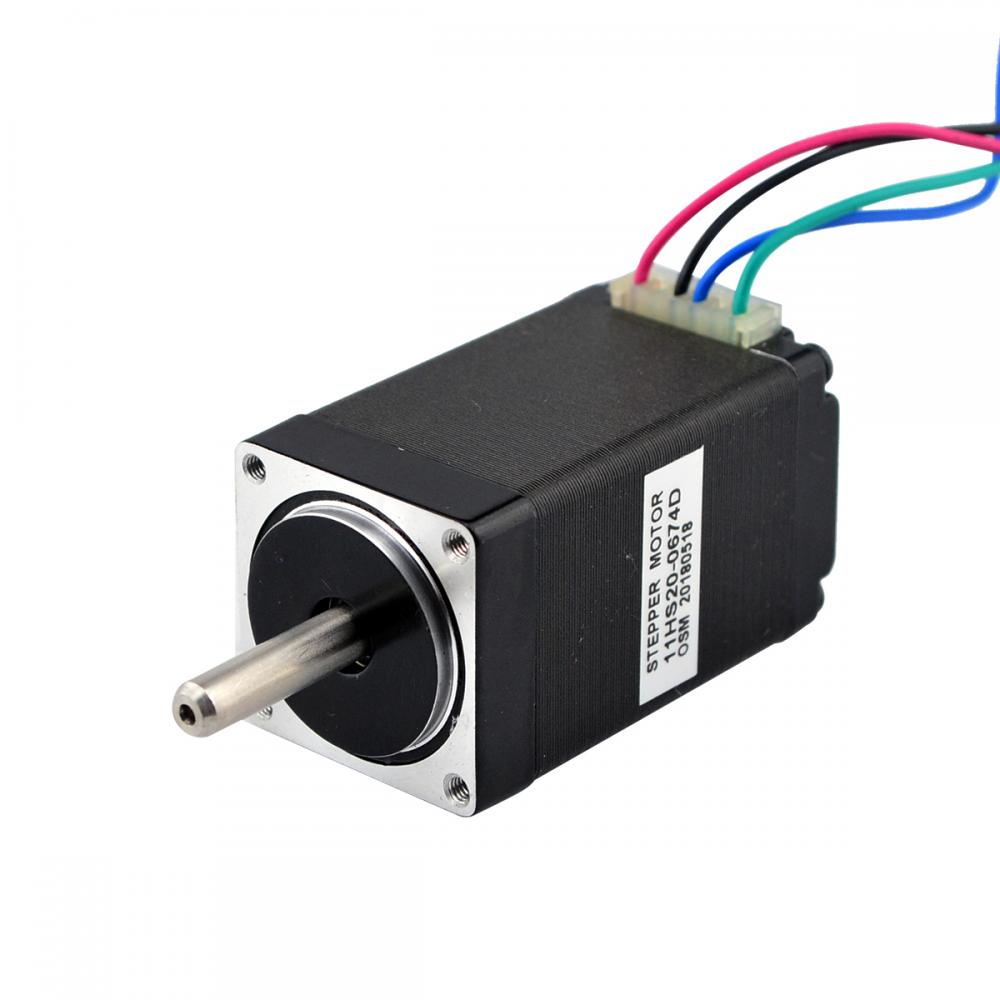

Dual Shaft, High Torque, Nema 11 - 28x28x51mm, 1.8 deg. (200 steps/rev), Rated current 0.67A, 2 Phase Bipolar, Holding torque 12Ncm(17.04oz-in)
USD 24.84
Availability: 1000
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque(Ncm) 12
Holding Torque(oz.in) 17
Inductance(mH) 5.7
Phase Resistance(ohm) 9.2
Rated Current(A) 0.67
Physical Specification
Shaft Type D-Cut
Shaft Diameter(mm) 5
Shaft Length(mm) 20
Lead Length(mm) 500
Single Shaft/Dual Shaft Dual Shaft
Frame Size(mm) 28x28
Body Length(mm) 51
