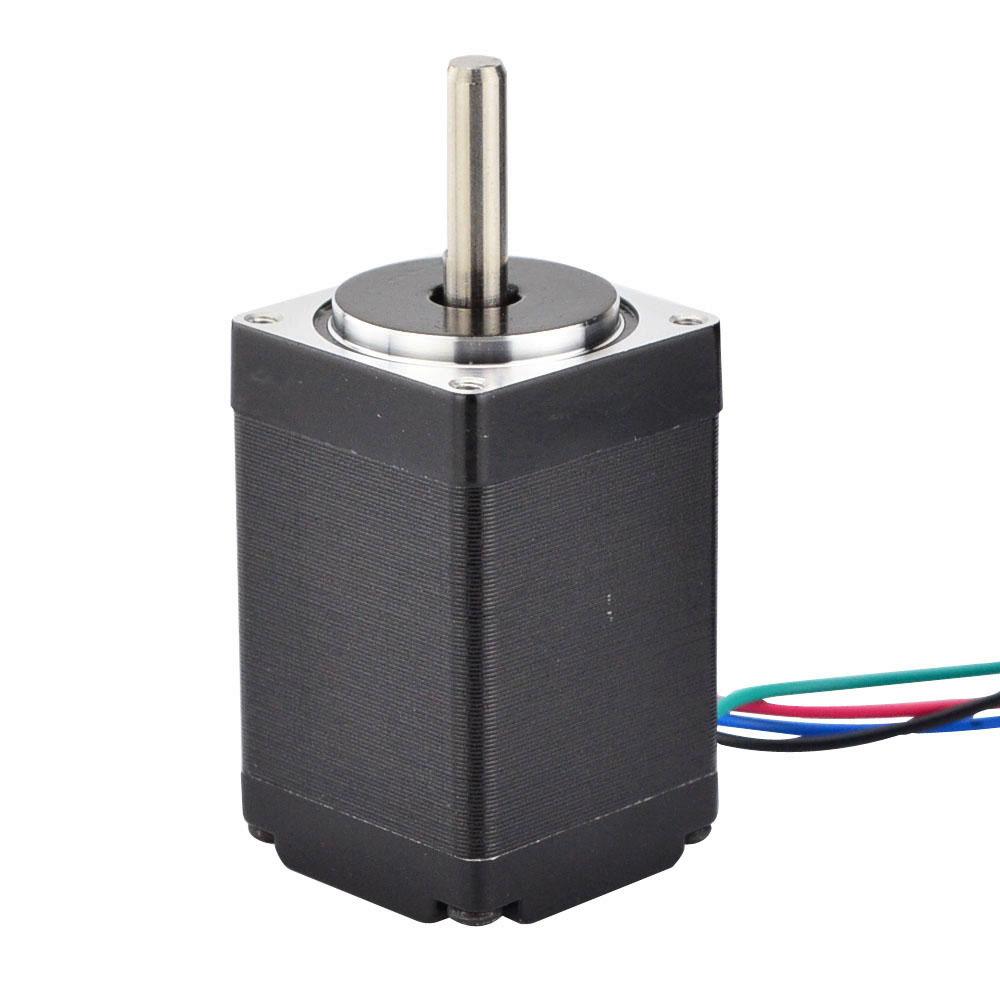

11HS18-0674S

11HS18-0674S

D-cut Shaft, Top Selling, Nema 11 - 28x28x45mm, 1.8 deg. (200 steps/rev), Rated current 0.67A, 2 Phase Bipolar, Holding torque 9.5Ncm(13.5oz-in)
USD 22.23
Availability: 250
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Electrical Specification
Bipolar/Unipolar Bipolar
Step Angle(°) 1.8
Holding Torque(Ncm) 9.5
Holding Torque(oz.in) 13.5
Inductance(mH) 4.9
Phase Resistance(ohm) 6.8
Rated Current(A) 0.67
Physical Specification
Shaft Type D-Cut
Shaft Diameter(mm) 5
Shaft Length(mm) 20
No. of Lead 4
Lead Length(mm) 500
Single Shaft/Dual Shaft Single Shaft
Frame Size(mm) 28x28
Body Length(mm) 44.5
