11HS12-0956D

11HS12-0956D

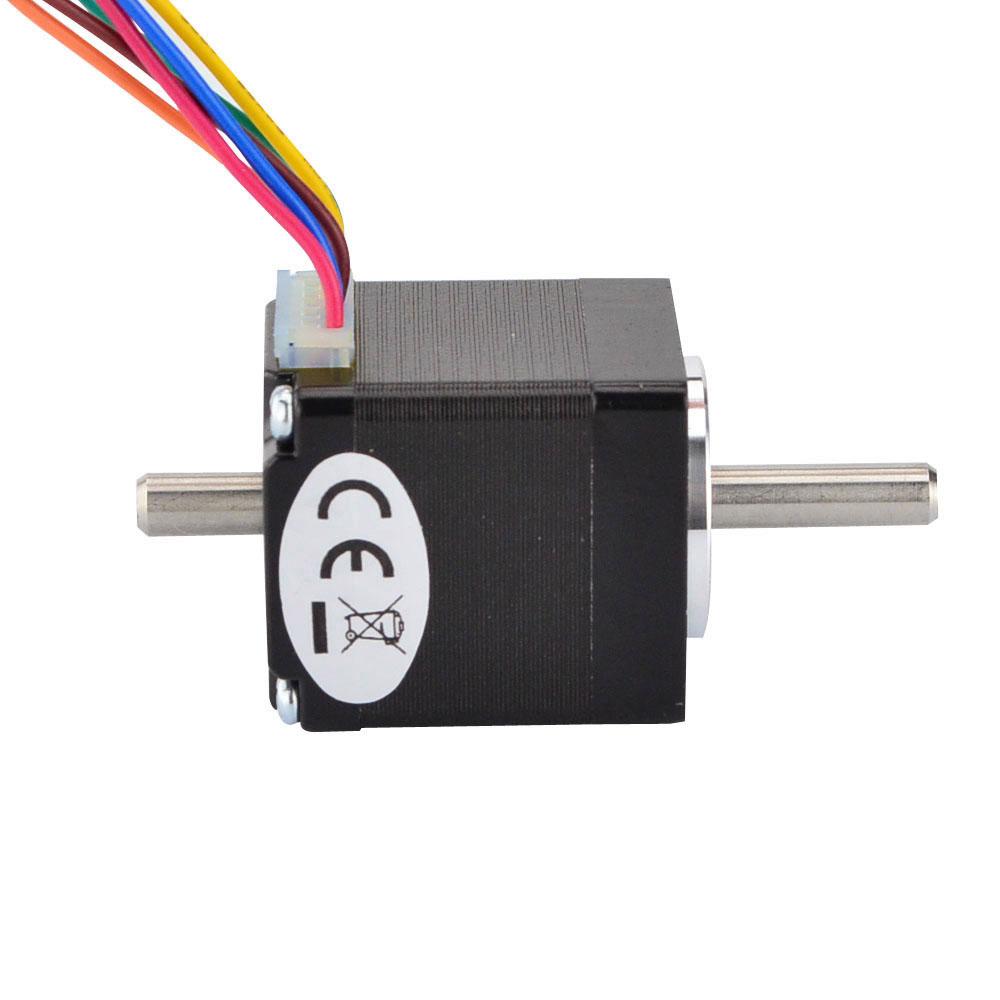

Dual Shaft, Low Cost, Nema 11 - 28x28x31.5mm, 1.8 deg. (200 steps/rev), Rated current 0.95A, 2 Phase Unipolar, Holding torque 4.3Ncm(6.1oz-in)
USD 19.98
Availability: 178
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Electrical Specification
Bipolar/Unipolar Unipolar
Step Angle(°) 1.8
Holding Torque(Ncm) 4.3
Holding Torque(oz.in) 6.1
Inductance(mH) 1
Phase Resistance(ohm) 2.8
Rated Current(A) 0.95
Physical Specification
Shaft Type O
Shaft Diameter(mm) 5
Shaft Length(mm) 20
No. of Lead 6
Lead Length(mm) 300
Weight(g) 110
Single Shaft/Dual Shaft Dual Shaft
Frame Size(mm) 28x28
Body Length(mm) 31.5
