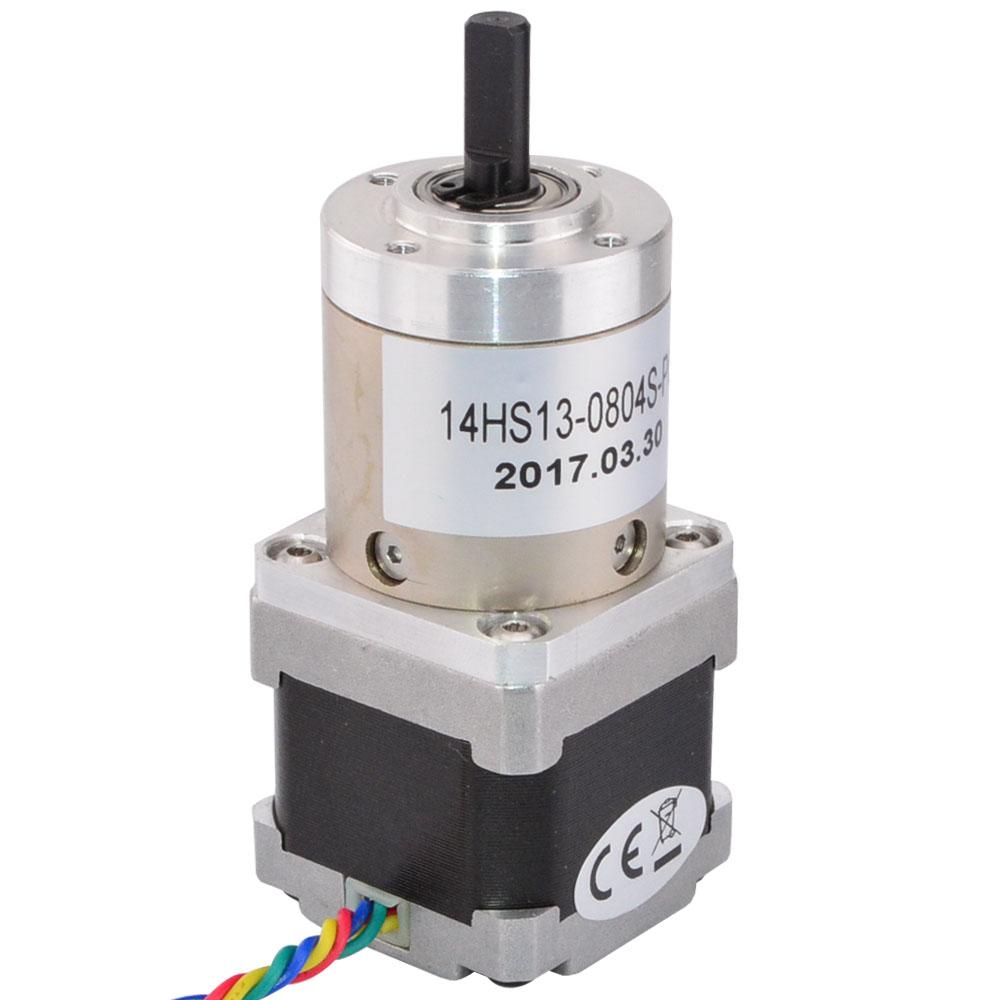

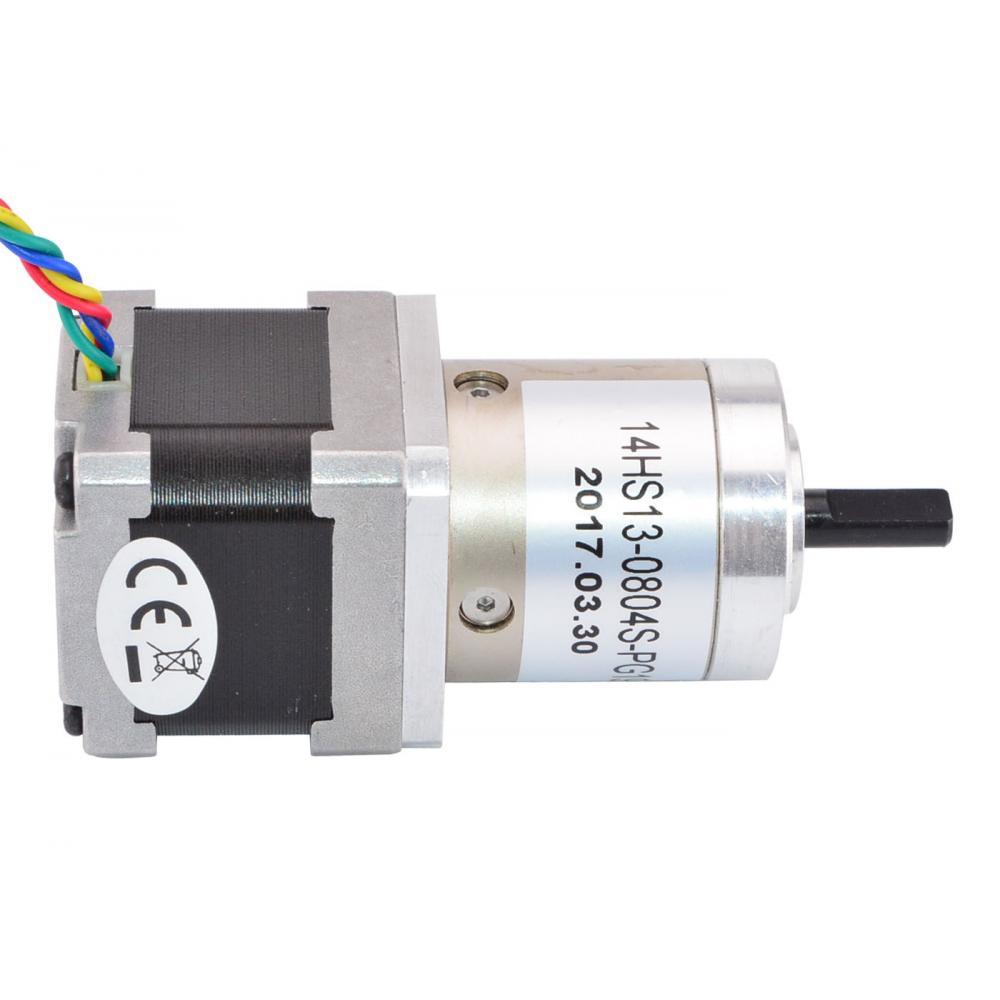

14HS13-0804S-PG19

D-cut Shaft,Top Selling, Torque type planetary gearbox, Gear ratio 19.20, Efficiency 81%, Rated current 1.00A, 2 Phase Bipolar, Nema 14 size, length 34mm(Motor) + 36.8mm(Gearbox)

USD 44.70
Availability: 130
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Free shipping to North America and Europe for orders of $100 or more.
Motor Specification
Inductance(mH) 4.5
Motor Nema Size Nema 8
Phase Resistance(ohm) 3.2
Rated Current(A) 1
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 18
Holding Torque w/o Gearbox(oz.in) 19.8
Gearbox Specification
Backlash at No-load(Max.°) 1
Efficiency 81%
Gear Ratio 19.2:1
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 300
Max. Permissible Torque(oz.in) 424.8
Moment Permissible Torque(Ncm) 500
Moment Permissible Torque(oz.in) 708.1
Shaft Maximum Axial Load(N) 50
Shaft Maximum Radial Load(N) 100
Physical Specification
Shaft Diameter(mm) 6
Shaft Length(mm) 18
Gearbox Length(mm) 35.8
No. of Lead 4
Lead Length(mm) 500
Weight(g) 400
Motor Length(mm) 34
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
