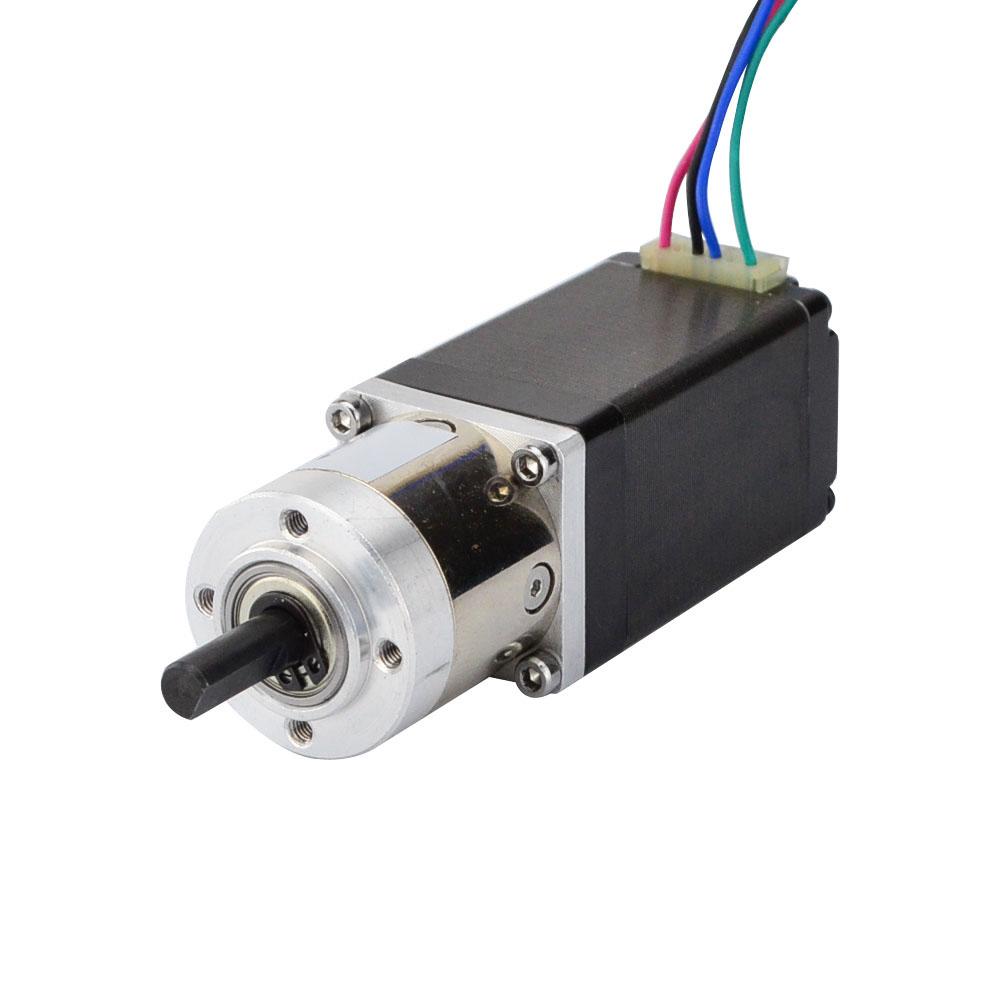

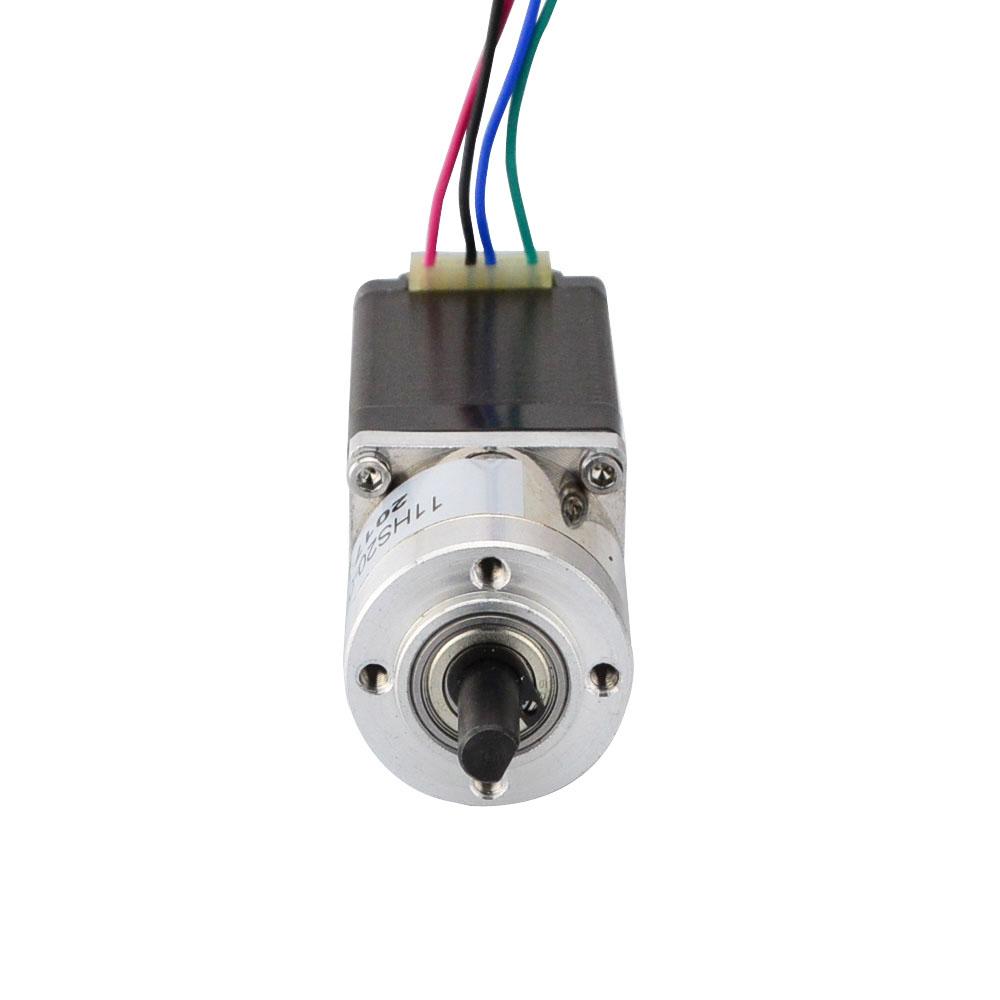

11HS20-0674S-PG5

D-cut Shaft,Low Cost, Torque type planetary gearbox, Gear ratio 5.18, Efficiency 90%, Rated current 0.67A, 2 Phase Bipolar, Nema 11 size, length 51mm(Motor) + 27.2mm(Gearbox)

USD 47.94
Availability: 305
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Free shipping to North America and Europe for orders of $100 or more.
Motor Specification
Inductance(mH) 6.5
Motor Nema Size Nema 11
Phase Resistance(ohm) 12
Rated Current(A) 0.67
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 14
Gearbox Specification
Backlash at No-load(Max.°) 1
Efficiency 90%
Gear Ratio 5.18:1
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 200
Max. Permissible Torque(oz.in) 283.2
Moment Permissible Torque(Ncm) 400
Moment Permissible Torque(oz.in) 566.4
Shaft Maximum Axial Load(N) 5
Shaft Maximum Radial Load(N) 25
Physical Specification
Shaft Diameter(mm) 6
Shaft Length(mm) 18
Gearbox Length(mm) 27.2
No. of Lead 4
Lead Length(mm) 500
Weight(g) 400
Motor Length(mm) 51
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
