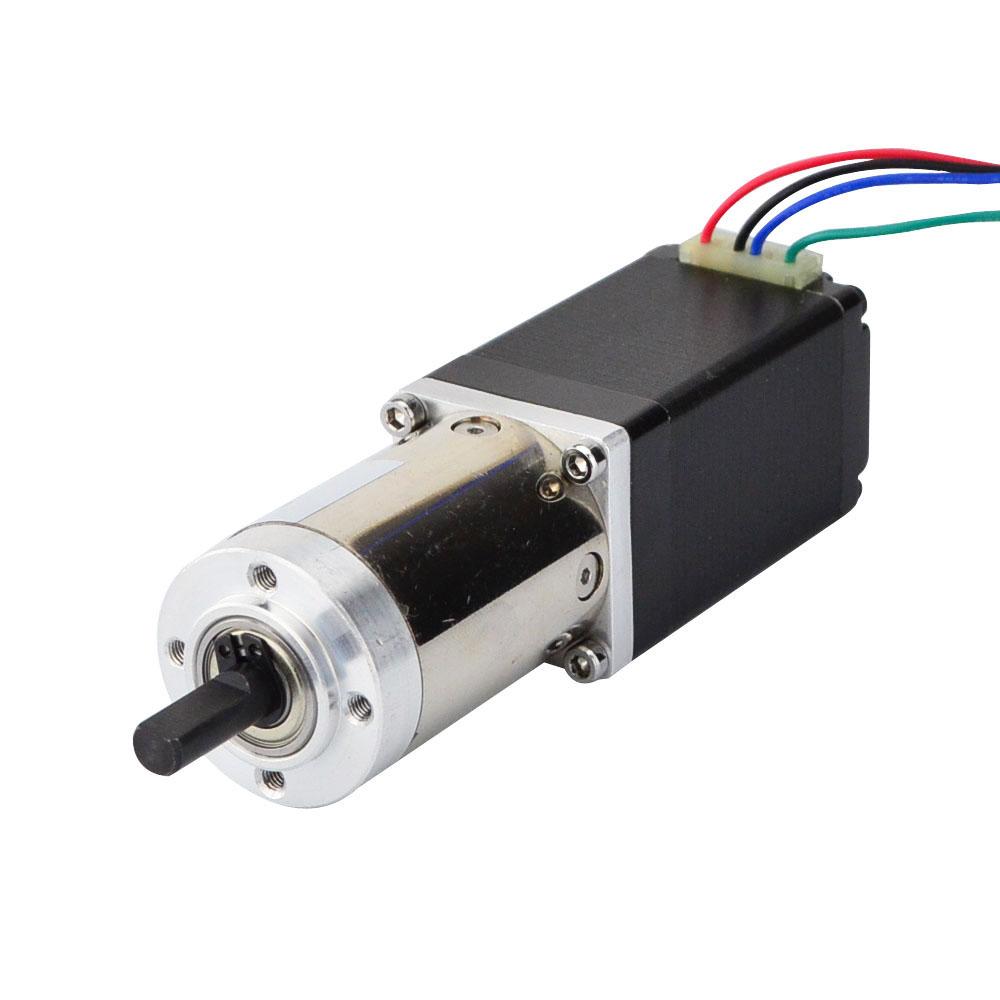

11HS20-0674S-PG100

D-cut Shaft,Top Selling, Torque type planetary gearbox, Gear ratio 99.51, Efficiency 73%, Rated current 0.67A, 2 Phase Bipolar, Nema 11 size, length 51mm(Motor) + 42.7mm(Gearbox)

USD 49.33
Availability: 159
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Motor Specification
Inductance(mH) 6.5
Motor Nema Size Nema 11
Phase Resistance(ohm) 12
Rated Current(A) 0.67
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 14
Holding Torque w/o Gearbox(oz.in) 19.8
Gearbox Specification
Backlash at No-load(Max.°) 1
Efficiency 73%
Gear Ratio 99.51:1
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 400
Max. Permissible Torque(oz.in) 566.4
Moment Permissible Torque(Ncm) 600
Moment Permissible Torque(oz.in) 849.7
Shaft Maximum Axial Load(N) 5
Shaft Maximum Radial Load(N) 25
Physical Specification
Shaft Diameter(mm) 6
Shaft Length(mm) 18
Gearbox Length(mm) 42.7
No. of Lead 4
Lead Length(mm) 500
Weight(g) 450
Motor Length(mm) 51
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
