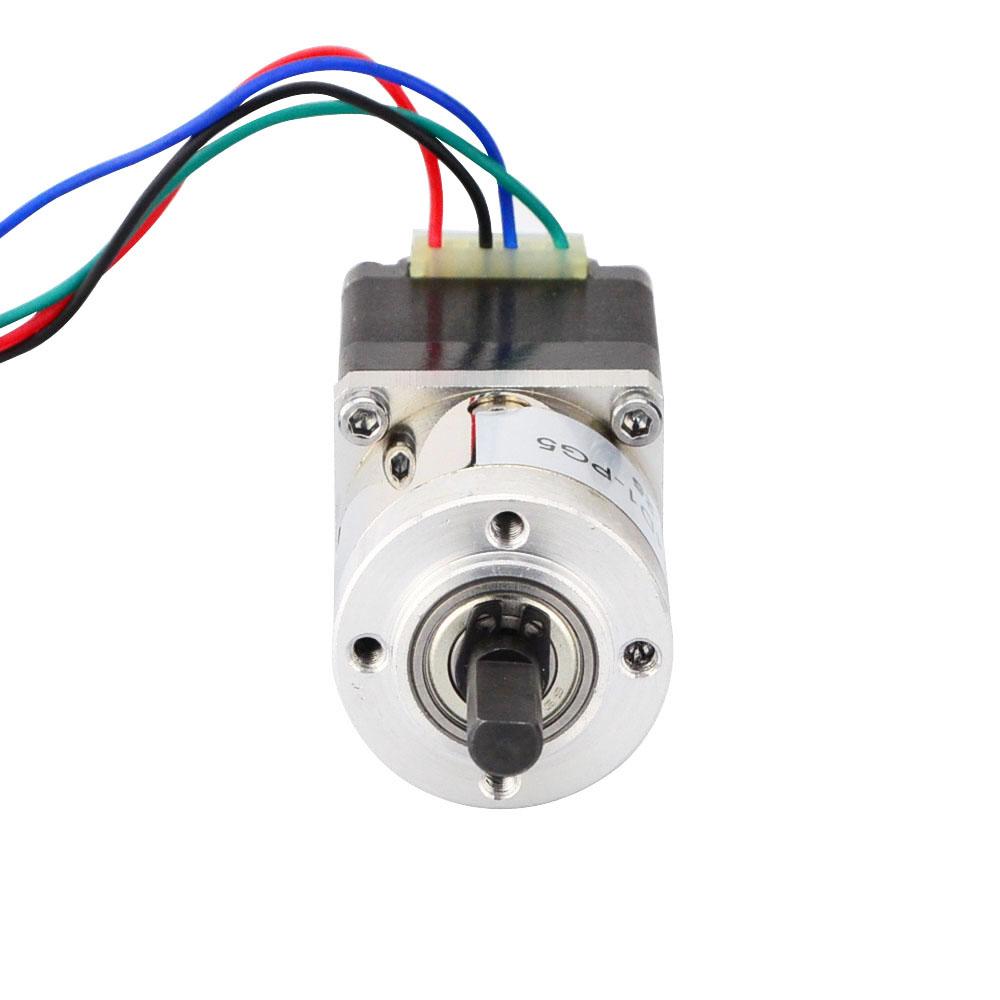

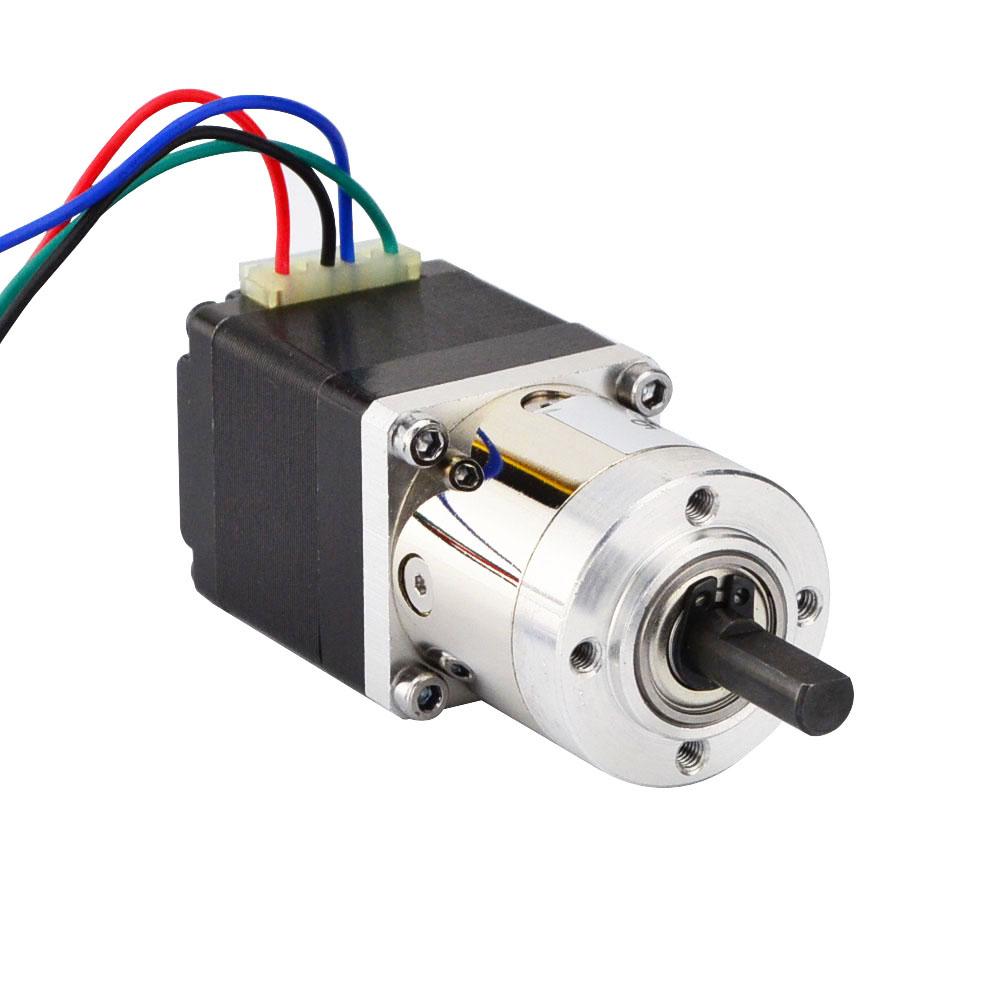

11HS12-0674D1-PG5

D-cut Shaft,Dual Shaft, Torque type planetary gearbox, Gear ratio 5.18, Efficiency 90%, Rated current 0.67A, 2 Phase Bipolar, Nema 11 size, length 31.5mm(Motor) + 27.2mm(Gearbox)

USD 46.55
Availability: 64
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Motor Specification
Inductance(mH) 4
Motor Nema Size Nema 11
Phase Resistance(ohm) 5.6
Rated Current(A) 0.67
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 7
Gearbox Specification
Backlash at No-load(Max.°) 1
Efficiency 90%
Gear Ratio 5.18:1
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 200
Max. Permissible Torque(oz.in) 283.2
Moment Permissible Torque(Ncm) 400
Moment Permissible Torque(oz.in) 5
Shaft Maximum Radial Load(N) 25
Physical Specification
Shaft Diameter(mm) 6
Shaft Length(mm) 18
Gearbox Length(mm) 27.2
Lead Length(mm) 300
Weight(g) 200
Motor Length(mm) 32
Single Shaft/Dual Shaft Dual Shaft
Shaft Type D-Cut
