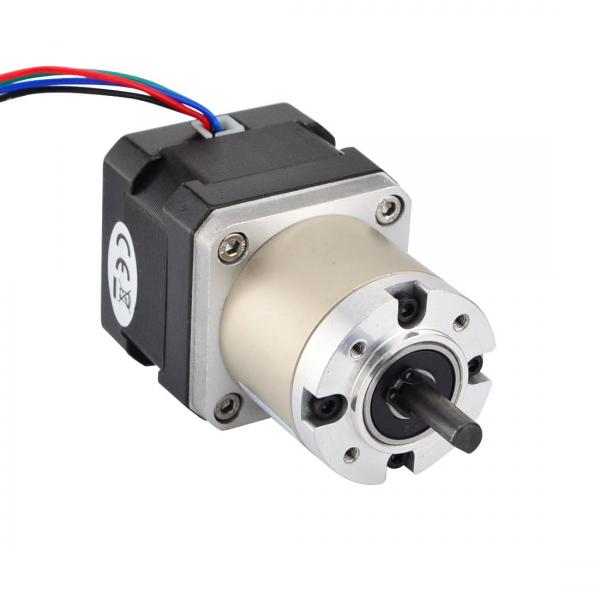

17HS13-0404S-PG27

D-cut Shaft,Top Selling, Torque type planetary gearbox, Gear ratio 26.85, Efficiency 81%, Rated current 0.40A, 2 Phase Bipolar, Nema 17 size, length 34mm(Motor) + 35mm(Gearbox)

USD 38.22
Availability: 300
Payments: Paypal, Visa, MasterCard, American Express, Bank Transfer.
Buyer Protection: 30 day returns and 1 years warranty. Read More
Motor Specification
Inductance(mH) 27
Motor Nema Size Nema 17
Phase Resistance(ohm) 30
Rated Current(A) 0.4
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 22
Holding Torque w/o Gearbox(oz.in) 31.2
No. of Lead 4
Lead Length(mm) 500
Shaft Diameter(mm) 6
Gearbox Specification
Backlash at No-load(Max.°) 1
Efficiency 81%
Gear Ratio 26.85:1
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 300
Max. Permissible Torque(oz.in) 424.8
Moment Permissible Torque(Ncm) 500
Moment Permissible Torque(oz.in) 708.1
Shaft Maximum Axial Load(N) 50
Shaft Maximum Radial Load(N) 100
Physical Specification
Gearbox Length(mm) 35
Weight(g) 500
Motor Length(mm) 34
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Shaft Length(mm) 18
